Weha/Tenax TEC715 Dry Suction Wall — 13 ft, 2 Motors, 480V
Ritiro disponibile presso Dynamic Stone Tools Warehouse (Manassas Park, VA)
Di solito pronto in 2 ore
Weha/Tenax TEC715 Dry Suction Wall — 13 ft, 2 Motors, 480V
Descrizione
Descrizione
Weha/Tenax TEC715 Dry Suction Wall — 13 ft, 2 Motors, 480V

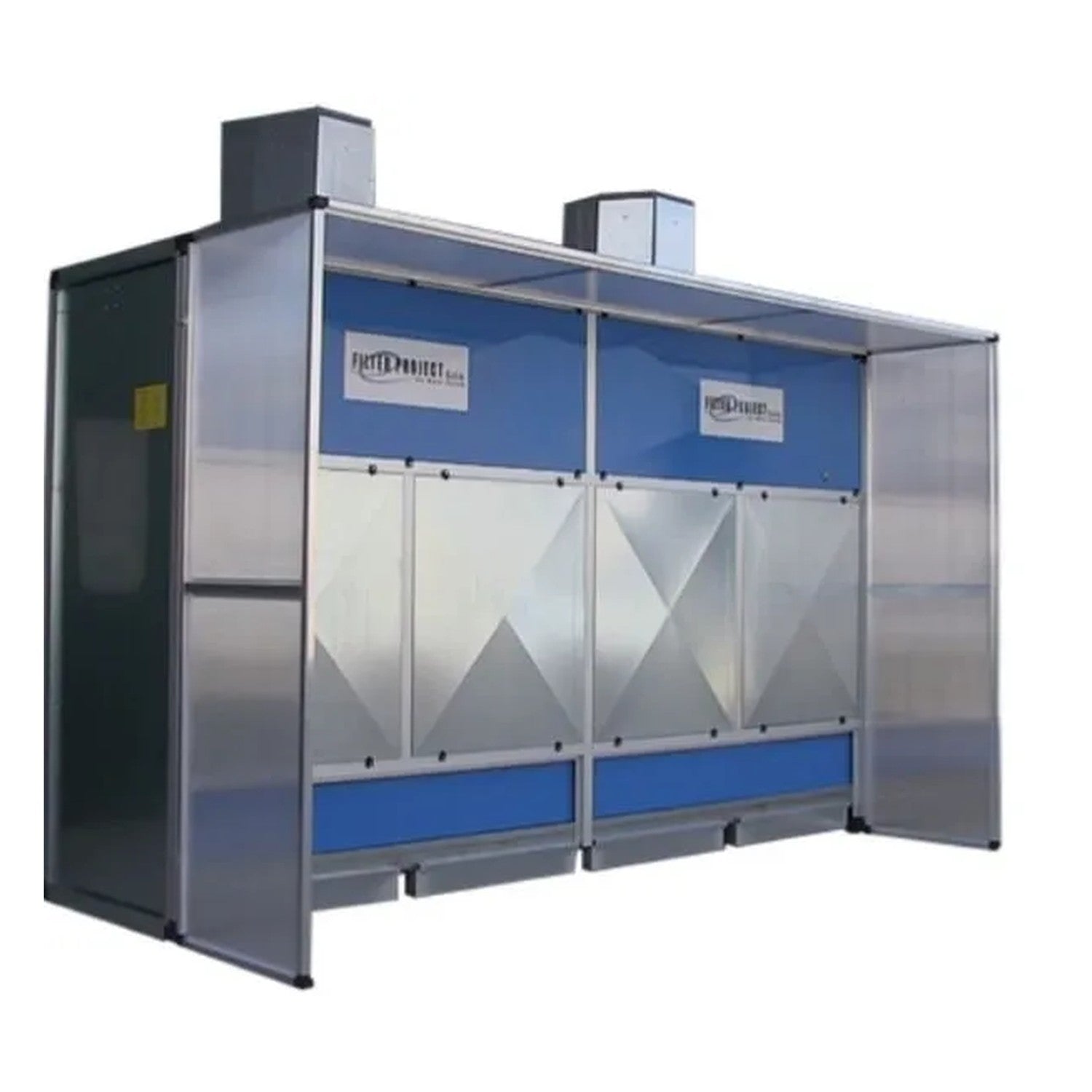

The Weha/Tenax Filter Project Dry Suction Wall is an automatic, self-cleaning dry dust-collection back wall for stone fabrication. It pulls a powerful horizontal-and-downward air curtain across the work zone to capture airborne dust at the source, helping shops meet OSHA respirable-silica requirements. This model is the 13 ft (4 m) unit with two motors wired for 480V, providing extended coverage for larger work areas.
| Property | Detail |
|---|---|
| Brand | Weha / Tenax (Filter Project) |
| Model | TEC715 |
| Type | Automatic self-cleaning dry dust-collection back wall / booth |
| Length | 13 ft (4 m) — approx. 155" suction length |
| Motors | 2 motors |
| Voltage | 480V, 3-phase |
| Dust efficiency | Captures 99.99% of airborne fabrication dust |
| Filter media | Replaceable cloth filter sleeves |
| Cleaning | Automatic compressed-air self-cleaning system |
| Construction | Heavy-duty stainless steel |
- Extended 13 ft (4 m) capture width driven by two motors for larger work zones.
- Automatic self-cleaning stainless-steel back wall built for continuous shop use.
- Captures 99.99% of airborne dust at the source with a downward air curtain.
- Replaceable cloth filter sleeves with automatic compressed-air cleaning.
- Helps fabrication shops meet OSHA respirable-silica regulations.
Dust capture for grinding, polishing, and dry fabrication of granite, marble, quartz, engineered stone, quartzite, porcelain, ceramic, fiberglass, and concrete.
Wear appropriate PPE. Follow manufacturer instructions and safety regulations.
