Aardwolf AVLP4 Vacuum Lifter
Prezzo normale
$5,394.46 USD
Prezzo unitario
Spedizione calcolata al momento del checkout.
Ritiro disponibile presso Dynamic Stone Tools Warehouse (Manassas Park, VA)
Di solito pronto in 2 ore
Aardwolf AVLP4 Vacuum Lifter
Prezzo normaleDa
$5,394.46 USD
Prezzo unitario
Aardwolf Industries | SKU:
AVLP4
Prezzo normale
$5,394.46 USD
Prezzo unitario
Spedizione calcolata al momento del checkout.
Descrizione
Descrizione
Aardwolf AVLP4 Vacuum Lifter
The Aardwolf AVLP4 is a pneumatic vacuum lifter for lifting and tilting stone slabs such as granite, marble, and other heavy materials. Powered by compressed air, it tilts smoothly from 0° to 90° for safer, more efficient slab handling. The AVLP4 (base model) is rated for a 1,000 kg (2,204 lb) class load.
Features
- Pneumatic tilting — smooth 0° to 90° vertical/horizontal tilt
- Four vacuum pads, 19.7" x 11.8" (500 x 300 mm) or 20.5" x 12.6" (520 x 320 mm) — selectable each
- Runs on 72 PSI (5 bar) shop air; ~6.4 CFM (180 L/min) consumption
- Vacuum tank holds suction during a sudden air/power loss for safety
- Audio and visual low-vacuum alarm (battery differs by model — see specs)
- High-strength aluminum handle encases the air and vacuum lines
- Handle extends 3" to 4.2" for operator comfort
| Part No | Configuration | Unit Weight |
|---|---|---|
| AVLP4 | Standard 4-pad, 2,204.6 lb (1,000 kg) | 207 lb |
| AVLP4PRO | PRO, rotating pads, 2,204.6 lb (1,000 kg) | 240 lb |
| AVLP4PRO-500L | PRO one-line, 1,102.3 lb (500 kg) | 240.3 lb |

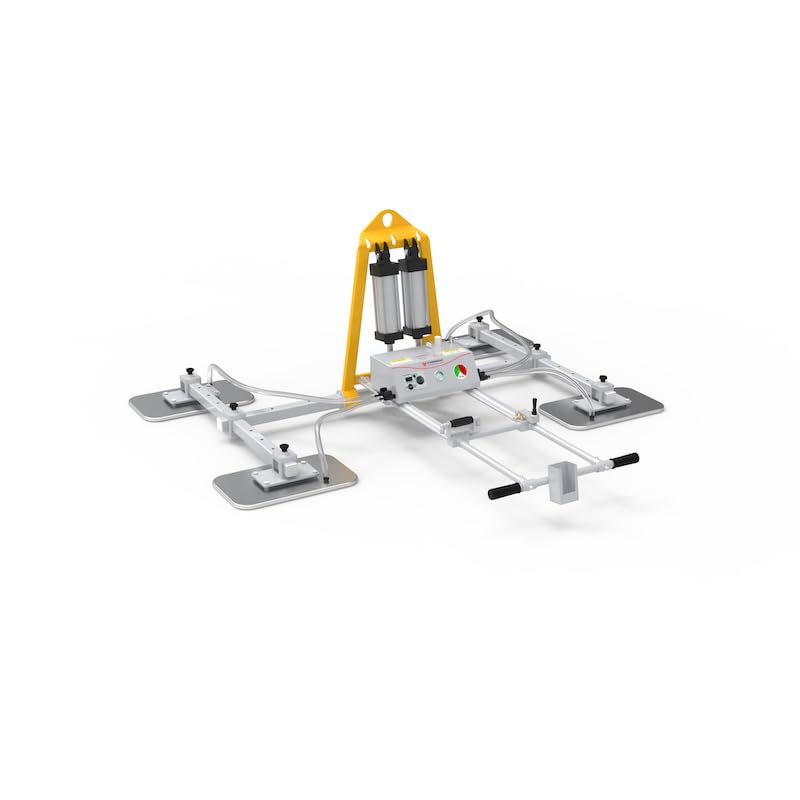

AVLP4 — Standard (SKU AVLP4)
| Property | Detail |
|---|---|
| Lifting Capacity | Horizontal 2,204 lb (1,000 kg) / Vertical 1,102 lb (500 kg) |
| Alarm Battery | 3.7V Li-Po, 2000 mAh (rechargeable) |
| Pad Configuration | Standard 4-pad spread |
| Unit Weight | 207 lb |

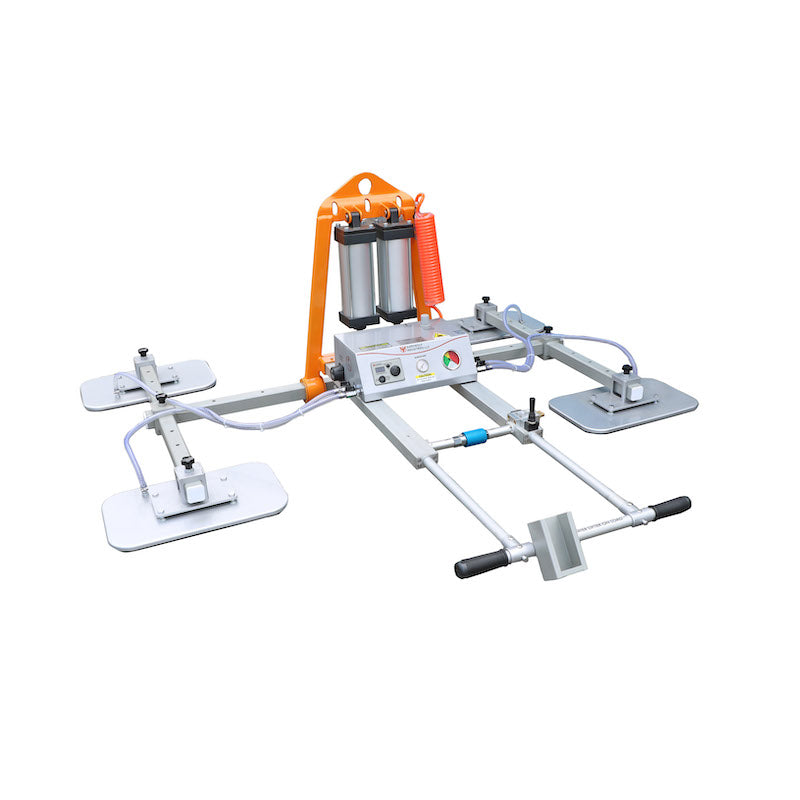

AVLP4PRO — Professional (SKU AVLP4PRO)
| Property | Detail |
|---|---|
| Lifting Capacity | Horizontal 2,204 lb (1,000 kg) / Vertical 1,102 lb (500 kg) |
| Alarm Battery | 12V (Bosch GBA 2.0Ah) — up to 120 hr alarm standby |
| Pad Configuration | Rotating pads + energy-saver mode |
| Unit Weight | 240 lb |

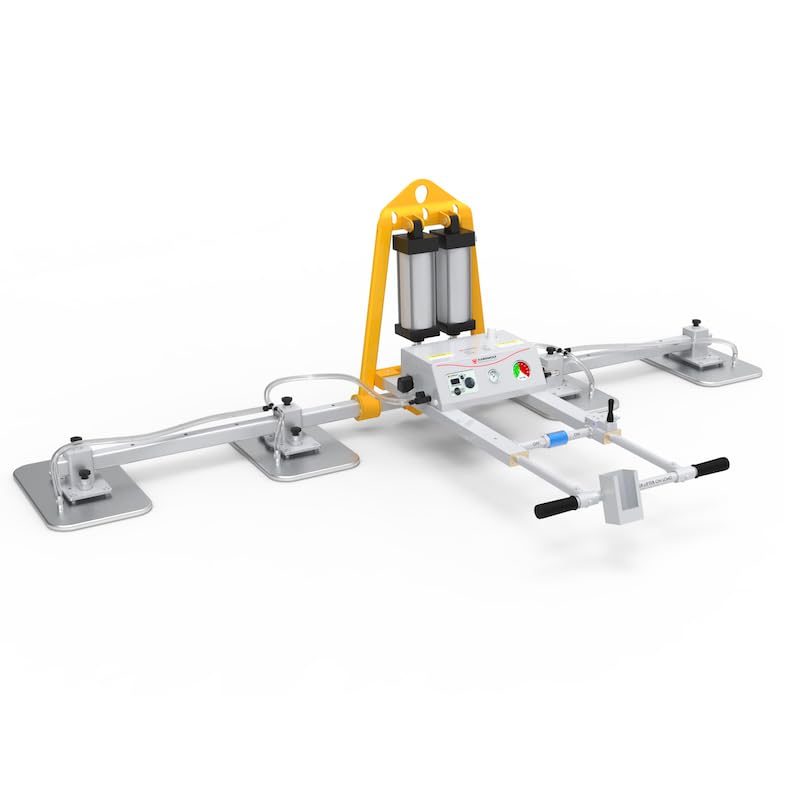

AVLP4PRO-500L — One-Line Pro (SKU AVLP4PRO-500L)
| Property | Detail |
|---|---|
| Lifting Capacity | Horizontal 1,102 lb (500 kg) / Vertical 551 lb (250 kg) |
| Alarm Battery | 12V (Bosch GBA 2.0Ah) |
| Pad Configuration | "One line" (pads in a single row) — long/narrow slabs |
| Unit Weight | 240.3 lb |
| Property | Detail |
|---|---|
| Number of Pads | 4 |
| Pad Size | 19.7" x 11.8" (500 x 300 mm) or 20.5" x 12.6" (520 x 320 mm) — selectable |
| Air Pressure | 72 PSI (5 bar) |
| Air Consumption | 6.4 CFM (180 L/min) |
| Tilt Range | 0° to 90° (pneumatic) |
| Handle Adjustment | 3" to 4.2" |
| Brand | Aardwolf |
| Country of Origin | Vietnam |
- Connect clean, dry shop air at 72 PSI (5 bar) and confirm the vacuum pump primes.
- Attach the lifting eye to a rated crane hook above the combined slab + lifter weight.
- Seat all four pads flat on clean, sound stone with no chips under the seals.
- Open the slide valve; wait for the gauge to reach the safe zone before lifting.
- Lift slowly and use the 0°–90° tilt to orient the slab.
- Set the slab down fully before releasing vacuum; confirm support, then vent the pads.
VACUUM LIFTER AVLP4 | Aardwolf
Always wear appropriate PPE and follow local safety regulations when operating material-handling equipment.
