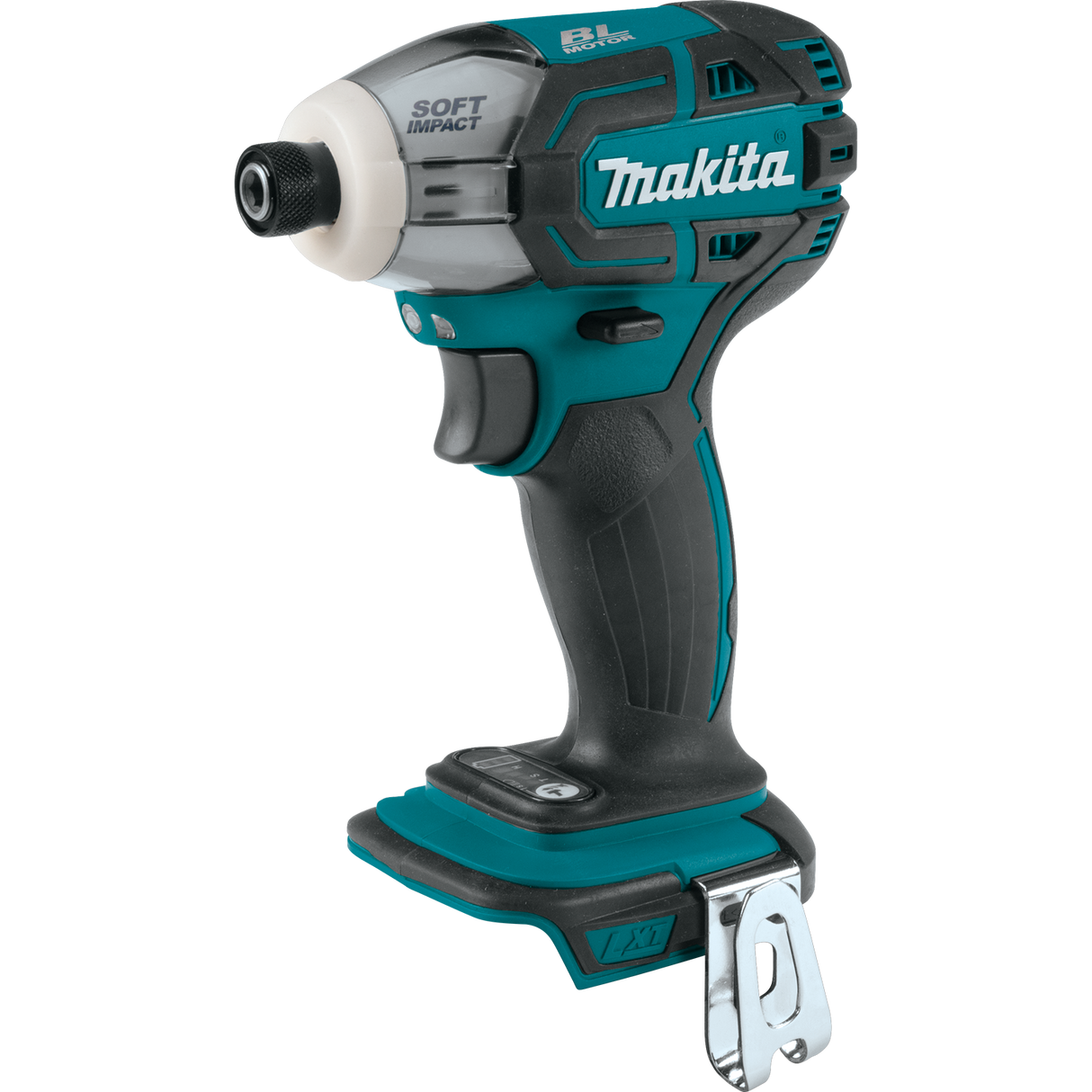

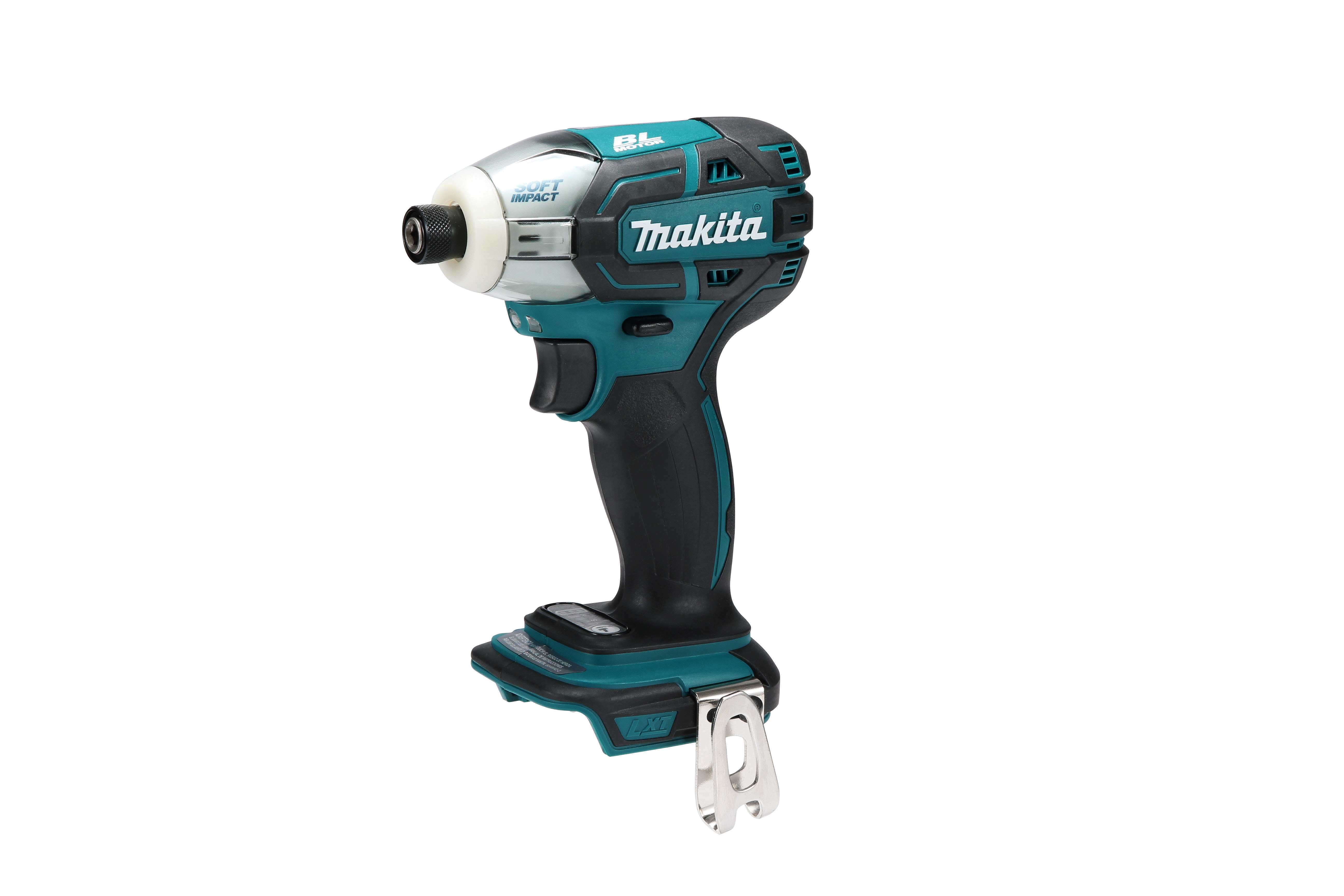

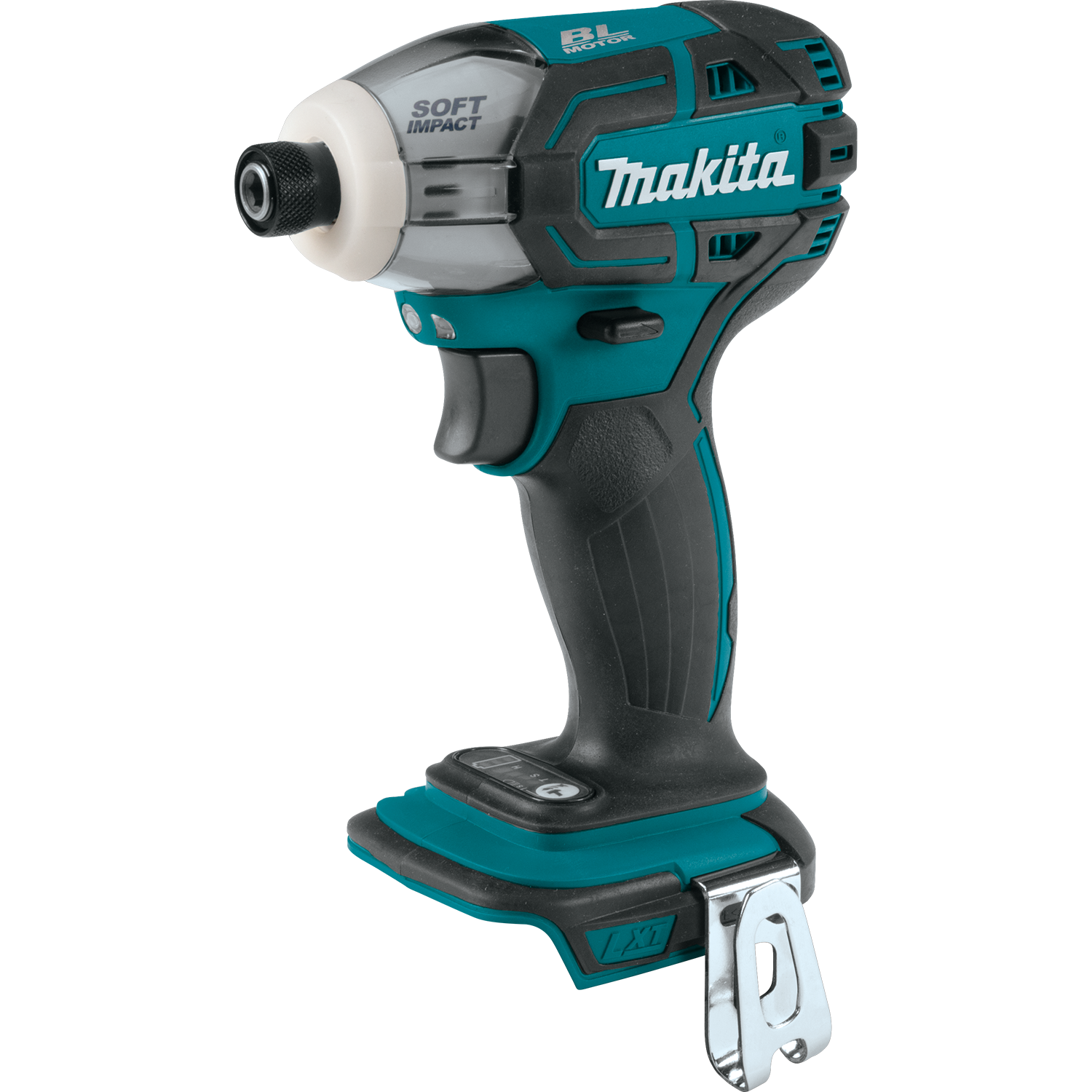

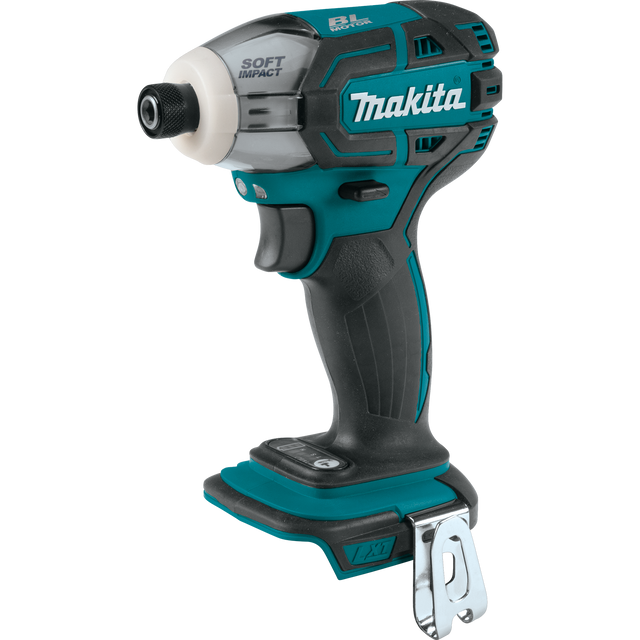

Makita® XST01Z 18V LXT® Oil-Impulse™ Brushless Cordless 3-Speed Impact Driver (Tool Only)
The Makita® XST01Z is an 18V LXT® Lithium-Ion brushless impact driver built around Oil-Impulse™ technology, which uses oil to hydraulically drive the impact mechanism instead of a conventional steel hammer-and-anvil. Makita rates the design at up to 30% lower noise for quieter operation, and the BL™ Brushless Motor runs cooler and more efficiently for longer tool life. A 3-speed power selector plus Quick-Shift Mode™ lets the driver ease off just before the fastener seats, reducing thread stripping, screw breakage and damage to the work surface. At 5-3/8" long and 3.2 lbs. with a battery, it reaches into tight spaces without wearing out the operator. Sold as a bare tool — battery and charger are not included.
Features
- Oil-Impulse™ Technology uses oil to hydraulically drive the impact mechanism for lower noise and increased efficiency
- Quick-Shift Mode™ selector automatically downshifts and reduces rotation and impact speed before the screw seats, minimizing thread stripping, screw breakage and damage to the work
- BL™ Brushless Motor eliminates carbon brushes, running cooler and more efficiently for longer life
- 3-speed power selection switch: 0–1,200 / 0–2,000 / 0–3,200 RPM and 0–1,400 / 0–2,200 / 0–2,700 IPM
- Maximum fastening torque of 355 in.lbs. (40 N·m)

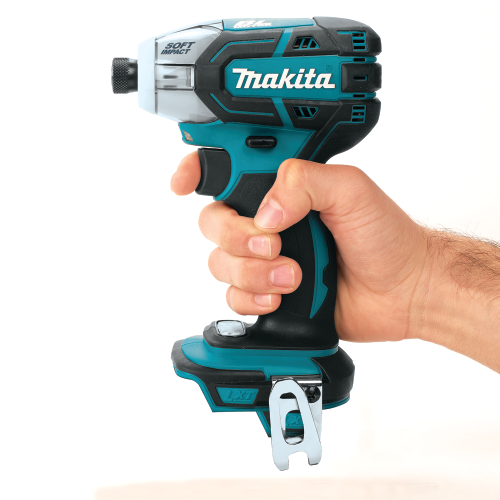

- Compact and ergonomic at only 5-3/8" long
- Weighs only 3.2 lbs. with battery for reduced operator fatigue
- 1/4" hex shank
- Extreme Protection Technology (XPT™) engineered for improved dust and water resistance

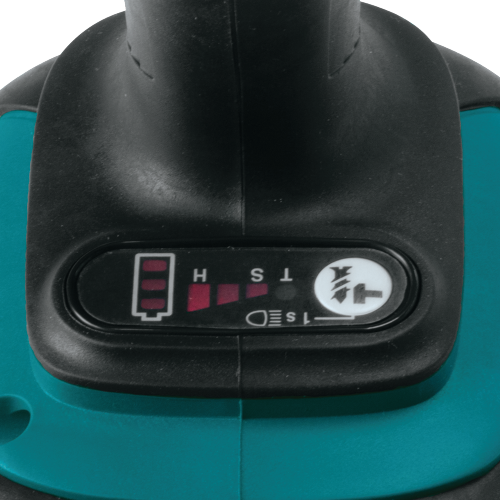

- 3-stage L.E.D. gauge indicates battery charge level
- Bare tool — battery and charger sold separately; compatible with the full 18V LXT® battery platform
| Model | Configuration | Included |
|---|---|---|
| XST01Z | Tool only (bare tool) | Impact driver only — battery and charger sold separately |
| XST01M | Kit (same tool) | Tool, (2) 18V LXT® 4.0Ah batteries (BL1840B), Rapid Optimum charger (DC18RC), tool case |
- Insert a charged 18V LXT® Lithium-Ion battery until it clicks into place.
- Fit a 1/4" hex shank driver bit into the chuck and confirm it is seated and locked.
- Set the forward / reverse lever to the required direction; the center position locks the trigger for safe transport and bit changes.
- Press the speed-selection button to choose the impact power stage — low for small or delicate fasteners, medium for general work, high for long or large-diameter screws.
- Engage Quick-Shift Mode™ when driving self-drilling or fine-thread screws so the driver eases off before the head seats.
- Hold the tool square to the fastener and squeeze the trigger progressively; trigger travel controls speed.
- Check the 3-stage L.E.D. gauge for remaining battery charge and swap the battery before it runs flat.
- Read the Makita instruction manual in full before first use and follow all safety instructions.
| Model | XST01Z |
| Shank | 1/4" hex |
| No Load Speed (3-speed, variable) | 0–1,200 / 0–2,000 / 0–3,200 RPM |
| Impacts Per Minute (3-speed, variable) | 0–1,400 / 0–2,200 / 0–2,700 IPM |
| Maximum Fastening Torque | 355 in.lbs. (40 N·m) |
| Voltage | 18V |
| Battery Platform | 18V LXT® Lithium-Ion (battery not included) |
| Motor Type | BL™ Brushless |
| Overall Length | 5-3/8" |
| Net Weight (with battery) | 3.2 lbs. |
| Shipping Weight | 2.76 lbs. |
| Packaged Dimensions | 8.07" x 5.79" x 3.31" |
| Protection | Extreme Protection Technology (XPT™) — improved dust and water resistance |
| Warranty | 3-year Makita limited warranty on tool |
The XST01Z ships as a bare tool. Makita lists the following 18V LXT® platform items as compatible options, each sold separately:
- 18V LXT® Lithium-Ion 2.0Ah Battery (BL1820B)
- 18V LXT® Lithium-Ion 3.0Ah Battery (BL1830)
- 18V LXT® Lithium-Ion 4.0Ah Battery (BL1840B)
- 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
- 18V Lithium-Ion Rapid Optimum Charger (DC18RC)
- 18V Lithium-Ion Dual Port Rapid Optimum Charger (DC18RD)
- 18V Lithium-Ion 4-Port Charger (DC18SF)
- Tool belt clip (346449-3)
Does the XST01Z include a battery or charger?
No. XST01Z is the bare tool. Batteries and chargers are sold separately. The XST01M kit version includes two 4.0Ah batteries, a charger and a case.
What does Oil-Impulse™ actually change?
Instead of a steel hammer striking a steel anvil, the impact pulse is transmitted hydraulically through oil. Makita’s product flyer headlines the design as “Up to 30% Lower Noise for Quiet Operation.”
Which batteries fit this driver?
Any Makita 18V LXT® Lithium-Ion slide-style battery, including 2.0Ah, 3.0Ah, 4.0Ah and 5.0Ah packs.
What is Quick-Shift Mode™ for?
An electronic controller downshifts rotation and impact speed just before the screw seats. It is intended to reduce stripped threads, snapped screw heads and damage to the work surface, which matters on finish work and self-drilling fasteners.
Can it take 1/4" hex socket adapters?
Yes. The 1/4" hex chuck accepts standard 1/4" hex shank bits and impact-rated socket adapters.
