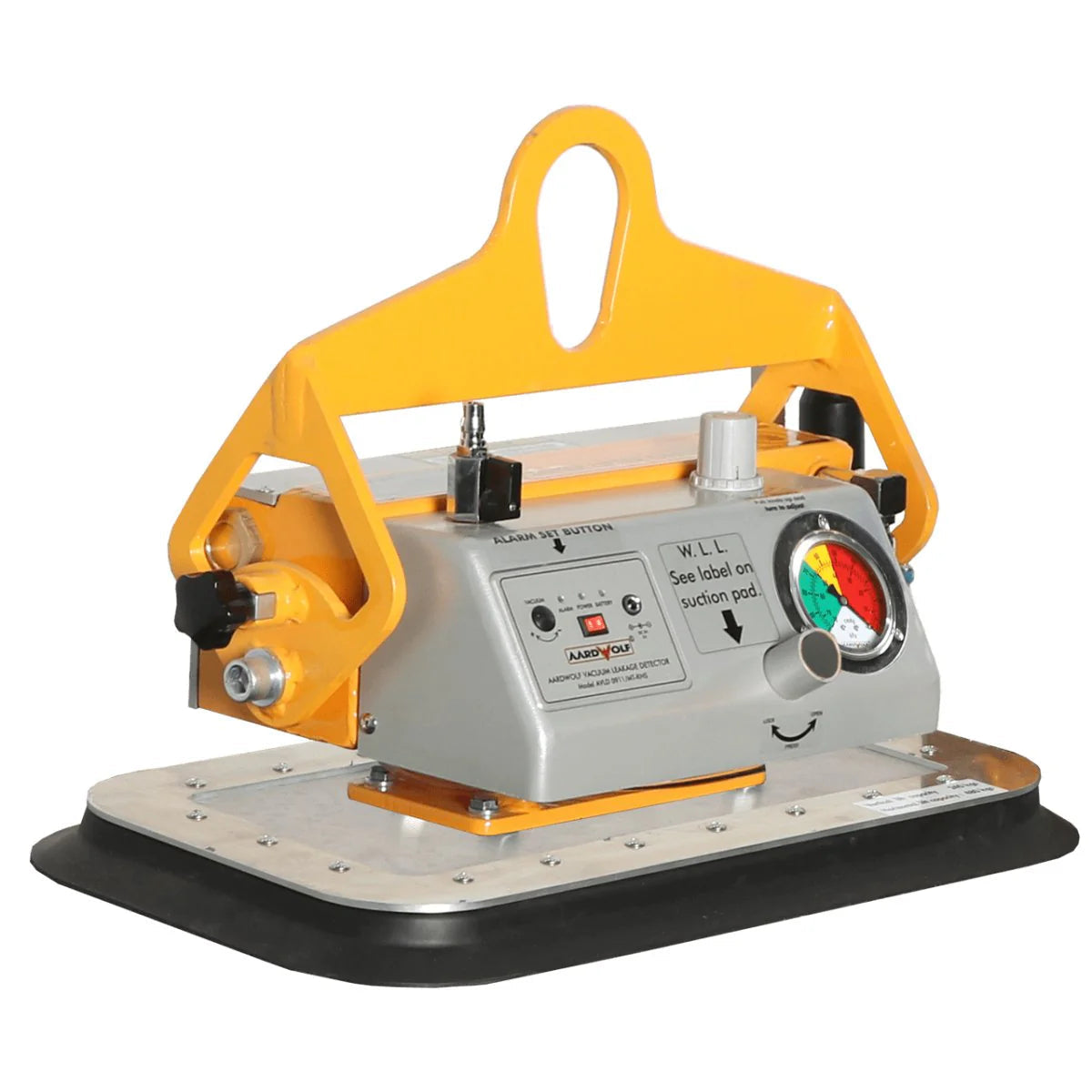

Aardwolf AVLHP240 Hand Pump Vacuum Lifter: Shop Guide

Moving large stone slabs and finished countertop sections safely is one of the highest-risk activities in a stone fabrication shop and on installation sites. The Aardwolf AVLHP240 Hand Pump Vacuum Lifter is designed to provide reliable, controlled lifting of stone and glass panels using a manually operated vacuum system that does not depend on compressed air or electrical power. Its portable, self-contained design makes it equally useful in the shop — where it reduces the crew size needed for slab rotation and countertop handling — and on the installation site, where it allows one or two workers to handle countertop sections that would otherwise require three or four people. This guide covers how to set up, operate, and maintain the AVLHP240 for maximum safety and productivity.

AVLHP240 Specifications and Capacity Overview

The Aardwolf AVLHP240 is a hand-pump vacuum lifter with a rated lifting capacity of 240 kilograms — approximately 529 pounds — making it suitable for single-piece kitchen island tops, large bathroom vanity sections, and most standard residential countertop pieces in 2-centimeter and 3-centimeter stone. The 480 designation in the full model name AVLHP240/480 refers to the option of pairing two units for a combined lifting capacity of 480 kilograms, appropriate for extra-large pieces that exceed the single-unit capacity or that require more balanced support across a wider surface area.

The vacuum system in the AVLHP240 uses a manually operated pump to generate and maintain vacuum rather than depending on a continuously running compressor or electrical supply. A single pump stroke generates enough vacuum to initiate the lift, and subsequent strokes maintain the vacuum as needed. The unit incorporates a visual vacuum gauge so operators can monitor vacuum level at all times during a lift — a critical safety feature that provides real-time warning of any vacuum decay caused by surface irregularities, seal wear, or stone porosity. An audible alarm activates when vacuum falls below a safe operating threshold, giving operators advance warning before lift capacity is compromised.

The pad configuration on the AVLHP240 uses multiple individual suction cups arranged across a spreader bar, distributing the lift force across a surface area that provides both adequate vacuum seal and stable, balanced lifting. The spreader bar configuration can be adjusted for different stone widths and panel geometries. The individual suction cups use replaceable sealing rings that maintain the vacuum seal against the stone surface — these rings wear over time, particularly on porous or rough-textured stone surfaces, and must be inspected and replaced on a regular maintenance schedule to maintain rated lift capacity.

Weight and portability are key design priorities for the AVLHP240, reflecting Aardwolf's focus on tools that work equally well in the shop and in the field. The unit is compact enough to transport in a standard panel van alongside countertop sections, and light enough that a single installer can carry it up stairs or maneuver it in tight kitchen and bathroom spaces where a full overhead lift rig would be impractical. The handle geometry and balance point of the lifter are engineered for one-person operation in most standard countertop handling scenarios, with two-person operation available for maximum-weight lifts.

Pre-Lift Safety Checks and Surface Assessment

Before using the AVLHP240 to lift any stone piece, perform a systematic pre-lift safety check that covers the tool, the stone, and the environment. On the tool side, inspect all suction cup sealing rings for cuts, compression deformation, or embedded debris, and replace any ring that shows damage. Check the vacuum gauge for correct zero reading before applying the cups to stone — a gauge that does not return to zero indicates a leak in the internal circuit that must be corrected before use. Verify that the pump mechanism operates smoothly and generates vacuum quickly, and that the vacuum retention valve holds pressure without continuous pumping when the cups are sealed against a smooth test surface.

Surface assessment of the stone piece to be lifted is equally important. The AVLHP240 requires a smooth, non-porous contact surface to maintain adequate vacuum seal. Polished stone surfaces are ideal; honed surfaces are generally acceptable. Rough or heavily textured stone surfaces — split face, bush-hammered, or heavily sandblasted finishes — are not suitable for vacuum lifting because the surface irregularity prevents the suction cup seals from forming an airtight contact. For textured stone, use mechanical clamps or lifting dogs rather than vacuum lifting. Even on smooth polished stone, check the surface for water, epoxy residue, dust, or other contamination that could break the vacuum seal, and clean the contact area thoroughly before applying the cups.

Assess the piece weight before lifting. If the piece weight is unknown, calculate it from dimensions and material density — granite and quartzite typically weigh approximately 13 to 14 pounds per square foot for 3-centimeter thickness. Verify the calculated weight is within the rated capacity of the AVLHP240, and if it approaches the rating limit, connect a second unit for a combined-capacity lift rather than operating at the edge of single-unit capacity. The rated capacity of 240 kilograms includes a safety factor, but operating consistently at or near that limit accelerates wear on the vacuum mechanism and sealing components and reduces the margin available to handle unexpected loading variations during the lift.

Operating the AVLHP240: Attachment, Pumping, and Controlled Lifts

Attach the AVLHP240 to the stone by placing the suction cup array on the polished surface at the planned lift point. The lift point should be positioned at or near the center of gravity of the stone piece — slightly toward the heavier end on asymmetric pieces. Press the cups firmly against the stone surface and pump the handle to generate vacuum. Most stones require three to five pump strokes to achieve adequate vacuum. Watch the gauge during pumping and continue until the needle reaches the green operating zone specified in the AVLHP240 manual. Do not lift until the gauge is in the operating zone and stable — a gauge that declines immediately after pumping indicates inadequate seal and the lift must not proceed.

Perform a brief test lift before any full lift operation: raise the stone just 1 to 2 inches off the support surface, pause for 15 to 20 seconds, and check the gauge. If vacuum holds within the operating zone during this pause, it is safe to proceed with the full lift. If vacuum declines during the pause, lower the stone immediately, remove the lifter, clean and inspect the contact surfaces and cup sealing rings, and reapply. Do not proceed with a lift that showed vacuum decay during the test lift — the only safe response is to identify and correct the source of the leak before attempting the lift again.

During the full lift, move smoothly and without sudden acceleration or deceleration. Vacuum lifters maintain their hold through negative pressure that is present as long as the seal is intact and the gauge is in the operating range — they do not lock mechanically, and any seal disruption causes immediate capacity loss. Keep the stone in a position that the vacuum cups are designed for — the AVLHP240 is rated for horizontal lifting (stone held in its flat plane) and limited vertical or tilted positions as specified in the product documentation. Do not rotate stone to angles not specified in the rated lift configurations without consulting Aardwolf specifications, as cup seal effectiveness varies significantly with stone angle relative to horizontal.

Shop Applications: Slab Rotation, Countertop Staging, and Loading

In the fabrication shop, the AVLHP240 is most valuable for slab rotation and countertop section handling — operations that typically require multiple crew members when done manually and that represent a significant injury risk from overexertion, dropped material, and strained backs. For slab rotation, the lifter allows one or two operators to turn a slab from its storage A-frame position to a flat cutting or polishing position without the lifting team required for manual rotation. The time saving is real: rotating a 3-centimeter granite slab manually requires three to four people working in coordination; with the AVLHP240, two people can accomplish the same operation with better control and significantly less physical strain.

For countertop staging before delivery, the AVLHP240 allows individual sections to be moved from the fabrication table to the storage area and then loaded onto the delivery vehicle by one or two people rather than the three or four required for safe manual handling. On delivery vehicles, the lifter can be used to transfer sections from the vehicle to an A-frame carrier or directly into the installation space, reducing the crew size needed at the delivery stage. For shops doing two to three deliveries per day, this crew-size reduction can translate to meaningful labor savings per job, with the lifter cost recovered quickly against the ongoing crew-size reduction.

Maintenance Schedule and Long-Term Care of the AVLHP240

The vacuum sealing rings on each suction cup are the highest-wear components of the AVLHP240 and should be inspected after every use and replaced on a scheduled basis regardless of visual condition. In a high-production shop environment handling multiple slabs per day, replace sealing rings every 30 to 45 days. In lower-volume shops or when the lifter is used primarily on polished stone surfaces (which cause less seal wear than honed or rough surfaces), replacement intervals can be extended to 60 to 90 days. Keep a stock of replacement seal rings on hand at all times so that ring replacement does not require ordering and waiting — a lifter with worn seals is an unsafe tool that should not be used until the seals are replaced.

The vacuum gauge requires periodic calibration verification to ensure it is reporting accurate vacuum levels. Test the gauge accuracy by comparing its reading to a calibrated reference gauge — many industrial supply companies offer gauge calibration services, or a local hydraulic or pneumatic service shop can perform this check. If the gauge reads significantly high (showing acceptable vacuum when actual vacuum is below safe levels), the tool will be operated in unsafe conditions because operators will believe adequate vacuum exists when it does not. Replace or recalibrate any gauge that is more than 10 percent inaccurate. Record gauge calibration checks in the tool's maintenance log.

Clean the AVLHP240 after each use with a dry cloth or compressed air to remove stone dust and epoxy debris. Avoid water or solvent cleaning of the pump mechanism unless specifically directed by the maintenance manual, as moisture in the vacuum circuit can cause corrosion of internal components. Store the lifter in a dry environment, away from chemical exposure, and in a position where the suction cups are protected from deformation — cups stored under weight or pressed against a surface for extended periods can develop a set that reduces their ability to form a flat seal on stone. The AVLHP240 Hand Pump Vacuum Lifter and spare seal kits are available at dynamicstonetools.com. Explore the full line of Aardwolf and other material handling tools for stone fabrication and installation shops.

Installation Site Use: Countertop Placement and Positioning

On installation sites, the AVLHP240 is most commonly used to lower countertop sections onto cabinets and to make fine position adjustments after initial placement. The lifter allows one installer to control a countertop section while a second installer guides the front edge into position against backsplash walls, cabinet faces, and adjacent countertop sections. This two-person operation with the lifter replaces the four-person team typically needed to safely carry and position a large countertop section manually, with significantly better control of the piece during the critical positioning phase when millimeter-level adjustments matter most.

When using the AVLHP240 for final position adjustments, maintain vacuum at operating level and move the stone with slow, controlled lateral movements. Vacuum lifters allow smooth sliding adjustment on polished stone surfaces, but dragging a stone section across cabinet tops or finished surfaces without protection can scratch those surfaces. Place felt or cardboard protective pads on cabinet tops before using the lifter to slide a stone section into its final position. After the section is correctly positioned and checked for overhang alignment and level, release the vacuum slowly using the release valve and allow the lifter to detach gently from the stone surface without sudden movement that could disturb the positioned section.
