Diamax Cyclone Engineered Stone Polishing Pads: Full Guide

Polishing engineered stone — the quartz-based composite countertop material that now accounts for a substantial share of residential countertop fabrication — requires a fundamentally different tooling approach than polishing natural granite or marble. The high resin content and extreme hardness of engineered stone surfaces demand purpose-engineered polishing pads that match the material chemistry, and the Diamax Cyclone Engineered Stone polishing pad system is one of the most widely used professional solutions in the North American fabrication market. This guide covers the complete Cyclone system, from pad selection and step sequencing through speed settings, pressure technique, seam work, and ongoing tool care.

Why Engineered Stone Requires Dedicated Polishing Pads

Engineered stone — sold under brand names including Silestone, Caesarstone, Cambria, MSI Quartz, and many others — is manufactured by combining 90 to 94 percent ground quartz aggregate with 6 to 10 percent polymer resins, pigments, and additives under vacuum and pressure. The resulting material has a surface hardness that typically exceeds natural granite, exceptional uniformity, and a surface chemistry governed by the polymer resin binder rather than by natural mineral properties. This distinction is critical for polishing: the polishing system that works beautifully on granite — which polishes through a combination of micro-abrasion and slight chemical reaction with the mineral surface — does not produce the same gloss level on engineered stone, because the resin surface responds differently to abrasion and does not undergo the same reactive polishing mechanism that works on natural minerals.

Standard granite polishing pads used on engineered stone tend to produce a surface that looks almost polished but has a slightly hazed, orange-peel, or waxy appearance compared to the factory surface of the engineered stone. This substandard result from incorrect tooling is one of the most common quality complaints in engineered stone fabrication, particularly when shops transition from a primarily granite operation to mixed-material production without updating their tooling systems. Diamax developed the Cyclone Engineered Stone pad system specifically to address this problem, formulating each grit step with the abrasive type, bond hardness, and pad geometry optimized for the resin-quartz composite surface rather than for natural stone.

The bond hardness of a polishing pad — how firmly the abrasive particles are held in the pad matrix — must match the hardness of the material being polished. If the bond is too soft for the material, abrasive particles release from the pad before they have done their full cutting work, producing a scratchy surface and short pad life. If the bond is too hard for the material, abrasive particles cannot be released or refreshed by wear on the pad surface, causing the pad to glaze over and stop cutting effectively. Engineered stone, being harder than most natural stones, requires a harder bond than granite polishing pads — a formulation difference that is built into the Cyclone system and accounts for much of its effectiveness on this material.

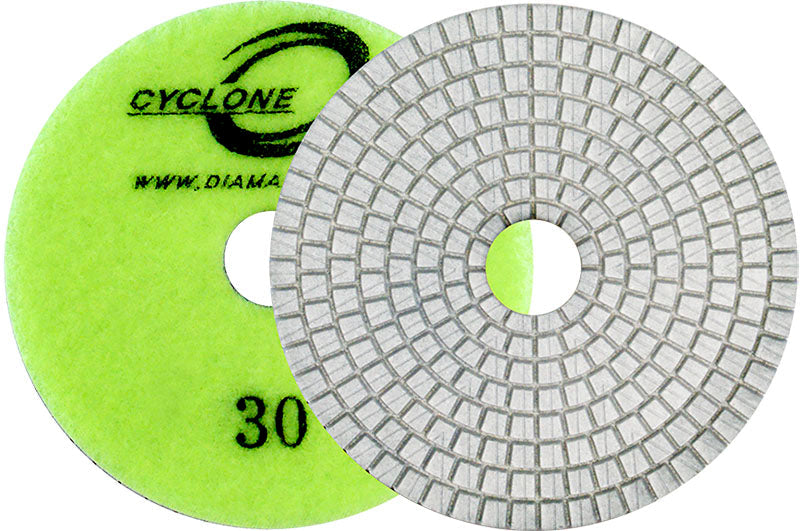

Pad geometry also affects performance on engineered stone. The Cyclone pad name reflects the circular surface pattern of the pad face, which creates a sweeping, multi-directional abrasive action as the pad rotates. This pattern distributes abrasive contact more evenly across the pad surface and across the stone surface than a straight-profile pad, reducing the risk of circular scratches from individual pad high points and producing a more uniform surface preparation at each grit step. The geometry also promotes effective water cooling at the pad-to-stone interface, which is important on engineered stone where excessive heat generation can soften the resin surface and cause smearing rather than polishing.

Cyclone ES Pad System: Step Sequences and Grit Selection

The Diamax Cyclone Engineered Stone system is available in both a 3-step (white resin) and a 7-step (Typhoon ES) configuration. The 3-step system is designed for high-throughput shops polishing surfaces that are in good condition from the bridge saw and require minimal material removal before finishing. The 7-step system provides finer grit increments that are more effective when starting from a coarser scratch pattern — for example, when polishing back a repaired area, when working with a material that saws particularly roughly, or when maximum gloss is required on a challenging surface color or finish.

For the 3-step white resin sequence, the three pads cover coarse cutting, medium preparation, and finish polishing in three passes. Each step must fully remove the scratch pattern left by the previous step before moving on — moving to the next step prematurely is the most common cause of a substandard final gloss. Check the surface under a raking light source at 45 degrees after each step. You should see only the scratch pattern of the current pad, with no coarser scratches from the previous step remaining. If coarser scratches are visible, continue with the current pad until they are gone. Rushing through steps is the single biggest efficiency mistake in engineered stone polishing — a surface that requires a complete restart because intermediate steps were skipped costs far more time than the minutes saved by rushing.

The 7-step Typhoon ES sequence provides more controlled material removal in the early steps, which is valuable when the starting surface has tool marks, edge profile marks carried onto the face, or visible saw marks from blade issues. Starting from a coarser scratch pattern on a 7-step system allows each step to remove less material while still fully addressing the previous step's scratch pattern, resulting in better surface quality at completion because no step is being asked to do more cutting work than it was designed for. For shops that regularly use CNC machines with multiple cutting operations on the same surface, the 7-step system consistently delivers better final results than the 3-step on complex multi-operation surfaces.

Speed, Pressure, and Water Flow: Machine Setup for Cyclone Pads

Engineered stone polishing with the Cyclone system is typically performed on a variable-speed angle grinder or a CNC polishing head. For hand polishing with an angle grinder, the recommended speed range for Cyclone ES pads is 2,500 to 3,500 RPM depending on the grit step — lower speeds for coarser steps where more controlled cutting is needed, and speeds in the mid-to-upper range for finishing steps where heat generation from higher speed improves surface response. Do not exceed the maximum RPM printed on each pad — overspeeding reduces pad life dramatically and can cause the pad to fail mechanically, which is a safety hazard.

Pressure applied to the pad is as important as speed. Light, consistent pressure produces better results than heavy pressure on engineered stone — heavy pressure glazes the pad surface, generates excessive heat, and produces a scratchy rather than smooth surface progression. Let the pad do the work rather than pressing harder to try to speed up the process. On a handheld angle grinder, the weight of the grinder itself provides adequate pressure on most surfaces; on a CNC machine, dial in the programmed pressure at the lower end of the manufacturer recommendation and increase only if material removal rate is clearly insufficient. For edge polishing on a profile machine, the pressure setting must be tuned for each edge profile depth because pressure distribution changes with the contact area between pad and stone as profile depth increases.

Water flow at the polishing pad is essential for all steps of the Cyclone ES system. Water serves three functions: cooling the pad and stone surface to prevent resin smearing, carrying swarf away from the polishing zone to prevent re-scratching, and maintaining the correct pad operating temperature for effective abrasive action. Inadequate water causes the pad to run hot, which softens the resin bond and causes the pad to glaze rapidly. Use a continuous water flow directed at the center of the pad, adjusted so that water does not fly off the work area excessively but is visibly present at the pad-to-stone interface throughout the polishing pass. On dry-polish capable pads, water-free polishing is possible in some applications, but wet polishing consistently produces better results on engineered stone.

Seam Polishing and Blending with Cyclone ES Pads

Polishing back engineered stone seams after epoxy removal is one of the most critical and most difficult finishing operations in quartz countertop fabrication. The seam area — where two pieces of engineered stone meet with an epoxy fill — contains both the engineered stone surface and the cured epoxy joint, and the polishing system must work on both materials simultaneously. The Cyclone ES pads are formulated with a bond hardness that handles this mixed-material polishing effectively, producing a surface where the epoxy joint, though potentially slightly different in color from the stone, has the same gloss level as the surrounding stone and does not create a visual gloss discontinuity across the seam width.

Begin seam polishing by removing all cured epoxy above the stone surface plane using a razor blade or seam saw tool. Work carefully to avoid scratching the polished stone surface immediately adjacent to the seam with the cutting tool. After removing bulk epoxy, the seam area will show a mix of rough epoxy surface, stone surface scratched by the blade, and (in a well-executed seam) a transition zone where epoxy thins to the stone level. Start the Cyclone ES pad sequence from the coarsest step required to address the scratch pattern present in the seam area — for most blade-dressed seams on a 7-step system, this is the step 3 or 4 pad, not the coarsest step, which would remove more material than necessary from the stone surface immediately adjacent to the seam.

Blend the seam polish into the surrounding polished countertop surface with progressively wider passes as you move up the grit sequence. The final grit step should be polished over the full countertop surface, not just the seam area, to ensure a continuous gloss level from seam to field. Spot-polishing only the seam area on the final step creates a visible transition between the seam gloss and the surrounding surface gloss — a common quality defect that clients notice immediately. Taking an extra few minutes to blend the final step across the full surface consistently produces seams that are invisible to all but the most careful inspection under direct raking light. Find the complete Diamax Cyclone Engineered Stone polishing pad system at dynamicstonetools.com, including both the 3-step white resin system and the 7-step Typhoon ES system, along with the full range of professional stone polishing and fabrication tools for natural stone and engineered stone applications.

Pad Life, Care, and Knowing When to Replace

Cyclone ES pad life depends on the material being polished, the speed and pressure settings, water flow adequacy, and the operator technique. Under typical production conditions polishing standard-hardness engineered stone, a set of Cyclone pads should last approximately 200 to 300 linear feet of edge polishing or the equivalent in face polishing area. Harder materials or aggressive speed and pressure settings reduce this estimate; lighter pressure and optimal water flow extend it. Track pad life by recording the linear footage or square footage polished per pad set, and establish a replacement schedule for your shop based on your actual production data rather than on general estimates.

The most reliable indicator that a pad needs replacement is reduced cutting rate — when a pad that previously cut a step in 3 minutes now requires 5 or 6 minutes to achieve the same surface progression, it is at or near the end of its useful life. Do not wait until pads stop cutting entirely before replacing them. A worn pad produces substandard surfaces even when operated correctly, and chasing good results from a worn pad consumes more time than replacing the pad and starting fresh. Maintain a small stock of replacement pads in each grit step so that replacement does not require interrupting production to place an order.

Store Cyclone ES pads flat, away from direct sunlight and heat, and in a sealed container or bag to prevent contamination from stone dust and epoxy particles that land on pad faces during shop operations. Do not stack heavy objects on stored pads — compression distortion of the pad face affects polishing performance. Clean pads after each use by rinsing with clean water and allowing them to dry completely before storage. Inspect pad faces at the start of each use for embedded stone particles, hardened epoxy deposits, or glazing on the abrasive surface — any of these conditions reduces cutting performance and should be addressed by cleaning or replacement before the pad is put back into production use.
