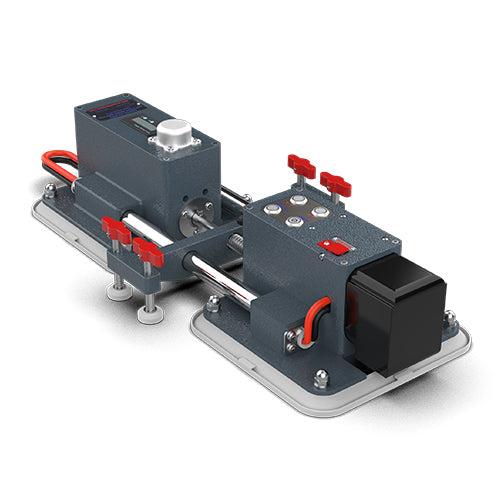

Abaco AEBSS12V-M2 Ez-Pro Battery Seam Setter: Shop Guide

The Abaco AEBSS12V-M2 Ez-Pro Battery Seam Setter represents a significant step forward in seam setting technology for stone fabrication shops. By replacing the pneumatic air hose with a rechargeable 12-volt lithium-ion battery system, Abaco has created a seam setter that moves freely across the shop floor and the installation site without a compressor tether — a genuine convenience advantage in busy shop environments and on installation jobs where a compressor is not already running. This guide covers everything a fabricator needs to know to get the most from the AEBSS12V-M2, from initial setup and battery management through seam technique, troubleshooting, and long-term maintenance.

AEBSS12V-M2 Features and Specifications Overview

The AEBSS12V-M2 Ez-Pro operates on a 12-volt lithium-ion battery platform that powers a pneumatic-equivalent clamping mechanism delivering consistent, controlled seam compression without the pulsation or inconsistency sometimes experienced with worn pneumatic hoses and couplings. The unit generates clamping force in a range appropriate for standard stone countertop seaming — sufficient to pull two pieces of 3-centimeter granite or quartzite into flush contact without over-clamping that could damage the stone or displace epoxy from the seam joint before it has begun to cure.

The battery system on the AEBSS12V-M2 uses interchangeable 12-volt lithium-ion packs that are shared with other Abaco battery-platform tools, making battery management more economical for shops that already use other Abaco cordless equipment. A fully charged battery pack provides enough operational capacity for a full day of seam setting in a normal production shop environment — typically 20 to 35 seams depending on seam length and clamping duration. Shops doing high-volume countertop production should keep at least two battery packs charged and rotating to ensure the tool is always ready without interruption. The battery charger included with the unit charges a depleted pack in approximately one hour, compatible with standard 110-volt shop circuits.

Physical dimensions and weight of the AEBSS12V-M2 are engineered for one-person operation in most seaming scenarios. The unit is compact enough to maneuver between cabinet boxes during installation-site seaming, and the handle position and grip geometry are designed to reduce operator fatigue during extended seaming sessions. The clamping pads are replaceable, which is important for maintaining consistent seam quality over the tool lifetime — worn or contaminated pads should be replaced rather than cleaned, because residual epoxy or stone dust on clamping surfaces creates uneven pressure distribution that compromises seam flush quality.

The Ez-Pro product line name reflects the tool's design intent: to make professional-quality seam setting accessible to fabricators at all experience levels while delivering results that experienced operators can rely on for demanding work. The controlled, consistent clamping action of the battery-driven mechanism is more forgiving of operator variability than traditional screw-clamp seam setters, where the applied torque depends entirely on the operator's feel and technique. This consistency is particularly valuable in shops where multiple technicians perform seam setting, because it reduces the skill-dependence of a quality outcome and allows shops to deliver more uniform seam quality across all staff.

Setting Up the AEBSS12V-M2 for Your First Seam

Before using the AEBSS12V-M2 for production seaming, charge both battery packs fully and familiarize yourself with the clamping mechanism by practicing on scrap stone pieces. Set up a seam station in your shop where you can work consistently — a flat, stable surface at comfortable working height, with good lighting over the seam line and easy access to your epoxy, color pigments, and cleanup materials. A well-organized seam station dramatically improves the quality and speed of seam work because you are not searching for tools or materials during the short working-time window of the epoxy.

Prepare the seam edges on both stone pieces before setting up the AEBSS12V-M2. Both mating edges must be straight, flat, and free of chips, burrs, or ledges that would prevent full contact across the seam length. Check the fit of the two pieces together on a flat surface before applying any epoxy — if light passes through the seam at any point, the edge has a crown or gap that must be corrected before the seam can be properly set. A consistent 0.5-millimeter to 1-millimeter gap uniformly along the entire seam length is ideal for epoxy seams, allowing adequate fill without excess material to clean up.

Position the AEBSS12V-M2 clamping pads on the stone pieces before mixing epoxy. Experiment with pad placement to find the position that produces the most uniform compression along the seam — the pads should be positioned so that the clamping force is applied perpendicular to the seam line, not at an angle that could cause one piece to slide relative to the other during clamping. On seams longer than 30 inches, use two units simultaneously if available, or plan to set the seam in sections, working from one end to the other before the epoxy in the first section begins to gel. Having a plan for long seams before mixing epoxy prevents the rushed, inconsistent clamping that results from running out of working time mid-seam.

Seam Technique: Epoxy Preparation, Application, and Clamping

Seam epoxy for stone fabrication is a two-component system — a resin and a hardener — that must be mixed in the correct ratio to cure properly. The AEBSS12V-M2 is a mechanical clamping tool, not an epoxy dispensing system, so epoxy selection and preparation is a separate step that must be completed before the clamping tool is engaged. Choose a seam epoxy with a working time appropriate for your seam length and ambient temperature. Most shop-temperature seam epoxies have a working time of 5 to 12 minutes, with shorter times in warmer conditions. Know your product's working time before starting, and do not mix more than you can apply and clamp within 75 percent of the stated working time.

Color-match the epoxy before production by testing on a scrap piece of the same material and allowing the test sample to fully cure before evaluating the color. Epoxy color at the time of mixing often differs significantly from the cured color — particularly with white and lighter pigments, which tend to dry slightly lighter and more opaque than they appear in the wet state. Build a reference card for each stone material you regularly seam, showing the epoxy formulation that produces the best cured color match, and update it whenever material lots change. A seam that is invisible at installation and remains invisible as the stone ages is the goal; achieving this consistently requires systematic epoxy color management, not guesswork at the bench.

Apply epoxy to both seam faces using a narrow brush or applicator stick, ensuring complete coverage across the full height of the stone edge. On 3-centimeter stone, the epoxy must cover the full 1.25-inch edge height from top to bottom — a seam that is bonded at the top and bottom but has a void in the middle will develop a visible crack along the void line as the top surface of the seam flexes under normal loading. Press the two pieces together immediately after epoxy application, then engage the AEBSS12V-M2 clamping mechanism to apply consistent compression across the seam. Epoxy squeeze-out at the top surface confirms adequate coverage — too much squeeze-out suggests too much epoxy was applied and will require more cleanup; no squeeze-out at any point along the seam suggests a coverage gap that may create a weak point.

Achieving Flush Seams: Level Setting and Surface Preparation

Seam flush — the absence of any height difference between the two stone pieces at the seam line — is the most visible quality indicator in countertop fabrication, and achieving consistent flush with the AEBSS12V-M2 requires attention to surface preparation before clamping. Both pieces must rest on a flat, level reference surface during clamping — any twist or bow in the support surface will transfer to the stone assembly during curing and result in a seam that is flush at one end but has measurable lippage at the other. Use a precision level or straightedge across the support surface before setting up any seam, and shim as needed to achieve flatness within 0.5 millimeters across the full seam length.

Stone pieces that have slight bow or warp — common in thin slabs and in stone with internal stress from fabrication — require additional clamping points or weights to hold them flat during epoxy cure. The AEBSS12V-M2 applies compression at the seam line, but does not resist out-of-plane movement of the stone away from the seam. Supplement the seam setter with suction cups and bar clamps at the ends of the assembly if either piece has any tendency to lift off the support surface. Check that both pieces are fully seated on the reference surface at multiple points before engaging the seam setter and allowing the epoxy to begin its cure.

After the epoxy has cured to a solid state — typically 20 to 30 minutes for most fast-set shop epoxies — remove the AEBSS12V-M2 and clean the seam surface. Use a razor blade or seam saw to remove excess cured epoxy from the top surface, being careful not to scratch the polished stone. Follow with a polishing pad to blend the seam area back to the surrounding stone finish. A properly executed seam with correctly color-matched epoxy, flush stone faces, and good surface blending should be nearly invisible in normal lighting and visible only as a fine hairline under raking or direct light. Visit dynamicstonetools.com to order the Abaco AEBSS12V-M2 and browse the full selection of professional stone fabrication tools including seam setters, diamond blades, and polishing systems.

Maintenance, Troubleshooting, and Battery Care for the AEBSS12V-M2

Daily maintenance of the AEBSS12V-M2 takes only a few minutes and significantly extends the tool's service life. After each use, wipe the clamping pads and mechanism housing with a clean cloth to remove stone dust and epoxy residue. Check the clamping pads for wear or embedded material, and replace pads that show uneven wear or surface contamination that cannot be cleaned. Inspect the battery contacts on both the tool and the battery pack for corrosion or debris, and clean with a dry cloth or contact cleaner if necessary. Store the tool in a dry location away from extreme temperature — both very cold and very hot storage conditions accelerate battery degradation.

Battery management is the most important maintenance activity for cordless tool longevity. Charge lithium-ion battery packs using only the charger supplied or specified by Abaco — using incompatible chargers can damage the battery management circuit and reduce pack capacity. Do not store battery packs in a fully discharged state for extended periods; a partial charge of 40 to 60 percent is the optimal storage state for lithium-ion chemistry. If the tool will not be used for more than two weeks, remove the battery pack and store it separately at the partial charge level. Replace battery packs when capacity has declined to the point that the tool cannot complete a full day of production work on a single charge.

Common troubleshooting issues with battery seam setters include reduced clamping force (usually caused by a low or degraded battery pack), uneven clamping across the seam (usually caused by worn or contaminated pads), and failure to engage (often a contact issue between battery and tool). Address each with the relevant maintenance step before assuming a mechanical fault. If the tool fails to operate correctly after battery replacement and pad inspection, contact your dealer or Abaco directly for service guidance. Do not attempt to disassemble the clamping mechanism for internal repairs without factory authorization, as this can void the warranty and create safety risks if the mechanism is reassembled incorrectly.
