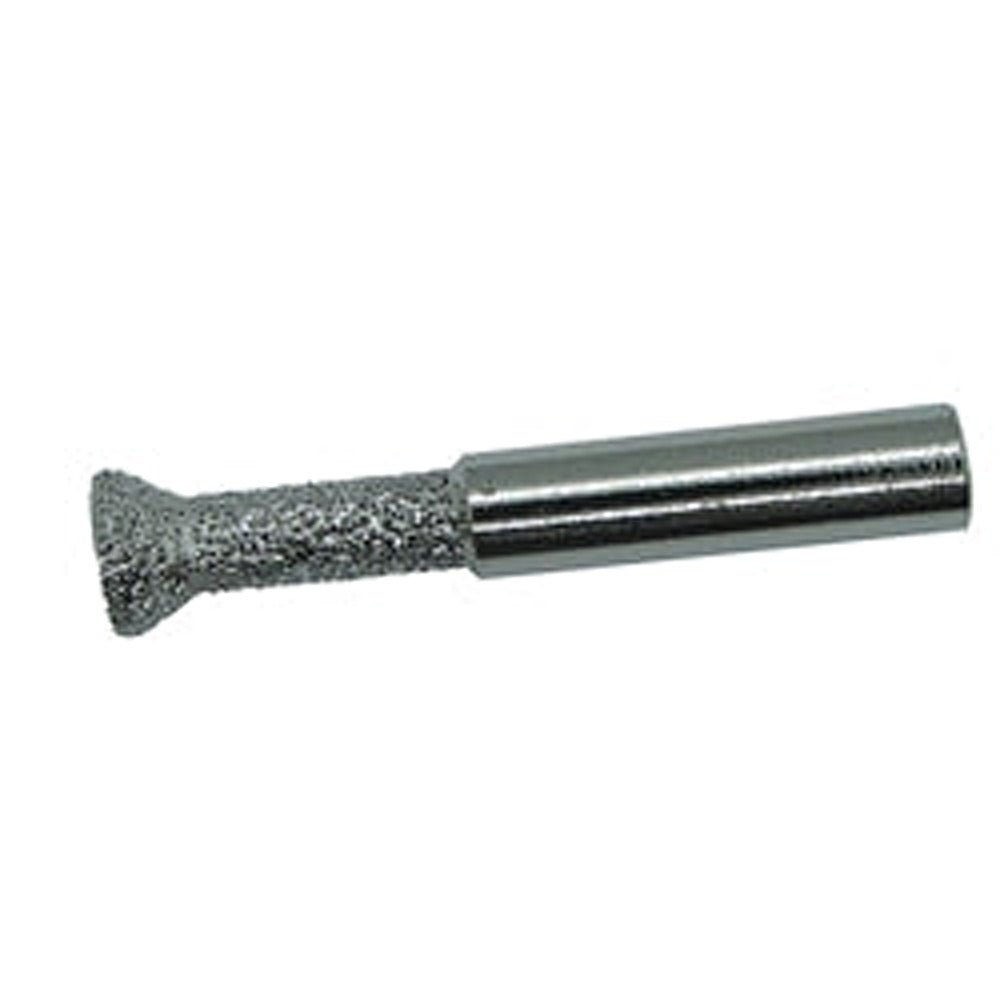

Weha T-31 Vacuum Brazed Anchor Bit Shaft
Replacement vacuum-brazed anchor bit shaft for the Weha T-31 anchor drilling system used to install undercut anchors in stone slabs and panels. Vacuum-brazed diamond construction provides aggressive cutting with extended life on granite, marble, and engineered stone.
Features
- Replacement shaft for Weha T-31 anchor bit assembly
- Vacuum-brazed diamond construction
- Aggressive cutting in granite, marble, and engineered stone
- Direct-fit replacement for the T-31 system
| Property | Detail |
|---|---|
| Brand | Weha |
| Part Number | 30151 |
| Type | Vacuum brazed anchor bit shaft |
| Compatible System | Weha T-31 Anchor Machine |
| Diamond Bond | Vacuum brazed |
| Unit Weight | 2.2 lb (1.0 kg) |
- Power off and lock out the T-31 machine before changing shafts.
- Remove the worn shaft and inspect the spindle interface.
- Install the replacement shaft, verifying full seating and thread engagement.
- Run with continuous water cooling per the T-31 spec.
- Wear ANSI Z87 eye protection and a dust-rated respirator.
- Inspect the tool/accessory before each use; remove from service if cracks, deformation, or excessive wear are visible.
- Follow OSHA and local site safety procedures at all times.
- Wet cut only — never dry-drill anchor holes with this shaft.
Always wear appropriate PPE. Follow local safety regulations when using power tools or material-handling equipment.
