Pull-To-Cut Shroud Kit Removes Dust For Dry Pull-To-Cut Method
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Description
Description

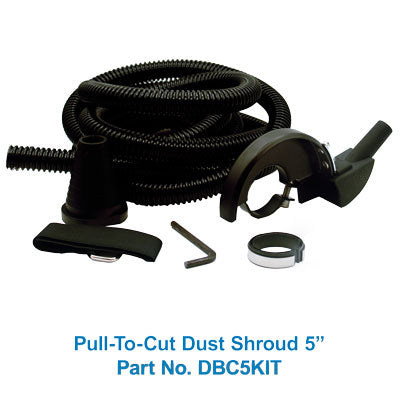

Pull-To-Cut Shroud Kit
This unique shroud is designed to remove dust when using the pull-to-cut method. It can be used easily with minimal alterations and fits on most popular 4-1/2", 5" and 6" high-speed angle grinders. Pair it with a HEPA vacuum for a virtually dust-free application.
Features
- Designed to remove dust when using the pull-to-cut method
- Installs easily with minimal alterations to the grinder
- Fits most popular 4-1/2", 5" and 6" high-speed angle grinders
- Optimized for use with a HEPA vacuum for dust-free cutting
- Kit includes safety guard, dust cover, stainless steel collar, plastic collar, and vacuum hose
| Part No. | Size | Contents | UPC |
|---|---|---|---|
| DBC5KIT | 5" | Safety guard, dust cover, stainless steel collar, plastic collar, vacuum hose | 749173462368 |
| DBC6KIT | 6" | Safety guard, dust cover, stainless steel collar, plastic collar, vacuum hose | 749173462375 |
- Confirm your angle grinder is compatible (4-1/2", 5" or 6" high-speed) and powered off / unplugged.
- Install the stainless steel or plastic collar onto the grinder spindle housing as shown in the manual.
- Attach the safety guard and dust cover, securing all fasteners per the included schematic.
- Connect the 1" vacuum hose to the shroud port and to a HEPA vacuum.
- Mount a dry-cutting diamond blade (5" max for DBC5KIT, 6" max for DBC6KIT) and verify free rotation before powering on.
- Start the HEPA vacuum first, then start the grinder and use a pull-to-cut motion for dust-controlled cutting.
5" — DBC5KIT
| Part No. | DBC5KIT |
| UPC | 749173462368 |
| Size | 5" |
| Recommended For | Dry cutting with 4-1/2", 5" or 6" high-speed angle grinders (max 5" blade) |
| Packaged Weight | 2.60 lbs |
| Package Dimensions | 9.5" x 10.5" x 5.5" |
| Commodity Code | 8466.91.0000 |
| Country of Origin | China |
6" — DBC6KIT
| Part No. | DBC6KIT |
| UPC | 749173462375 |
| Size | 6" |
| Recommended For | Dry cutting with 4-1/2", 5" or 6" high-speed angle grinders (max 6" blade) |
| Packaged Weight | 2.60 lbs |
| Package Dimensions | 9.5" x 10.5" x 5.5" |
| Commodity Code | 8466.91.0000 |
| Country of Origin | China |
| Property | Detail |
|---|---|
| Application | Dust removal for dry pull-to-cut diamond blade cutting |
| Compatible Grinders | 4-1/2", 5" and 6" high-speed angle grinders (most major brands) |
| Recommended Vacuum | HEPA vacuum (Alpha 9.3 or 13.2 gallon recommended) |
| Hose Connection | 1" diameter vacuum hose port |
| Kit Contents | Safety guard, dust cover, stainless steel collar, plastic collar, vacuum hose |
What is the maximum blade size I can use with the Dust Shroud Kit 5"?
Although you can install the Dust Shroud Kit 5" on a 6" angle grinder, the maximum blade diameter is 5".
Can I use the Dust Shroud Kit with my Shop-Vac or other HEPA vacuum?
Alpha recommends a high-end HEPA vacuum. Diamond-blade dust is very fine and tends to clog inexpensive vacuums quickly.
Can I purchase replacement parts for the Dust Shroud Kit?
Yes, certain parts and accessories are available through Alpha at www.alpha-tools.com.
Am I in compliance with OSHA Table 1?
Officially no — the 1" diameter dust hose is not listed under OSHA Table 1. In practice CFM of the HEPA vacuum is the key factor, and the 1" hose provides good suction and maneuverability.
How do I know if the Dust Shroud Kit fits my grinder?
Grinder models change constantly, so we cannot list every compatible model, but the kit fits most major brand 4-1/2", 5" and 6" high-speed angle grinders.
Which HEPA vacuum do you recommend?
Alpha offers HEPA vacuums in 9.3 or 13.2 gallon canisters. Both run on 115V and are well suited to jobsite dust collection.

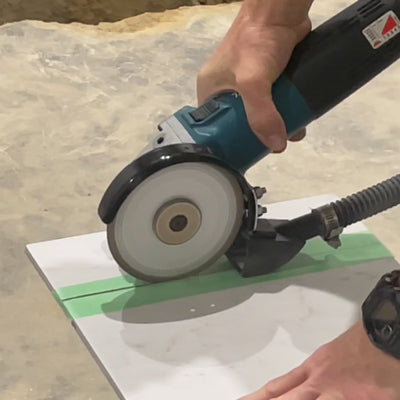

Pull-To-Cut Shroud Kit Demonstration
