Omni Cubed | SKU:
CLAMP-LC
Sold out
New arrival
Omni Cubed LC Clamp Assembly — Replacement Clamp for All Lam-Clamp Sizes
Regular price
$60.00 USD
Unit price
Shipping calculated at checkout.
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Description
Description

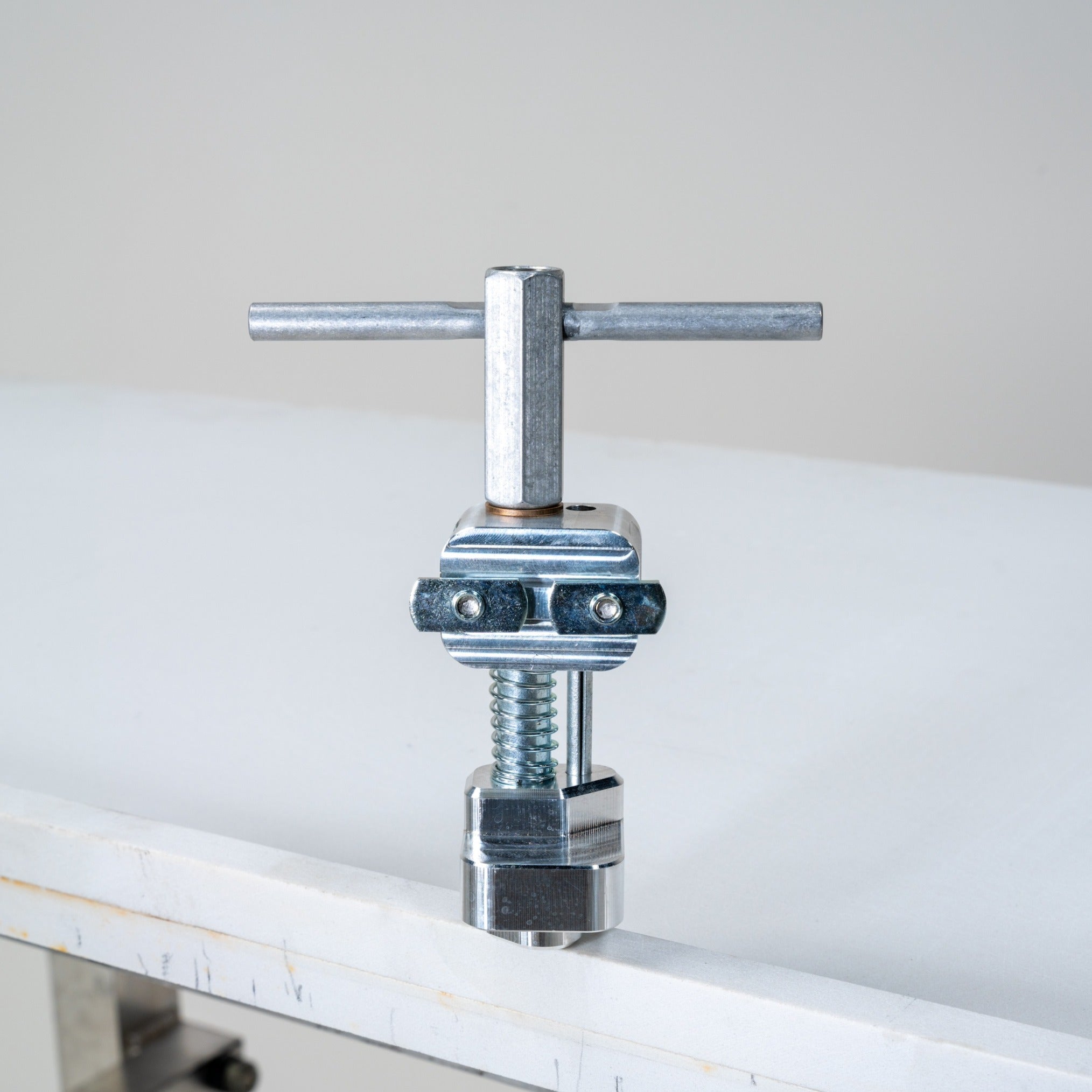

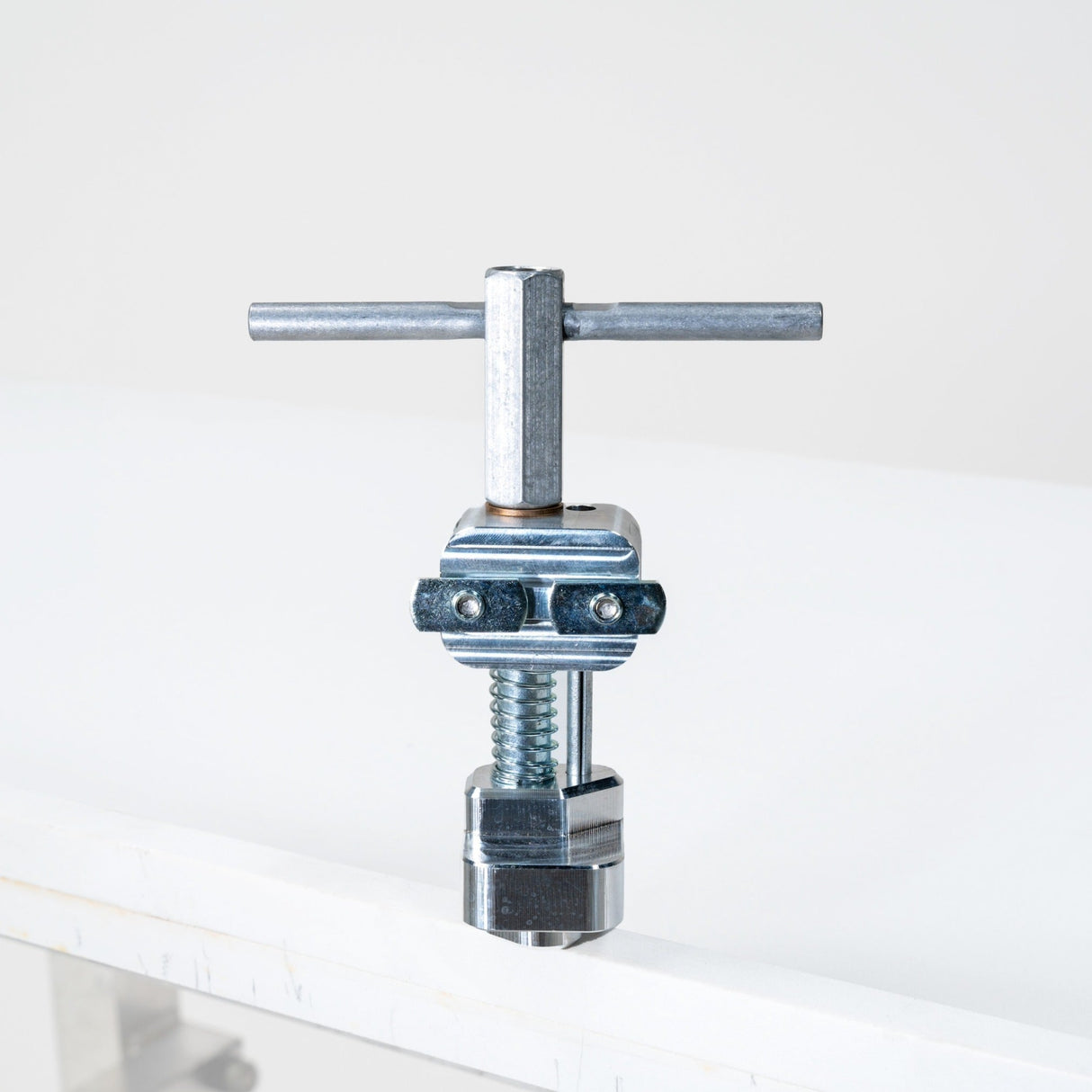

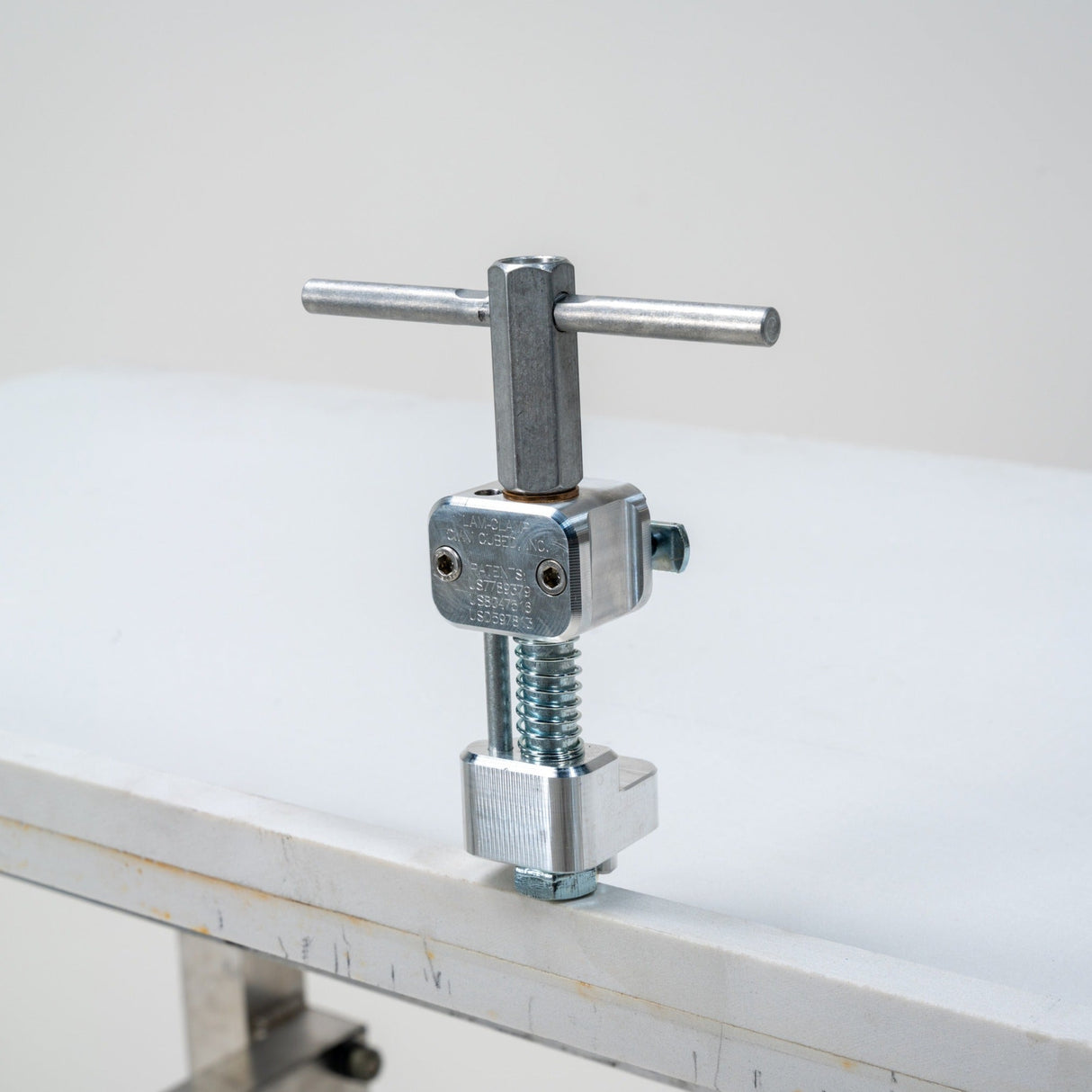

Omni Cubed LC Clamp Assembly — Replacement Clamp for All Lam-Clamp Sizes
One complete clamp assembly compatible with any model Lam-Clamp™. Built for stone fabrication including granite, with the same hidden rust-free thread design and even-pressure construction as the original. Drop-in replacement for any Lam-Clamp size — 5", 10", 2', 3', 4' or 6'.
Features
- Compatible with every Lam-Clamp™ size (5", 10", 2', 3', 4', 6')
- Hidden rust-free thread — resists epoxy buildup
- Anodized aluminum body with stainless steel hardware
- Direct factory replacement — no rework or fitting needed
- Same large ergonomic handle for high torque
- Loosen and remove the worn or damaged clamp from the Lam-Clamp rail.
- Slide the new LC Clamp Assembly onto the rail in the same orientation.
- Tighten the clamp handle until snug against the laminate edge.
- Verify even pressure along the lamination joint before applying adhesive.
- Wear safety glasses during installation and follow all PPE guidance from the original Lam-Clamp manual.
| Property | Detail |
|---|---|
| Product Dimensions | 6 × 5.5 × 2 in |
| Product Weight | 1 lb |
| Package Dimensions | 6 × 6 × 2 in |
| Shipping Weight | 2 lb |
| Materials | Aluminum, stainless steel, zinc-plated steel |
| Compatible Tools | All Omni Cubed Lam-Clamp™ models |
| Manufacturer | Omni Cubed (USA) |
| Warranty | 5-year manufacturer warranty |
- Granite
- Marble
- Quartz
- Engineered Stone
- Natural Stone
Always wear appropriate PPE. Follow Omni Cubed manufacturer instructions when servicing or replacing Lam-Clamp components.
