Laser-welded segmented diamond core bits engineered for fast, clean holes in granite, engineered stone, porcelain, and most hard interior surfaces. The 3/8" and 1/2" sizes are wet-only; 3/4" through 4" run wet or dry. All bits thread directly onto standard 5/8"-11 angle-grinder spindles for hand-held countertop, hardscape, and pool-deck work.
Features
Laser-welded segments - handle higher torque than brazed bonds
5/8"-11 thread fits any standard high-speed angle grinder
Wet/Dry capability on 3/4"+ sizes; pavers can be drilled dry
Maximum drilling depth: 4" per bit
Sizes from 3/8" pilot holes up to 4" sink-radius corners

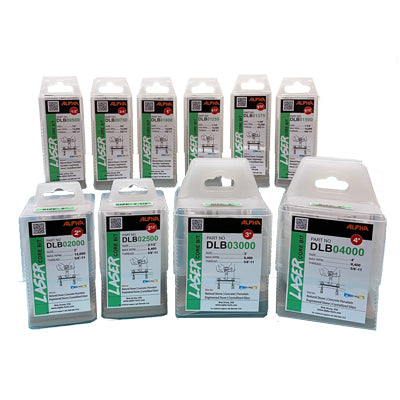

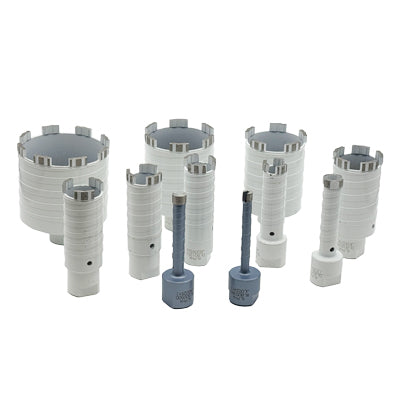

Complete 11-piece kit (DLB11KIT) ships in a hard-shell toolbox
Part No.
Diameter
Max RPM
Wet/Dry
Weight
UPC

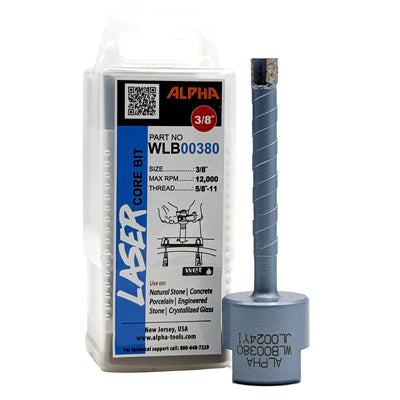

WLB00380
3/8"
12,000
Wet Only
0.4 lb
749173462498
WLB00500
1/2"
12,000
Wet Only
0.4 lb
749173462504
DLB00750
3/4"
12,000
Wet/Dry
0.5 lb
749173462269
DLB01000
1"
12,000
Wet/Dry
0.5 lb
749173462276
DLB01250
1-1/4"
12,000
Wet/Dry
0.6 lb
749173462283
DLB01375
1-3/8"
12,000
Wet/Dry
0.6 lb
749173462290
DLB01500
1-1/2"
12,000
Wet/Dry
0.7 lb
749173462306
DLB02000
2"
12,000
Wet/Dry
1.0 lb
749173462313
DLB02500
2-1/2"
8,400
Wet/Dry
1.3 lb
749173462320
DLB03000
3"
8,400
Wet/Dry
2.0 lb
749173462337
DLB04000
4"
8,400
Wet/Dry
3.0 lb
749173462344
DLB11KIT
Kit
12,000 / 8,400
Wet & Wet/Dry
14.10 lb
749173462559

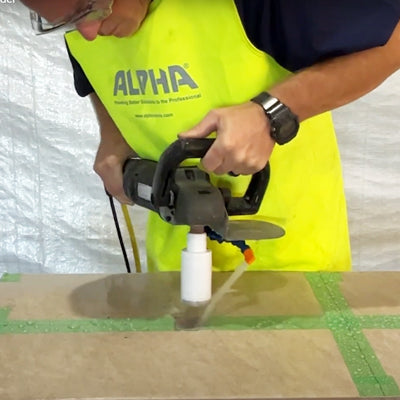

Thread the bit onto a 5/8"-11 angle grinder. Hand-tighten only - never wrench-tighten.

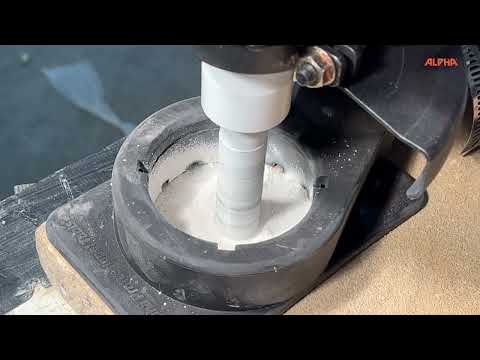

For wet drilling, supply water continuously to the cut zone (G-Tape reservoir or hose feed).

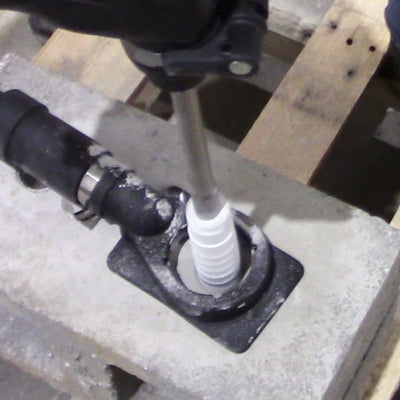

Use a pilot carbide bit or jig to stabilize hand-held starts on smooth surfaces.
Maintain steady pressure - let the diamonds cut. Avoid percussion / hammering, which destroys the diamond grit.
Pull the bit back every inch of depth to flush slurry and cool the segments.
Maximum drilling depth per bit is 4". Use the Alpha Core Bit Extender for deeper holes.

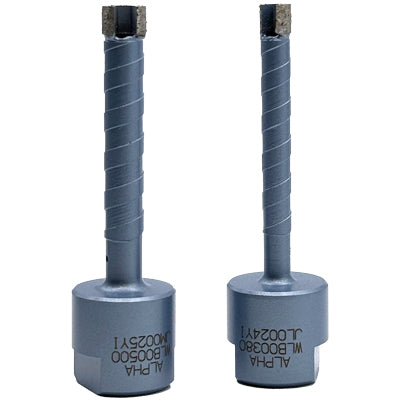

Yes. Porcelain pavers and most hardscape stone can be drilled dry with the DLB-series bits. The WLB 3/8" and 1/2" are wet-only.
Why does my bit lose its bite quickly?
Most often percussion or hammering - these destroy the diamond grit. Let the bit cut under steady pressure, and use water on deep applications to flush swarf.
How deep can I drill with one bit?
4" is the maximum drilling depth. Use the Alpha Core Bit Extender for deeper holes.
Do I need a pilot bit for hand-held work?
Yes - a carbide pilot bit or drilling jig stabilizes the start on smooth surfaces and prevents walking.
Will these work on my angle grinder?
Any standard high-speed grinder with a 5/8"-11 spindle. Stay at or below the listed Max RPM (12,000 for under 2", 8,400 for 2-1/2"-4").
No product-specific videos are currently available from the manufacturer or DST.
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
⚠ WARNING: Drilling stone, concrete, and porcelain can produce respirable crystalline silica dust known to the State of California to cause cancer, lung disease, and reproductive harm. Always wear appropriate PPE.
