Alpha Professional Tools | SKU:
EZWEDGELV
Sold out
EZ Wedge Leveling System Designed for Edges and Corners
Regular price
$23.26 USD
Unit price
Shipping calculated at checkout.
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Sterling, VA)
Ships same day from Sterling, VA on orders placed before 12 PM ET. Questions about fit or use? Call 703-957-4544.
Buying for a business? Trade pricing is on dynamicstonetools.net.
Alpha Professional Tools | SKU:
EZWEDGELV
Regular price
$23.26 USD
Unit price
Shipping calculated at checkout.
Description
Description

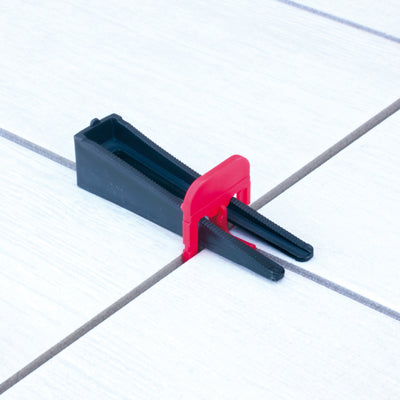

Alpha® EZ Wedge Leveling System
The Alpha® EZ Wedge tile leveling system delivers lippage-free, regular-joint installations by working under tile corners with surprisingly few clips and tabs. Wedges insert and tighten by hand — no pliers required — and are designed to be reused.
Features
- Levels and spaces tiles simultaneously

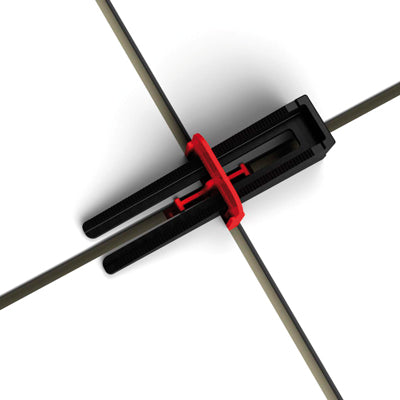

- Designed for installation along tile edges and corners
- Add Angle Tabs for corner installs

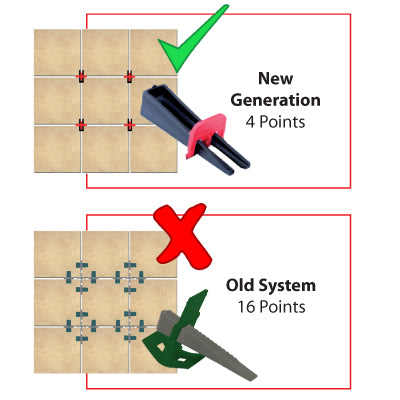

- Saves up to 75% time and material vs. traditional systems
- Available in three joint sizes: 1.5 mm, 1/8" (3.0 mm), 5.0 mm
- Dual function — no separate spacers required
- Compatible with other competitors' clips
- Patented design; reusable wedges
- Optional calibrated plier available
- Sold by the box; case quantity is 5 boxes
| Part No. | Size | Pack Qty | Color | UPC |
|---|---|---|---|---|
| EZWEDGELV | — | 130 wedges | — | 749173260001 |
| EZWCT15WH | 1.5 mm | 200 sets | White | 749173260018 |
| EZWCT30RD | 1/8" (3.0 mm) | 200 sets | Red | 749173260025 |
| EZWCT50BK | 5.0 mm | 200 sets | Black | 749173260032 |
| EZPLIER | — | 1 plier | — | 749173260049 |

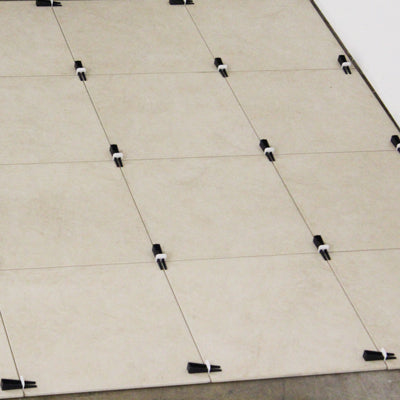

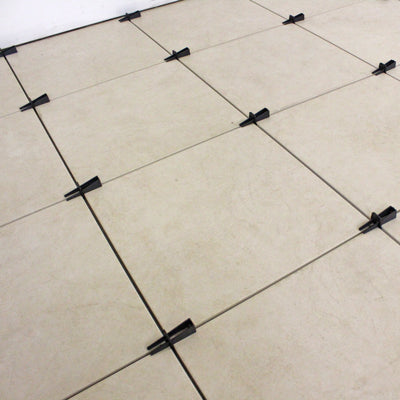

- Apply thinset and set the first tile.

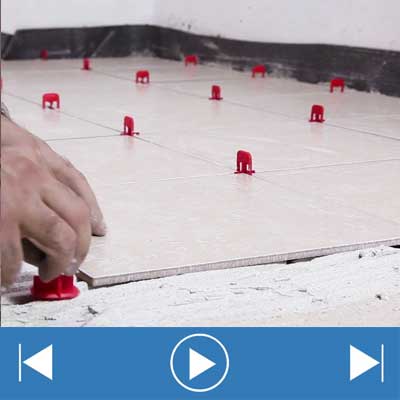

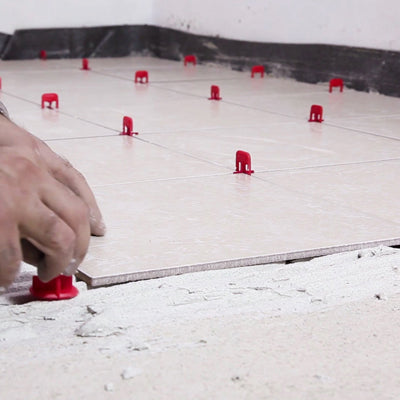

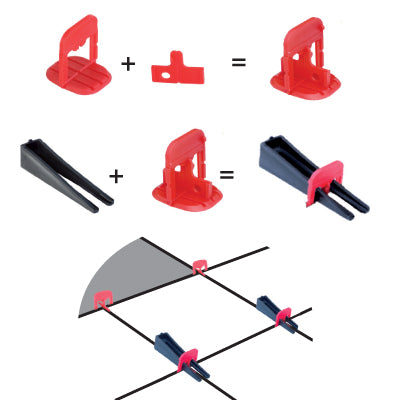

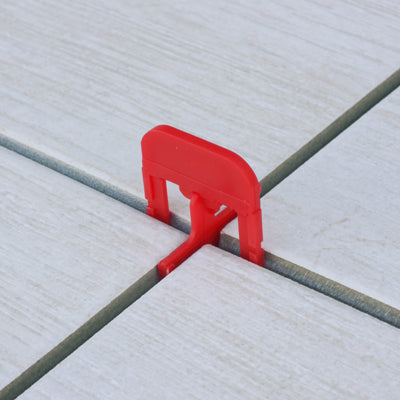

- Slide an EZ Wedge clip under the tile edge at each joint location; add an Angle Tab where corners meet.
- Set the adjacent tile against the clip post.

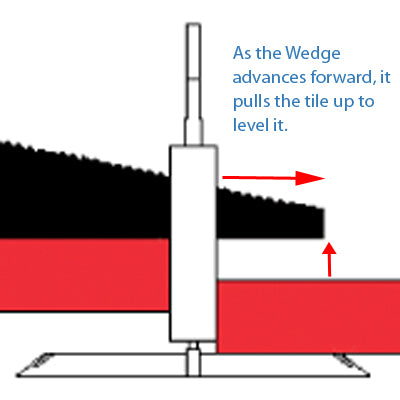

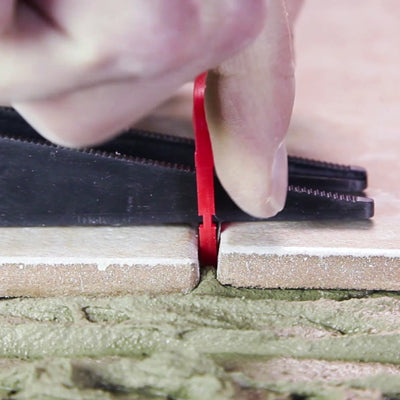

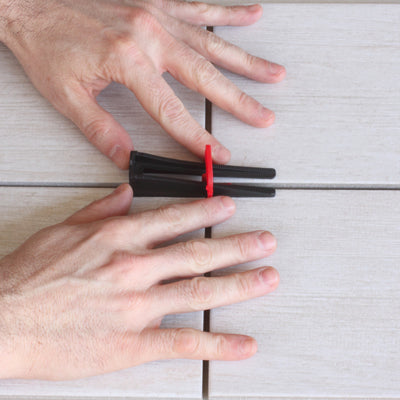

- Insert a Wedge through the clip post and tighten by hand (or with the optional EZPLIER for calibrated force) until tiles are flush.

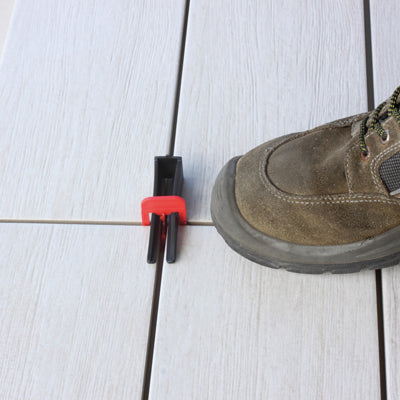

- Let thinset cure, then snap the clip post off at floor level with a firm kick along the joint.
- Recover and reuse the Wedges (and Plier) for the next project.
130 wedges per box — Reusable Wedge — EZWEDGELV
| Part No. | EZWEDGELV |
| UPC | 749173260001 |
| Size | 130 wedges per box |
| Type | Reusable Wedge |
| Packaged Weight | 2.91 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
White — 1.5 mm — Joint Clip & Angle Tab — EZWCT15WH
| Part No. | EZWCT15WH |
| UPC | 749173260018 |
| Size | 1.5 mm |
| Type | Joint Clip & Angle Tab |
| Color | White |
| Packaged Weight | 2.05 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Red — 1/8" (3.0 mm) — Joint Clip & Angle Tab — EZWCT30RD
| Part No. | EZWCT30RD |
| UPC | 749173260025 |
| Size | 1/8" (3.0 mm) |
| Type | Joint Clip & Angle Tab |
| Color | Red |
| Packaged Weight | 2.07 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Black — 5.0 mm — Joint Clip & Angle Tab — EZWCT50BK
| Part No. | EZWCT50BK |
| UPC | 749173260032 |
| Size | 5.0 mm |
| Type | Joint Clip & Angle Tab |
| Color | Black |
| Packaged Weight | 2.07 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
1 unit — Calibrated Plier — EZPLIER
| Part No. | EZPLIER |
| UPC | 749173260049 |
| Size | 1 unit |
| Type | Calibrated Plier |
| Packaged Weight | 0.66 lbs |
| Package Dimensions | 9.5" x 6.75" x 2" |
| Commodity Code | 8205.59.8000 |
| Country of Origin | Italy |
| Property | Detail |
|---|---|
| System | Wedge-and-clip tile leveling |
| Joint Sizes | 1.5 mm, 1/8" (3.0 mm), 5.0 mm |
| Wedge Reusability | Yes — remove after cure and reuse |
| Tool Required | Hand-tighten; optional EZPLIER for calibrated installs |
| Country of Origin | Italy |
No frequently-asked questions are currently published for this product. Contact us at e-commerce@dynamicstonetools.com.
