Countertop Trim Kit (ESC-150/250) Perfect for Cutting and Trimming Countertops
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Countertop Trim Kit (ESC-150/250) Perfect for Cutting and Trimming ...
Description
Description
Alpha® ESC-150 / ESC-250 Countertop Trim Kit

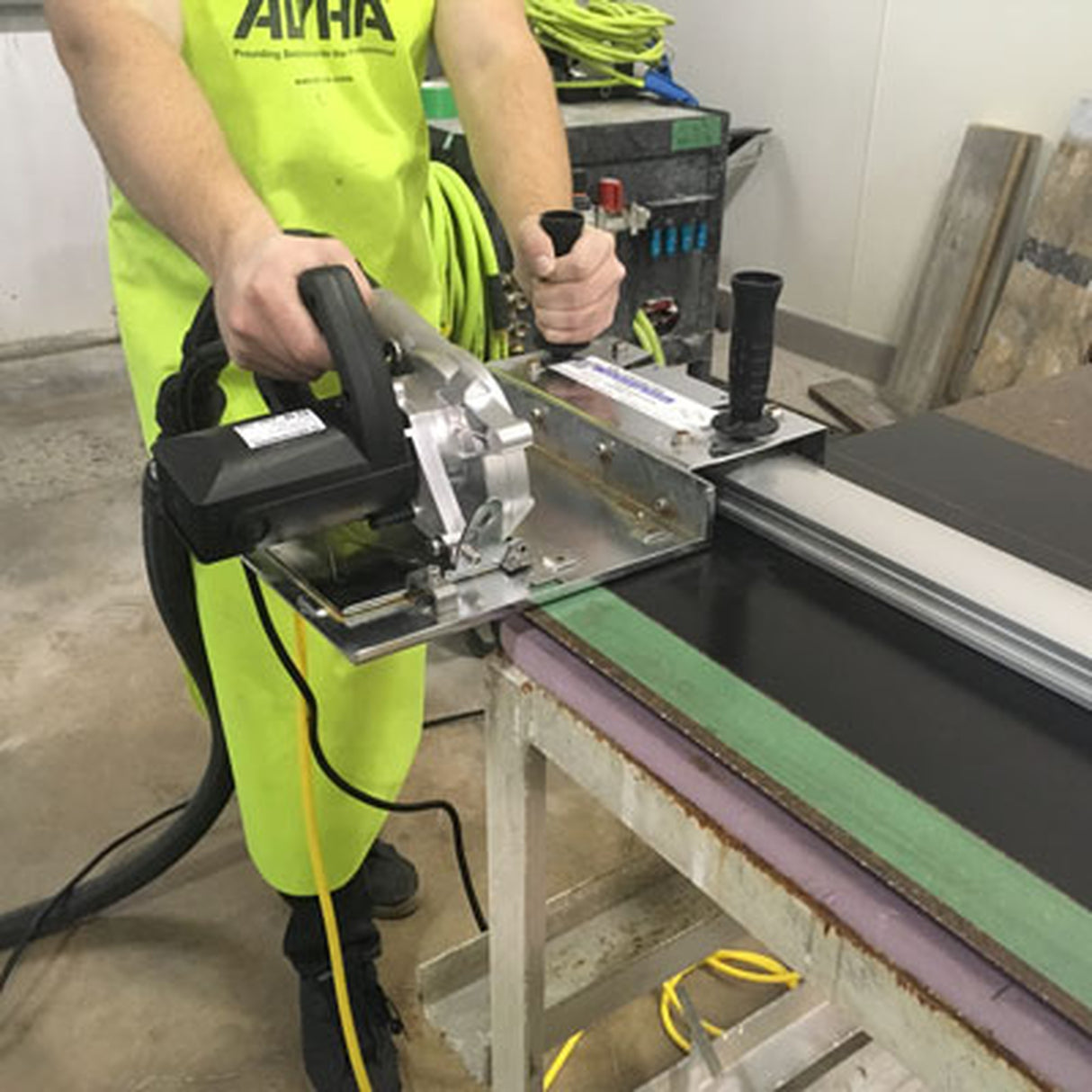

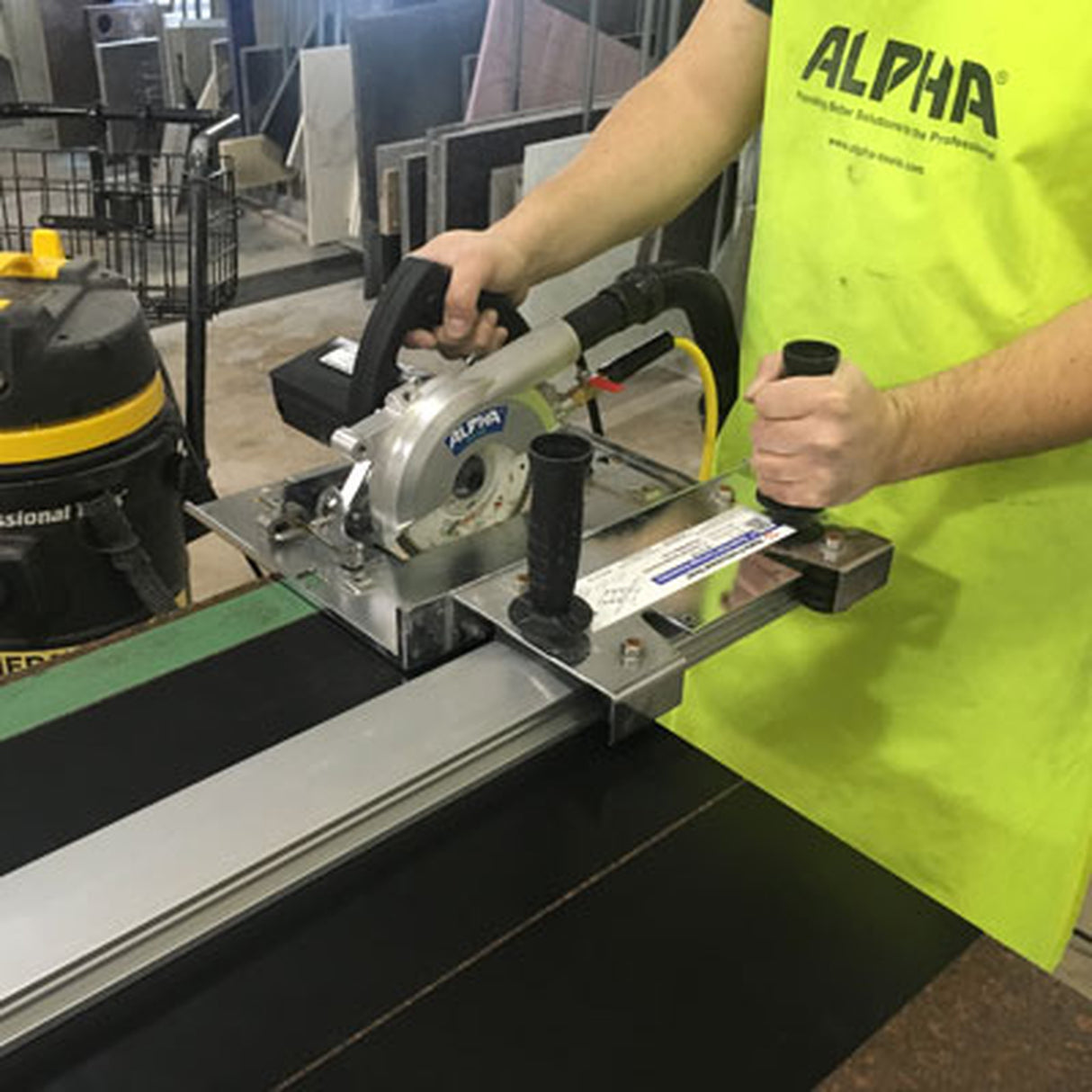

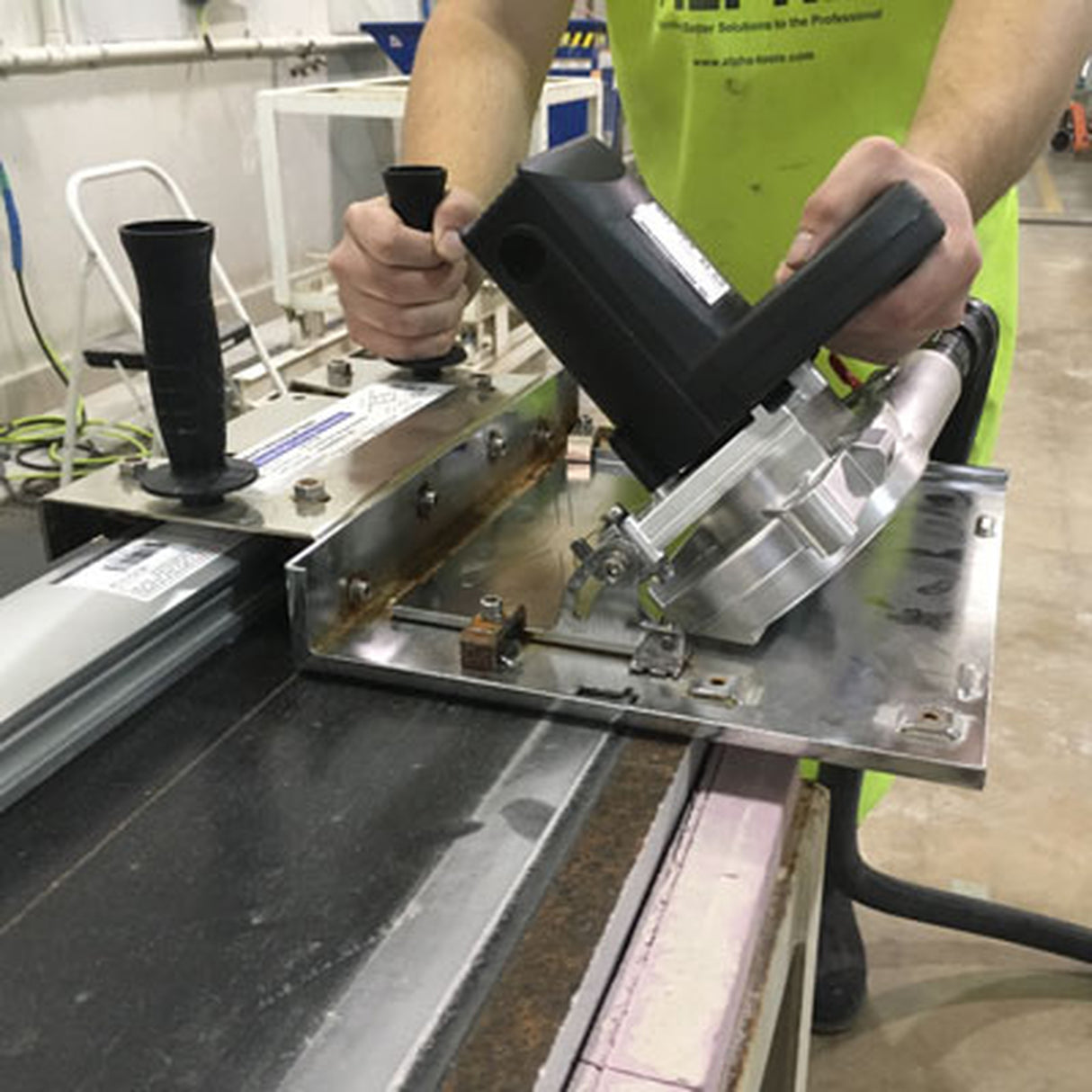

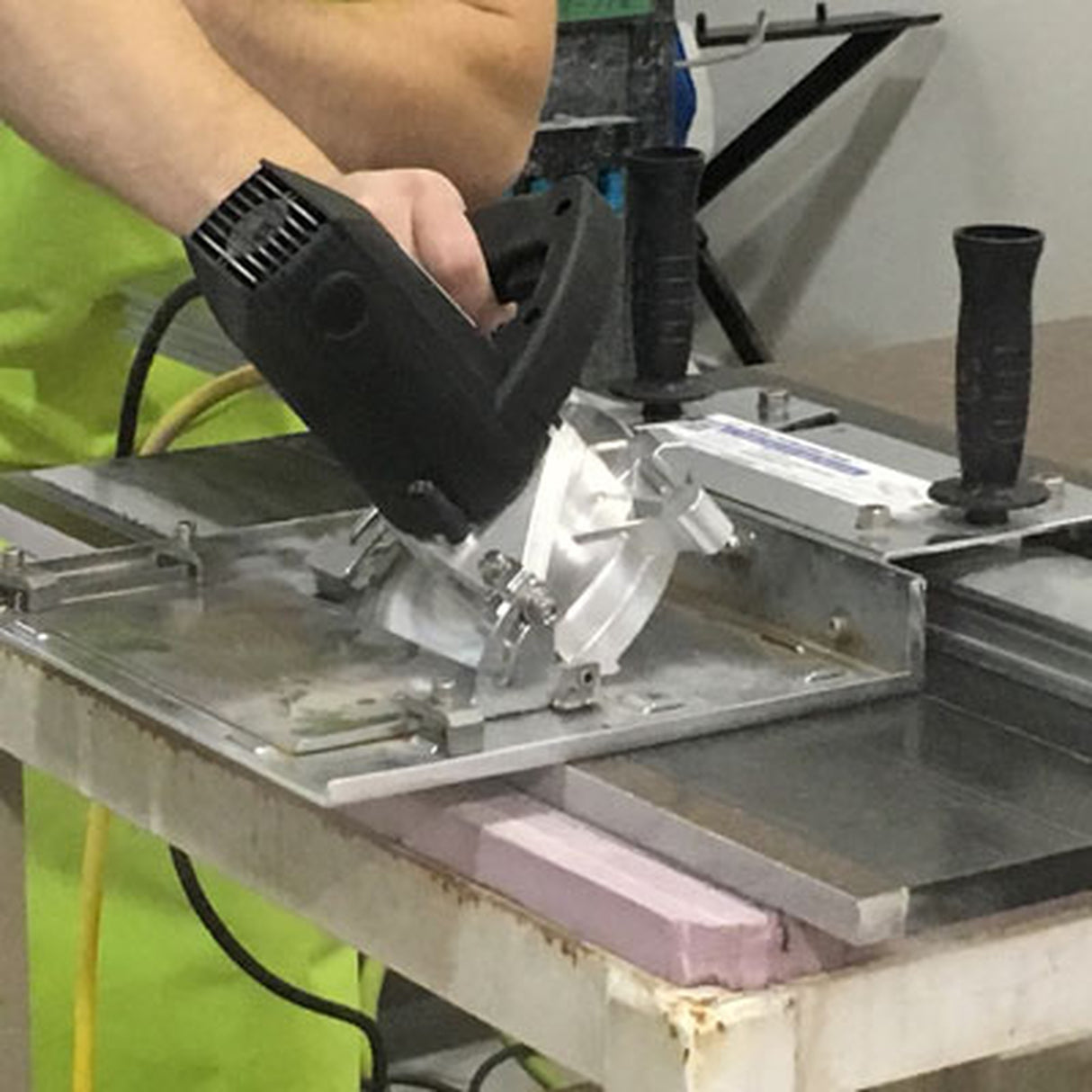

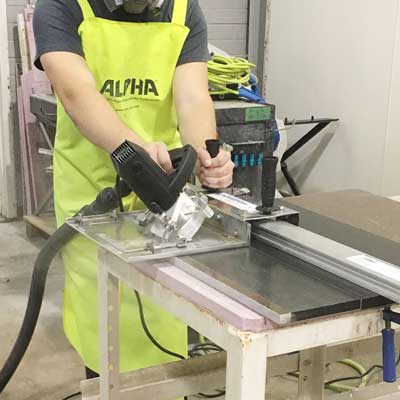

The Alpha® Countertop Trim Kit pairs the ESC-150 (110V) or ESC-250 (220V) Electric Wet/Dry Stone Cutter with a 6" Carriage Assembly riding on a 4' aluminum Guide Rail, producing dead-straight trim, sink-hole, and rodding-groove cuts on 3/4" (2cm) and 1-1/4" (3cm) stone slabs in a single pass. The kit ships with an Eclipse II 6" blade for natural and engineered stone, a kink-free water hose, and a built-in dust gate that turns the saw dust-free when connected to a HEPA vacuum.
Features
- Cuts 1-1/4" (3cm) slabs in one pass with 1200W / 10,000 RPM motor
- 6" Carriage Assembly (ASC-6CSM) on 4' Guide Rail keeps every cut perfectly straight
- Eclipse II 6" diamond blade for granite, quartzite, and engineered stone
- Kink-free water hose for smooth maneuvering and reduced operator fatigue

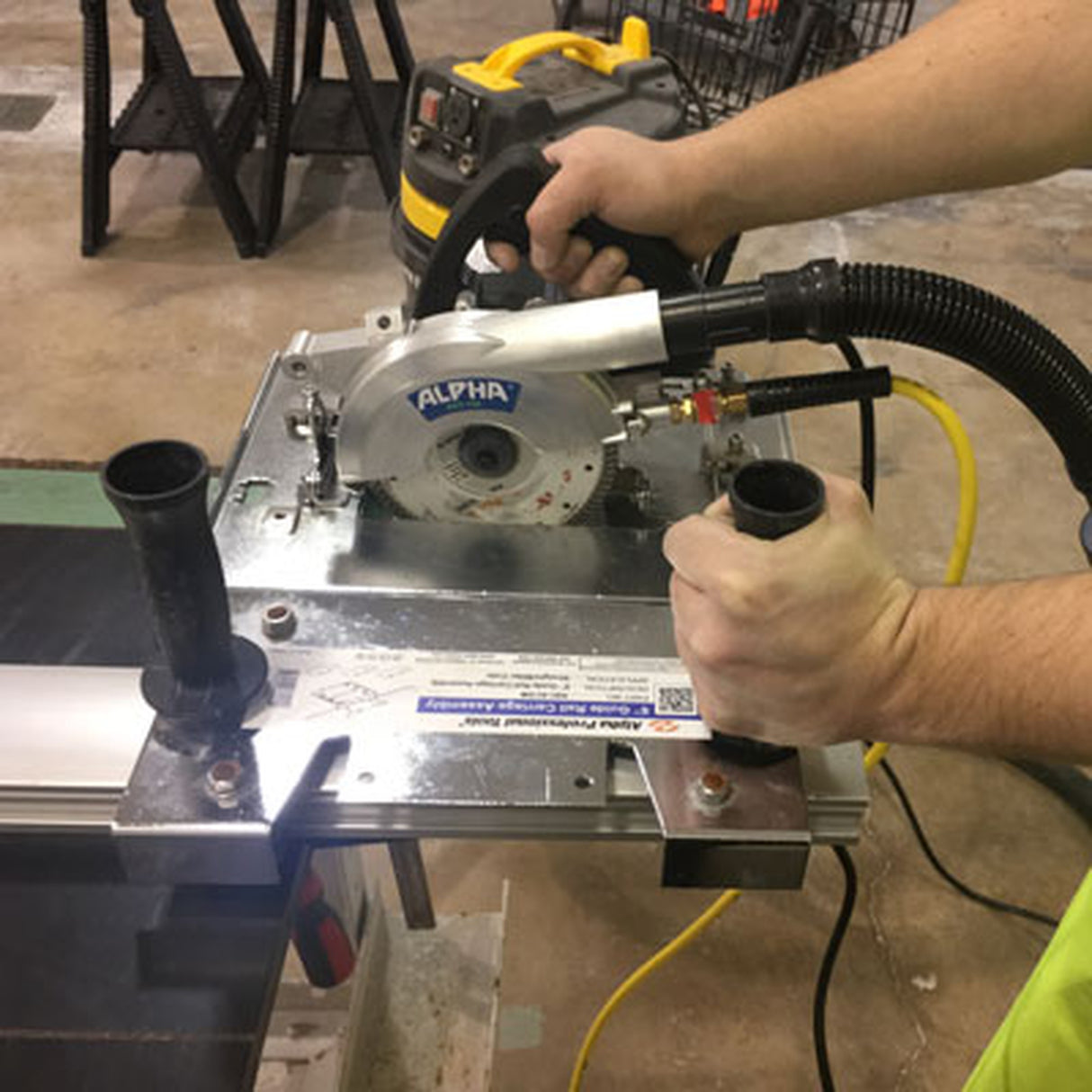

- Built-in dust gate — connect to a HEPA vacuum for dustless dry cutting
- Two side-handle positions for operator comfort during long trim runs
- Carriage detaches so the saw can free-hand curves and detail cuts
- Includes Surface Protection Tape to shield finished countertops during work

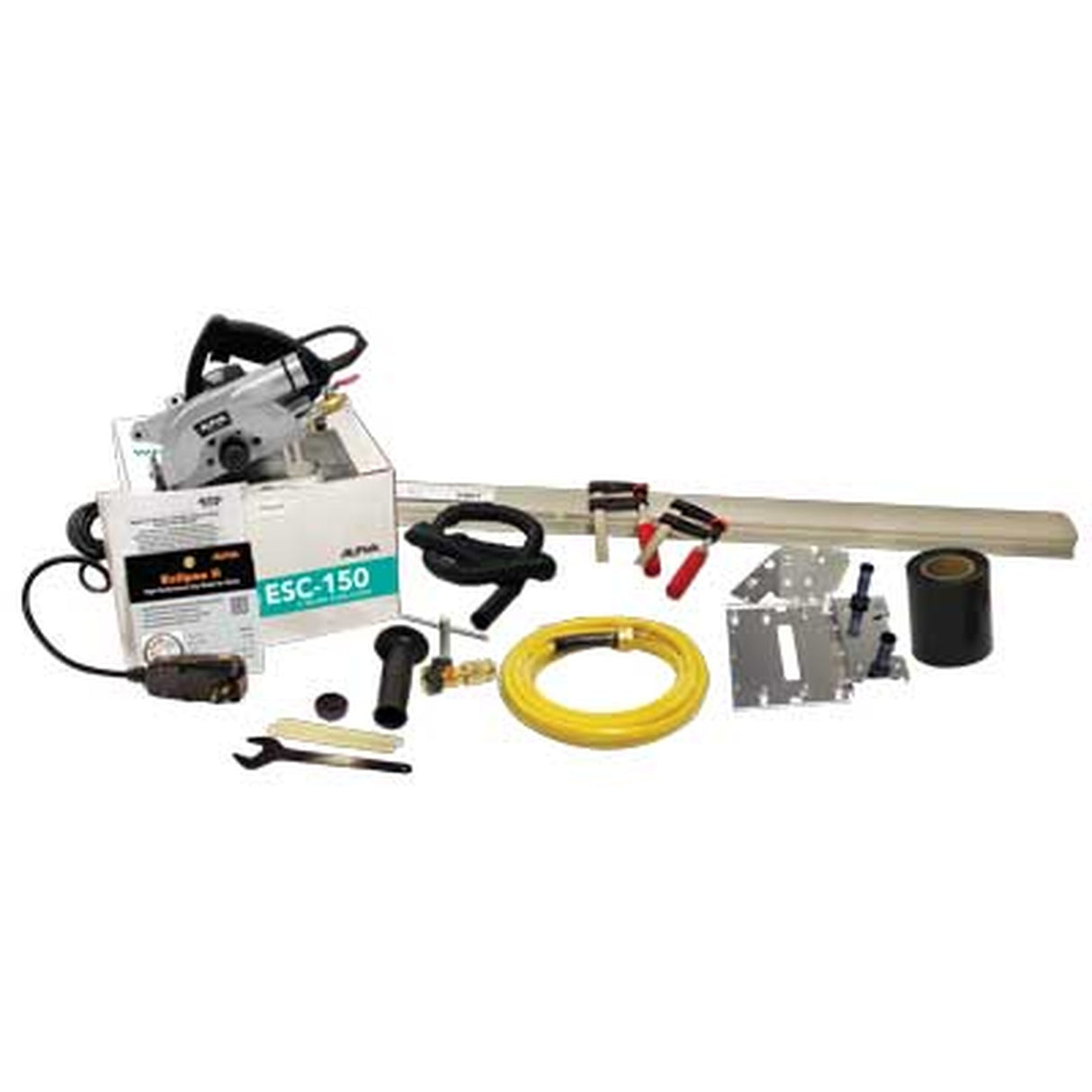

| Part No. | Description | Power | UPC |
|---|---|---|---|
| 5480-4250 | ESC-150 Countertop Trim Kit (110V) | 110V / 11.2A / 1200W | 749173661723 |
| 5480-4252 | ESC-250 Countertop Trim Kit (220V) | 220V / 5.5A / 1200W | 749173661730 |
| DEE006 | Alpha® Eclipse II 6" Blade (incl.) | — | 749173460500 |
| ASC-6CSM | 6" Guide Rail Carriage Assembly (incl.) | — | 749173621444 |
| ASC-GR04 | Guide Rail Aluminum 4' / 1.2m (incl.) | — | 749173450785 |
| BAB0650 | Surface Protection Tape 6" x 164' (incl.) | — | 749173541018 |
- Lay the slab flat on a Styrofoam sheet larger than the workpiece to dampen vibration.
- Apply Alpha® Surface Protection Tape (BAB0650) along the cut line to protect the finish.
- Position the 4' Guide Rail (ASC-GR04) on the tape and secure it.
- Slide the 6" Carriage Assembly (ASC-6CSM) onto the rail and lock the ESC-150/250 to it.
- For wet cutting, connect water supply via the kink-free hose; for dry, attach a HEPA vacuum to the dust gate.
- Set cutting depth (max 2" / 50.88mm) and verify the Eclipse II 6" blade (DEE006) is tight on the 7/8" arbor.
- Start the saw outside the material, then ease into the cut at a steady feed rate.
- For curves or sink openings, remove the saw from the carriage and free-hand using the rail as a starting guide.
ESC-150 — 110V Countertop Trim Kit — 5480-4250
| Part No. | 5480-4250 |
| UPC | 749173661723 |
| Type | ESC-150 — 110V Countertop Trim Kit |
| Recommended For | Trimming, sink-holes, and rodding grooves on 3cm countertops (North America) |
| Packaged Weight | 33.25 lbs |
| Package Dimensions | Box 1: 14" x 16" x 14" (19.25 lbs) · Box 2: 56" x 4" x 4" (14 lbs) |
| Commodity Code | See individual components |
| Country of Origin | See individual components |
ESC-250 — 220V Countertop Trim Kit — 5480-4252
| Part No. | 5480-4252 |
| UPC | 749173661730 |
| Type | ESC-250 — 220V Countertop Trim Kit |
| Recommended For | Trimming, sink-holes, and rodding grooves on 3cm countertops (220V markets) |
| Packaged Weight | 33.25 lbs |
| Package Dimensions | Box 1: 14" x 16" x 14" (19.25 lbs) · Box 2: 56" x 4" x 4" (14 lbs) |
| Commodity Code | See individual components |
| Country of Origin | See individual components |
| Property | Detail |
|---|---|
| Saw Power | 1200 W |
| Voltage | 110 V (ESC-150) / 220 V (ESC-250) |
| Amperage | 11.2 A (110V) / 5.5 A (220V) |
| No-Load Speed | 10,000 RPM |
| Arbor | 7/8" (22.23 mm) |
| Blade Diameter | 6" (150 mm) |
| Max. Cutting Depth | 2" (50.88 mm) |
| Cord Length | 15 ft (4.5 m), single phase |
| Plug Type | A (110V) / C (220V) |
| Tool Weight (saw only) | 11.30 lbs (5.12 kg) |
| Guide Rail Length | 4 ft (1.2 m) |
| Warranty | One year (see manual for details) |
What cutting table is recommended for the ESC-150?
Alpha® recommends a Styrofoam sheet larger than the material. Styrofoam provides good support for the entire surface and dampens vibration. For dry applications, encase the blade in Styrofoam to help contain dust.
How does this kit compare to the Omega Diamond Miter Master System?
The Omega uses two 7" Makita angle grinders (15A each) or a 5" grinder (12A). The Alpha® kit supports miter, plunge, and straight cuts using the carriage. The ESC-150 can be removed from the carriage for curve cutting and other applications, and the electric stone cutter requires less maintenance than angle grinders.
Does the Eclipse II blade cut Porcelain Paver Tiles, Sintered Slabs, and Large-Format Porcelain Panels?
Eclipse II is recommended for Quartzite, Granite, and Engineered Stone. For Porcelain Pavers or Sintered Slabs, Alpha® suggests the Katana or Ultracut blades. For large-format porcelain panels, the Libero blade is recommended, with Katana as an alternative.
What is the warranty on the ESC-150?
One year warranty (see the manual for details).
How can I obtain the parts list and schematic?
Download from the Documentation section above, visit www.alpha-tools.com, or call 800-648-7229.
Can I use the ASC-5CSM Carriage Assembly on the ESC-150?
No. The ASC-5CSM is designed for the ESC-125 (5" cutter). The compatible assembly is the ASC-6CSM for the ESC-150 and PSC-150.
Why does the ESC-150 have two side-handle positions?
Alpha® provides two side-handle positions for user comfort and stability during cutting applications.

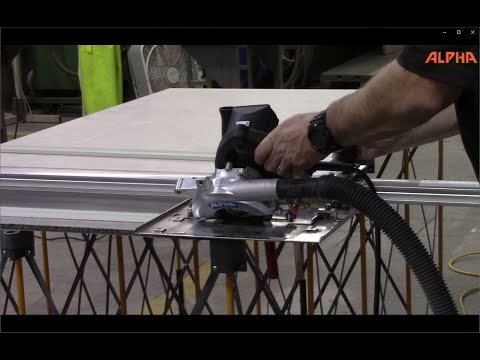

ESC-150 Introduction
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
