Ecoguard G Series Dust Collection Cover for Grinding
Description
Description

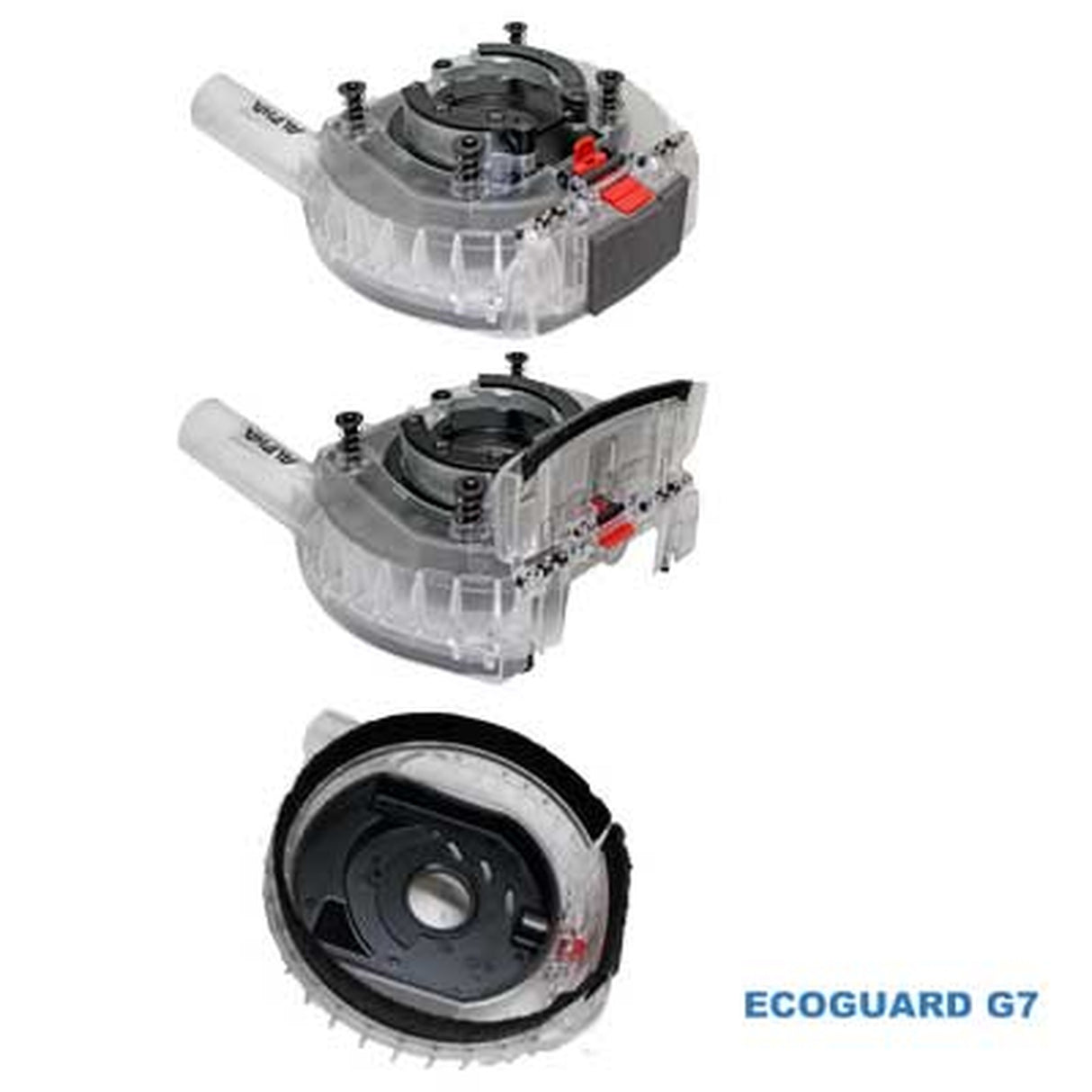

Ecoguard G7 Dust Collection Cover for Large Angle Grinders

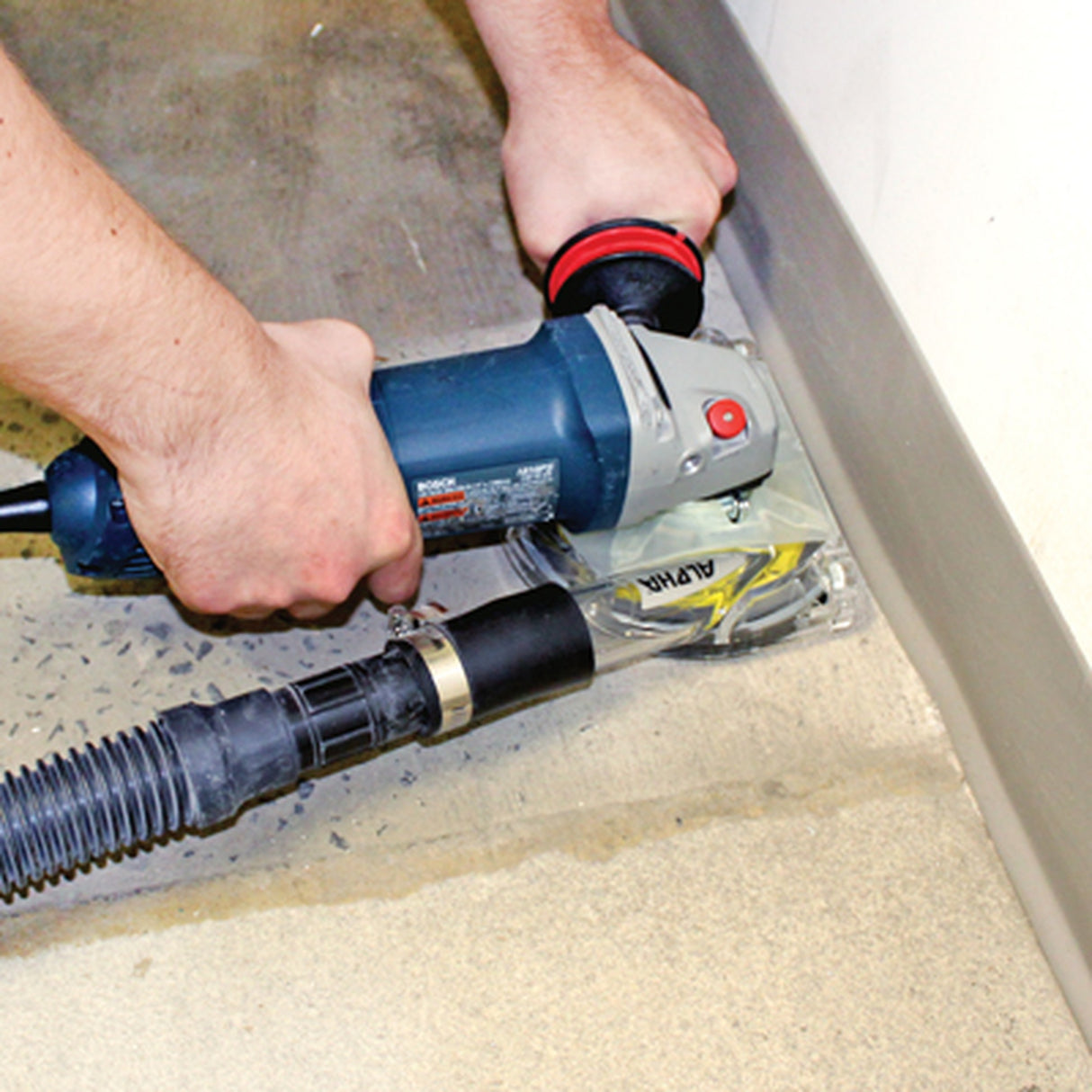

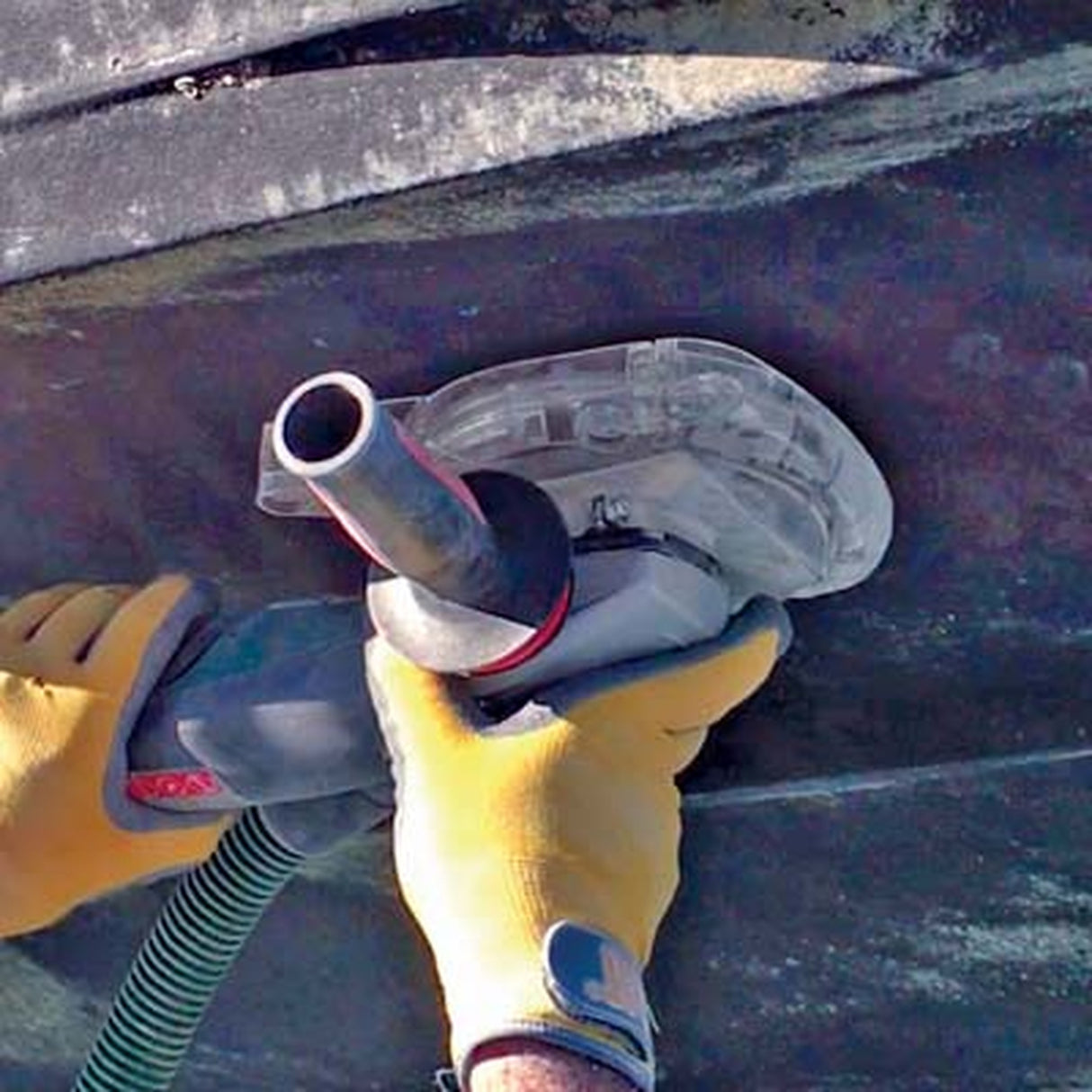

The Alpha® Ecoguard G7 is a dust collection cover for high-speed large angle grinders accepting grinding wheels up to 7" (also fits 9" grinders). Constructed from rugged, clear polycarbonate, the Ecoguard G7 removes more than 90% of airborne dust when connected to a vacuum, allowing operators to grind tight against walls with a natural, flexible grinding motion. Compatible with most leading brand grinders (Bosch®, Dewalt®, Flex®, Hitachi®, Makita®, Metabo®, Milwaukee®).
Features
- Accepts grinding wheels up to 7" (fits 7" and 9" angle grinders)
- Removes more than 90% of dust when connected to a vacuum
- Clear, rugged polycarbonate construction for heavy-duty use and visibility
- Flexible head allows natural grinding motion and grinding tight against walls
- Compatible with Bosch®, Dewalt®, Flex®, Hitachi®, Makita®, Metabo®, Milwaukee® grinders
- Standard pre-attached connector fits Makita®, Milwaukee® and Bosch® grinders
- Includes four spacers (2.5 mm, 5 mm, 7 mm, 9 mm) for grinding wheel height adjustment
- Stainless-steel hose band included to secure the vacuum hose
- Must be used with a vacuum (sold separately)
| Part No. | Size | Compatible Tool | UPC |
|---|---|---|---|
| ECOGRDG7 | 7" | 7" and 9" large angle grinders | 749173661617 |
| ECOG7KIT | 7" | 7" and 9" large angle grinders (kit with 54" hose + adapter) | 749173661686 |
- Select the appropriate connector assembly for your angle grinder brand (Makita®/Milwaukee®/Bosch® is pre-attached).
- Use the included spacers (2.5 mm, 5 mm, 7 mm, 9 mm) to set the correct grinding wheel height inside the cover.
- Mount the Ecoguard G7 onto your large angle grinder following the included manual.
- Place the supplied stainless-steel hose band on the rubber connector, insert the vacuum hose, and tighten the band.
- Connect a HEPA or wet/dry vacuum capable of handling fine dust; verify suction before starting work.
- Always wear appropriate PPE (eye, hearing, and respiratory protection) and follow the grinder manufacturer instructions.
7" — Dust Collection Cover G7 — ECOGRDG7
| Part No. | ECOGRDG7 |
| UPC | 749173661617 |
| Size | 7" |
| Type | Dust Collection Cover G7 |
| Packaged Weight | 3.30 lbs (1.50 kg) lbs |
| Country of Origin | Japan |
7" — Ecoguard G7 + 54" Connector Hose + Air/Exhaust Hose Adapter Kit — ECOG7KIT
| Part No. | ECOG7KIT |
| UPC | 749173661686 |
| Size | 7" |
| Type | Ecoguard G7 + 54" Connector Hose + Air/Exhaust Hose Adapter Kit |
| Packaged Weight | 5.20 lbs (2.36 kg) lbs |
| Country of Origin | See individual components |
| Property | Detail |
|---|---|
| Maximum Wheel Diameter | 7" (178 mm) |
| Compatible Grinders | 7" and 9" large angle grinders |
| Cover Material | Clear polycarbonate |
| Hose Opening — Outside Diameter | 1-5/16" (34 mm) |
| Hose Opening — Rubber Connector Inside Diameter | 1-1/4" (31 mm) |
| Pre-attached Connector | Makita®, Milwaukee®, Bosch® |
| Application | Dry grinding / surface preparation (must be used with a vacuum) |
| Compatible Wheels | Alpha® Spike, Vextra, Vexcel, DEC005 and similar 7" grinding/cup wheels |
Can the Ecoguard G7 be used for wet applications?
No. The Ecoguard G is designed for use on angle grinders for dry applications. Alpha offers a wet/dry electric variable speed polisher (WDP 320) which has the Ecoguard G attached for wet work.
What is the largest grinding wheel the Ecoguard G7 accepts?
7" (178 mm). It fits 7" and 9" large angle grinders.
Which connector assembly comes pre-attached?
The pre-attached connector fits Makita, Milwaukee and Bosch grinders. Alternate connectors are available for other brands.
What are the included spacers for?
Four spacers (2.5 mm, 5 mm, 7 mm, 9 mm) are included to adjust the grinding wheel to the correct height inside the cover.
How do I secure a vacuum hose that keeps detaching?
Place the included stainless-steel hose band over the rubber hose connector, insert the vacuum hose, and tighten the band.
Can I use an Ecoguard C dust bag on the Ecoguard G7?
No. The dust bag accessory is compatible only with the Ecoguard C; it cannot be used on the Ecoguard G or G7.
Which Alpha grinding products work with the Ecoguard G7?
Alpha Spike, Vextra, Vexcel and DEC005 wheels are all designed to work inside the Ecoguard G/G7.

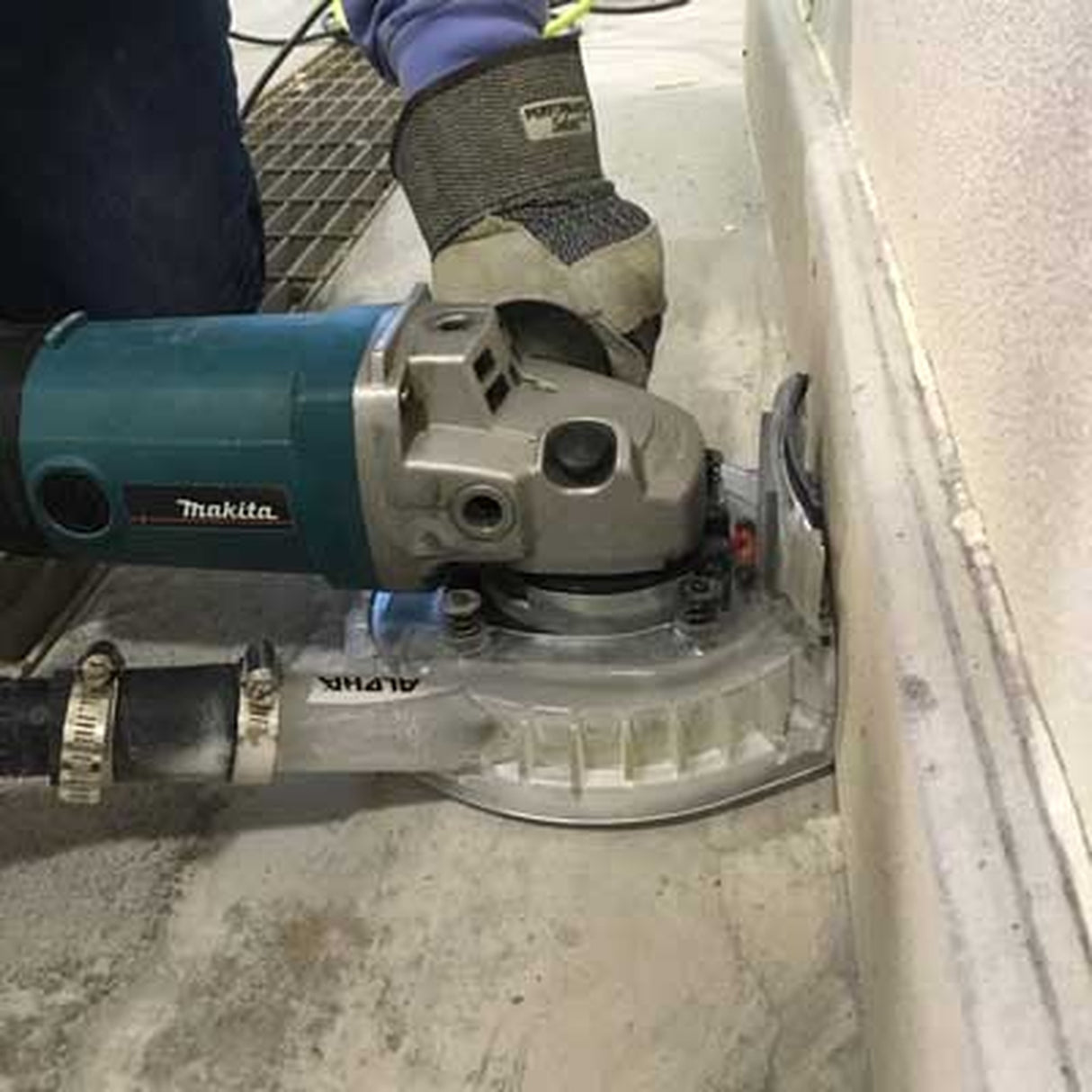

Why is there a small gap in the half-cover design?
The open area on the half-cover lets the wheel grind close to a wall. When the Ecoguard makes contact with the wall, the wall itself forms the vacuum seal.

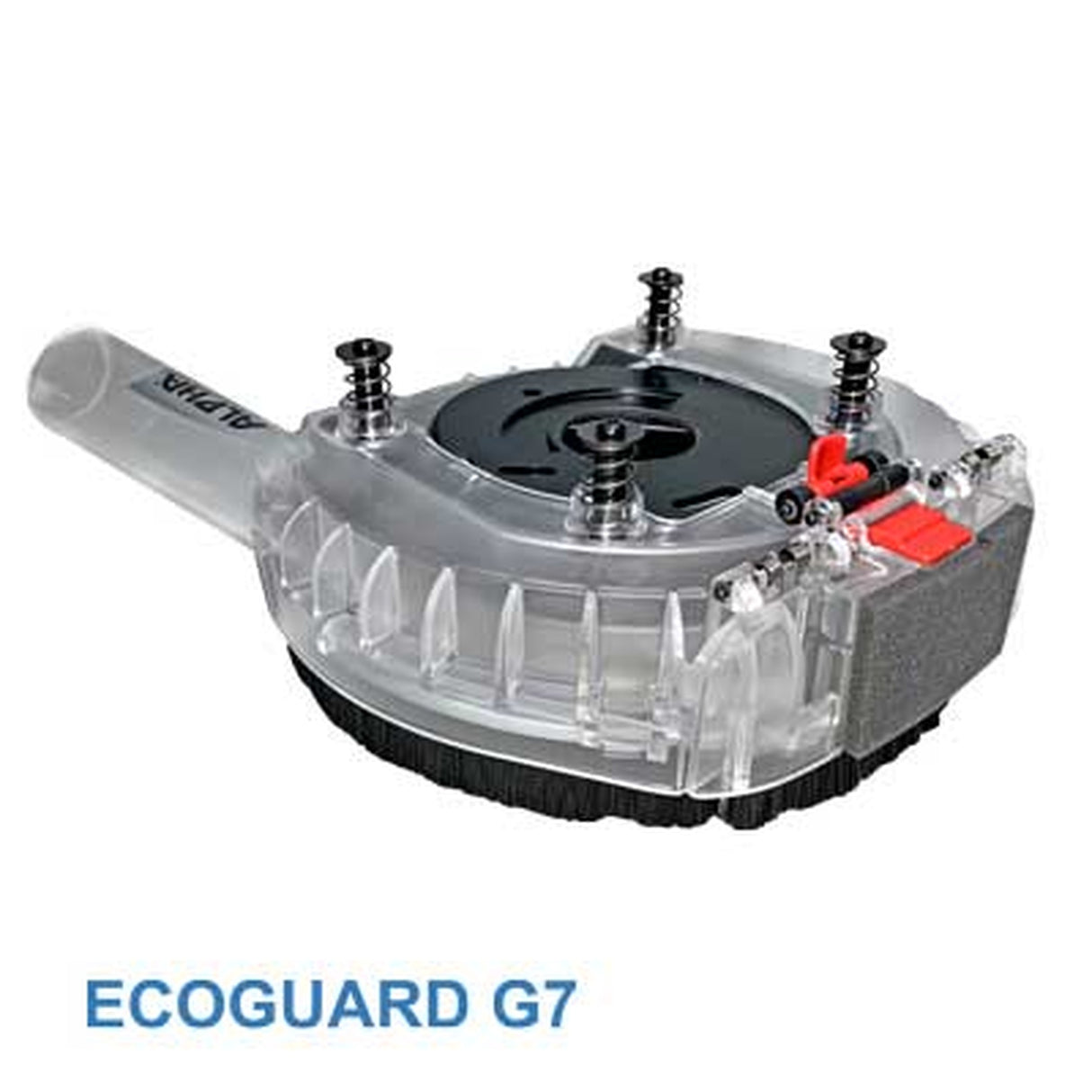

What are the four springs on the cover for?
The springs allow the operator to tilt the grinder while keeping the brushes flat on the work surface, improving dust capture.

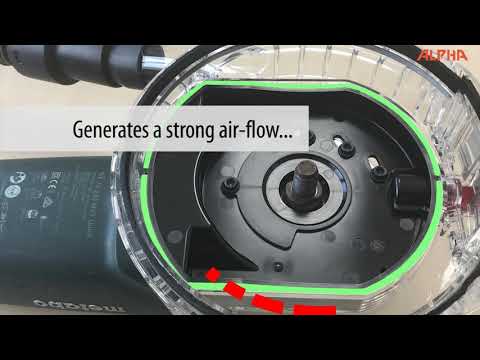

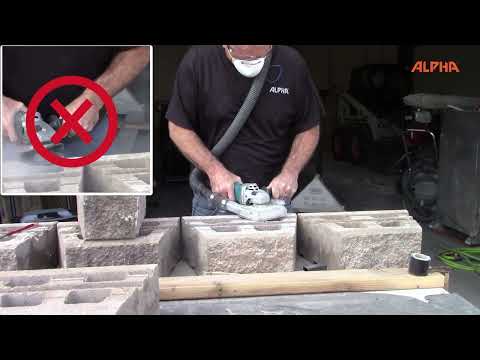

How to Grind Dust-Free Using a Large Angle Grinder
PSG-125 Pneumatic Grinder Cutting / Grinding
Glue Removal Using Spike Disc

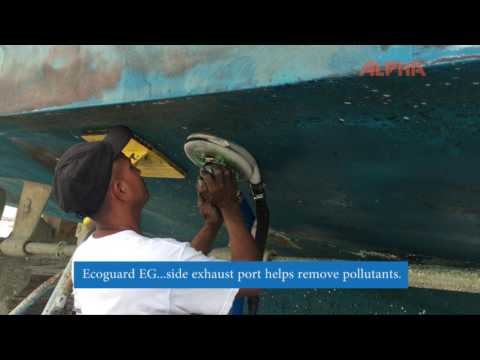

Marine Tools

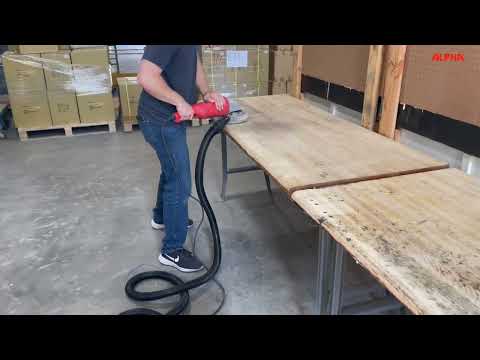

Dustless Re-Surfacing on Wood
