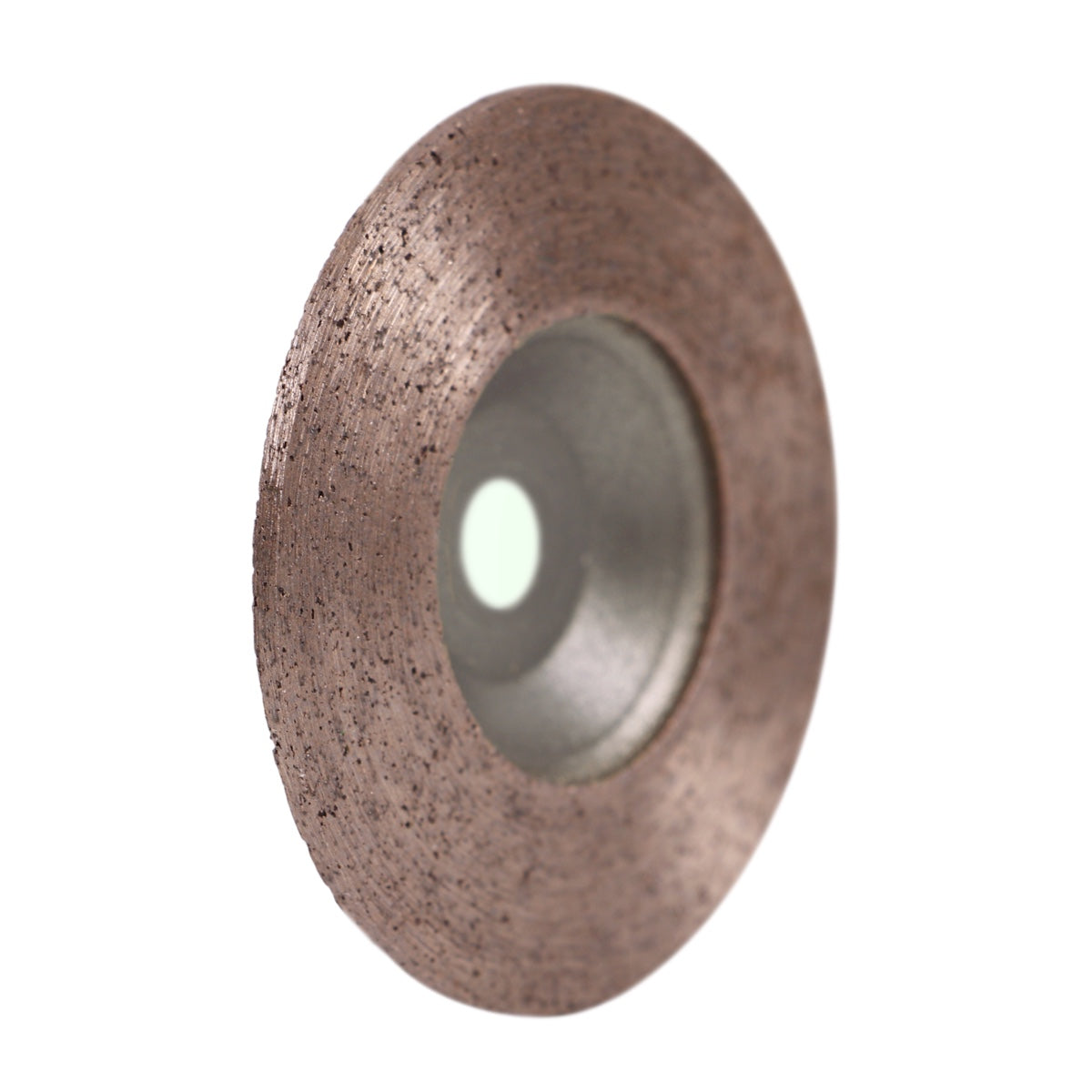

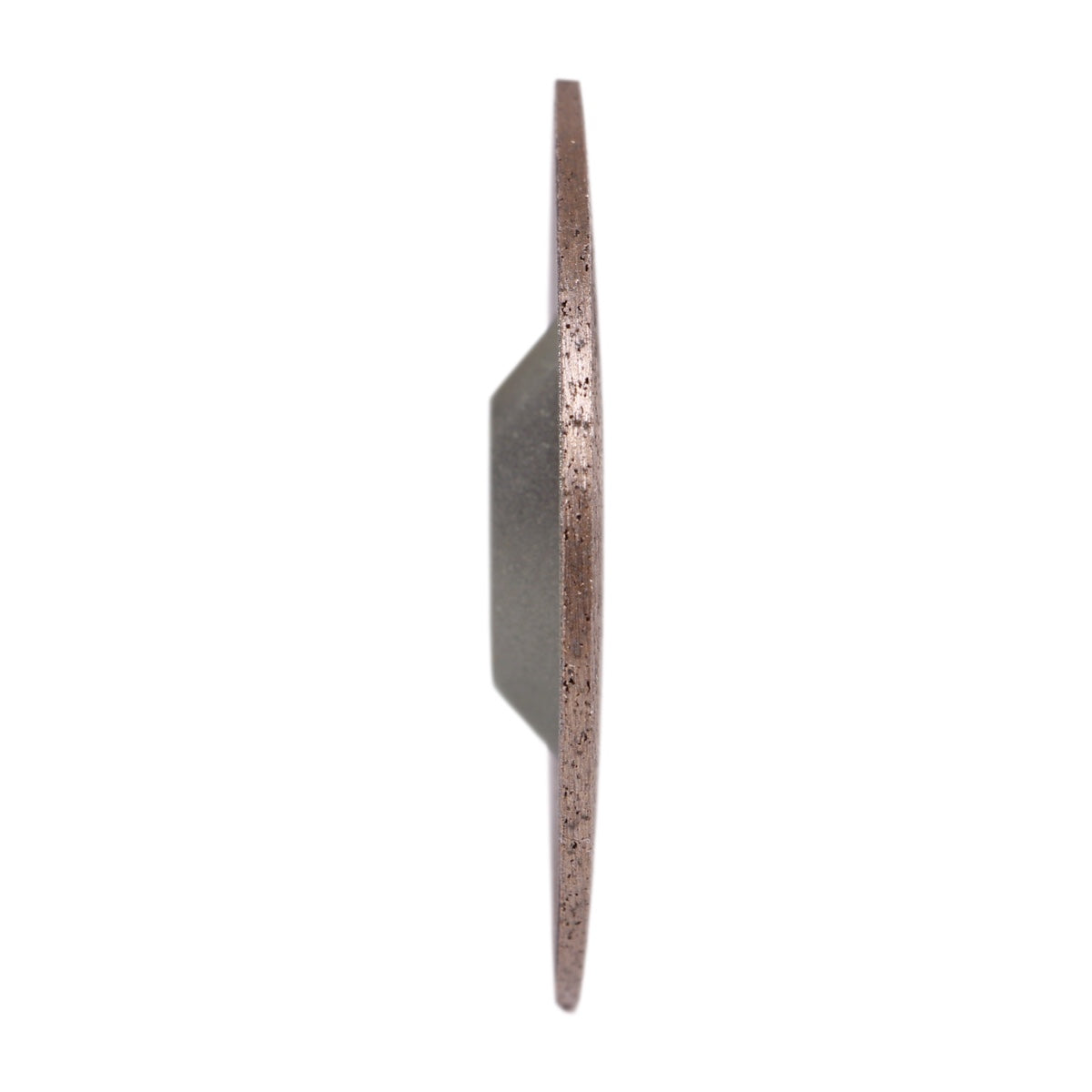

DiStar SoftEDGE 1-3/4" Diamond Grinding Cup for Ceramic & Porcelain — Chip-Free Edge Finishing
The DiStar SoftEDGE is a 1-3/4" (45 mm) #100-grit diamond grinding cup built for chip-free edge finishing on glazed and delicate porcelain gres tile. Its graphite-cooled diamond layer runs dry at high speed and mounts on engravers with a 5.8 mm bore — soft-edge technology for jeweler’s-precision edge work.
| Property | Detail |
|---|---|
| Brand | DiStar |

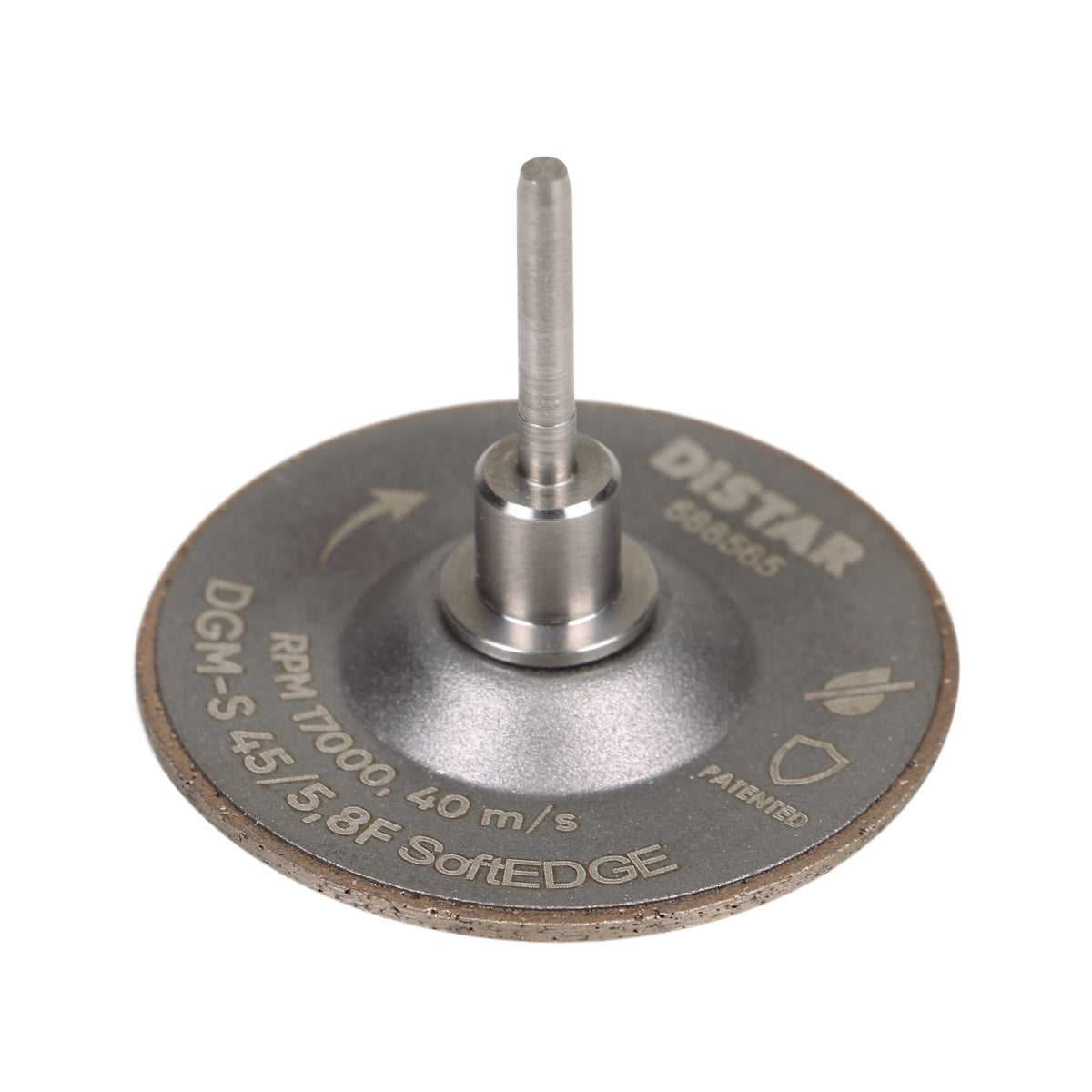

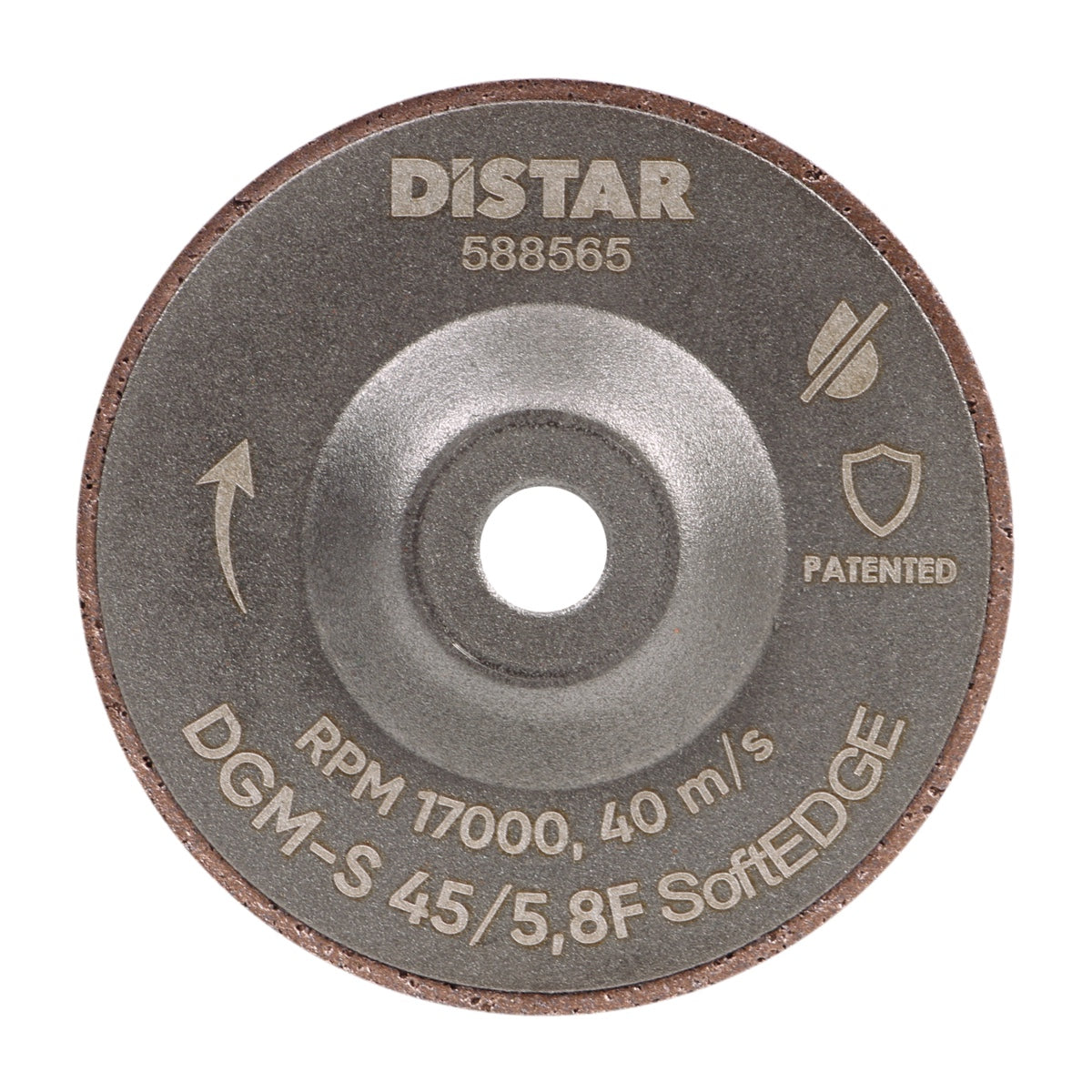

| Model / Series | SoftEDGE (DGM-S 45/5,8F grinding cup) |
| Article Number | 11120159085 |
| Diameter | 1-3/4" (45 mm) |
| Mounting Bore | 5.8 mm (5,8F) |
| Grit | #100 |
| Grinding Type | Dry (no cooling) |
| Materials | Ceramic, porcelain gres |
| Compatible Equipment | Engravers with 5.8 mm arbor |
| Product Type | Diamond Grinding Cup |
- Graphite-infused diamond layer cools dry and eliminates chipping.
- #100 grit for smooth, soft edges on glazed and delicate porcelain.
- Optimized for maximum speed on engraver tools.
- 45 mm cup with a 5.8 mm mounting bore.
- Purpose-built for the most demanding tile edge finishing.

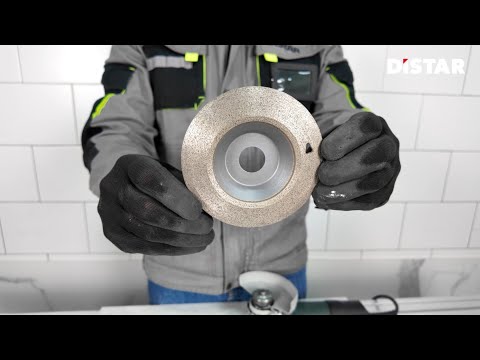

Edge grinding and softening of glazed tile and delicate porcelain gres — detail and finishing work on engraver tools.
Wear appropriate PPE. Follow manufacturer instructions and safety regulations.
