Cyclone Tile DRY/WET Non-core W/ Hexagon Chuck
Description
Description

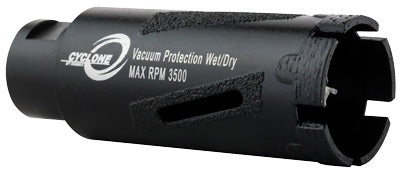

Cyclone Tile Dry/Wet Non-Core Drill Bit w/ Hex Chuck
This Diamax Cyclone bit is a non-core (solid) drill bit built with a hexagonal chuck fitting, made to bore clean holes in porcelain tile and stone. It can be run wet or dry, and its sintered turbo rim is designed for cutting speed and bit life.
| Property | Detail |
|---|---|
| Brand | Diamax |
| Bit Diameter | 3/8 in (10 mm) |
| Chuck / Fitting | Hexagon chuck shank |
| Usable Length | 2 1/4 in |
| Max RPM | 1,500 – 2,000 |
| Bit Type | Non-core (solid tip), sintered turbo rim |
| Use | Wet or dry |
| Compatible Materials | Porcelain tile, granite, marble, engineered stone (quartz) |
| Also Offered In | 3/16 in, 1/4 in, 5/16 in, 1/2 in (same hex chuck, same usable length) |
Fits any drill that accepts a hexagonal-shank chuck bit. Rated for porcelain tile, granite, marble, and engineered stone (quartz). Manufacturer guidance for ultra-compact surfaces calls for wet drilling only; on other materials, feeding water to the bit during the cut supports cutting speed and bit life, though the bit can also run dry.
Wear appropriate PPE (safety glasses, hearing protection, gloves, dust mask). Follow Diamax's recommended operating parameters (RPM, feed rate, water flow) for the application. Read the manual before use.
