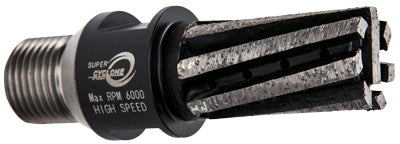

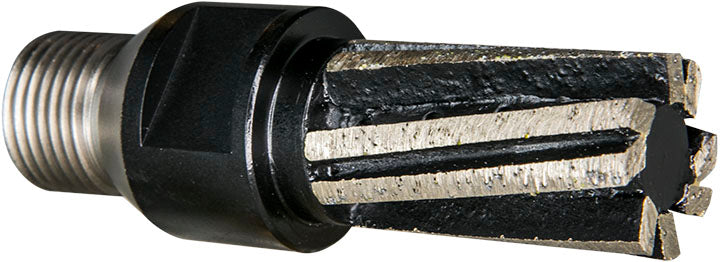

Cyclone High Speed Finger Bit
Cyclone High Speed Finger Bit is a professional Diamax diamond tool engineered for stone fabrication. Trusted by stone fabricators worldwide for performance and longevity.
Features
- The New Super Cyclone Seven Segment Finger Bit has a smaller diameter and seven segments designed to cut faster
- Bottom segment enables drilling into slab like a core bit
- Ideal for hard materials
- Feed rate : 10″ ~ 20″/min
- Speed : 4500 – 6000
| Property | Detail |
|---|---|
| Brand | Diamax |
| Manufacturer | Diamax Industries Inc. |
| Product Type | Finger Bits |
| Diameter | 12″, 14″, 16″, 18″ |
| Segment | 20 mm, 26 mm |
| Arbor | 50/60 mm, 90 mm |
| Bushing # | BSH50601, NA |
| Max Rpms | 1,600 – 1,800, 1,400 – 1,600, 1,200 – 1,400, 1,000 – 1,200 |
| Compatible Materials | Engineered Stone, Concrete |
| Size | 1-5/8", 2" |
Suitable for Engineered Stone, Concrete.
Wear appropriate PPE (safety glasses, hearing protection, gloves, dust mask). Follow Diamax recommended operating parameters (RPM, feed rate, water flow) for the application. Read the manual before use.
