Aardwolf Industries | SKU:
AVPL40
AVPL40 Vacuum Paver Lifter AVLPL40
Regular price
$1,126.63 USD
Unit price
Shipping calculated at checkout.
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
AVPL40 Vacuum Paver Lifter AVLPL40
Regular price
$1,126.63 USD
Unit price
Aardwolf Industries | SKU:
AVPL40
Regular price
$1,126.63 USD
Unit price
Shipping calculated at checkout.
Description
Description

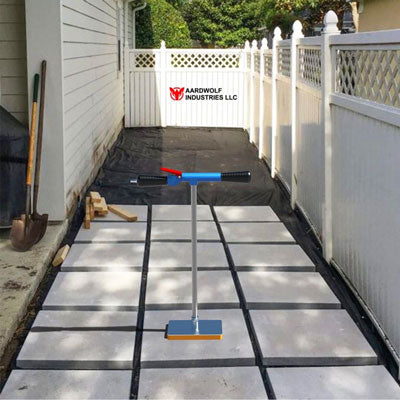

Vacuum Paving Lifter

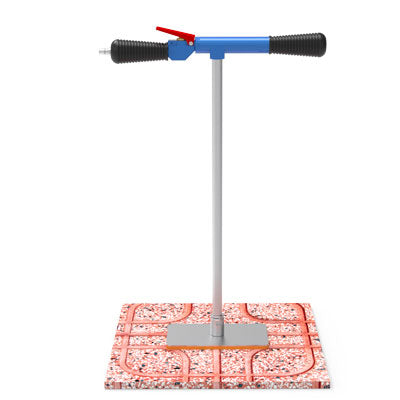

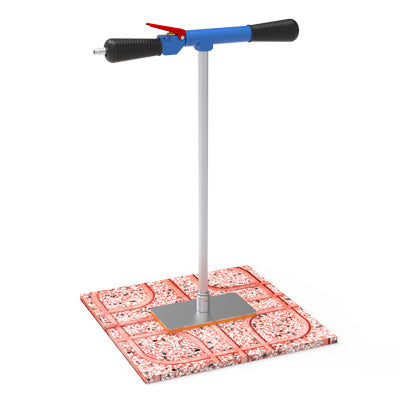

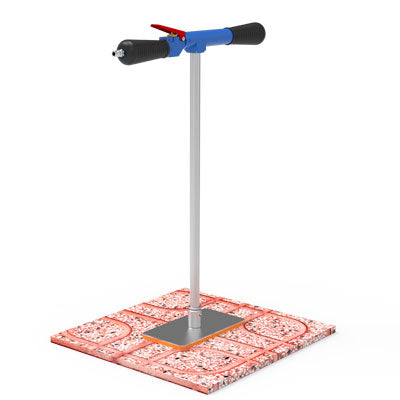

The Aardwolf Vacuum Paver Lifter uses a standard air compressor (minimum 5.2 cfm @ 125 psi) to create a vacuum in a line attached to a handle or grip. The user sets the pad on the tiles or stone, creating a tight suction seal, then lifts and sets the stone in place. A Venturi trigger on the handle provides a quick release.
Features
- Handling Tiles Or Stone Up To 40 Kg.
- Quality Construction.
- Includes Two Handles For One Man.
- Operates Using Standard Compressors.
- Simple Operation By Pressing The Lever Down To Pick Up A Tile, Then Releasing The Lever Once The Tile Is In Place.
- Industrial Male Quick Connect.
- The Lifter Includes: Pad 1: 120 X 220 Mm (4.7"X 8.7") = 40 Kgs (88 Lbs); Pad 2: 80 X 120 Mm (3.1" X 4.7") = 12 Kgs (26 Lbs).

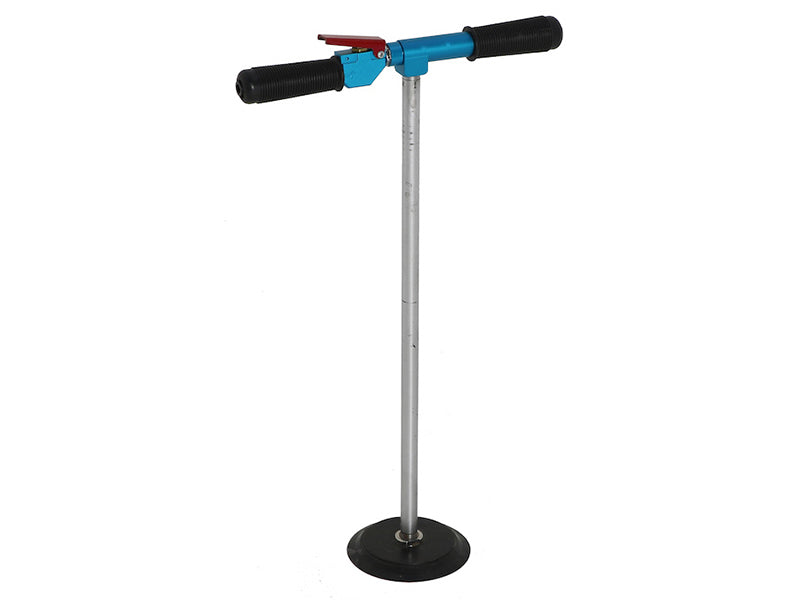

- Option: Aardwolf Provides An Option Vacuum Cup With Diameter: 150 Mm (6") = 40 Kgs (88 Lbs).
- Read all product documentation and safety instructions before use.
- Ensure compatibility with your existing tools and materials.
- Follow the manufacturer's recommended operating parameters.
- Inspect the product for damage before each use.
- Always wear appropriate PPE including safety glasses and hearing protection.
AVPL40
| Property | Detail |
|---|---|
| Max Lifting Capacity | 40 kg / 88 lbs |
| Pump Type | Pneumatic — Venturi vacuum (requires external air compressor) |
| Air Compressor Requirement | Minimum 5.2 CFM @ 125 PSI; industrial male quick-connect |
| Primary Suction Pad | 120 x 220 mm (4 3/4" x 8 5/8") — rated 40 kg / 88 lbs |
| Secondary Suction Pad | 80 x 120 mm (3 1/8" x 4 3/4") — rated 12 kg / 26 lbs |
| Optional Round Pad | 150 mm dia (5 7/8") — rated 40 kg / 88 lbs |
| Operation | Press lever to engage vacuum; Venturi trigger on handle for quick release |
| Package Dimensions | 670 x 171 x 79 mm (26 3/8" x 6 3/4" x 3 1/8") |
| Construction | Aluminum body; rubber suction pads |
| Compatible Materials | Smooth-surface tiles, pavers, stone slabs, polished concrete |
| Country of Origin | Vietnam |
- Tile
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
