Description
Description

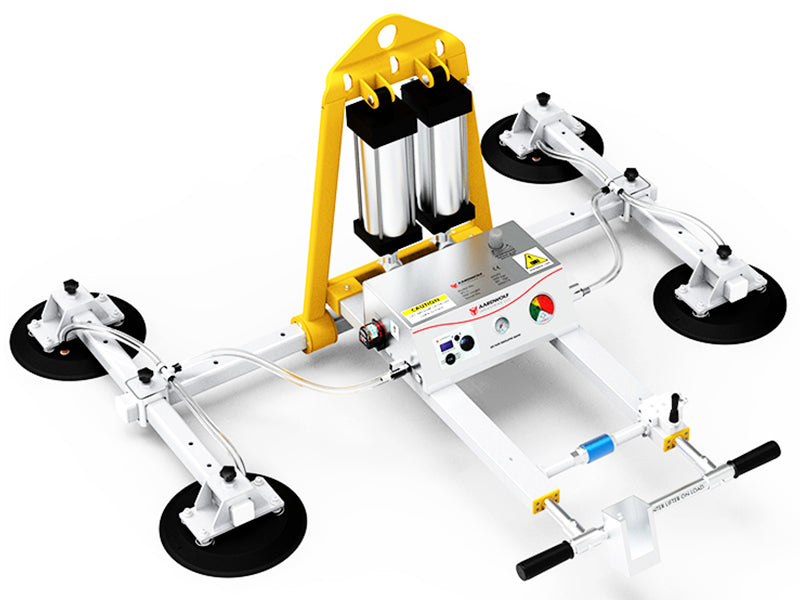

This Vacuum Lifter stands out with its specialised design and is adept at handling glass sheets. It boasts a rugged construction, ensuring durability and reliability during intensive operations. Beyond merely lifting, it can tilt materials, accommodating various handling requirements for delicate tasks.
Operating on compressed air, this equipment underscores efficiency and safety. This focus on utilising compressed air indicates a deliberate choice for energy efficiency and a safe yet powerful operation essential in handling sensitive materials like glass.
The vacuum lifter presents solutions for transporting and maneuvering glass sheets through its robust construction and versatile functionality. Its design integrates features that not only move but also adjust the orientation of the glass, ensuring precision and security in its handling .
The vacuum lifter features a durable metal structure that can be manually tilted anywhere from 0° to 90° for enhanced flexibility.
Equipped with rotating pads as standard, the Vacuum Glass Lifter enables swift rotation by the operator to both 45° and 90° angles for optimal positioning.
Features
- Manufactured by Aardwolf Industries
- Professional vacuum lifting equipment
- For safe transport of stone slabs and panels
- Property Detail: Capacity, Horizontal
- 200 kg / 441 lbs: Number of Pads
- 2: Pad Size
- Ø 11-3/4" (~Ø 298 mm): Pump Type
AVGLM2-200
| Property | Detail |
|---|---|
| Capacity, Horizontal | 200 kg / 441 lbs |
| Number of Pads | 2 |
| Pad Size | Ø 11-3/4" (~Ø 298 mm) |
| Pump Type | Compressed-air vacuum (5 – 6 bar) |
| Vacuum Level | 5–6 bar working principle |
| Tilting | Manual up to 90° |
| Rotation | Manual 45° or 90° |
| Vacuum Tank | Yes (large) |
| Alarm | Rechargeable acoustic + visual |
| Net Weight | 42.2 kg / 93 lbs |
| Package Dimensions | 58-1/4" × 18-1/8" × 32-1/4" (1480 × 460 × 820 mm) |
| Compatible Materials | Glass, smooth non-porous slabs (glazing & construction) |
| Operation | Manual hand-pump vacuum lifting |
| Country of Origin | Vietnam |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
Manufacturer Features & Specifications
General
Pneumatic tilting from 0° to 90° for vertical-horizontal handling
Integrated vacuum tank for secure hold during sudden power failures
Compressed air powered (no electric power required for lifting)
Backup 12V battery for audio/visual safety alarms
Slide valve system for quick attach/release control
Available in various pad configurations (1 to 4 pads)
Rugged aluminum or steel construction
Ideal for marble, granite, and engineered stone
Aardwolf Vacuum Lifters are pneumatic-powered lifting devices engineered for handling stone slabs in workshops, construction sites, and industrial settings. Designed to work with both smooth and rough surfaces such as granite or marble, these lifters support safe vertical-horizontal tilting up to 90°, allowing precise positioning for fabrication, installation, or transport tasks.
Each model varies in pad quantity and lifting capacity—ranging from compact single-pad units to multi-pad systems—offering flexible options to suit different material sizes and job conditions. Powered by compressed air and equipped with a backup vacuum tank, the system ensures grip reliability even during power loss. Most units also include an integrated 12V Li-ion battery to operate visual/audio alarms, improving operator safety.
Features
General
Pneumatic tilting from 0° to 90° for vertical-horizontal handling
Integrated vacuum tank for secure hold during sudden power failures
Compressed air powered (no electric power required for lifting)
Backup 12V battery for audio/visual safety alarms
Slide valve system for quick attach/release control
Available in various pad configurations (1 to 4 pads)
Rugged aluminum or steel construction
Ideal for marble, granite, and engineered stone
Aardwolf Vacuum Lifters are pneumatic-powered lifting devices engineered for handling stone slabs in workshops, construction sites, and industrial settings. Designed to work with both smooth and rough surfaces such as granite or marble, these lifters support safe vertical-horizontal tilting up to 90°, allowing precise positioning for fabrication, installation, or transport tasks.
Each model varies in pad quantity and lifting capacity—ranging from compact single-pad units to multi-pad systems—offering flexible options to suit different material sizes and job conditions. Powered by compressed air and equipped with a backup vacuum tank, the system ensures grip reliability even during power loss. Most units also include an integrated 12V Li-ion battery to operate visual/audio alarms, improving operator safety.
