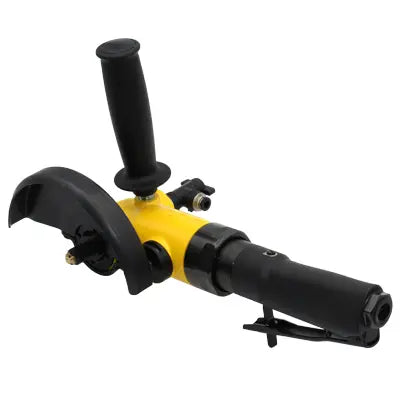

Alpha PWC Pneumatic Wet Cutter/Grinder (6")
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Alpha PWC Pneumatic Wet Cutter/Grinder (6")
Description
Description
Alpha® PWC Pneumatic Wet Cutter/Grinder — 5" & 6" Industrial Stone Tool
The Alpha® PWC series is a purpose-built, industrial-grade pneumatic wet cutter/grinder designed from the ground up for stone fabrication — not a converted dry grinder with a bolt-on water line. Its Quad-W center water-feed adapter delivers water to both sides of the blade for clean cuts and flat grinding, while a reversible safety guard, L-bracket and side handle let you configure the tool for left or right blade position, push-to-cut, or pull-to-cut work. Built on more than 35 years of Alpha wet-tool engineering and backed by a one-year tool warranty.
Features
- High-speed, high-performance pneumatic angle cutter/grinder
- Quad Adapter center water-feed — direct water flow to front and back of the blade
- Reversible safety guard for left or right blade position
- L-bracket and side handle setup for the pull-to-cut method
- Side handle attachment for the push-to-cut method
- Spring-return throttle prevents accidental start
- Easy-access oil port for daily maintenance
- Center water-feed is ideal for flat grinding as well as cutting
- One-year tool warranty
| Part No. | Size | Max RPM | Spindle | Air Pressure | Max CFM | Weight | UPC |
|---|---|---|---|---|---|---|---|
| PWC-514 | 5" | 12,000 | M14-2 | 90 PSI (6.2 Bar) | 33 CFM (934 L/min) | 4.6 lbs (2.1 kg) | 749173430343 |
| PWC-658 | 6" | 10,000 | 5/8"-11 | 90 PSI (6.2 Bar) | 33 CFM (934 L/min) | 4.6 lbs (2.1 kg) | 749173430336 |
- Run on a clean, dry compressed-air supply at 90 PSI (6.2 Bar) and a minimum 33 CFM (934 L/min).
- Always install an Alpha Filter/Regulator Manifold upstream to keep humidity and debris out of the motor.
- Add several drops of Rust Inhibitor Oil through the oil port at the end of every shift; spin the spindle a few turns to coat the cylinder and rotor.
- Mount the Alpha Elite Q blade (included) using the Quad-W Adapter for cutting; use the Katana Q blade for porcelain or sintered slabs.
- For dry cutting/grinding under OSHA Table 1, swap the steel safety guard for an Alpha Ecoguard CX, W6 or GX and connect a HEPA vacuum.
- Replace mufflers when you notice power loss — clogged exhaust is the most common cause.
5" — M14-2 spindle — Pneumatic Wet Cutter / Grinder — PWC-514
| Part No. | PWC-514 |
| UPC | 749173430343 |
| Size | 5" |
| Type | Pneumatic Wet Cutter / Grinder |
| Attachment | M14-2 spindle |
| Thread | M14-2 |
| Max RPM | 12,000 RPM |
| Packaged Weight | 15.5 lbs |
| Package Dimensions | 16in x 12in x 7in |
| Commodity Code | 8467.11.5090 |
| Country of Origin | Taiwan |
6" — 5/8"-11 spindle — Pneumatic Wet Cutter / Grinder — PWC-658
| Part No. | PWC-658 |
| UPC | 749173430336 |
| Size | 6" |
| Type | Pneumatic Wet Cutter / Grinder |
| Attachment | 5/8"-11 spindle |
| Thread | 5/8"-11 |
| Max RPM | 10,000 RPM |
| Packaged Weight | 15.7 lbs |
| Package Dimensions | 16in x 12in x 7in |
| Commodity Code | 8467.11.5090 |
| Country of Origin | Taiwan |
| Property | Detail |
|---|---|
| Air Pressure | 90 PSI (6.2 Bar) |
| Maximum Air Consumption | 33 CFM (934 L/min) |
| Air Inlet | 3/8" NPSM |
| Water Inlet | 1/8" BSPT |
| Maximum Horsepower | 1.4 HP |
| Overall Length | 11-3/4" (298 mm) |
| Tool Weight | 4.6 lbs (2.1 kg) |
| Warranty | One year (see manual for details) |
| Included | Toolbox, 30 ft air/water twin hose, Elite Q blade, Quad-W Adapter, safety guard, side handle, handle bracket, quick-connect ball valve, 3.4 oz rust inhibitor oil, hex wrenches (2 mm, 5 mm), 19 mm spanner (x2), extension rod & M12 lock nut |
| Commodity Code | 8467.11.5090 |
| Country of Origin | Taiwan |
My compressor is large enough but the PWC bogs down. What can I do?
You probably have multiple tools sharing the airline. Each PWC needs a steady 33 CFM at 90 PSI; isolate the tool, shorten the airline, or upsize the supply to restore performance.
How is the PWC different from a regular pneumatic angle grinder?
Most "wet" pneumatic grinders on the market are dry tools with a bolt-on water feed. The Alpha PWC is engineered from scratch as a wet industrial stone tool, drawing on 35+ years of Alpha wet-polisher development.
How do I cut with the PWC?
Use the included Quad-W Adapter, which feeds water to both sides of the blade. The Quad-W is standard equipment and is also sold separately through Alpha distributors.
What is the warranty?
One year on the tool. Full terms are printed in the operator’s manual.
Can I run the PWC dry?
Yes — for dry cutting or grinding, replace the steel safety guard with an Alpha Ecoguard CX, W6 or GX and connect a HEPA vacuum to capture silica dust per OSHA Table 1.
What is the best long-term maintenance routine?
Always run the PWC downstream of an Alpha Filter/Regulator Manifold to remove humidity and debris. At the end of every shift, add a few drops of Rust Inhibitor Oil through the oil port and turn the spindle a few revolutions to coat the cylinder and rotor.
Should I use an automatic oiler?
No. Auto-oilers soak the muffler with dirty oil (causing clogs and power loss), spray oil onto the stone (staining), and make the floor slippery. Daily manual oiling is the recommended method.
I have lost power even though my settings are unchanged. How do I fix it?
The muffler is most likely clogged. Remove the exhaust deflector with a screwdriver and replace it — you can also rotate it to redirect the exhaust away from the operator.
How do I change the angle of the spring-return throttle lever?
Use a 48 mm spanner to loosen Nut Part No. 60, rotate the lever to the desired position, and re-tighten.
Which blade should I use on porcelain or sintered slab?
Switch from the included Elite Q (granite / quartzite / engineered stone) to the Alpha Katana Q, which is purpose-built for porcelain and sintered slabs.
Where can I get the parts schematic?
Download the PDF schematic from the Documentation section below, or call Alpha at 800-648-7229.
Powerful Pneumatic Cutter/Grinder

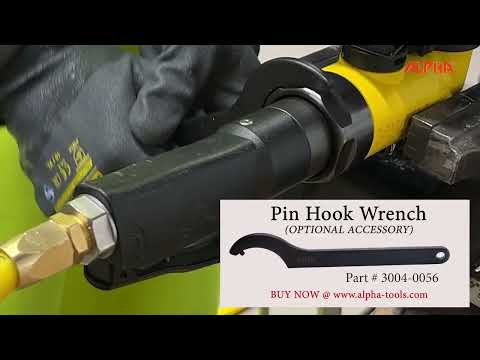

Using a Pin Wrench to Rotate the Cutter/Grinder
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
