Alpha® Paver Tile Bullnose Kit (5480-1230)
The Alpha® Paver Tile Bullnose Kit packages everything an installer needs to create a true full-bullnose edge on porcelain paver tile and polish it to a factory finish — right at the jobsite. Built around the variable-speed VSP-320 wet polisher and the PFV201 3/4" full-bullnose profiler, the kit produces a complete pool-coping, step or stair edge in a single workflow.
Features
- Complete on-site bullnose edge finishing system for porcelain paver tile
- Includes the VSP-320 variable-speed wet polisher (700-2,500 RPM, 800W)
- PFV201 Profiler V (3/4" / 2cm full bullnose) for porcelain pavers
- Five Ceramica EX polishing discs (#200, #500, #1,000, #2,000, #3,000)
- GP45/8PD 4" flexible backer pad for polishing discs
- APRON2000 waterproof sleeveless apron included
- 15 ft cord with GFCI-style water-fed connection
- Creates a factory-grade full-bullnose edge in one workflow
| Part No. | Description | Voltage | Amps | Power | RPM Range | Tool Weight | Spindle | UPC |
|---|---|---|---|---|---|---|---|---|
| 5480-1230 | Paver Tile Bullnose Kit (complete) | 120V | 7.0A | 800W | 700-2,500 | 7.3 lbs | 5/8"-11 | 749173661662 |
| VSP-320 | Variable Speed Polisher (included) | 120V | 7.0A | 800W | 700-2,500 | 7.3 lbs | 5/8"-11 | 749173541032 |
- Set up the VSP-320 polisher; connect water supply and inspect the cord/plug before each use.
- Mount the PFV201 (3/4" full bullnose) profiler onto the 5/8"-11 spindle.
- Set polisher speed in the low end of the range (~1,000-1,500 RPM) for profiling.
- Run wet at all times — supply continuous water through the polisher to flush slurry.

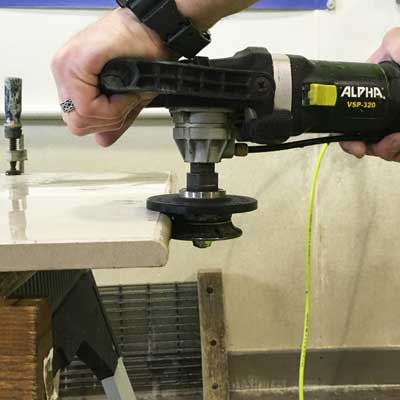

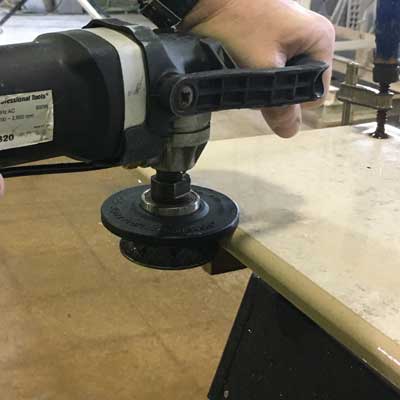

- Profile the tile edge with steady, even passes; let the nylon guide ride on the surface to keep the bullnose straight.

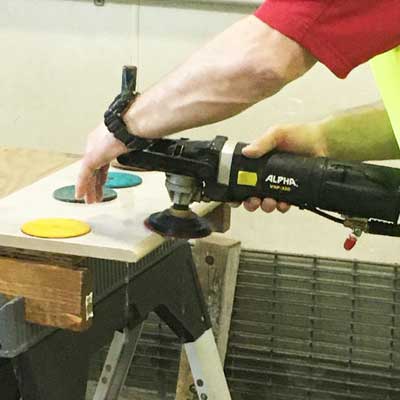

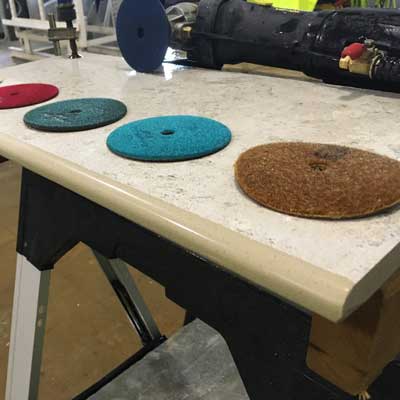

- Switch to the GP45/8PD backer pad and step through the five Ceramica EX discs (#200 -> #500 -> #1,000 -> #2,000 -> #3,000) to polish to a factory finish.
- Wear the included APRON2000 waterproof apron and PPE (safety glasses, hearing protection, water-rated gloves) throughout.
Complete Kit — Paver Tile Bullnose Kit — 5480-1230
| Part No. | 5480-1230 |
| UPC | 749173661662 |
| Size | Complete Kit |
| Type | Paver Tile Bullnose Kit |
| Thread | 5/8"-11 spindle |
| Max RPM | 2,500 RPM (variable 700-2,500) |
| Recommended For | Full bullnose edges on porcelain paver tile (on-site) |
| Country of Origin | See individual components |
| Property | Detail |
|---|---|
| Application | Full bullnose edge & polish on porcelain paver tile, on-site |
| Polisher Included | VSP-320 Variable Speed Polisher |
| Voltage | 120V / 60Hz / Single Phase |
| Amperage | 7.0A |
| Power | 800W |
| Speed Range | 700-2,500 RPM (variable) |
| Tool Weight | 7.3 lbs |
| Spindle | 5/8"-11 |
| Cord Length | 15 ft |
| Profiler Included | PFV201 — 3/4" (2cm) Full Bullnose, Profiler V-Series |
| Polishing Discs | Ceramica EX #200, #500, #1,000, #2,000, #3,000 |
| Backer Pad | GP45/8PD 4" Flexible Backer Pad |
| Apron | APRON2000 Waterproof Sleeveless |
| Packaged Weight | 16.5 lbs |
| Package Dimensions | 23.5" x 13.5" x 8" |
What does the Paver Tile Bullnose Kit produce?
A full bullnose edge on porcelain paver tile, polished to a factory-quality finish, completed on-site without sending pieces back to the shop.
What is included?

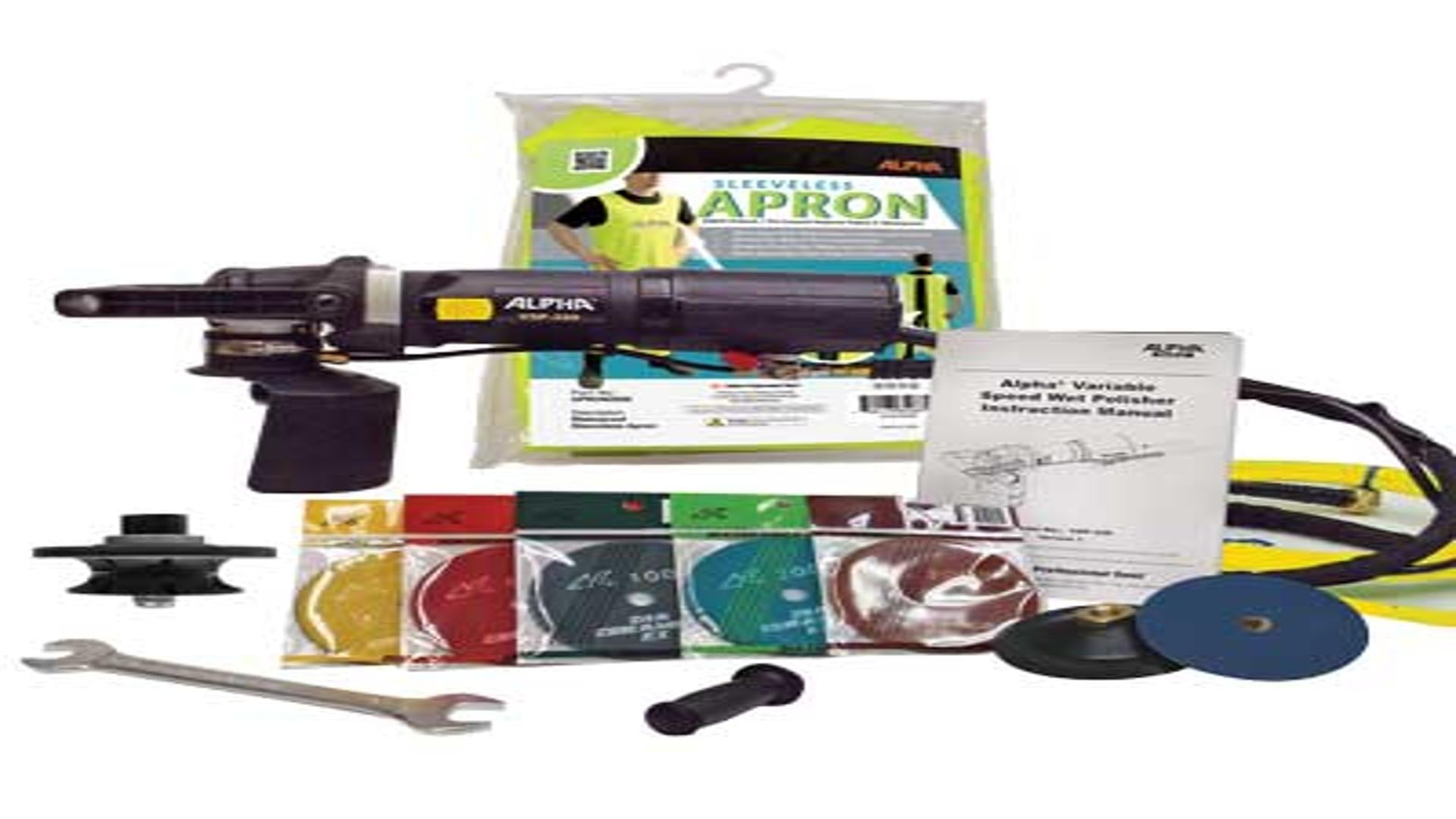

The VSP-320 variable-speed wet polisher, PFV201 3/4" full-bullnose Profiler V, GP45/8PD 4" flexible backer pad, five Ceramica EX polishing discs (#200, #500, #1,000, #2,000, #3,000), and an APRON2000 waterproof sleeveless apron.
What tile thickness does the kit handle?
The PFV201 produces a 3/4" (2cm) radius full bullnose, ideal for standard 2cm porcelain pavers. For thicker pavers, choose a larger Profiler V (PFV301 / PFV401 / PFV501 / PFV601) and pair it with the appropriate Alpha polisher.
Can the VSP-320 be used dry?
No. The polisher and the profiler require continuous water. Dry use will overheat the diamonds and damage both the wheel and the tile.
What is the speed range of the VSP-320?
700-2,500 RPM variable. Profile at the lower end (~1,000-1,500 RPM) and polish at higher speeds following each Ceramica EX disc grit.
Is this kit suitable for granite or quartz countertops?
The kit is optimized for porcelain paver tile. For thicker stone slabs and countertops, refer to the Alpha® Eased Edge / Tile Bullnose Kit and larger profilers/polishers.
No product-specific videos are currently available from the manufacturer or DST.
⚠ WARNING: This product can expose you to chemicals including crystalline silica (airborne particles of respirable size) and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.. Always wear appropriate PPE.
