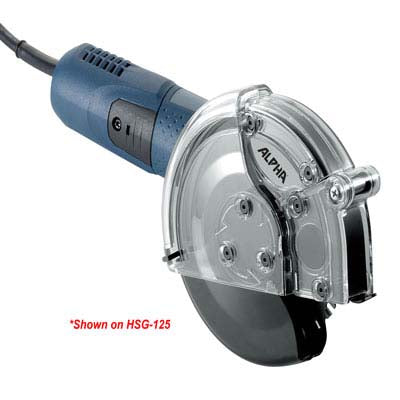

Alpha® Ecoguard M (Spark Buster) — Angle-Grinder Metal Cutting Guard
The Alpha® Ecoguard Type M — also known as the Spark Buster — turns a variable-speed angle grinder into a controlled metal-cutting system. When fitted with a carbide-tipped blade, the Ecoguard M eliminates the dangerous kick-back of hand-held grinders and dramatically minimizes sparks, debris, and odor. The clear cover lets you see the cut line, and the rugged housing is recommended for EX (explosive-atmosphere) zones. Accepts blades up to 5" in diameter and fits selected 4-1/2", 5", and 6" variable-speed angle grinders.
Features
- Designed for variable-speed angle grinder debris and spark collection
- Eliminates dangerous kick-back common to hand-held grinders
- Minimizes sparks, debris, and odor at the cut
- Accepts up to 5" diameter carbide-tipped blades
- Rugged heavy-duty construction; recommended for EX (explosive) zones
- Clear cover for full visibility of the cut line
- Easy installation and quick blade changes
- Fits selected 4-1/2", 5", and 6" variable-speed angle grinders
- Enables straight, precise cuts where freehand grinders cannot
| Part No. | Size | Thickness | Max RPM | Arbor | Shape | Description | UPC |
|---|---|---|---|---|---|---|---|
| ECOGRDSB | 5" | — | — | — | — | Ecoguard M (Spark Buster) Guard | 749173661044 |
| TCT4530 | 4-1/2" | 1.6mm | 13,000 RPM | 7/8" | 30 Teeth | Carbide Blade - Steel | 749173661051 |
| TCT5030 | 5" | 1.6mm | 9,600 RPM | 7/8" | 30 Teeth | Carbide Blade - Steel | 749173661068 |
| ECOM45KIT | 4-1/2" | 1.6mm | 13,000 RPM | 7/8" | — | Ecoguard M + Carbide 4-1/2" Blade Kit | 749173661075 |

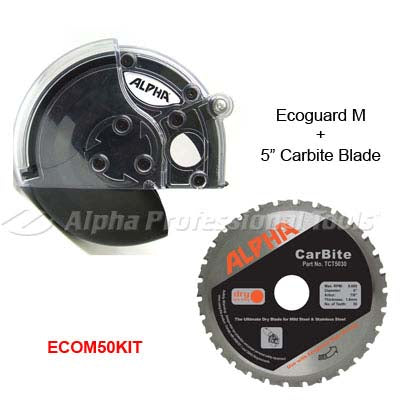

| ECOM50KIT | 5" | 1.6mm | 9,600 RPM | 7/8" | — | Ecoguard M + Carbide 5" Blade Kit | 749173661082 |
- Verify your variable-speed angle grinder is on the Ecoguard Grinder Compatibility Chart (see Documents).
- Remove the factory guard and install the Ecoguard M housing on the grinder spindle.
- Mount a 4-1/2" or 5" carbide-tipped blade (TCT4530 or TCT5030) with the correct 7/8" arbor.
- Set grinder RPM at or below the blade’s max rating (13,000 RPM for 4-1/2"; 9,600 RPM for 5").
- Position the workpiece securely; align the clear cover with your cut line.
- Feed steadily — let the carbide blade do the cutting; do not force.
- Empty the debris housing periodically to maintain spark/odor containment.
5" — Ecoguard M (Spark Buster) Guard — ECOGRDSB
| Part No. | ECOGRDSB |
| UPC | 749173661044 |
| Size | 5" |
| Type | Ecoguard M (Spark Buster) Guard |
| Thread | — |
| Max RPM | — |
| Recommended For | Metal cutting (with carbide blade) / debris and spark containment |
| Packaged Weight | 3.00 lbs |
| Package Dimensions | — |
| Commodity Code | 8466.91.0001 |
| Country of Origin | Japan |

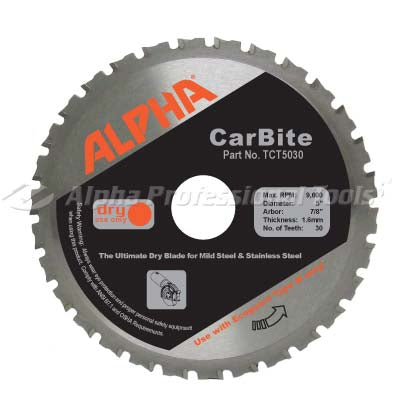

5" — Carbide Blade - Steel — TCT5030
| Part No. | TCT5030 |
| UPC | 749173661068 |
| Size | 5" |
| Type | Carbide Blade - Steel |
| Thread | 7/8" |
| Max RPM | 9,600 RPM |
| Recommended For | Metal cutting (with carbide blade) / debris and spark containment |
| Packaged Weight | 0.40 lbs |
| Package Dimensions | 5.25" x 5" x 0.25" |
| Commodity Code | 8202.39.9000 |
| Country of Origin | China |
4-1/2" — Ecoguard M + Carbide 4-1/2" Blade Kit — ECOM45KIT
| Part No. | ECOM45KIT |
| UPC | 749173661075 |
| Size | 4-1/2" |
| Type | Ecoguard M + Carbide 4-1/2" Blade Kit |
| Thread | 7/8" |
| Max RPM | 13,000 RPM |
| Recommended For | Metal cutting (with carbide blade) / debris and spark containment |
| Packaged Weight | 3.60 lbs |
| Package Dimensions | See individual items |
| Commodity Code | See individual items |
| Country of Origin | — |
5" — Ecoguard M + Carbide 5" Blade Kit — ECOM50KIT
| Part No. | ECOM50KIT |
| UPC | 749173661082 |
| Size | 5" |
| Type | Ecoguard M + Carbide 5" Blade Kit |
| Thread | 7/8" |
| Max RPM | 9,600 RPM |
| Recommended For | Metal cutting (with carbide blade) / debris and spark containment |
| Packaged Weight | 3.70 lbs |
| Package Dimensions | See individual items |
| Commodity Code | See individual items |
| Country of Origin | — |
| Property | Detail |
|---|---|
| Application | Metal cutting with angle grinder — sparks, debris and odor containment |
| Blade Type | Carbide-Tipped (TCT) circular blade |
| Max Blade Diameter | 5" |
| Blade Arbor | 7/8" |
| Compatible Grinders | Selected 4-1/2", 5", and 6" variable-speed angle grinders |
| EX Zone Rated | Yes — recommended for explosive-atmosphere environments |
| Cuts | Angle iron, c-channel, conduit, schedule 40 pipe, spiral duct, galvanized roofing, metal studs, rebar, stainless steel, aluminum plates & bars, steel plates, threaded rod, unistrut |
| Country of Origin | Japan (guard) / China (blades) |
What is the difference between the Ecoguard M and the Ecoguard G?
The Ecoguard M (Spark Buster) is designed for metal cutting with carbide-tipped blades — containing sparks and debris. The Ecoguard G series is for dust-producing stone, concrete and masonry work paired with a vacuum.
What blades can I use with the Ecoguard M?
Only the Alpha® Carbide-Tipped (TCT) blades sold for this guard: TCT4530 (4-1/2") and TCT5030 (5"). Do not use abrasive or diamond blades in this guard.
Does the Ecoguard M work on any angle grinder?
No. It fits selected 4-1/2", 5", and 6" variable-speed angle grinders. Check the Ecoguard Grinder Compatibility Chart in the Documents section before purchase.
Is the Ecoguard M safe to use in explosive (EX) zones?
Yes. The Ecoguard M is recommended for use in EX zones because it controls sparks, debris and odor at the cut.
What is the maximum blade RPM?
Match the grinder speed to the blade: TCT4530 is rated 13,000 RPM max; TCT5030 is rated 9,600 RPM max. Never exceed the blade rating.
What is the difference between ECOM45KIT and ECOM50KIT?
Both are kits containing the Ecoguard M guard plus a carbide blade. ECOM45KIT ships with the 4-1/2" blade (TCT4530); ECOM50KIT ships with the 5" blade (TCT5030).

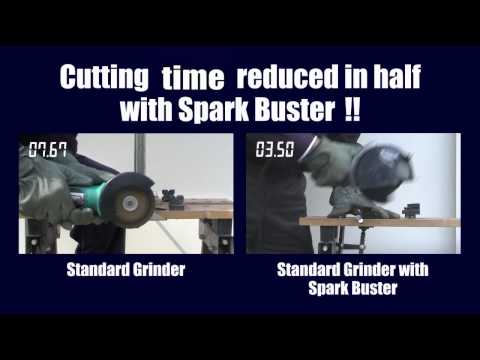

Ecoguard Type M (Spark Buster) Cutting Metal
