Alpha Ecoguard D Dust Collection Cover for Drill Bits
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Sterling, VA)
Ships same day from Sterling, VA on orders placed before 12 PM ET. Questions about fit or use? Call 703-957-4544.
Buying for a business? Trade pricing is on dynamicstonetools.net.
Description
Description
Alpha® Ecoguard D — Dust Collection Cover for Hammer-Drill Bits
The Alpha® Ecoguard Type D is a clear, lightweight dust-collection shroud that snaps over the chuck of most popular hammer drills and rotary drills. It captures concrete, stone and masonry dust at the bit — keeping it off the floor and out of the operator’s face during overhead and wall drilling. Choose the Short (DS) for bits up to 6" with a built-in depth gauge, or the Long (DL) for bits 6" and longer where the depth gauge is omitted to clear deeper anchor work.
Features
- Captures dust at the source — ideal for overhead and wall drilling
- Transparent housing keeps the drilling location in full view
- Fits most popular hammer drills and rotary drills
- Compatible with Makita® BHR202Z, Bosch® RHH180, DeWalt® DCH253, Milwaukee® 2605-20, Hilti® TE4-A18 and similar tools
- DS model includes a depth gauge for short bits up to 6"
- DL model accommodates long bits 6" and longer (no depth gauge)
- Easy-empty debris chamber for quick cleanup
- Works on concrete, masonry, wood, drywall and composites
| Part No. | Model | Bit Length | Depth Gauge | Description | UPC |
|---|---|---|---|---|---|
| ECOGRDDL | Long | >= 6" | No | Dust Collection Cover DL | 749173661167 |
| ECOGRDDS | Short | <= 6" | Yes | Dust Collection Cover DS | 749173661174 |
- Select DS for bits up to 6" (with depth gauge) or DL for bits 6" and longer.
- Slide the Ecoguard D collar onto the drill chuck collar; the supplied insert ensures a snug fit on standard chuck sizes.
- Mount the bit through the cover’s center port.
- Position the cover lip flat against the wall or ceiling at the drill location.
- For DS, set the integrated depth gauge to the required anchor depth.
- Drill normally — the chamber catches dust at the bit; tip the debris out between holes or runs.
- For overhead use, empty the chamber frequently to maintain capture performance.
- Optional: pair with the ECOVAKIT vacuum adapter for continuous dust extraction.
>= 6" drill bits — Dust Collection Cover DL — ECOGRDDL
| Part No. | ECOGRDDL |
| UPC | 749173661167 |
| Size | >= 6" drill bits |
| Type | Dust Collection Cover DL |
| Recommended For | Hammer-drill / rotary-drill dust capture — long drill bits |
| Packaged Weight | 1.15 lbs |
| Package Dimensions | 17.5" x 6" x 4.5" |
| Commodity Code | 8467.99.0190 |
| Country of Origin | Taiwan |
<= 6" drill bits — Dust Collection Cover DS — ECOGRDDS
| Part No. | ECOGRDDS |
| UPC | 749173661174 |
| Size | <= 6" drill bits |
| Type | Dust Collection Cover DS |
| Recommended For | Hammer-drill / rotary-drill dust capture — short drill bits |
| Packaged Weight | 1.00 lbs |
| Package Dimensions | 11" x 6" x 4.75" |
| Commodity Code | 8467.99.0190 |
| Country of Origin | Taiwan |
| Property | Detail |
|---|---|
| Application | Hammer/rotary drilling dust capture — walls & overhead |
| Compatible Tools | Makita®, Bosch®, DeWalt®, Milwaukee®, Hilti® and other standard hammer drills |
| Material | Transparent housing for visibility at the bit |
| Compatible Materials | Concrete, masonry, stone, wood, drywall, composites |
| Steel Use | Not recommended — hot metal debris may damage the cover |
| Spare Parts | None available — replace the cover when worn |
| Country of Origin | Taiwan |
| Optional Add-Ons | ECOVAKIT (vacuum adapter), 803172 (universal side handle), VH91100 (dust hose) |
What is the difference between the DL (Long) and DS (Short) models?
The DS (Short) fits drill bits up to 6" and includes a built-in depth gauge for anchor-setting accuracy. The DL (Long) accommodates bits 6" and longer; the depth gauge is omitted to allow the bit to travel deeper, which suits through-wall and structural work.
Will the Ecoguard D fit my drill?
It fits most popular hammer drills and rotary drills — including Makita® BHR202Z, Bosch® RHH180, DeWalt® DCH253, Milwaukee® 2605-20 and Hilti® TE4-A18. The cover ships with an adapter collar to fit standard chuck collars.
Can I still use my drill’s original side handle?
Most original handles will not refit because the collar diameter changes with the Ecoguard D installed. Alpha offers an optional universal side handle (Part No. 803172) sized for the Ecoguard.
Are spare parts available?
No. Due to the low price point, spare parts are not stocked — replace the cover when worn.
Can I use it on materials other than concrete?
Yes. It works well on drywall, wood and composites in addition to its primary concrete/masonry use case.
Is it safe for steel drilling?
Possible but not recommended — hot metal debris can damage the cover.
Can I connect a vacuum to the Ecoguard D?
Yes — pair it with the ECOVAKIT vacuum adapter kit to connect to a standard wet/dry vacuum hose for continuous dust extraction.

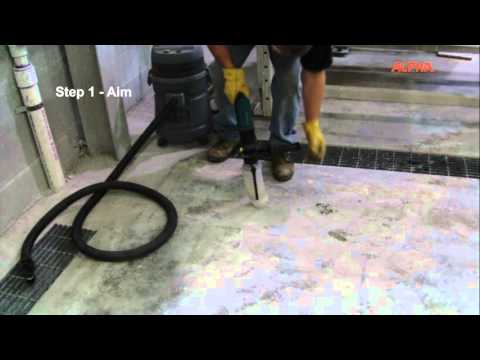

Catching Concrete Dust on Overhead Drilling Applications
Ecoguard D — Overhead Dust Capture
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
