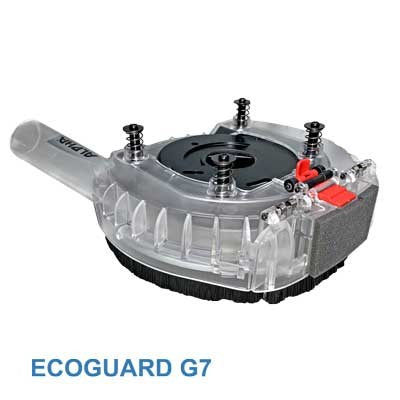

Alpha EcoGuard 5" Dust Collection Cover with Universal Adapter
The Alpha EcoGuard is a purpose-built dust shroud that captures airborne silica at the source when cutting or grinding stone, tile, and concrete with a 5" angle grinder. The integrated universal vacuum port fits most 1-1/4" to 1-1/2" hose IDs and pairs with an OSHA Table 1 compliant HEPA dust extractor to keep crystalline silica out of the operator's breathing zone. Choose CX for cutting work with diamond blades or GX for grinding work with cup wheels and polishing pads.
Features
- Engineered by Alpha Professional Tools for wet-or-dry stone fabrication.
- Two configurations: CX optimized for cutting blades, GX optimized for grinding cup wheels and pads.
- Universal swivel vacuum port accepts standard 1-1/4" to 1-1/2" hose IDs (use Alpha EcoGuard CX-5 Universal Connector for guaranteed fit).
- Helps meet OSHA 29 CFR 1926.1153 silica-dust Table 1 specified-exposure-control method when paired with a HEPA extractor.
- Mounts directly to Alpha and most major-brand 5" angle grinders.
- Lightweight reinforced housing protects the operator and the work surface.
| Property | Detail |
|---|---|
| Brand | Alpha Professional Tools (EcoGuard) |
| Disc Size | 5" (125 mm) |
| Tool Compatibility | CX = cutters (diamond blades); GX = grinders (cup wheels, polishing pads) |
| Vacuum Port | Universal swivel adapter, fits 1-1/4" to 1-1/2" hose IDs |
| Material | Reinforced composite housing with steel mounting bracket |
| Weight - CX (ECOGRCX5) | 2.25 lb (1.02 kg) |
| Weight - GX (ECOGRGX5) | 1.85 lb (0.84 kg) |
| Standard / Metric | 5" / 125 mm |
| Barcode - CX | 749173661747 |
| Barcode - GX | 749173661754 |
| OSHA Compliance | Designed for 29 CFR 1926.1153 Table 1 dust-extraction workflows |
- Disconnect the grinder from power before installing or removing the EcoGuard cover.
- Pick the correct model: CX for cutting with diamond blades, GX for grinding with cup wheels or polishing pads.
- Remove the OEM guard on your 5" angle grinder and seat the EcoGuard bracket on the spindle collar. Hand-tighten, then torque the clamp screw evenly.
- Rotate the shroud so the vacuum port clears the operator's body and hose path.
- Connect a HEPA-rated dust extractor hose (1-1/4" to 1-1/2" ID) to the universal swivel adapter. For a sealed fit, use the Alpha EcoGuard CX-5 Universal Connector (SKU 500026 / 500073).
- Start the dust extractor first, then start the grinder. Maintain extractor airflow above the tool manufacturer's minimum CFM rating for OSHA Table 1 compliance.
- After use, vacuum the inside of the shroud and inspect the bracket for cracks. Replace if damaged.
- 1 x Alpha EcoGuard 5" dust collection cover (CX or GX, per selected variant)
- 1 x Universal swivel vacuum adapter (pre-installed)
- 1 x Mounting bracket with clamp screw
- Manufacturer documentation
Vacuum hose and HEPA extractor are sold separately. Recommended companion: Alpha EcoGuard CX-5 Universal Connector (hose adapter, SKU 500026 / 500073).
Q: What is the difference between the CX and GX models?
A: CX is shaped for cutting operations with diamond blades - the front of the shroud is open to allow the blade to enter the work piece. GX is fully enclosed for grinding with cup wheels and polishing pads. Buy CX for cutting, GX for grinding; many fabricators stock both.
Q: Will this fit my grinder?
A: The EcoGuard mounts on standard 5" angle grinders with a 1/2" or M14 spindle. It works with Alpha, Makita, Bosch, DeWalt, Metabo, and most major brands. Confirm your grinder uses a standard collar guard mount.
Q: Which vacuum hose do I need?
A: The universal port accepts 1-1/4" to 1-1/2" inside diameter hoses. For a guaranteed seal on Festool, Bosch, Makita, or DeWalt extractors, add the Alpha EcoGuard CX-5 Universal Connector.
Q: Does this meet OSHA silica rules?
A: Yes - when paired with a HEPA dust extractor at the manufacturer-specified CFM, the EcoGuard supports the Specified Exposure Control Method under OSHA 29 CFR 1926.1153 Table 1. Always follow the full Table 1 workflow including respirator requirements.
Q: Can I use this for wet cutting?
A: No - the EcoGuard is designed for dry cutting/grinding with vacuum extraction. For wet workflows use an Alpha wet polisher or wet-rated guard.
Always wear appropriate PPE including a NIOSH-approved respirator rated for crystalline silica, eye protection, and hearing protection. Follow OSHA 29 CFR 1926.1153 and local regulations when cutting or grinding stone, concrete, or tile.
