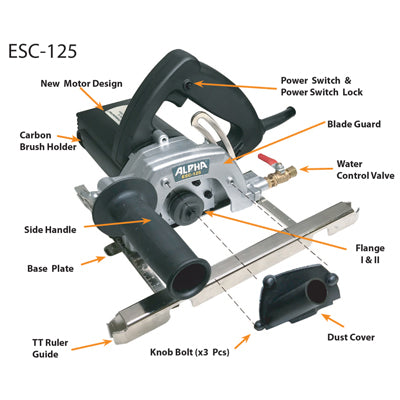

Alpha® Countertop Trim Kit (5") for ESC-125 / ESC-225
Alpha®'s second-generation Countertop Trim Kit is built for trimming pre-fabricated or custom-fit stone countertops in the shop or on site. The kit pairs the ESC-125 (110V) or ESC-225 (220V) wet/dry stone cutter with the ASC-5CSM carriage assembly and ASC-GR04 guide rail, delivering clean, straight 5" cuts on granite, quartz, marble, limestone, concrete and sintered slabs.
Features
- Precision Cuts Everytime
- Powerful Motor For Use On Granite, Quartz Surfaces, Marble, Limestone, Concrete and Sintered Slabs

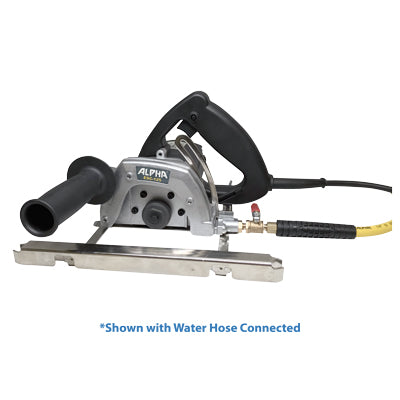

- Water-Feed Supply Eliminates The Harmful Dust Particles
- Base Plate Allows Guides To Be Used in Multiple Ways

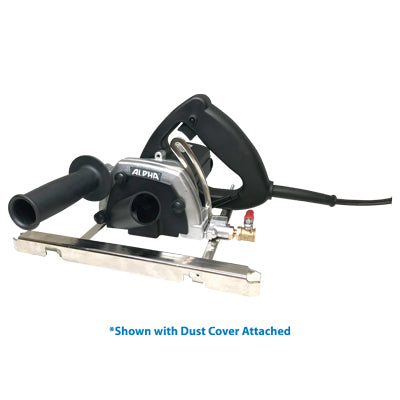

- Dust Cover for HEPA Vacuum Connection
- New Clamping System Ensures Cutting Stability
- Included Self-Stick Felt Strips Protects The Work Surface From Scratches
- Built-In GFCI (Ground Fault Circuit Interrupter)
- Great For Use With Curve Cutting Blades
- One Year Tool Warranty*
| Part No | Model | Voltage | Amperage | Power | Speed | Plug | Cord |
|---|---|---|---|---|---|---|---|
| 5480-4150 | ESC-125 | 110V | 11.2 A | 1,200 W | 12,000 RPM | Type A (110V) | 15 ft |
| 5480-4152 | ESC-225 | 220V | 5.5 A | 1,200 W | 12,000 RPM | Type C (220V) | 15 ft |

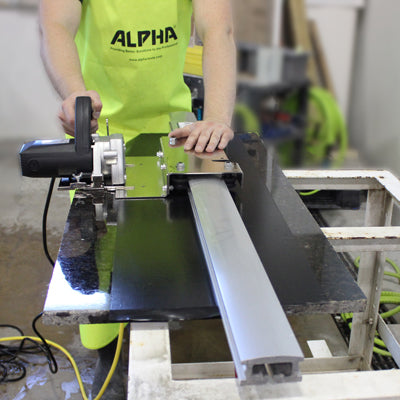

- Mount the ASC-GR04 guide rail along the cut line; secure with clamps so the rail cannot shift.
- Attach the ASC-5CSM carriage to the rail and slide it through the full travel to confirm free movement.

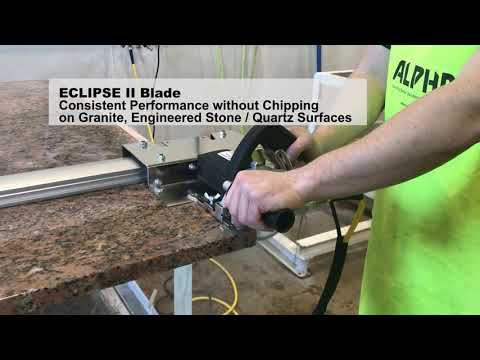

- Install the Eclipse II 5" turbo blade on the stone cutter; verify the 7/8" arbor is fully seated.
- Connect the stone cutter to a HEPA vacuum that meets OSHA Table 1 requirements.
- Set the cut depth (max 1-5/8") and start the cutter outside the workpiece before engaging the cut.

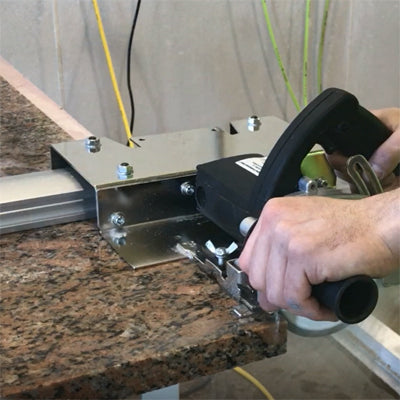

- Feed the carriage smoothly along the rail at an even pace; let the blade do the work, do not force it.
- After the cut, retract, power down and allow the blade to stop before lifting the assembly.
5480-4150
| Part No. | 5480-4150 |
5480-4152
| Part No. | 5480-4152 |
| Property | Detail |
|---|---|
| Blade Diameter | 5" (127 mm) |
| Arbor | 7/8" |
| Maximum Cut Depth | 1-5/8" (41 mm) |

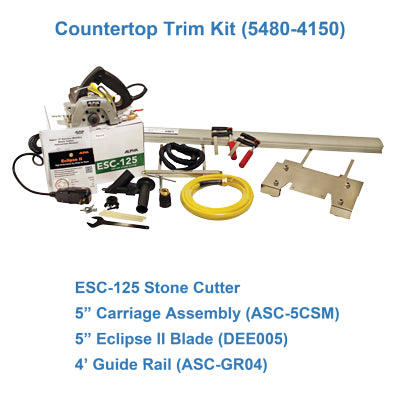

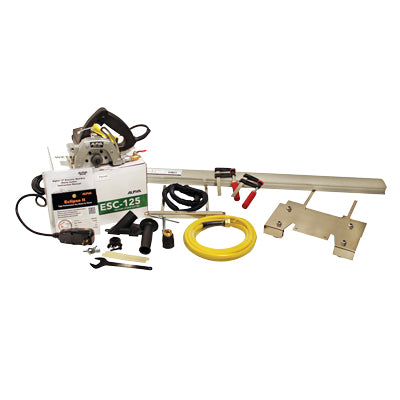

| Included Components | ESC-125 or ESC-225 stone cutter, Eclipse II 5" turbo blade (DEE005), ASC-5CSM carriage assembly, ASC-GR04 guide rail |
| Ideal Materials | Granite, quartz surfaces, marble, limestone, concrete, sintered slabs |
| Dust Control | HEPA vacuum required (OSHA Table 1) |
| Commodity Code (Cutter) | 8467.22.0020 |
| Country of Origin | China |
| Warranty | 1 year (ESC-125 / ESC-225) |
- {'title': 'Alpha® Eclipse II 5" Turbo Blade (DEE005)', 'url': 'https://dynamicstonetools.com/products/alpha-eclipse-ii-blade'}
- {'title': 'Alpha® ASC-5CSM Carriage Assembly', 'url': 'https://dynamicstonetools.com/products/alpha-asc-5csm-carriage'}
- {'title': 'Alpha® ASC-GR04 Guide Rail', 'url': 'https://dynamicstonetools.com/products/alpha-asc-gr04-guide-rail'}
- {'title': 'Alpha® ESC-125 / ESC-225 Stone Cutter (cutter only)', 'url': 'https://dynamicstonetools.com/products/alpha-esc-125-stone-cutter'}
What materials can I cut with the Countertop Trim Kit?
Granite, quartz surfaces, marble, limestone, concrete and sintered slabs.
How do I orient the TT Ruler Guide?
Orientation depends on whether you are cutting along the edge of a slab or referencing an existing straight edge. Position the guide so the cutter travels in line with the finished cut.
Do I need a dust vacuum?
Yes. A HEPA vacuum meeting OSHA Table 1 requirements is required for silica dust control while cutting engineered and natural stone.
What is the warranty?
One year on the ESC-125 / ESC-225 stone cutter. See the manual for full terms.
What is the maximum depth of cut?
1-5/8" (41 mm) with the 5" Eclipse II blade.
Can I use the ESC-225 in North America?
The ESC-225 is the 220V version intended for export markets. Use the ESC-125 (5480-4150) for standard 110V North American outlets.
