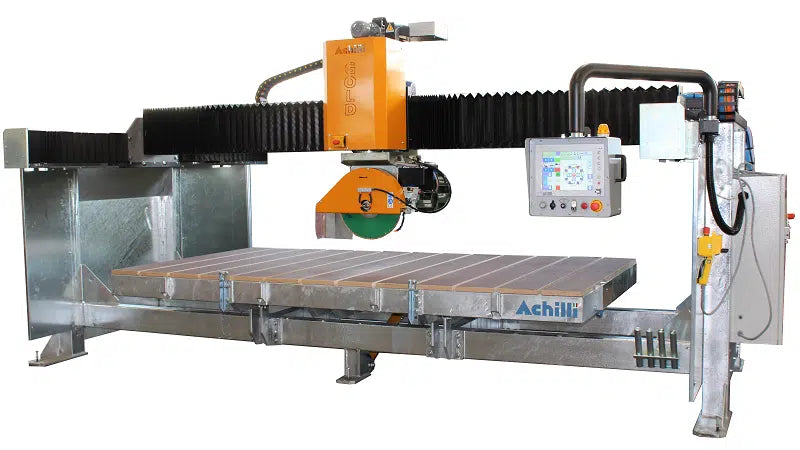

Achilli GOLD CNC Monoblock Bridge Saw — 4/5-Axis, Brushless, 0°–360° Head (Made in Italy)
The Achilli GOLD is a next-generation CNC monoblock bridge saw for precision cutting, mitering and profiling of stone slabs. Its 4- or 5-axis head rotates a full 0°–360° and tilts for angled cuts, driven by brushless motors on linear guides with recirculating ball slides for exceptional accuracy. The heavy monoblock steel structure delivers years of reliable high-end fabrication.
| Property | Detail |
|---|---|
| Brand | Achilli |
| Model | GOLD |
| Configuration | 4- or 5-axis CNC monoblock |
| Main motor | 15 HP (11 kW) |
| Blade speed | 800–6,000 rpm |
| Blade diameter | 13"–20" (350–525 mm) |
| Blade bore | 50 mm |

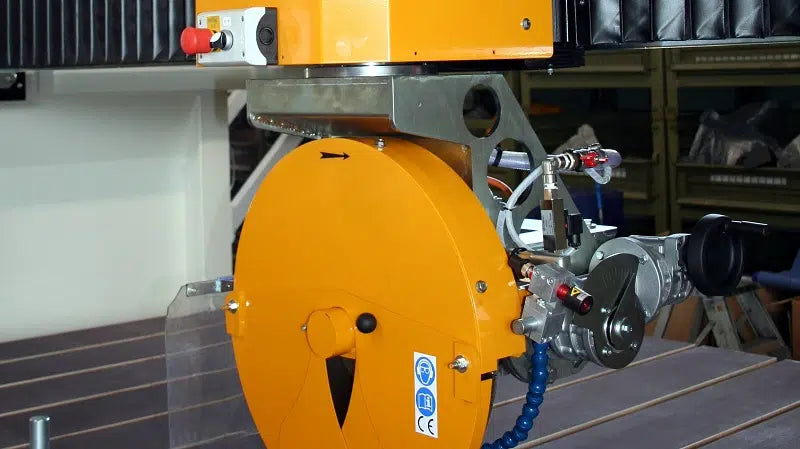

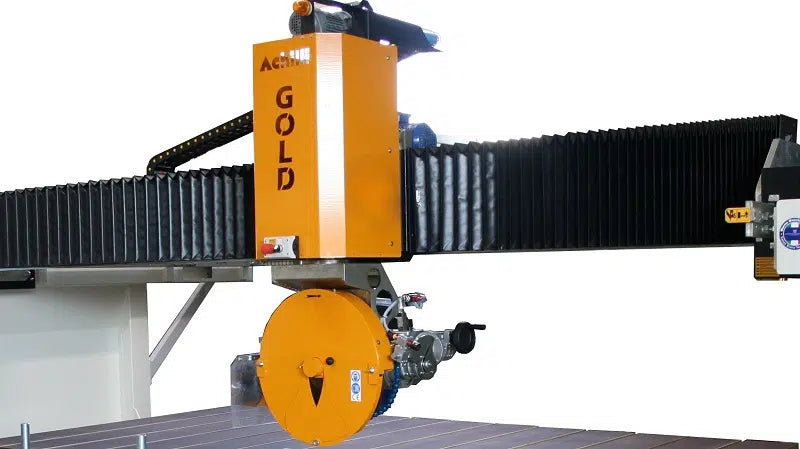

| Head rotation | 0°–360° |

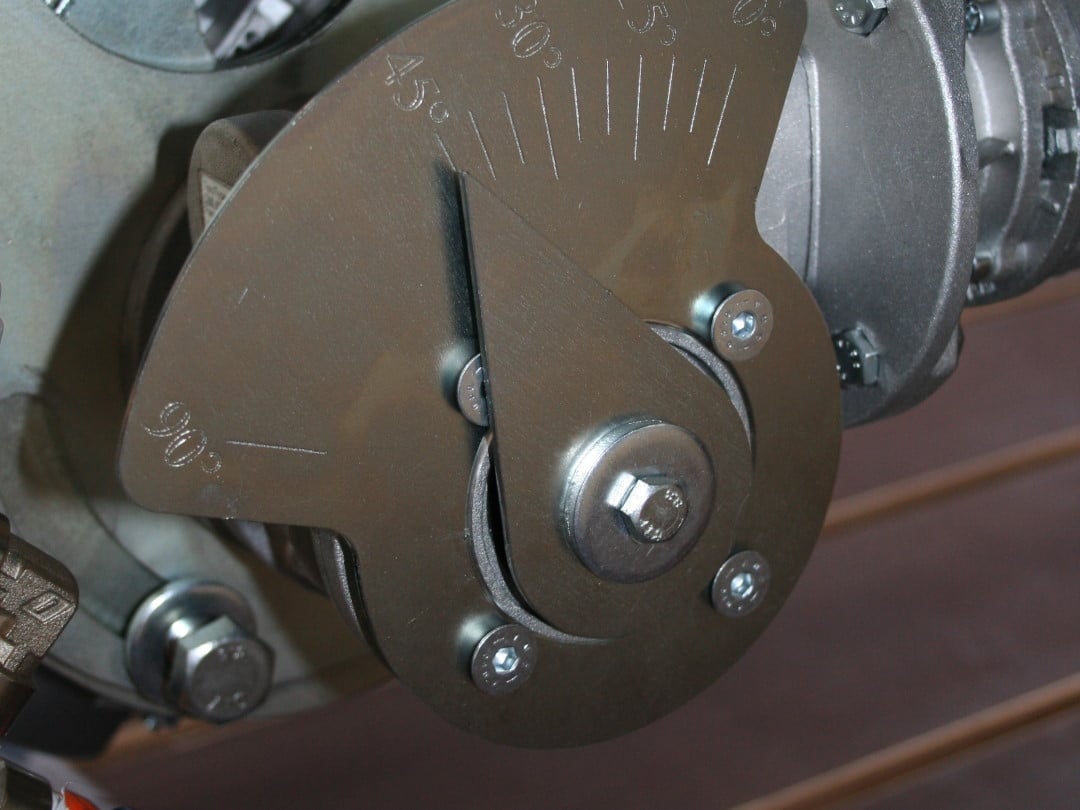

| Head tilt | 0°–50°, 90° |
| X-axis travel | 12′8″ (3,900 mm) |
| Y-axis travel | 7′8″ (2,380 mm) |
| Z-axis travel | 13" (330 mm) |
| Worktable | 11′5″ × 7′2″ (3,500 × 2,200 mm) |
| Motors | Brushless, linear guides with recirculating ball slides |
| Frame | Steel, sandblasted and ceramic coated (hot-dip galvanized on request) |
| Power | 3-phase 400 V (50/60 Hz) / 230 V 60 Hz |

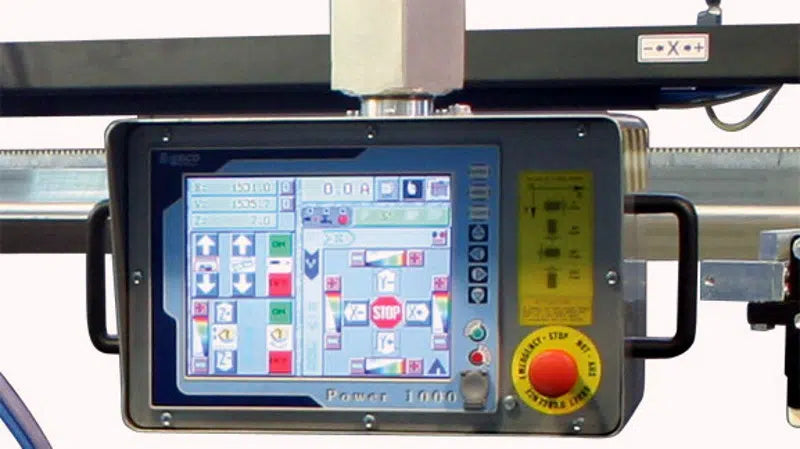

- 4- or 5-axis CNC with automatic 0°–360° head rotation for cuts in every direction

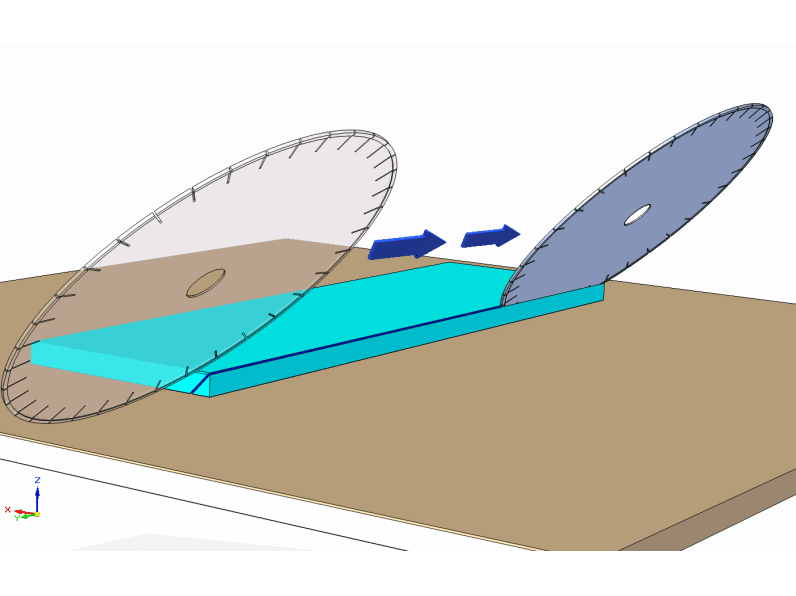

- Head tilts 0°–50° (and 90°) for miters and angled profiling
- 15 HP (11 kW) spindle, variable 800–6,000 rpm, blades 13"–20" (350–525 mm)
- Brushless motors on linear guides with recirculating ball slides for high precision
- Rigid monoblock steel frame, sandblasted and ceramic coated for durability

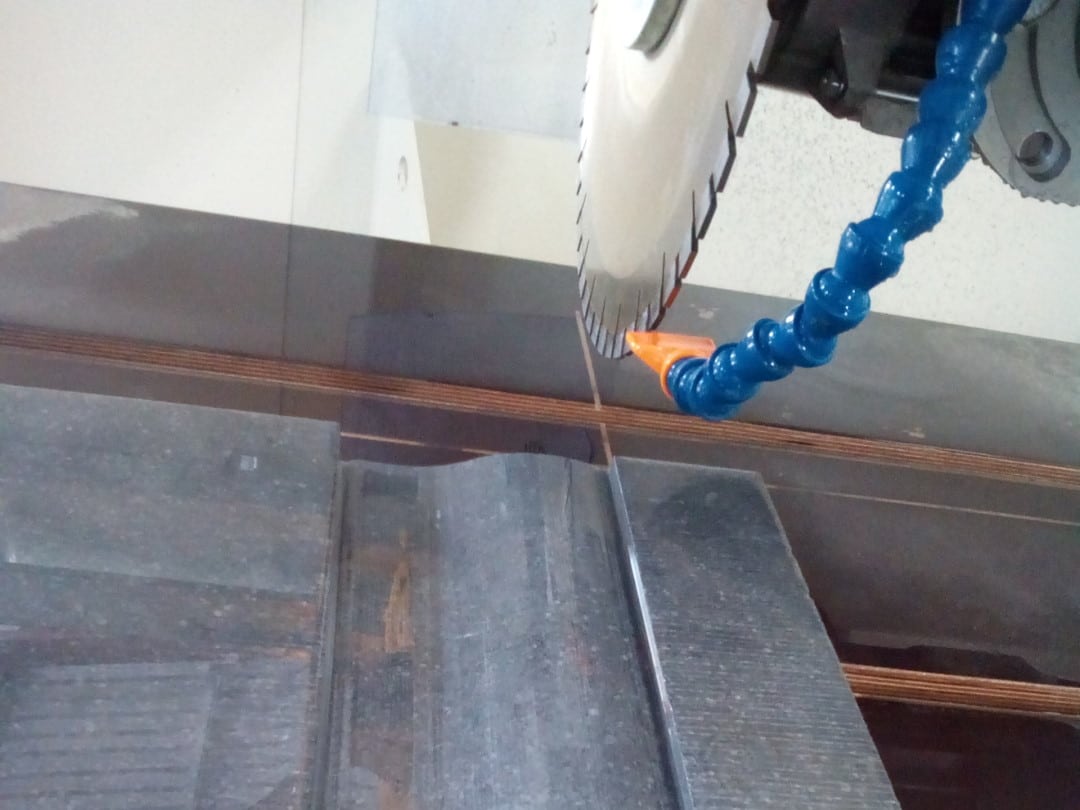

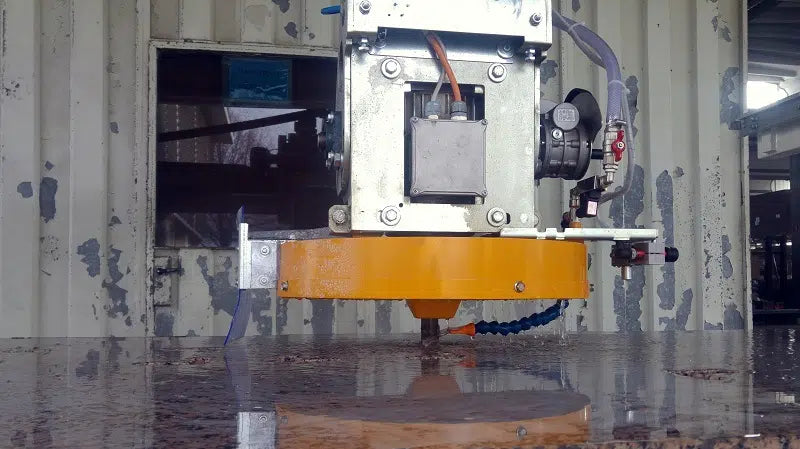

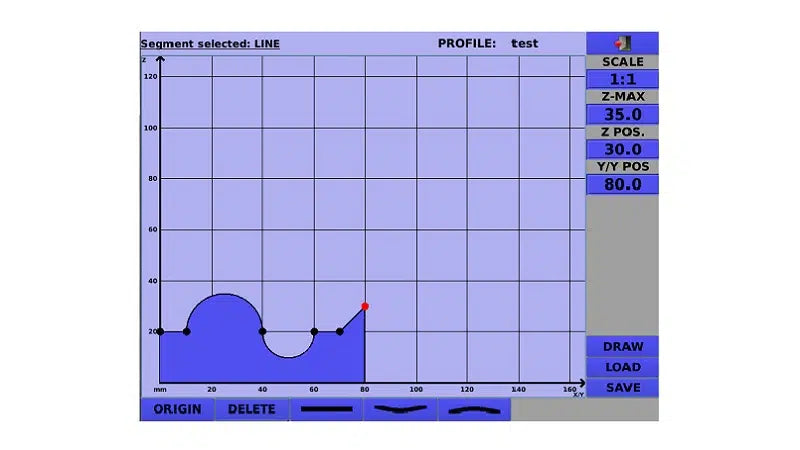

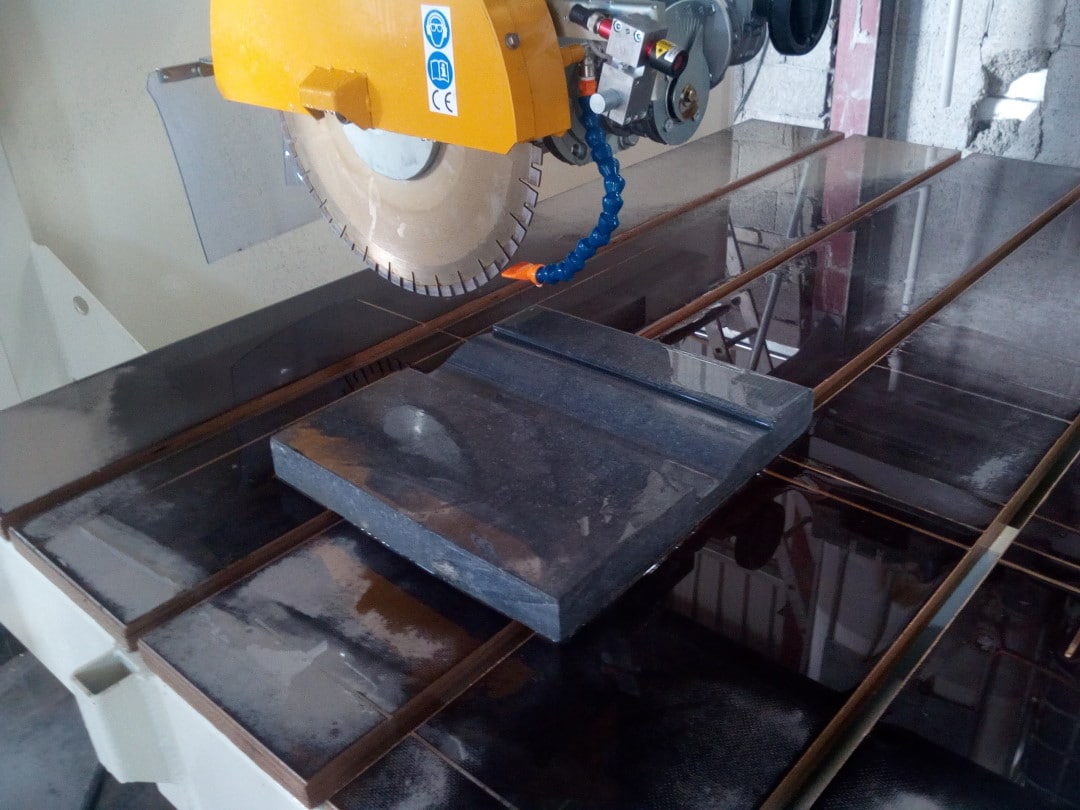

Precision straight and mitered cutting, drilling and profiling of granite, marble, quartzite and engineered-stone slabs in high-end fabrication shops.
Wear appropriate PPE. Follow manufacturer instructions and safety regulations.
