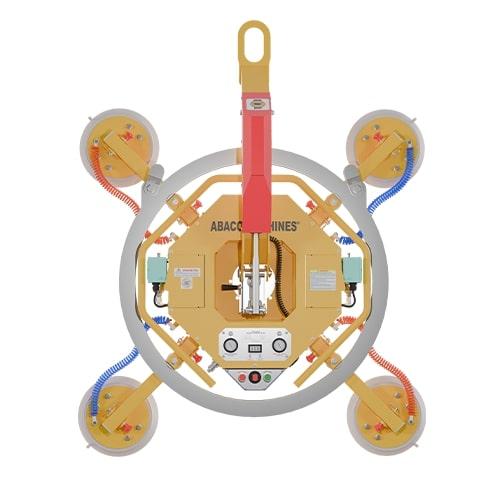

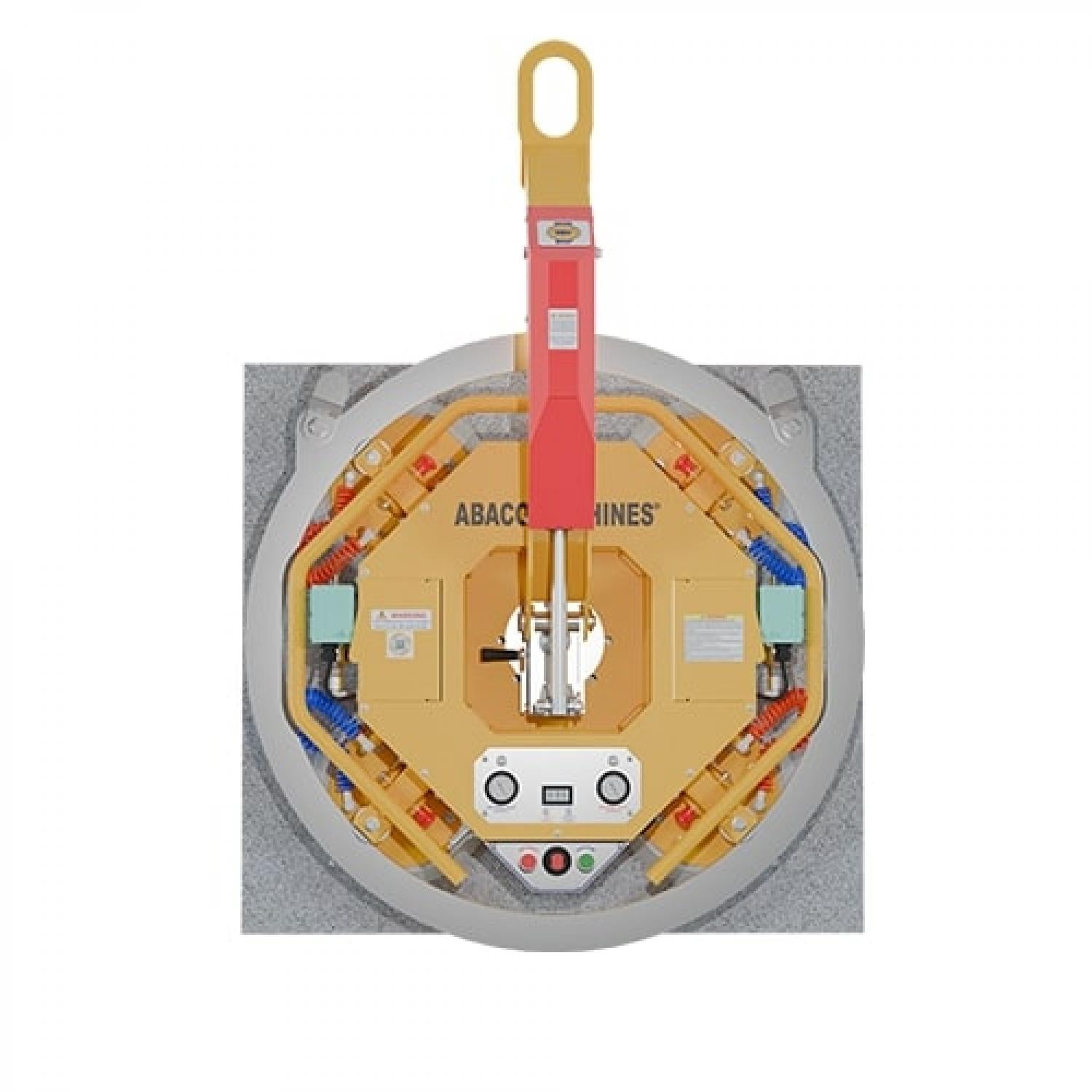

Abaco Rotary Vacuum Lifter ARVL500
The ARVL500 is a rotary vacuum lifter for lifting, moving and installing glass sheets in various sizes. It can rotate 360° or tilt 90° to lift or lower different sheet dimensions. Abaco states it can lift and transport sheets up to 1,100 lb (500 kg).
Features

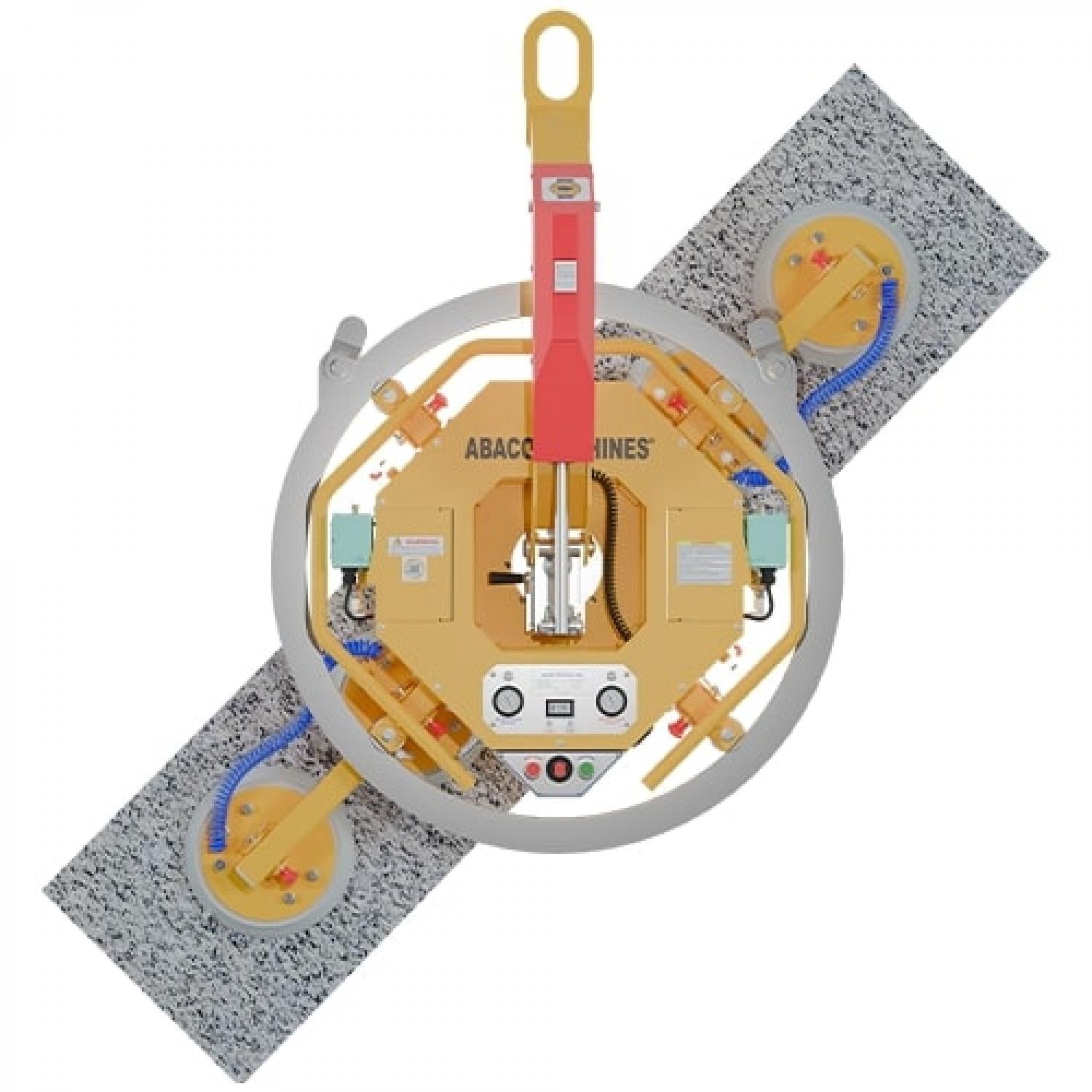

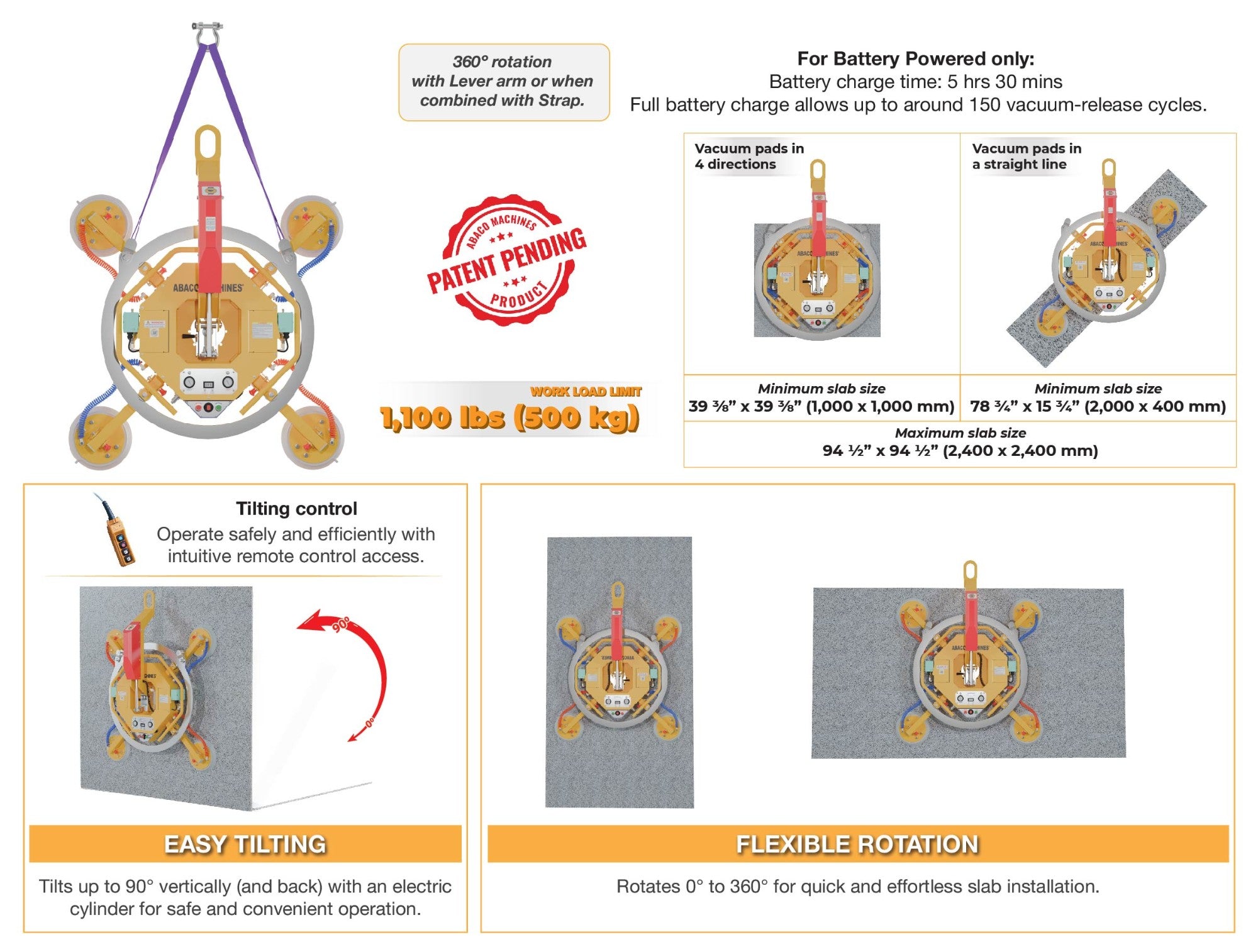

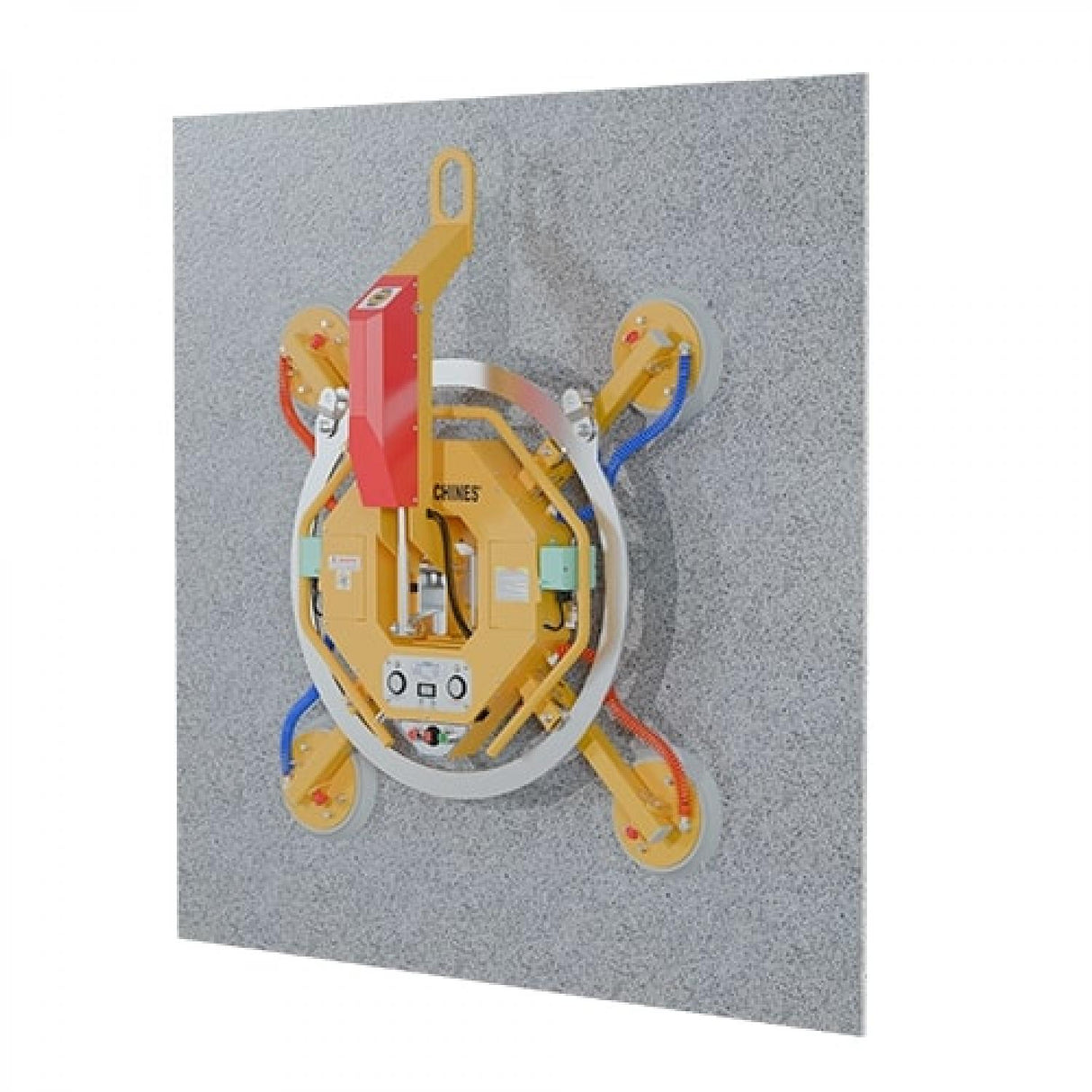

- Vacuum pads adjustable in four directions or in a straight line to approach and lift different glass sheet sizes

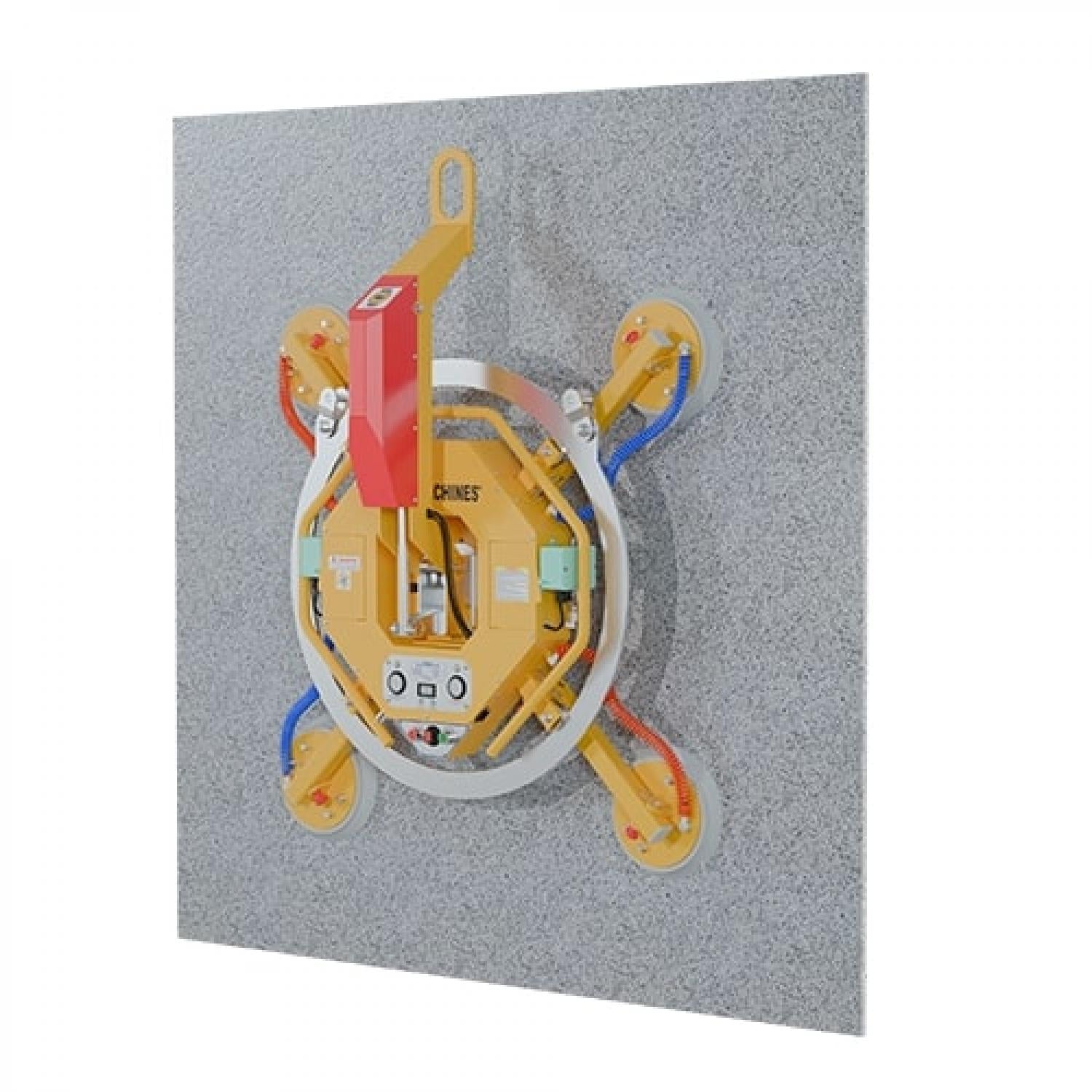

- Tilts from vertical to horizontal, or the reverse, for easier vacuuming and lifting
- Slab rotation from 0° to 360° with the lever arm or strap for quick installation

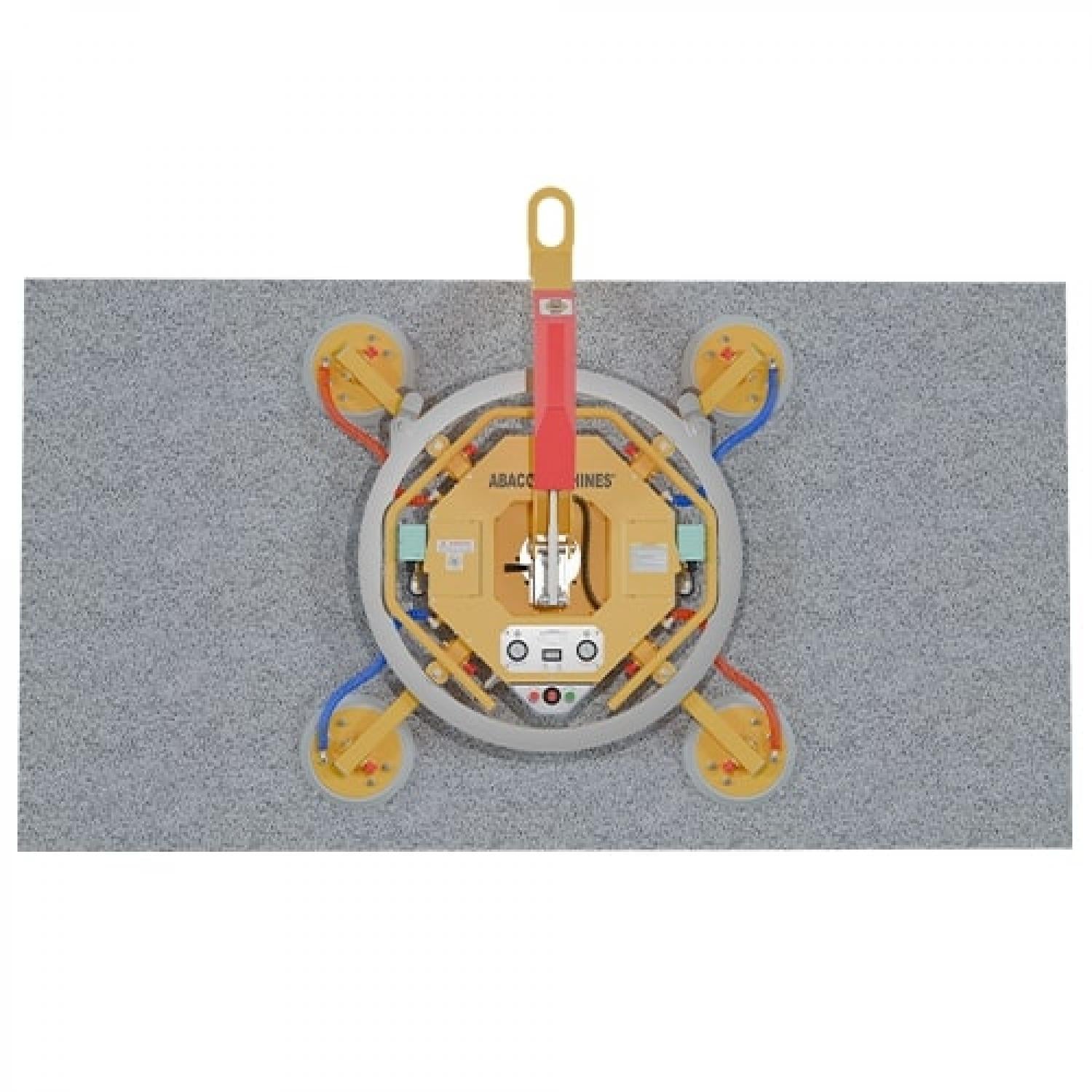

- Vacuum pads that move on bars to accommodate different sizes of stone slabs
- Warning system for safe operation
| Part No. | Rubber Color |
|---|---|
| ARVL500-B | Black |
| ARVL500-W | White |

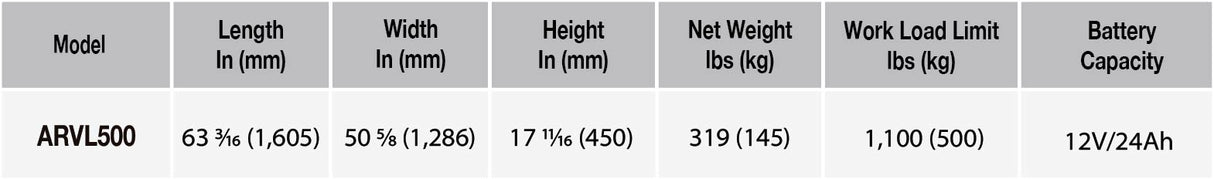

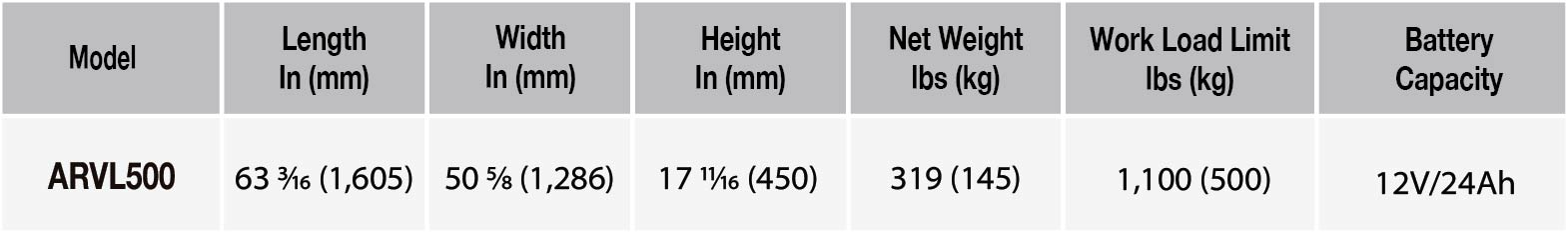

| Property | Detail |
|---|---|
| Brand | Abaco |
| Model | ARVL500 |
| Work Load Limit | 1,100 lb (500 kg) |
| Length | 63.19 in (1,605 mm) |
| Width | 50.63 in (1,286 mm) |
| Height | 17.69 in (450 mm) |
| Net Weight | 319 lb (145 kg) |
| Battery Capacity | 12V/24Ah |
| Country of Origin | Vietnam |
