Abaco Machines | SKU:
OSA7267-2T-M2-B
Sold out
Abaco Bi-Level A-Frame OSA7267-2T-M2 for Slab Storage
Regular price
$2,989.50 USD
Unit price
Shipping calculated at checkout.
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Sterling, VA)
Abaco Machines | SKU:
OSA7267-2T-M2-B
Regular price
$2,989.50 USD
Unit price
Shipping calculated at checkout.
Description
Description

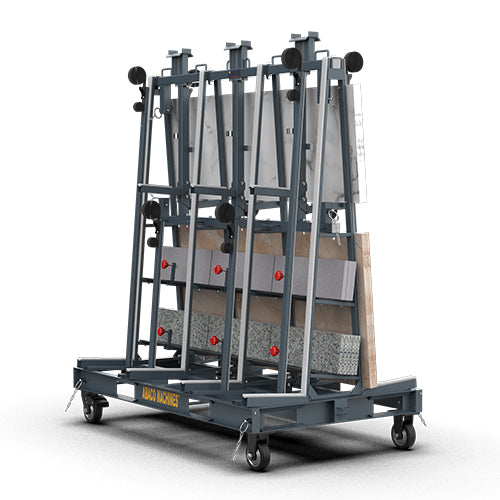

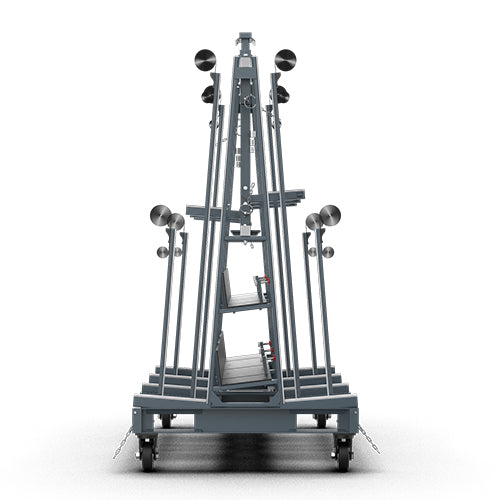

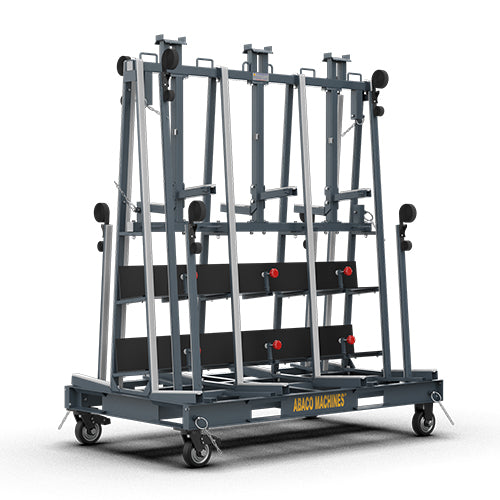

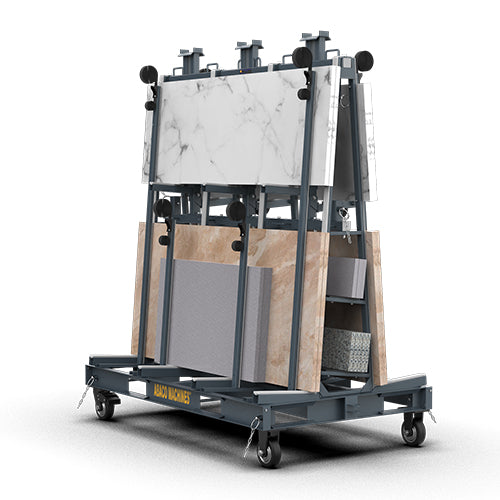

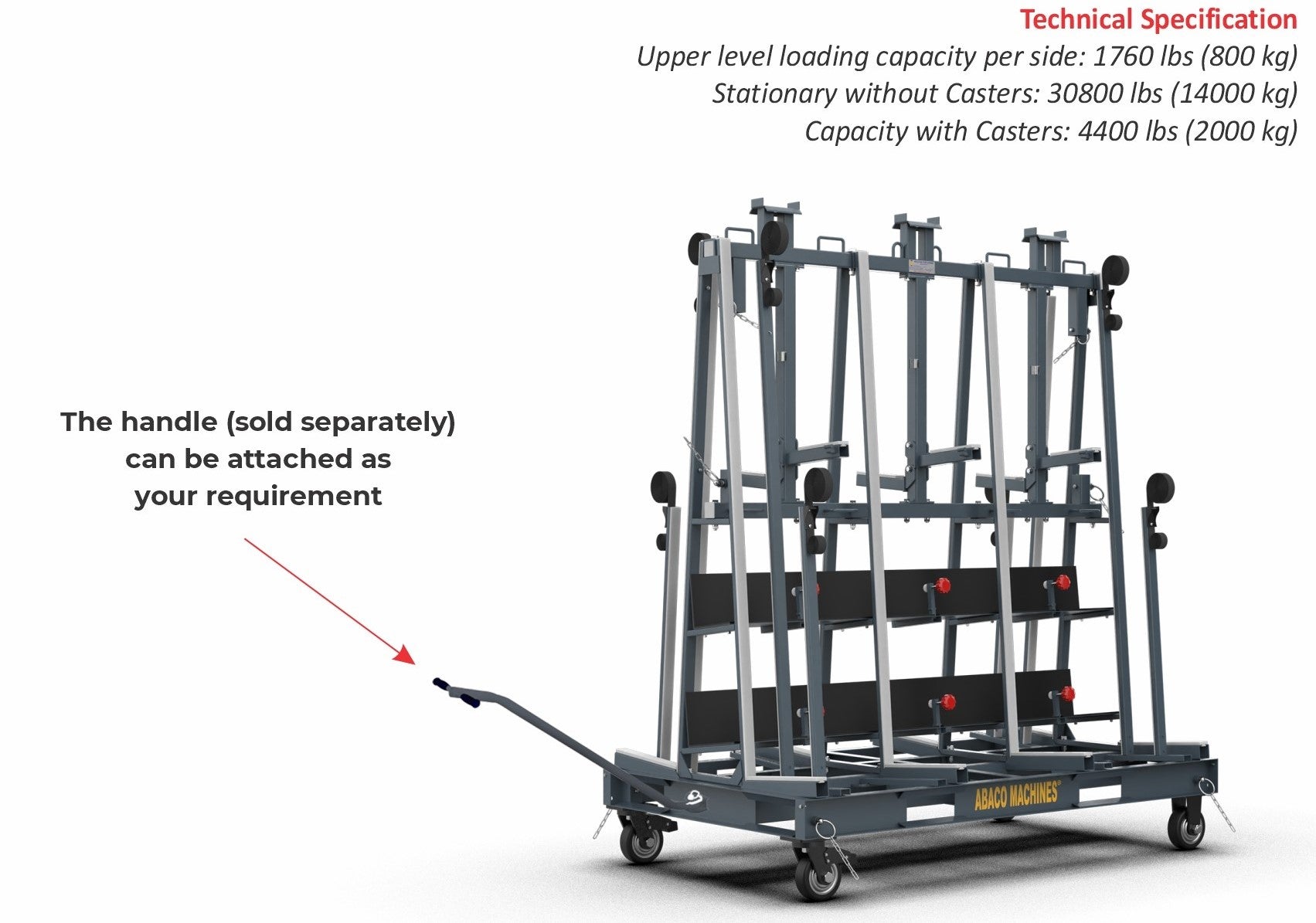

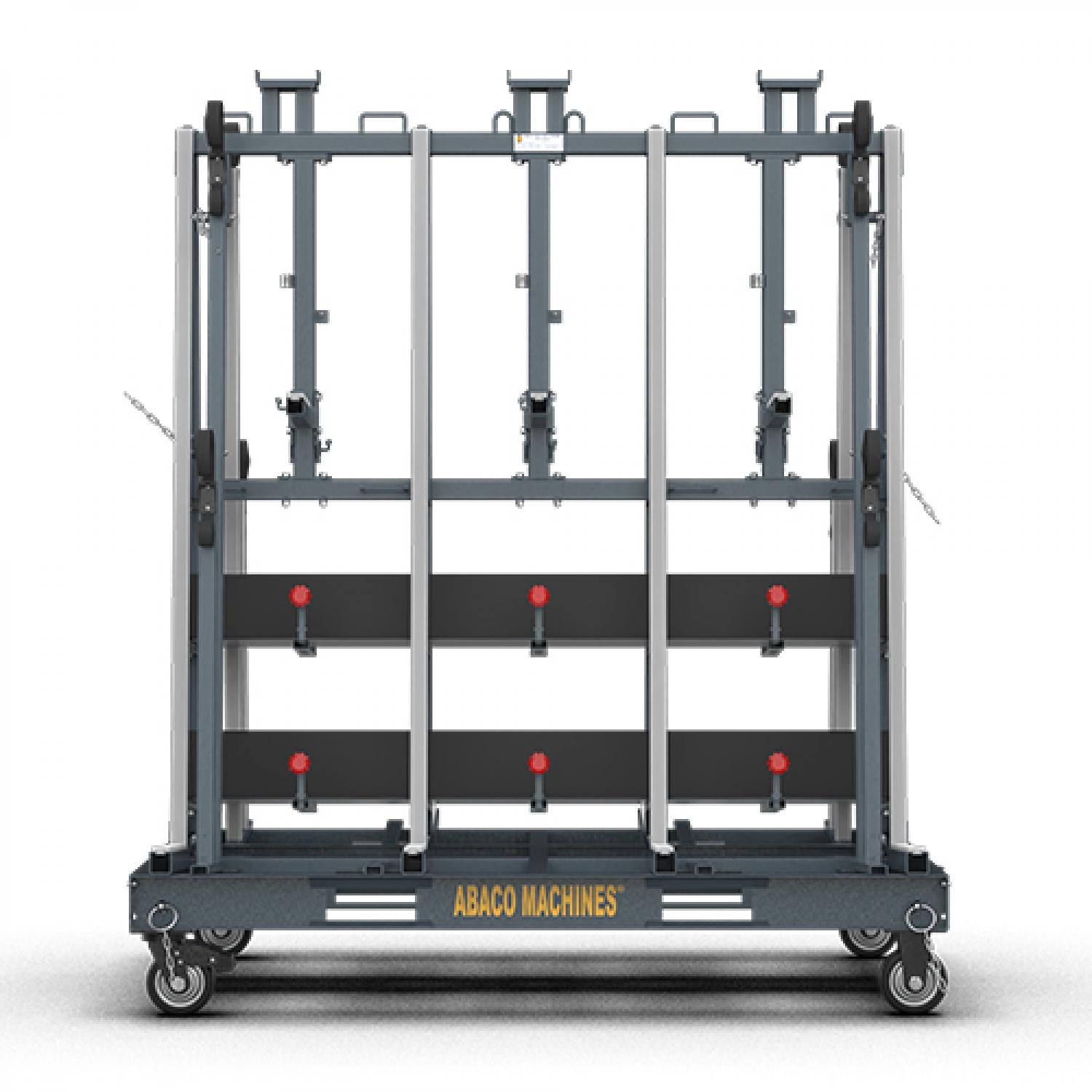

Abaco Bi-Level A-Frame OSA7267-2T-M2
The Bi-Level A-Frame stores and transports large, heavy slabs, with several cross bars for maximum stability. It has two sets of support bars at different heights: one for shorter stone slabs and one for longer ones. Abaco lists a capacity of 4,400 lb (2,000 kg) with casters and 30,800 lb (14,000 kg) stationary.
Features
- Two sets of support bars at different heights, for shorter and longer stone slabs
- Ratchet securing bars for safe transportation
- Surface covered with a rubber layer to prevent stone slabs from scratching or damage
- Detachable components for assembly and transport
- Casters for easy maneuvering
- Operation in warehouses, factories or construction areas
| Part No. | Rubber Color |
|---|---|
| OSA7267-2T-M2-B | Black |
| OSA7267-2T-M2-W | White |
| Property | Detail |
|---|---|
| Brand | Abaco |
| Model | OSA7267-2T-M2 |
| Length | 73.94 in (1,878 mm) |
| Width | 43.31 in (1,100 mm) |
| Height | 85.88 in (2,182 mm) |
| Net Weight | 495 lb (225 kg) |
| Capacity of Upper Level per Side | 1,760 lb (800 kg) |
| Capacity with Casters | 4,400 lb (2,000 kg) |
| Capacity Stationary without Casters | 30,800 lb (14,000 kg) |
| Country of Origin | Vietnam |
