Aardwolf Water Swivel
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Description
Description
Aardwolf Water Swivel — Wet Coring Water Feed Adapter
The Aardwolf Water Swivel delivers water through a rotating drill or core bit for wet stone and concrete cutting. The sealed bearing allows the bit to spin while the water hose stays stationary. Two sizes — WS01 and WS03 — fit standard core drill spindles.
Features
- Sealed rotating swivel for water feed during coring
- Allows hose to stay still while bit rotates
- Reduces dust and extends diamond bit life
- WS01 and WS03 sizes for common core drill spindles
- Brass and steel construction for corrosion resistance
- Standard hose barb for shop water connection
WS01 — WS01 Water Swivel (1/2 in Female)
| Property | Detail |
|---|---|
| Inlet Thread | 1/2 in Female (F1/2) |
| Housing | Aluminum |
| Spindle | Stainless steel |
| Bearings | Two precision ball bearings |
| Water Flow | Adjustable |
| Use | Supplies water/coolant to diamond core drill bits |
| Adapter Options | M.1/2-M.5/8 NPT or M.1/2-M.M14 |
WS03 — WS03 Water Swivel (5/8 NPT Male)
| Property | Detail |
|---|---|
| Inlet Thread | 5/8 in NPT Male |
| Housing | Aluminum |
| Spindle | Stainless steel |
| Bearings | Two precision ball bearings |
| Water Flow | Adjustable |
| Use | Supplies water/coolant to diamond core drill bits |
- Thread the swivel onto the core drill spindle.
- Connect a water hose to the swivel inlet.
- Open the water supply and confirm flow at the bit.
- Begin coring at low speed; let water cool the diamonds.
- Disconnect, drain, and store the swivel after each shift.
- Wear safety glasses and hearing protection during coring.
Diamond core bits and rotary stone drilling on granite, marble, concrete, and porcelain.
Manufacturer Features & Specifications
General
The Aardwolf Water Swivel Adapters are made to fit Aardwolf Water Swivels with a 1/2" male thread connector and machined from stainless steel.
Specifications
The Aardwolf Water Swivel Adapters are made to fit Aardwolf Water Swivels with a 1/2" male thread connector and with a range of models compatible with various sizes of core bits. The diamond core drill bite is held firmly in place by two small grub screws.
The Water Swivel Adapter WSDA01 is made to fit Water Swivel WS01 with a 1/2" male thread connector and is compatible with core bits with a 10mm/0.4” spindle. The diamond core drill bite is held firmly in place by two small grub screws.
The Water Swivel Adapter WSDA02 is made to fit Water Swivel WS02 with a 1/2" male thread connector to a male 14mm thread that accepts diamond core bits with a female 14mm connector. (Prevalent in Europe).

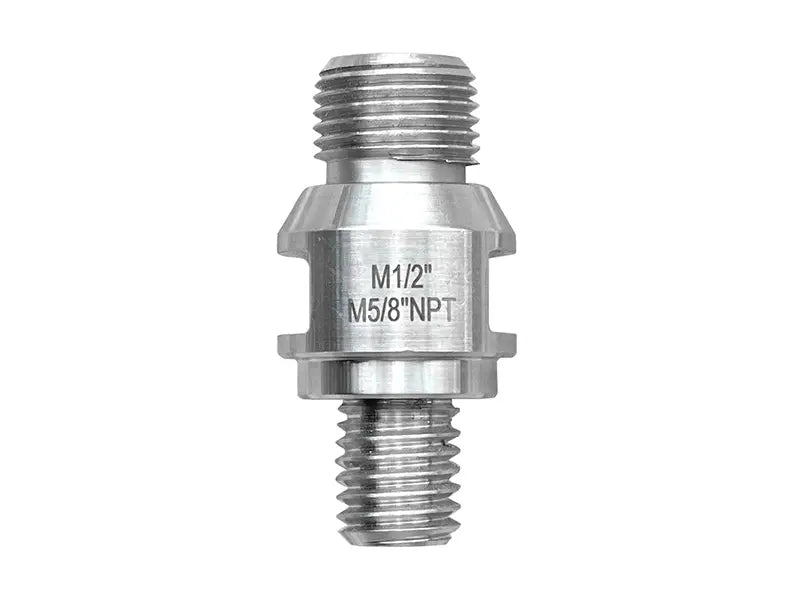

The Water Swivel Adapter WSDA03 is made to fit Water Swivel WS03 with a 1/2" male thread connector to a male 5/8” thread that accepts diamond core bits with a female 5/8” connector. (Prevalent in North America).
The Water Swivel Adapter WSDA05 is made to fit Water Swivel WS05 with a 1/2" male thread connector to a female 14mm thread that accepts diamond core bits with a male 14mm connector.
The Water Swivel Adapter WSDA06 is made to fit Water Swivel WS06 with a 1/2" male thread connector to a female 5/8” thread that accepts diamond core bits with a male 5/8” connector.
