Aardwolf Vacuum Lifter AVLP Series
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf Vacuum Lifter AVLP Series
Description
Description
The Vacuum Lifter Pro is a reliable tool for lifting and tilting stone slabs such as granite, marble, and other heavy materials. Powered by compressed air, it allows smooth 0°–90° tilting, making slab handling safer and more efficient.
Pneumatic Tilting – Smooth, precise 0°–90° vertical/horizontal tilting.
Vacuum Tank – Maintains suction during sudden power loss for added safety.
Alarm System – Visual and audio alerts when vacuum pressure is low, powered by a rechargeable 12V battery.
Slide Valve Control – Simple ON/OFF operation for quick attachment and release.
Features
- Manufactured by Aardwolf Industries
- Professional vacuum lifting equipment
- For safe transport of stone slabs and panels
- Property Detail: Capacity, Vertical
- 125 kg / 275 lbs: Capacity, Horizontal
- 250 kg / 551 lbs: Capacity, Horizontal
- 1: Pad Size

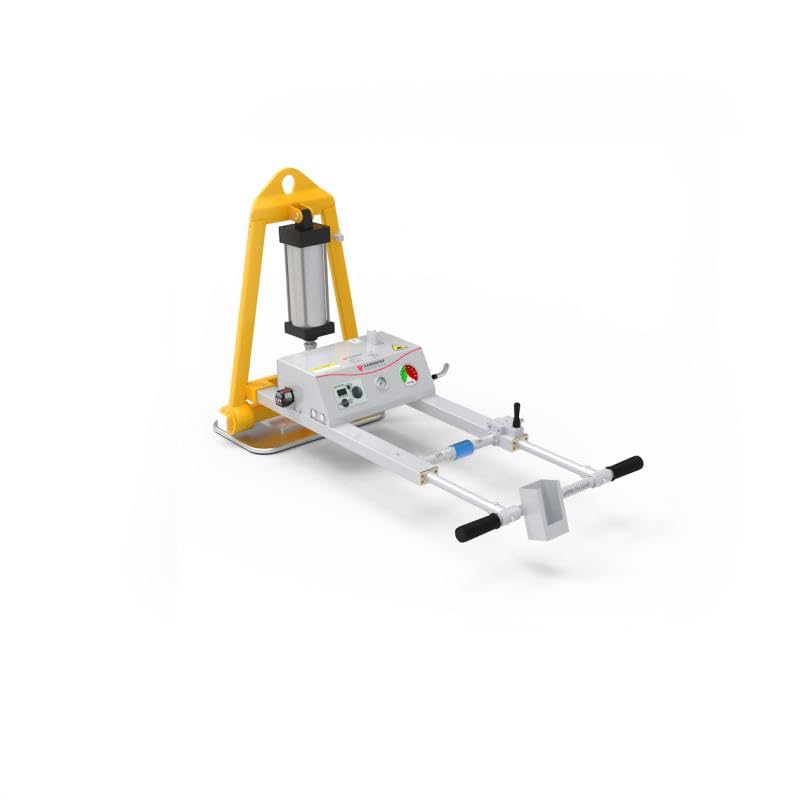

AVLP1PRO-250
| Property | Detail |
|---|---|
| Capacity, Vertical | 125 kg / 275 lbs |
| Capacity, Horizontal | 250 kg / 551 lbs |
| Number of Pads | 1 |
| Pad Size | 19-5/8" × 11-3/4" (498 × 298 mm) |
| Pump Type | Pneumatic / compressed-air vacuum |
| Air Requirement | 6.4 CFM @ 72 psi (~5 bar) |
| Tilting | Pneumatic 0 – 90° |
| Rotation | Manual 360° |
| Vacuum Tank | Yes |
| Alarm | Audio + visual (rechargeable) |
| Net Weight | 47.6 kg / 105 lbs |
| Gross Weight | 77.1 kg / 170 lbs |
| Package Dimensions | 42-1/8 × 15-3/8 × 38-5/8 in (1070 × 391 × 981 mm) |
| Compatible Materials | Smooth or rough marble, granite, stone slabs |
| Operation | Compressed-air pneumatic lifting |
| Country of Origin | Vietnam |

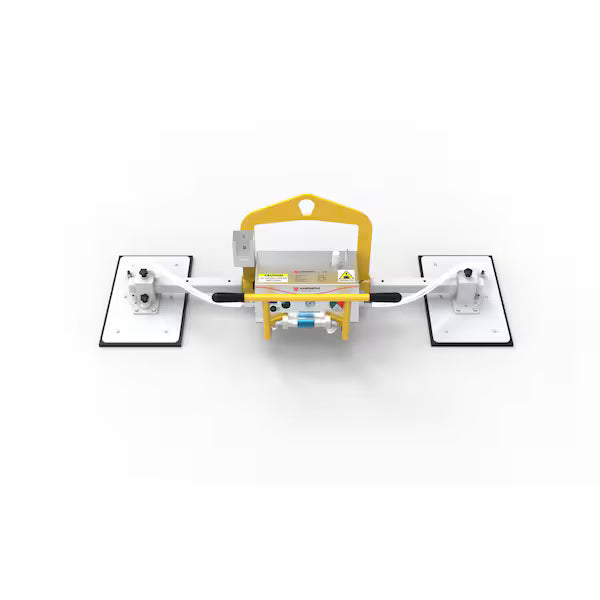

AVLP2-500
| Property | Detail |
|---|---|
| Capacity, Vertical | 250 kg / 551 lbs |
| Capacity, Horizontal | 500 kg / 1,102 lbs |
| Number of Pads | 2 |
| Pump Type | Pneumatic / compressed-air vacuum |
| Air Requirement | ~5–6 bar (CFM N/A) |
| Tilting | Pneumatic 0–90° |
| Rotation | Manual 360° |
| Vacuum Tank | Yes |
| Alarm | Audio + visual |
| Compatible Materials | Marble, granite, stone slabs |
| Operation | Compressed-air pneumatic lifting |
| Country of Origin | Vietnam |
| Pad Size | 500 × 300 mm (19 3/4" × 11 3/4") |
| Air Consumption | 180 L/min @ 5 bar (72 psi) |

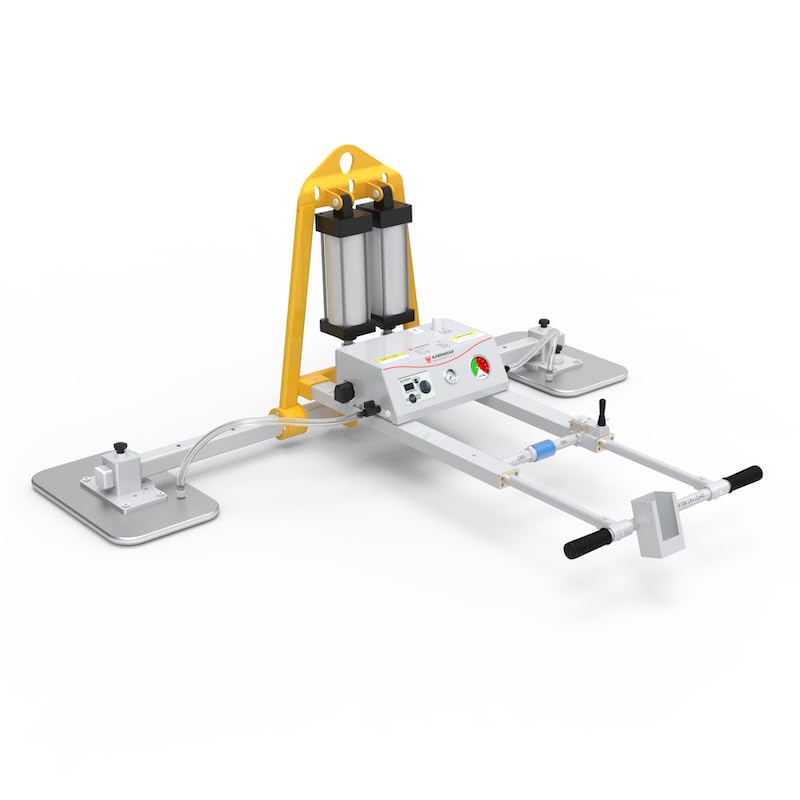

AVLP2PRO-500
| Property | Detail |
|---|---|
| Capacity, Vertical | 250 kg / 551 lbs |
| Capacity, Horizontal | 500 kg / 1,102 lbs |
| Number of Pads | 2 |
| Pump Type | Pneumatic / compressed-air vacuum |
| Air Requirement | ~5–6 bar (CFM N/A) |
| Tilting | Pneumatic 0–90° |
| Rotation | Manual 360° |
| Vacuum Tank | Yes |
| Alarm | Audio + visual |
| Compatible Materials | Marble, granite, stone slabs |
| Operation | Compressed-air pneumatic lifting |
| Country of Origin | Vietnam |
| Pad Size | 500 × 300 mm (19 3/4" × 11 3/4") |
| Air Consumption | 180 L/min @ 5 bar (72 psi) |

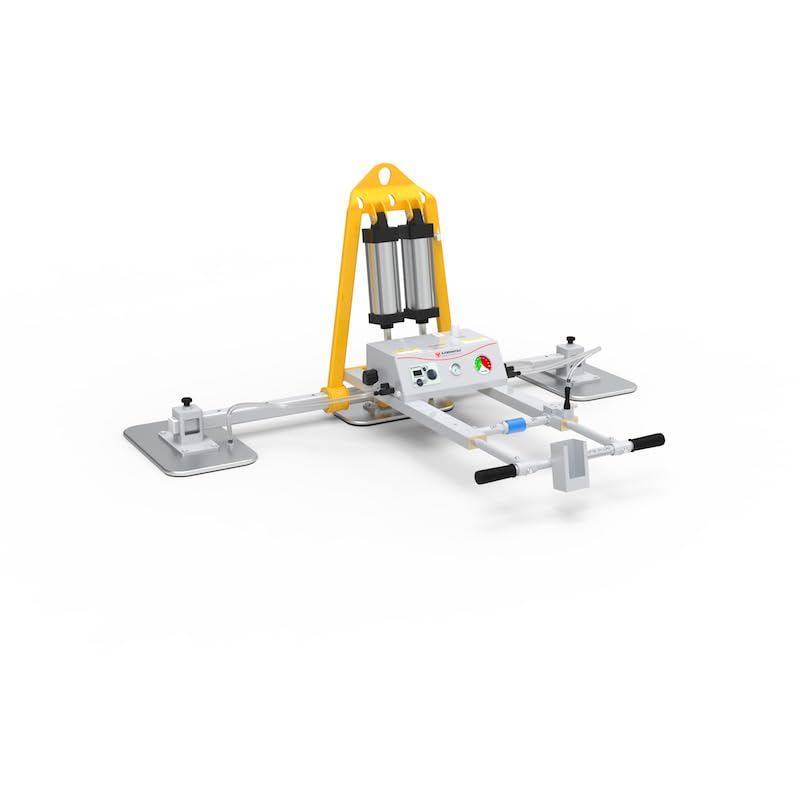

AVLP3-600P
| Property | Detail |
|---|---|
| Capacity, Vertical | 300 kg / 661 lbs |
| Capacity, Horizontal | 600 kg / 1,323 lbs |
| Number of Pads | 3 |
| Pump Type | Pneumatic / compressed-air vacuum |
| Air Requirement | ~5–6 bar (CFM N/A) |
| Tilting | Pneumatic 0–90° |
| Rotation | Manual 360° |
| Vacuum Tank | Yes |
| Alarm | Audio + visual |
| Compatible Materials | Marble, granite, stone slabs |
| Operation | Compressed-air pneumatic lifting |
| Country of Origin | Vietnam |
| Pad Size | 500 × 300 mm (19 3/4" × 11 3/4") |
| Air Consumption | 180 L/min @ 5 bar (72 psi) |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
Manufacturer Features & Specifications
General
This vacuum lifter is designed to lift concrete panels. It can also lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift materials. Powered by compressed air.
Features
The stainless steel vacuum tank ensures safe pickup in case of a sudden power break to the pump.
A rechargeable 3.7V battery powers the audio and visual alarm system.
Slider valve with ON/OFF position for the attachment of material to vacuum pads and release of material from vacuum pads.
