Aardwolf Vacuum Glass Lifter
Description
Description
This Vacuum Lifter stands out with its specialised design and is adept at handling glass sheets. It boasts a rugged construction, ensuring durability and reliability during intensive operations. Beyond merely lifting, it can tilt materials, accommodating various handling requirements for delicate tasks.
Operating on compressed air, this equipment underscores efficiency and safety. This focus on utilising compressed air indicates a deliberate choice for energy efficiency and a safe yet powerful operation essential in handling sensitive materials like glass.
The vacuum lifter presents solutions for transporting and maneuvering glass sheets through its robust construction and versatile functionality. Its design integrates features that not only move but also adjust the orientation of the glass, ensuring precision and security in its handling .
The vacuum lifter features a durable metal structure that can be manually tilted anywhere from 0° to 90° for enhanced flexibility.
Equipped with rotating pads as standard, the Vacuum Glass Lifter enables swift rotation by the operator to both 45° and 90° angles for optimal positioning.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

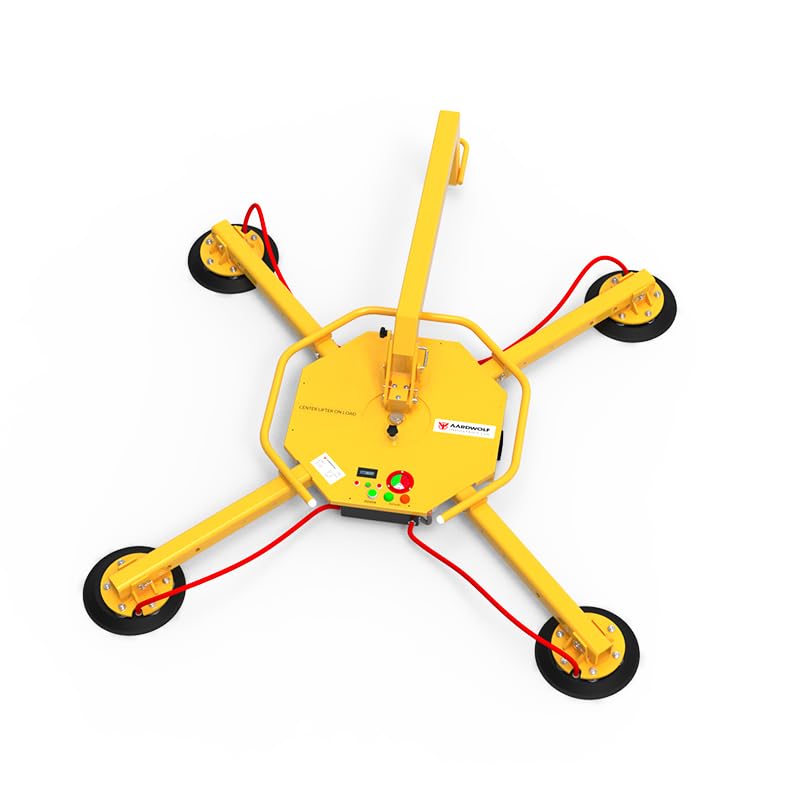

ARGL-500DC
| Property | Detail |
|---|---|
| Capacity, Vertical | 400 kg / 882 lbs |
| Capacity, Horizontal | 500 kg / 1,102 lbs |
| Number of Pads | 4 spring-loaded suction pads |
| Pad Size | Ø 300 mm (11.8" / ~12") |
| Pad Type | Circular, position-adjustable, spring-loaded |
| Pump Type | DC electric vacuum pump |
| Vacuum Flow Rate | 32.5 L/min |
| Motor | 12 V DC – 4 A |
| Power / Battery | Milwaukee M12B6 12V Li-Ion 6.0 Ah ×1 (+ Milwaukee C12C charger) |
| Runtime / Charge | ~2 h continuous; 2.5 h charge |
| Rotation | Manual 360°, 45° step |
| Tilt | Manual 90°, 15° grid (4-bar mechanism) |
| Vacuum Circuits | 1 |
| Audio/Visual Alarm | Yes |
| Compatible Materials | Glass, polished stone, smooth non-porous slabs |
| Operation | Battery-powered DC vacuum lifting |
| Country of Origin | Vietnam |
| Runtime | 1.3 h continuous |
| Battery | 12V 7Ah rechargeable (Milwaukee M12 on later revisions) |
ARGL-500DS
| Property | Detail |
|---|---|
| Capacity, Vertical | 400 kg / 882 lbs |
| Capacity, Horizontal | 500 kg / 1,102 lbs |
| Number of Pads | 4 spring-loaded suction pads (dual independent vacuum circuits) |
| Pad Size | Ø 300 mm (11.8" / ~12") |
| Pad Type | Circular, position-adjustable, spring-loaded |
| Pump Type | DC electric vacuum pump ×2 (one per circuit) |
| Vacuum Flow Rate | 32.5 L/min (per circuit) |
| Motor | 12 V DC – 4 A |
| Power / Battery | Milwaukee M12B6 12V Li-Ion 6.0 Ah ×2 (+ C12C charger) |
| Runtime / Charge | 2 h continuous, ~6 h total working time; 2.5 h charge |
| Rotation | Manual 360°, 45° step |
| Tilt | Manual 90°, 15° grid (4-bar mechanism) |
| Vacuum Circuits | 2 independent (mutual redundancy) |
| Audio/Visual Alarm | Yes |
| Net Weight | 81 kg / 179 lbs |
| Gross Weight | 107 kg / 236 lbs |
| Package Dimensions | 1070 L × 970 W × 450 H mm (42.1 × 38.2 × 17.7 in) |
| Compatible Materials | Glass, polished stone, smooth non-porous slabs |
| Operation | Battery-powered DC vacuum lifting with redundancy |
| Country of Origin | Vietnam (An Phu Ward, Thuan An City, Binh Duong) |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
