Aardwolf Transport Frame
Description
Description

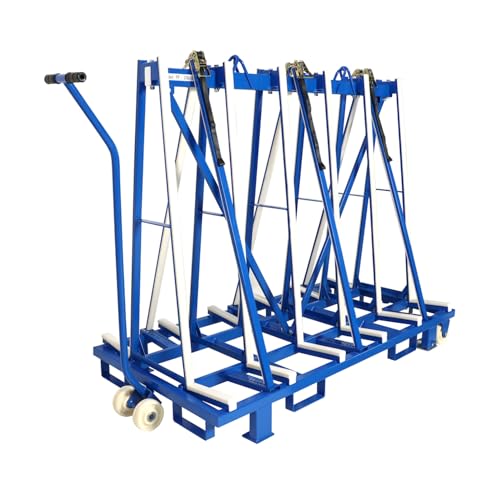

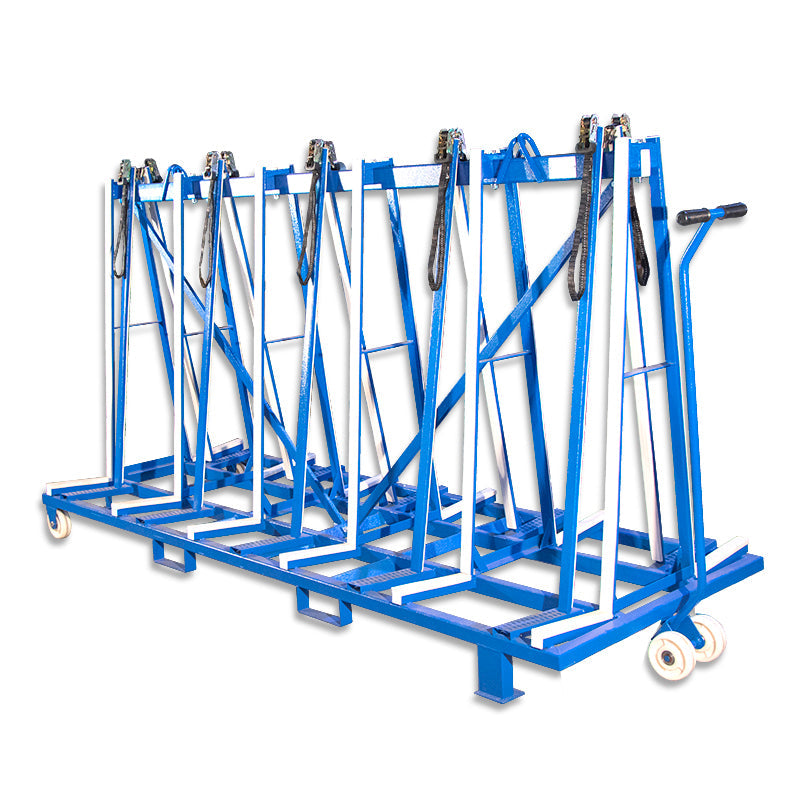

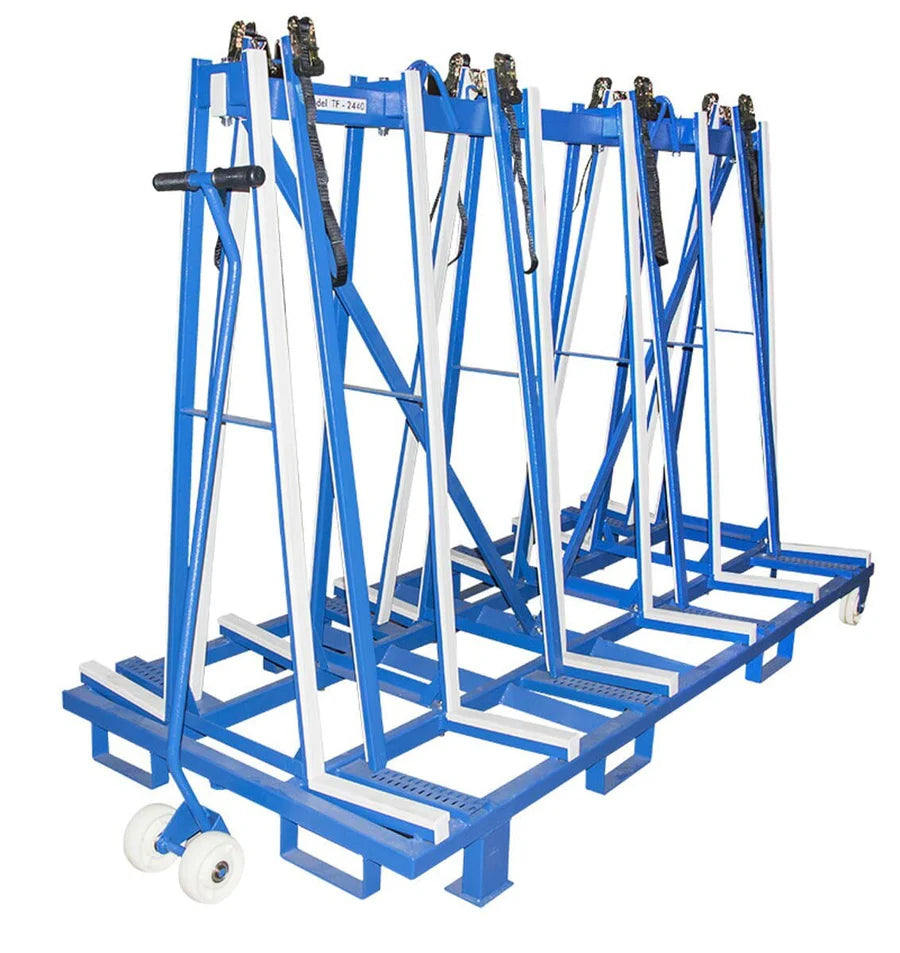

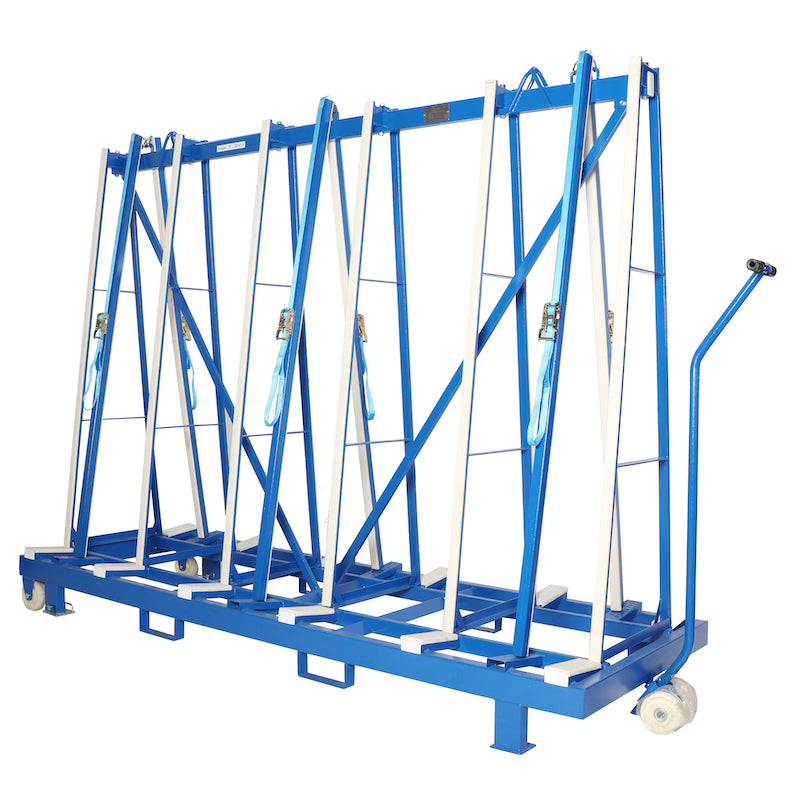

Aardwolf Transport Frame — A-Frame for Slab Storage and Transit
The Aardwolf Transport Frame is a steel A-frame designed to store and transport stone slabs safely between fabrication shops, trucks, and job sites. Forklift pockets and stacking pads keep slabs secure during loading, road transport, and handover. Available in galvanized or powder-coated finishes in three working widths.
Features
- Heavy-duty welded steel A-frame construction
- Forklift pockets on both sides for easy maneuvering
- Stacking pads protect slab edges from steel contact
- Galvanized (G) or powder-coated (PC) finish options
- Sizes: TF2000 (78 in), TF2440 (96 in), TF3050 (120 in)
- TF3050H heavy variant for oversized slab loads
- Tie-down points for strap securing during transport
TF2000G — Transport Frame 78 in (Galvanized)
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | TF2000G |
| Length | 78.7 in (2,000 mm) |
| Width | 40.2 in |
| Height | 16.5 in (with locking bars) |
| Capacity | 5,511 lb (2,500 kg) |
| Finish | Galvanized |
| Locking Bars | 6 |
| Forklift Access | All sides |
TF2000PC — Transport Frame 78 in (Powder-Coated)
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | TF2000PC |
| Length | 78.7 in (2,000 mm) |
| Capacity | 5,511 lb (2,500 kg) |
| Finish | Powder-coated |
| Locking Bars | 6 |
| Forklift Access | All sides |
TF2440G — Transport Frame 96 in (Galvanized)
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | TF2440G |
| Length | 96 in (2,440 mm) |
| Width | 44 in (1,118 mm) |
| Height | 66.3 in (1,684 mm) |
| Capacity | 3,307 lb (1,500 kg) |
| Net Weight | 340.6 lb (154.5 kg) |
| Finish | Galvanized |
| Forklift Access | Both sides |
TF2440PC — Transport Frame 96 in (Powder-Coated)
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | TF2440PC |
| Length | 96 in (2,440 mm) |
| Width | 44 in (1,118 mm) |
| Height | 66.3 in (1,684 mm) |
| Capacity | 3,307 lb (1,500 kg) |
| Finish | Powder-coated |
| Forklift Access | Both sides |
TF3050 — Transport Frame 120 in
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | TF3050 |
| Length | 120 in (3,050 mm) |
| Width | 44 in (1,118 mm) |
| Height | 65.1 in (1,654 mm) |
| Capacity | 2,205 lb (1,000 kg) |
| Net Weight | 409 lb (185.5 kg) |
| Forklift Access | Both sides |
TF3050H — Transport Frame 120 in Heavy-Duty
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | TF3050H |
| Length | 120 in (3,050 mm) |
| Width | 40.6 in (1,030 mm) |
| Height | 17.7 in (450 mm) base section |
| Capacity | 5,512 lb (2,500 kg) |
| Net Weight | 573 lb (260 kg) |
| Forklift Access | Both sides |
- Position the transport frame on a level surface or truck deck.
- Insert forklift tines fully into the side pockets to relocate.
- Load slabs vertically with even weight on both sides of the A-frame.
- Secure each slab with ratchet straps to the frame tie-points.
- Verify load symmetry before lifting or transporting on public roads.
Manufacturer Features & Specifications
General
The Transport Frames are a heavy-duty frame to transport granite, marble, engineered stone, glass and natural stone countertops. Designed for both storage and transport, it features a powder-coated steel structure (optional galvanised finish), locking bars with ratchet straps and integrated forklift receivers for secure and efficient handling. With rubber-coated supports to prevent surface damage and adjustable support legs for stability, these transport frames are essential for stone fabricators, suppliers and contractors.
Features
Heavy-Duty Steel Frame: Powder-coated for durability, with an optional galvanised finish.
Secure Locking System: Locking bars and ratchet straps hold slabs firmly in place.
Rubber-Coated Supports: Prevents scratches and surface damage.
Forklift-Compatible Design: Built-in receivers for easy lifting and transport.
Adjustable Support Legs: Improves stability during truck transport.
Large Counter-Lever with Wheels: Allows manual movement when forklifts are unavailable.
High Load Capacity: Supports up to 2500kg (5511lb) for heavy slabs.
Option: The frames can be hot galvanized and finished upon request.
Note: Support legs should always be lowered when a loaded frame is being transported on a truck.
