Aardwolf Spreader Bar
Description
Description
Aardwolf Spreader Bar ASB — Adjustable Lifting Beam for Slabs
The Aardwolf ASB Spreader Bar balances wide and unbalanced loads under a single crane hook for slab turning, rolling, and lifting. Three capacities cover 5,512 lb (ASB25T), 7,716 lb (ASB35T), and 11,023 lb (ASB50T). Crowned aluminum rollers accept slings up to 3.54 inches wide.
Features
- Three capacities: 2.5, 3.5, and 5 short-ton ratings
- Adjustable lifting points to balance wide or off-center loads
- Crowned aluminum rollers center slings during lift
- Sling slot accepts webbing slings up to 3.54 in (90 mm) wide
- Heavy-duty welded steel construction in yellow finish
- Used with endless webbing slings to lift, turn, and roll slabs
- Swivel hooks at the rigging points reduce sling twist

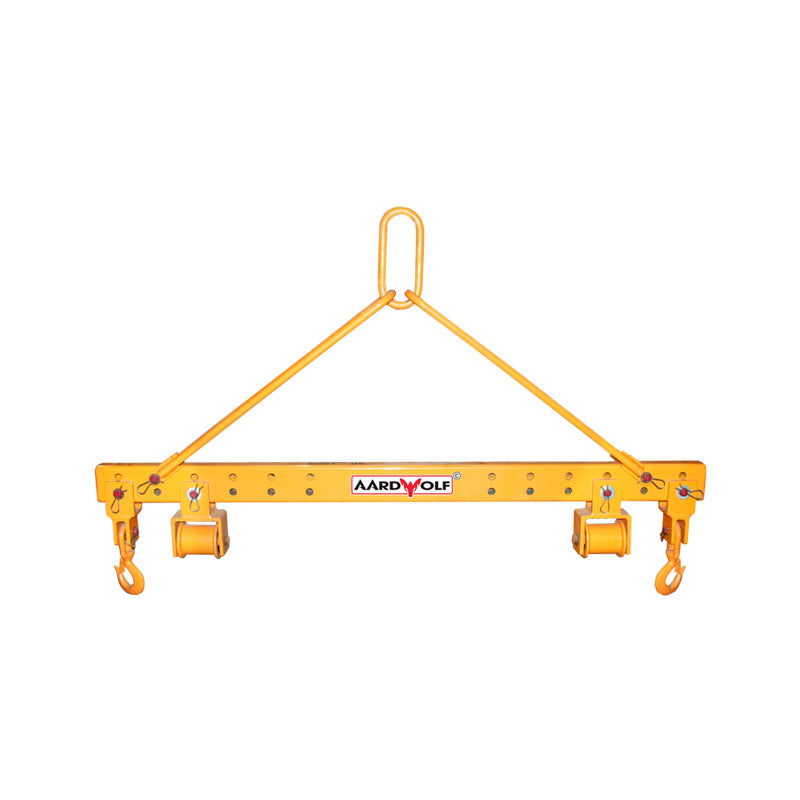

ASB25T — 2.5-Ton Spreader Bar
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | ASB25T |
| Working Load | 2.5 ton (5,512 lb) |
| Rollers | Crowned aluminum |
| Sling Width | up to 3.54 in (90 mm) |
| Lifting Points | Adjustable |
| Rigging | Swivel hooks |
| Finish | Yellow heavy-duty paint |

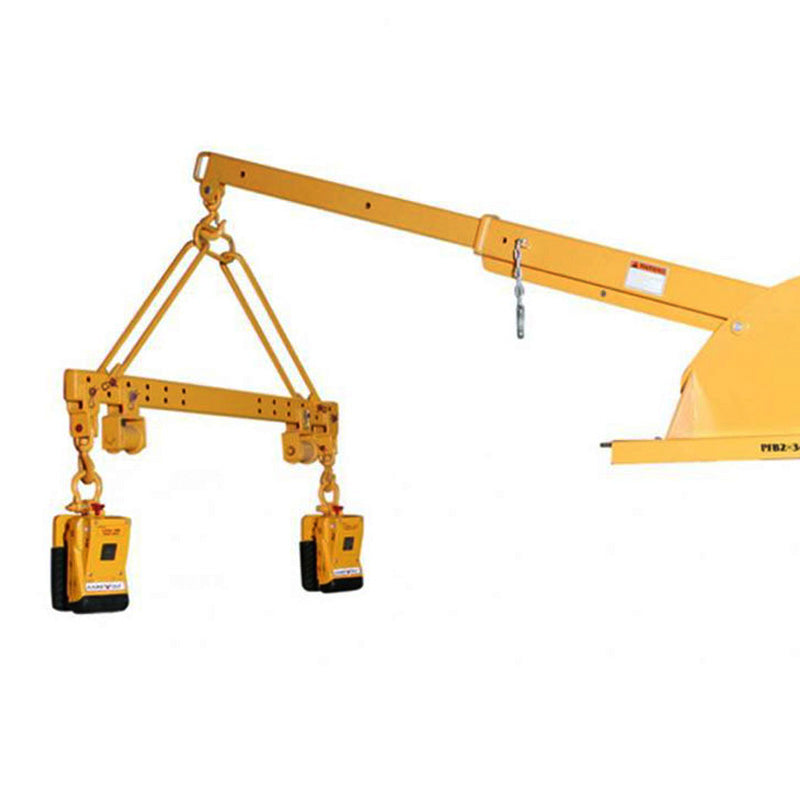

ASB35T — 3.5-Ton Spreader Bar
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | ASB35T |
| Working Load | 3.5 ton (7,716 lb) |
| Rollers | Crowned aluminum |
| Sling Width | up to 3.54 in (90 mm) |
| Lifting Points | Adjustable |
| Rigging | Swivel hooks |
| Finish | Yellow heavy-duty paint |
ASB50T — 5-Ton Spreader Bar
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model | ASB50T |
| Working Load | 5 ton (11,023 lb) |
| Rollers | Crowned aluminum |
| Sling Width | up to 3.54 in (90 mm) |
| Lifting Points | Adjustable |
| Rigging | Swivel hooks |
| Finish | Yellow heavy-duty paint |
- Select the spreader bar rated above the slab plus rigging weight.
- Pass an endless sling under the slab and over each roller.
- Adjust the lifting points to balance the load under the crane hook.
- Lift slowly and keep the bar level during the entire travel.
- Lower the slab onto a rack or buggy before slacking the slings.
- Wear hard hat, gloves, and steel-toe boots during every lift.
Use with endless polyester or nylon webbing slings rated to or above the bar capacity. Suits granite, marble, quartzite, and engineered quartz slabs.
Manufacturer Features & Specifications
General
A Spreader Bar, also referred to as a Spreader Beam, is a specialized lifting tool used primarily in the stone and glass industries. It is designed to evenly distribute the weight of heavy and often fragile materials during lifting and handling operations, helping to reduce stress on the load and prevent damage.
What Is It Used For?

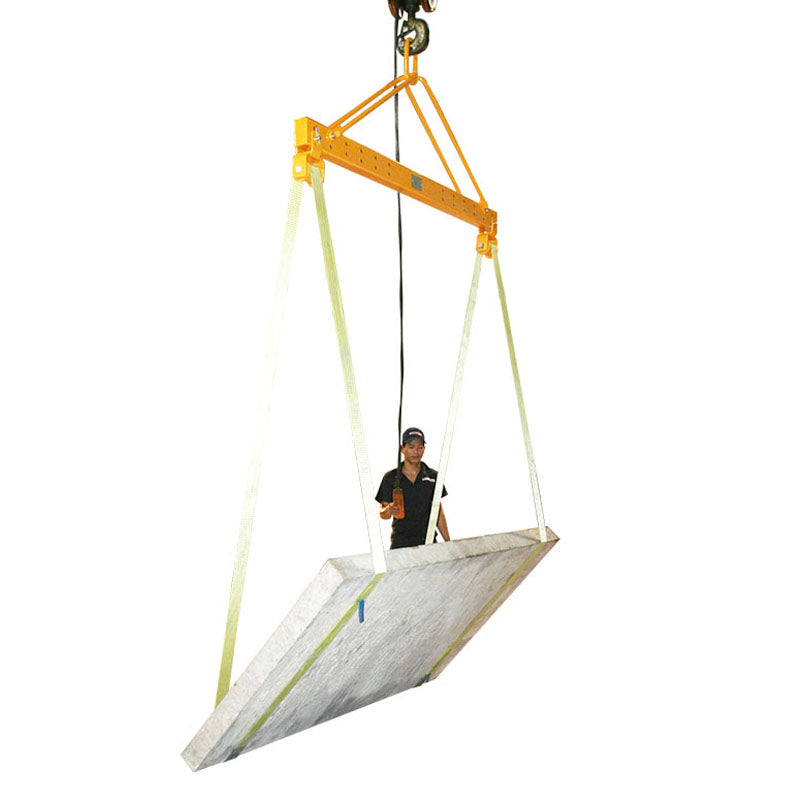

The Spreader Bar is especially useful when rolling or turning large stone or glass slabs, a common need during fabrication or installation. When combined with endless slings (lifting straps that form a loop), it makes the task of flipping or positioning heavy panels safer, smoother, and more controlled.
Crowned aluminum rollers that help the sling rotate easily while supporting the load, simplifying the turning process.
Compatibility with up to 90mm wide slings.
Swivel hooks as an alternative to rollers, offering versatile lifting options.
Why Use a Spreader Bar?
Allows for balanced lifting, especially with wide or unbalanced loads.
Adjustable lifting points make it adaptable to various load sizes and shapes.
Improves safety and efficiency during material handling.
Specifically designed for the stone and glass industries. The Spreader Beam, combined with endless slings, is an invaluable piece of equipment where the stone/glass must be rolled over. The slings are suspended on crowned aluminum rollers. This makes turning the load in the sling easier. The rollers will handle up to 90mm wide slings. The swivel hooks can be used in place of rollers.
Features
Adjustable lifting points.
Handle both wide and unbalanced loads.
It includes swivel hooks.
