Aardwolf ASR0107 Slab Rack Kit with Galvanized Steel Posts
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf ASR0107 Slab Rack Kit with Galvanized Steel Posts
Description
Description
Aardwolf provides the Slab Rack Kit, which contains a pair of galvanised steel rails 3 meters long, with galvanised square steel tube posts and steel post bases. The square post can be positioned anywhere along with the rack. All posts are manufactured from square tube steel with a minimum yield strength of 345Mpa, ensuring safety for the vertical storage of slab bundles.
The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
Aardwolf has developed a simple calculator for users to calculate the slab storage capacity.
The slab rack rail is combined with sixteen steel tube posts, which have a height of 47 1/4" - 70 7/8" and suitable steel post bases.
This rack is the best storage solution, offering cost-saving and economic effects for users.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
ASR01
| Property | Detail |
|---|---|
| Working Load Limit / Capacity | Depends on slab size; storage calculator provided by mfr |
| Rail length | 2979 mm (117-1/4" / 9'10") |
| Rail height | 165 mm (6-1/2") |
| Posts per kit | 0 |
| Rail net weight | 78 kg / 172 lbs per rail (pair = 156 kg / 344 lbs) |
| Construction / Material | Galvanised steel rails with timber battens (2"×1") |
| Steel yield strength | ≥ 345 MPa |
| Square hole pattern | 50 × 50 mm holes @ 57 mm (2-1/4") pitch |
| Compatible Materials | Stone/granite/marble/quartz slab bundles, vertical storage |
| Country of Origin | Vietnam |

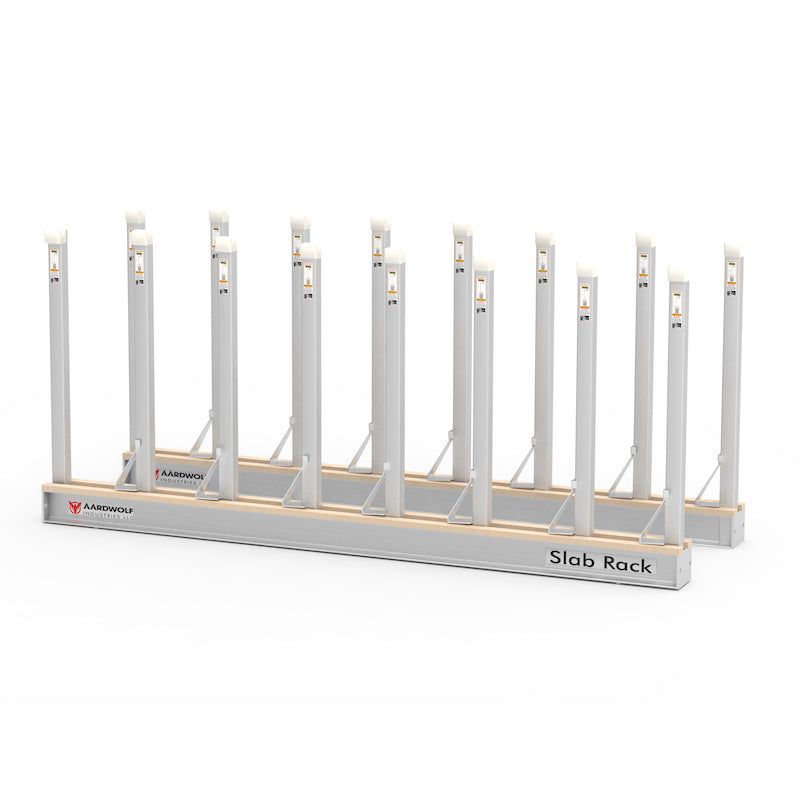

ASR0107
| Property | Detail |
|---|---|
| Working Load Limit / Capacity | Same as ASR01 base |
| Rail length | 2979 mm |
| Rail height | 165 mm |
| Post height | 1200 mm (47-1/4") |
| Post section | 50 × 50 mm sq tube, 5 mm wall |
| Posts per kit | 16 |
| Rail net weight | + posts |
| Construction / Material | Galvanised steel |
| Steel yield strength | ≥ 345 MPa |
| Square hole pattern | 50 × 50 mm holes @ 57 mm (2-1/4") pitch |
| Compatible Materials | Stone/granite/marble/quartz slab bundles, vertical storage |
| Country of Origin | Vietnam |

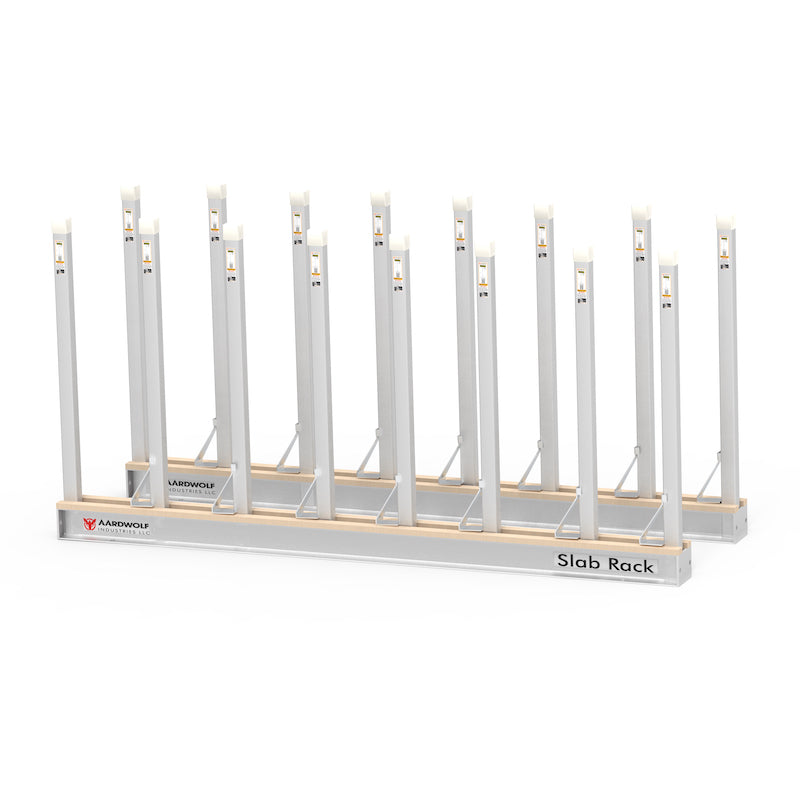

ASR0108
| Property | Detail |
|---|---|
| Working Load Limit / Capacity | Same as ASR01 base |
| Rail length | 2979 mm |
| Rail height | 165 mm |
| Post height | 1400 mm (55-1/8") |
| Post section | 50 × 50 mm sq tube, 5 mm wall |
| Posts per kit | 16 |
| Rail net weight | + posts |
| Construction / Material | Galvanised steel |
| Steel yield strength | ≥ 345 MPa |
| Square hole pattern | 50 × 50 mm holes @ 57 mm (2-1/4") pitch |
| Compatible Materials | Stone/granite/marble/quartz slab bundles, vertical storage |
| Country of Origin | Vietnam |

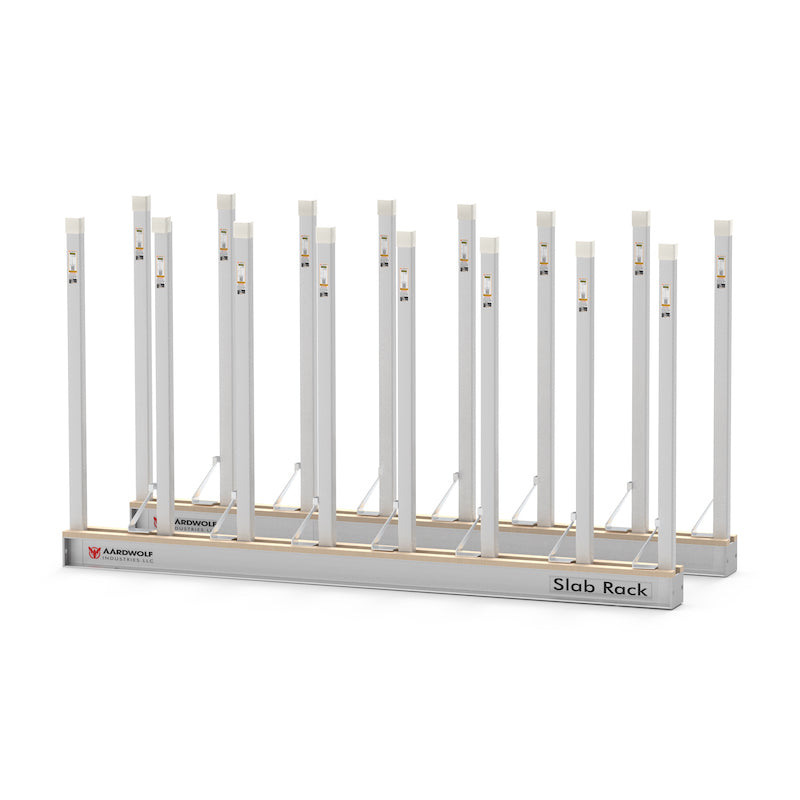

ASR0109
| Property | Detail |
|---|---|
| Working Load Limit / Capacity | Same as ASR01 base |
| Rail length | 2979 mm |
| Rail height | 165 mm |
| Post height | 1600 mm (63") |
| Post section | 50 × 50 mm sq tube, 5 mm wall |
| Posts per kit | 16 |
| Rail net weight | + posts |
| Construction / Material | Galvanised steel |
| Steel yield strength | ≥ 345 MPa |
| Square hole pattern | 50 × 50 mm holes @ 57 mm (2-1/4") pitch |
| Compatible Materials | Stone/granite/marble/quartz slab bundles, vertical storage |
| Country of Origin | Vietnam |

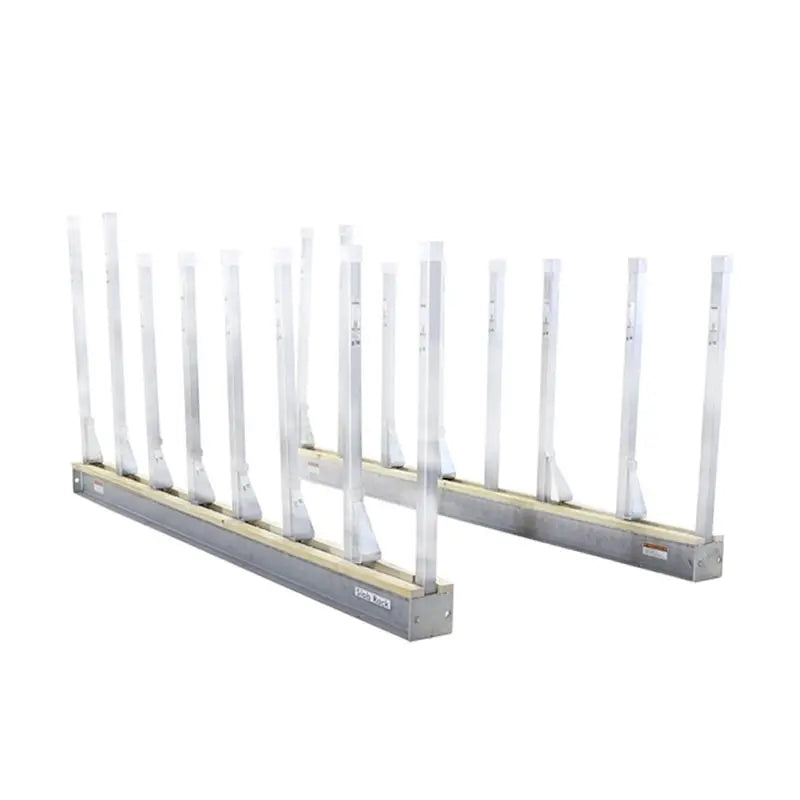

ASR0110
| Property | Detail |
|---|---|
| Working Load Limit / Capacity | Same as ASR01 base |
| Rail length | 2979 mm |
| Rail height | 165 mm |
| Post height | 1800 mm (70-7/8") |
| Post section | 50 × 50 mm sq tube, 5 mm wall |
| Posts per kit | 16 |
| Rail net weight | + posts |
| Construction / Material | Galvanised steel |
| Steel yield strength | ≥ 345 MPa |
| Square hole pattern | 50 × 50 mm holes @ 57 mm (2-1/4") pitch |
| Compatible Materials | Stone/granite/marble/quartz slab bundles, vertical storage |
| Country of Origin | Vietnam |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
