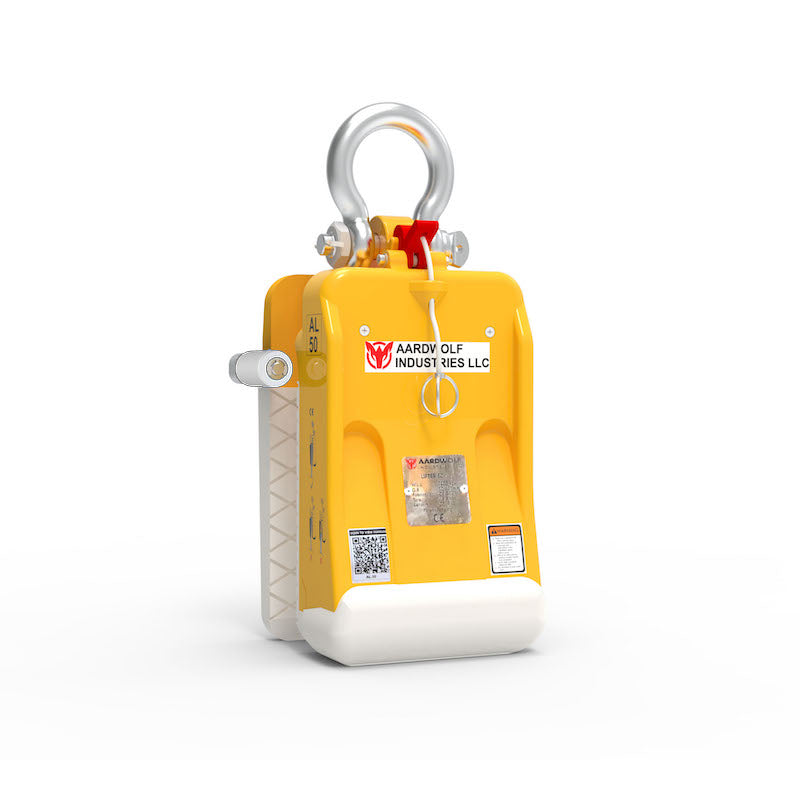

Aardwolf Slab Lifter with Rollers
Regular price
$1,221.03 USD
Unit price
Shipping calculated at checkout.
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf Slab Lifter with Rollers
Regular priceFrom
$854.46 USD
Unit price
Aardwolf Industries | SKU:
AL20AR
Regular price
$1,221.03 USD
Unit price
Shipping calculated at checkout.
Description
Description
Aardwolf Slab Lifter with Rollers AL Series — Auto-Lock Stone Clamp
The Aardwolf AL Slab Lifter is an auto-locking clamp that grips slabs on pick-up and releases them on set-down. Two integrated support rollers protect the slab top edge and let the operator center the clamp by hand. The series spans capacities from 882 lb (AL20) up to roughly 3,307 lb (AL75A) with a force-multiplying grip of about 3 to 1 on most models.
Features
- Size: Being of compact construction, the Aardwolf Slab Lifter AL40 allows for close-packed stone slabs to be lifted out of racks and containers. Lower-height slabs alongside taller slabs offer no problem, as with scissor clamps.
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
- Safety: Requires only a small movement of the slab to engage and grip it, which is generally well below the over-balance angle, thus eliminating the danger to the operator.
- Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter AL40 has a force-multiplying factor of approximately 2.5 to 1.
AL20AR — Auto Slab Lifter with Rollers, 1,764 lb
| Property | Detail |
|---|---|
| Capacity | 1,764 lb (800 kg) |
| Grip Range | 0 to 0.8 in (0 to 20 mm) |
| Force Multiplication | approx. 3:1 |
| Rollers | Two top-edge rollers |
| Locking | Auto-lock on lift / auto-release on set-down |
AL20R — Slab Lifter with Rollers, 1,764 lb
| Property | Detail |
|---|---|
| Capacity | 1,764 lb (800 kg) |
| Grip Range | 0 to 0.8 in (0 to 20 mm) |
| Force Multiplication | approx. 3:1 |
| Net Weight | 36 lb (16.2 kg) |
| Rollers | Two top-edge rollers |
| Locking | Manual close, automatic release |
AL30AR — Auto Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0 to 1.2 in (0 to 30 mm) |
| Force Multiplication | approx. 2.5:1 |
| Net Weight | 36 lb (16.3 kg) |
| Rollers | Two top-edge rollers |
| Locking | Auto-lock on lift / auto-release on set-down |

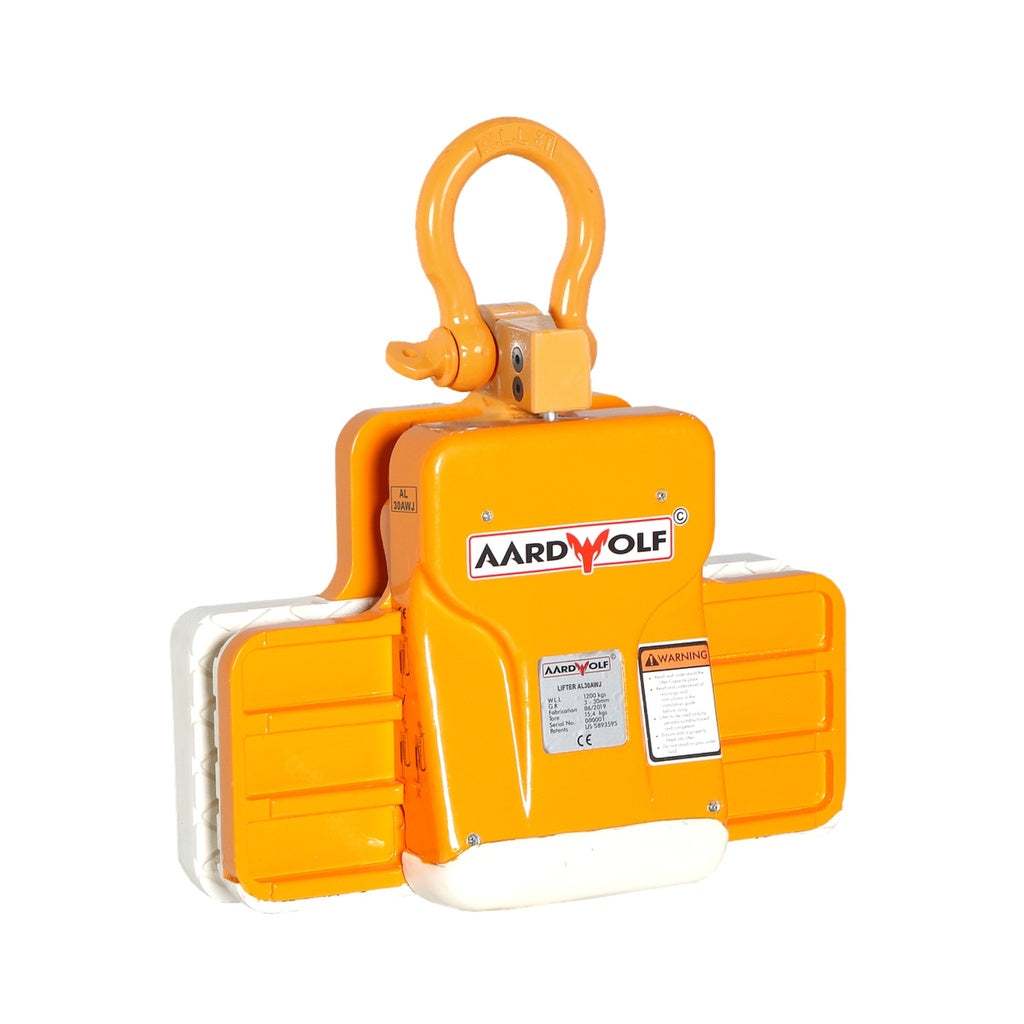

AL30AWJR — Wide-Jaw Auto Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0.2 in to 1 in (5 to 30 mm) |
| Jaw | Wide jaw for porcelain, marble, glass |
| Net Weight | 45 lb (20.6 kg) |
| Rollers | Two top-edge rollers |
| Locking | Auto-lock on lift / auto-release on set-down |
AL30R — Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0.2 in to 1.2 in (5 to 30 mm) |
| Force Multiplication | approx. 3:1 |
| Rollers | Two top-edge rollers |
| Locking | Manual close, automatic release |
AL50A — Auto Slab Lifter, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0.4 in to 2 in (10 to 50 mm) |
| Force Multiplication | approx. 3:1 |
| Locking | Auto-lock on lift / auto-release on set-down |

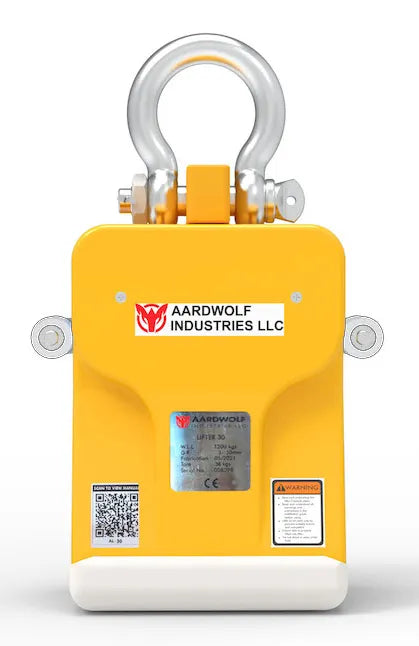

AL50AR — Auto Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0.4 in to 2 in (10 to 50 mm) |
| Force Multiplication | approx. 3:1 |
| Rollers | Two top-edge rollers |
| Locking | Auto-lock on lift / auto-release on set-down |
AL50BR — Type B Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0.4 in to 2 in (10 to 50 mm) |
| Type | B build with rollers |
| Rollers | Two top-edge rollers |
| Locking | Manual close, automatic release |

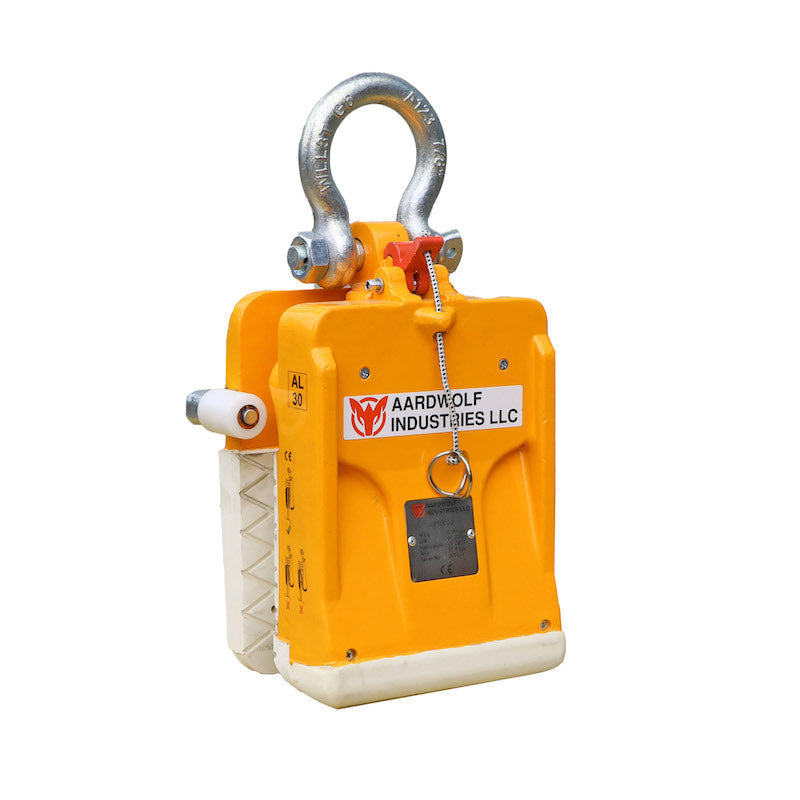

AL50R — Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0.4 in to 2 in (10 to 50 mm) |
| Force Multiplication | approx. 3:1 |
| Net Weight | 42 lb (19 kg) |
| Rollers | Two top-edge rollers |
| Locking | Manual close, automatic release |

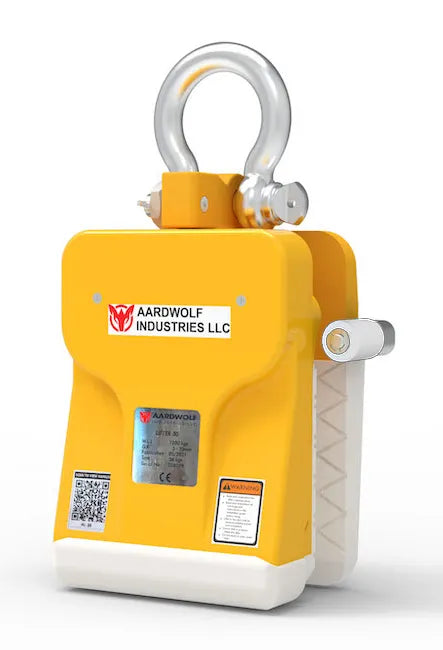

AL60AR — Auto Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0.6 in to 2.4 in (15 to 60 mm) |
| Force Multiplication | approx. 2.5:1 |
| Rollers | Two top-edge rollers |
| Locking | Auto-lock on lift / auto-release on set-down |
AL60R — Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 0.6 in to 2.4 in (15 to 60 mm) |
| Force Multiplication | approx. 2.5:1 |
| Net Weight | 55 lb (25 kg) |
| Rollers | Two top-edge rollers |
| Locking | Manual close, automatic release |
AL75A — Auto Slab Lifter, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 1.2 in to 3 in (30 to 75 mm) |
| Force Multiplication | approx. 2.5:1 |
| Locking | Auto-lock on lift / auto-release on set-down |
AL75AR — Auto Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 1.2 in to 3 in (30 to 75 mm) |
| Force Multiplication | approx. 2.5:1 |
| Rollers | Two top-edge rollers |
| Locking | Auto-lock on lift / auto-release on set-down |
AL75R — Slab Lifter with Rollers, 2,646 lb
| Property | Detail |
|---|---|
| Capacity | 2,646 lb (1,200 kg) |
| Grip Range | 1.2 in to 3 in (30 to 75 mm) |
| Force Multiplication | approx. 2.5:1 |
| Rollers | Two top-edge rollers |
| Locking | Manual close, automatic release |
- Hook the lifter shackle to a crane, gantry, or hoist.
- Lower the lifter so the rollers rest on the slab top edge.
- Slide the lifter laterally to center it on the slab balance point.
- Lift slowly; the auto-lock cam engages as tension builds.
- Lower fully onto a rack or floor to release the clamp automatically.
- Wear gloves, hard hat, and steel-toe boots during every lift.
Granite, marble, quartzite, engineered quartz, porcelain slabs. Match model grip range to slab thickness for a secure auto-lock.
