Aardwolf Industries | SKU:
ASL105
Aardwolf Scissor Lifter ASL Series
Regular price
$634.31 USD
Unit price
Shipping calculated at checkout.
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf Scissor Lifter ASL Series
Regular priceFrom
$634.31 USD
Unit price
Aardwolf Industries | SKU:
ASL105
Regular price
$634.31 USD
Unit price
Shipping calculated at checkout.
Description
Description

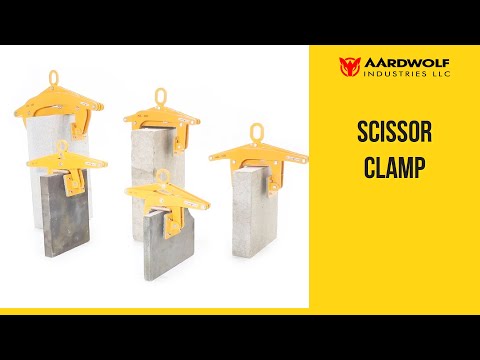

Scissor Clamp Lifters
The Aardwolf Scissor Clamp Lifter is equipped with a rubber contact pad for the safe handling of materials. By means of a gravity controlled locking latch, the clamp automatically grips and releases the materials. Suitable for lifting marble and granite slabs, tombstones, concrete barriers, curbs (kerbs), and median walls.
Features
- Auto Locks And Unlocks.
- Long-Lasting, High Friction Replaceable Polyurethane Gripping Pads.
- Protective Rubber-Lined Bar Prevents The Material From Chipping.
ASL105
| Property | Detail |
|---|---|
| Working Load Limit | 750 kg / 1,653 lbs |
| Jaw Opening Range | 0 – 105 mm (0 – 4 1/8") |
| Net Weight | 24 kg / 53 lbs |
| Overall Dimensions (L x W x H) | 630 x 398 x 180 mm (24.8" x 15.7" x 7.1") |
| Construction | Powder-coated steel frame; vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock / auto-release |
| Compatible Materials | Marble, granite, tombstones, concrete barriers, curbs, retaining wall blocks |
| Standards | Complies with AS 4991-2004 |
| Country of Origin | Vietnam |
ASL105-C
| Property | Detail |
|---|---|
| Working Load Limit | 750 kg / 1,653 lbs (same body as ASL105) |
| Jaw Opening Range | 0 – 105 mm (0 – 4 1/8") |
| Configuration | Chain-equipped variant — supplied with short lifting chain & shackle |
| Net Weight (with chain) | ≈ 26 kg / 57 lbs |
| Construction | Powder-coated steel; vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Country of Origin | Vietnam |
ASL105-W
| Property | Detail |
|---|---|
| Working Load Limit | 750 kg / 1,653 lbs (same as ASL105 base) |
| Jaw Opening Range | Wide-jaw variant of the 0–105 mm base — contact for exact range |
| Configuration | "-W" = Wide jaw configuration |
| Construction | Powder-coated steel; vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Country of Origin | Vietnam |

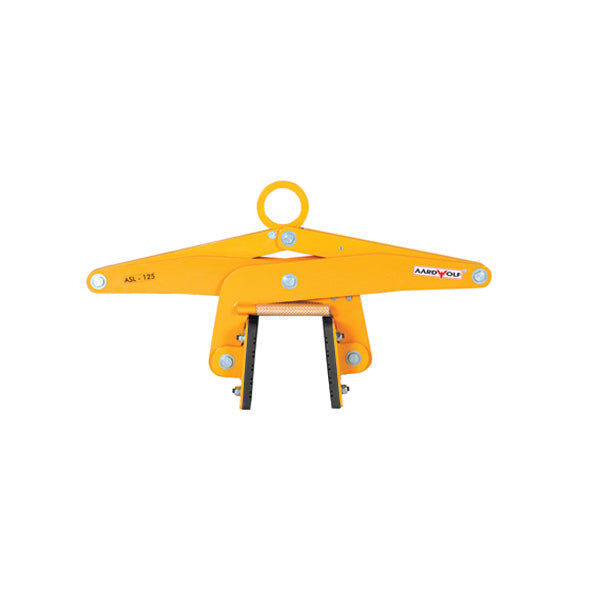

ASL125
| Property | Detail |
|---|---|
| Working Load Limit | 750 kg / 1,653 lbs |
| Jaw Opening Range | 0 – 125 mm (0 – 5") |
| Net Weight | 29 kg / 64 lbs |
| Gross Weight | 33 kg / 73 lbs |
| Construction | Powder-coated steel; vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Compatible Materials | Marble, granite, tombstones, concrete barriers, curbs |
| Country of Origin | Vietnam |
ASL125-C
| Property | Detail |
|---|---|
| Working Load Limit | 750 kg / 1,653 lbs (same body as ASL125) |
| Jaw Opening Range | 0 – 125 mm (0 – 5") |
| Configuration | Chain-equipped variant — supplied with short lifting chain & shackle |
| Construction | Powder-coated steel; vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Country of Origin | Vietnam |

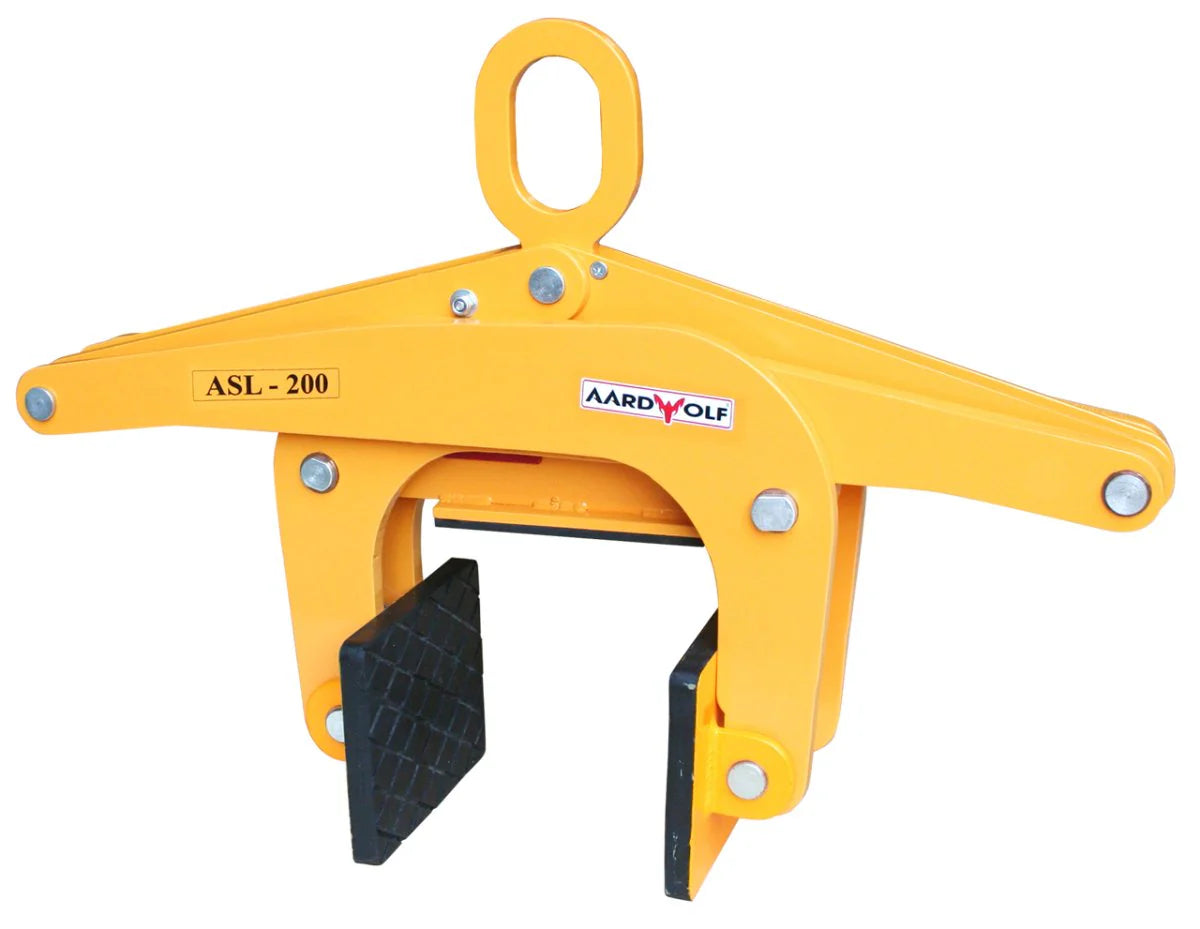

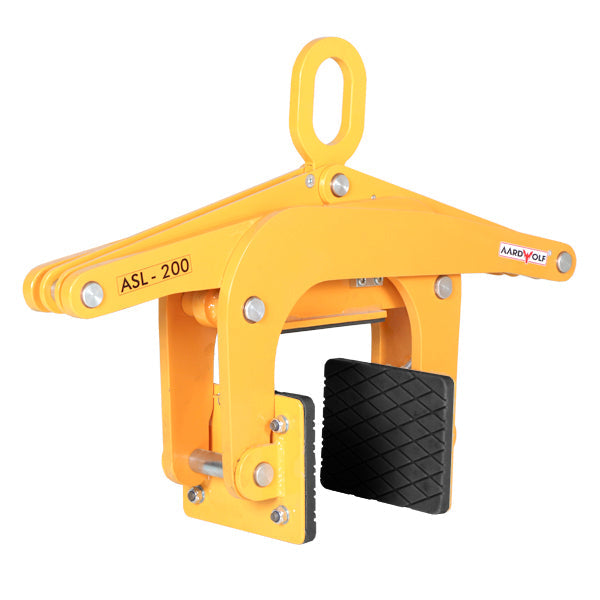

ASL200
| Property | Detail |
|---|---|
| Working Load Limit | 1,000 kg / 2,204 lbs |
| Jaw Opening Range | 50 – 200 mm (≈ 2 – 8") |
| Net Weight | 49.5 kg / 109 lbs |
| Operating Dimensions | 780 x 200 x 560 mm |
| Package Dimensions | 820 x 230 x 450 mm |
| Construction | Powder-coated steel; vulcanized rubber pads, rubber-lined protective bar |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Standards | Complies with AS 4991-2004 |
| Country of Origin | Vietnam |
ASL200-W-CLL
| Property | Detail |
|---|---|
| Working Load Limit | 1,000 kg / 2,204 lbs |
| Jaw Opening Range | Wide-jaw variant of the 50–200 mm base |
| Configuration | Wide jaw + short chain & lifting lug (CLL package) |
| Construction | Powder-coated steel; vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Country of Origin | Vietnam |
ASL200W
| Property | Detail |
|---|---|
| Working Load Limit | 1,000 kg / 2,204 lbs (same as ASL200 base) |
| Jaw Opening Range | Wide-jaw variant of the 50–200 mm base |
| Configuration | "-W" = Wide jaw configuration |
| Construction | Powder-coated steel; vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Standards | Complies with AS 4991-2004 |
| Country of Origin | Vietnam |

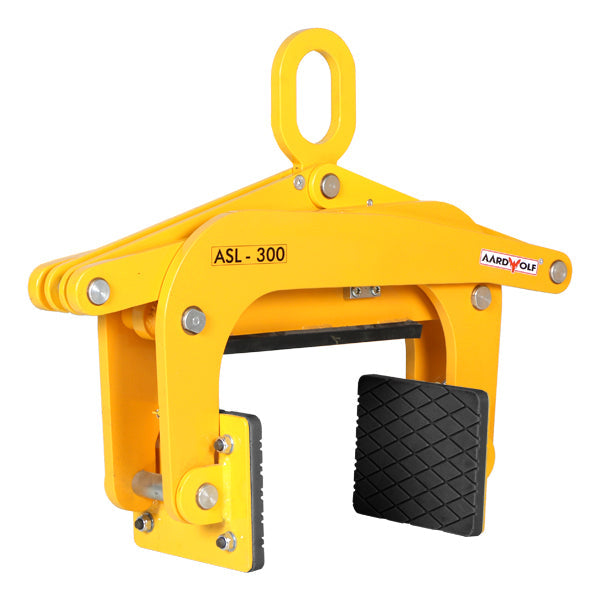

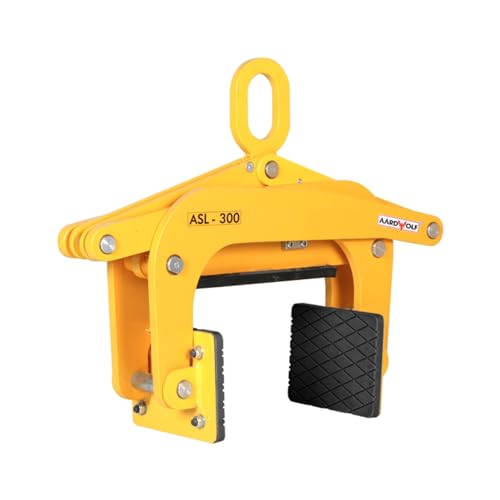

ASL300
| Property | Detail |
|---|---|
| Working Load Limit | 1,500 kg / 3,307 lbs |
| Jaw Opening Range | 150 – 300 mm (6 – 12") |
| Net Weight | 48 – 49.5 kg / 106 – 109 lbs |
| Operating Dimensions | 680 x 200 x 424 mm |
| Package Dimensions | 700 x 230 x 440 mm |
| Construction | Powder-coated steel; polyurethane / vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Standards | Complies with AS 4991-2004 |
| Country of Origin | Vietnam |
ASL300-C
| Property | Detail |
|---|---|
| Working Load Limit | 1,500 kg / 3,307 lbs (same body as ASL300) |
| Jaw Opening Range | 150 – 300 mm (6 – 12") |
| Configuration | Chain-equipped variant — supplied with short lifting chain & shackle |
| Construction | Powder-coated steel; polyurethane / vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Country of Origin | Vietnam |

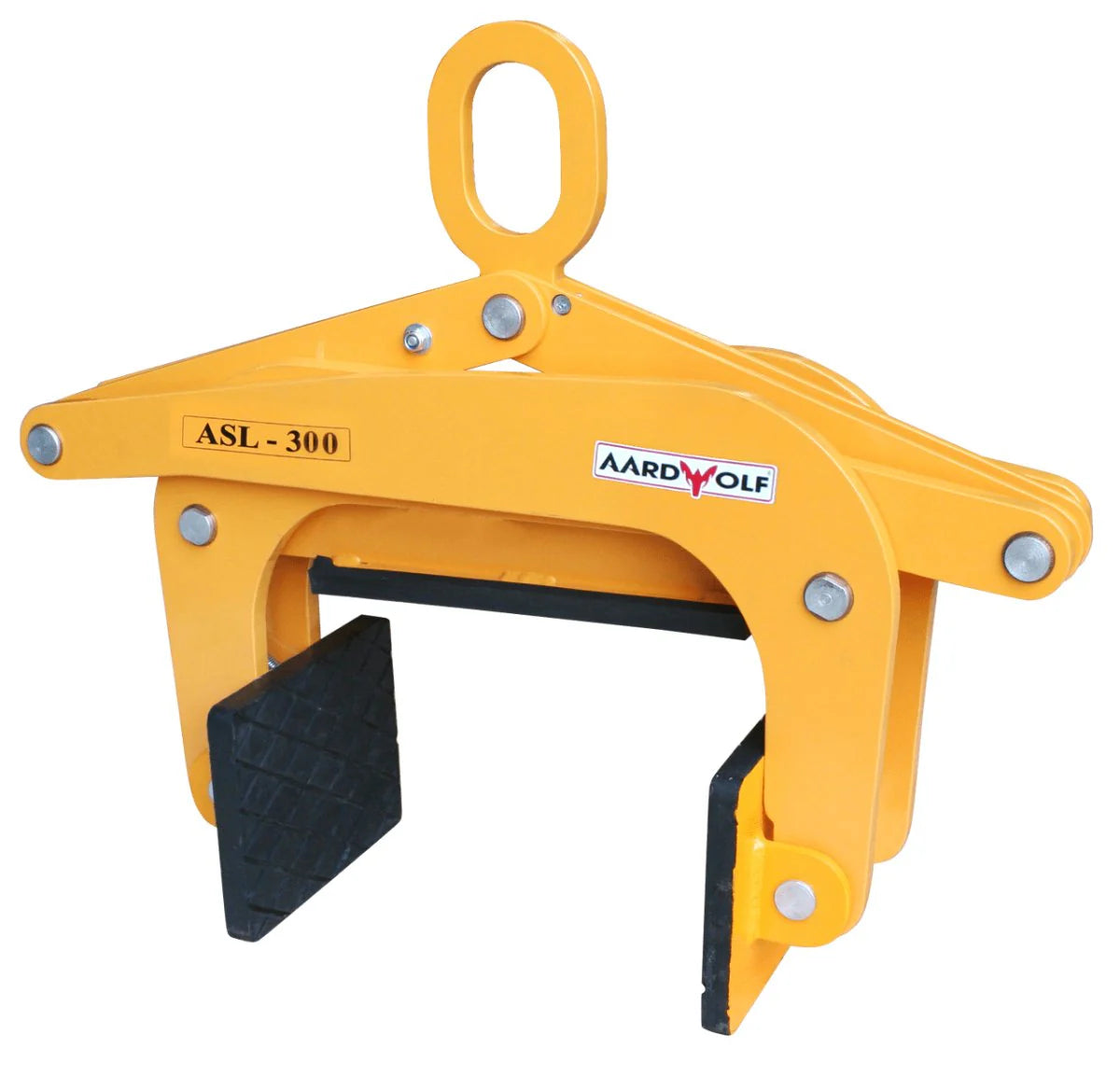

ASL300W
| Property | Detail |
|---|---|
| Working Load Limit | 1,500 kg / 3,307 lbs (same as ASL300 base) |
| Jaw Opening Range | Wide-jaw variant of the 150–300 mm base |
| Configuration | "-W" = Wide jaw configuration |
| Construction | Powder-coated steel; polyurethane / vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Country of Origin | Vietnam |

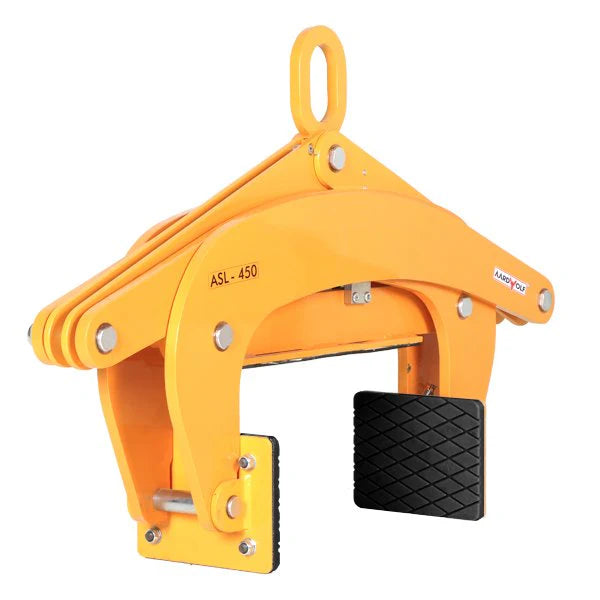

ASL450
| Property | Detail |
|---|---|
| Working Load Limit | 1,500 kg / 3,307 lbs (large jaw model) |
| Jaw Opening Range | 0 – 450 mm (0 – 17 3/4") |
| Construction | Powder-coated steel; polyurethane / vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Country of Origin | Vietnam |
| Note | Detailed weight/dimensions not published by manufacturer — contact for datasheet |
ASL450-C
| Property | Detail |
|---|---|
| Working Load Limit | 1,500 kg / 3,307 lbs |
| Jaw Opening Range | 0 – 450 mm (0 – 17 3/4") |
| Configuration | Chain-equipped variant — supplied with short lifting chain & shackle |
| Construction | Powder-coated steel; polyurethane / vulcanized rubber pads |
| Locking Mechanism | Automatic — gravity-controlled auto-lock |
| Country of Origin | Vietnam |
- Read all product documentation and safety instructions before use.
- Ensure compatibility with your existing tools and materials.
- Follow the manufacturer's recommended operating parameters.
- Inspect the product for damage before each use.
- Always wear appropriate PPE including safety glasses and hearing protection.
- Granite
- Marble
- Concrete
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
