Aardwolf Pivot Forklift Boom
Description
Description
Aardwolf Pivot Forklift Boom
The Aardwolf Pivot Forklift Boom is a telescoping rectangular-tube steel boom with a 0–52° pivot, which compensates for hook and sling length when lifting with a jib. It extends manually (59" to 102.4" on the PFB1-2600, 76" to 134.3" on the PFB2-3450) and carries 3,307 lb (1,500 kg) fully retracted and 1,102 lb (500 kg) or 1,322 lb (600 kg) fully extended, by model — capacity drops as the boom extends because leverage increases. It is secured with two bolts per fork pocket plus restraint pins. Net weight 333 lb (151 kg) or 432 lb (196 kg), by model; built from AS1163-450 LO rectangular tube steel.
Features
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

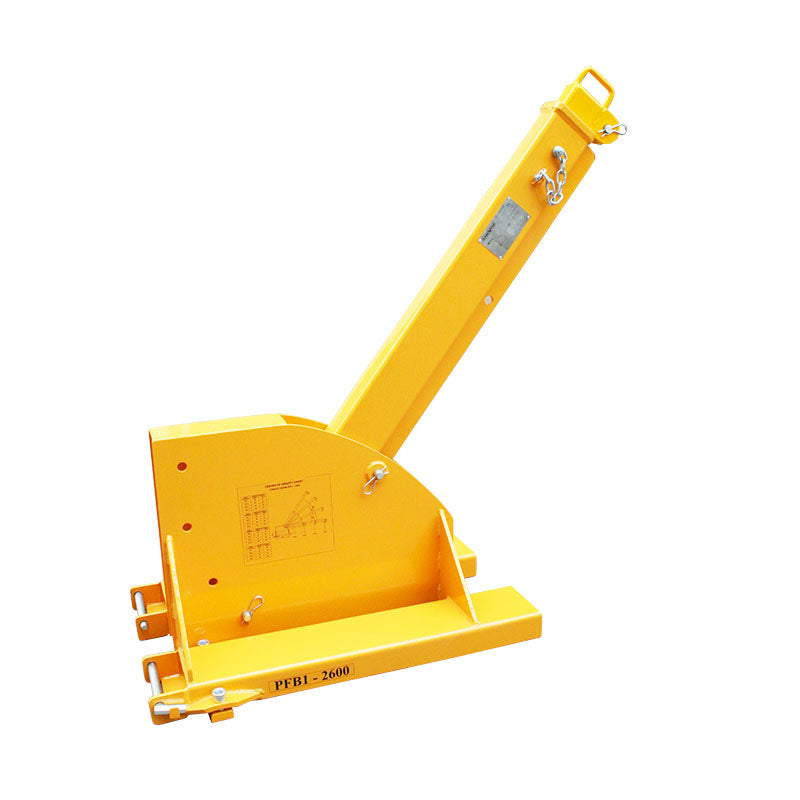

PFB1-2600
| Property | Detail |
|---|---|
| WLL fully retracted | 3,307 lb (1,500 kg) |
| WLL fully extended | 1,102 lb (500 kg) |
| Boom length range | 59" – 102.4" (1,500–2,600 mm) |
| Telescope increment | 22" (560 mm) — 2 increments |
| Tilt Range | 0 – 52° |
| Boom tube dimensions | 6.1" x 2.3" (154 x 58 mm) |
| Fork pocket | 14.4" (366 mm) centers |
| Slip-onto-forks length | 22" (560 mm) |
| Net Weight | 333 lb (151 kg) |
| Material | AS1163-450 LO rectangular tube steel |
| Operation | Manual telescoping + pivot tilt; secured by 2 bolts per fork pocket + restraint pins |
| Country of Origin | Vietnam |
| Notes | Pivot/tilt compensates for hook + sling length when lifting with a jib |

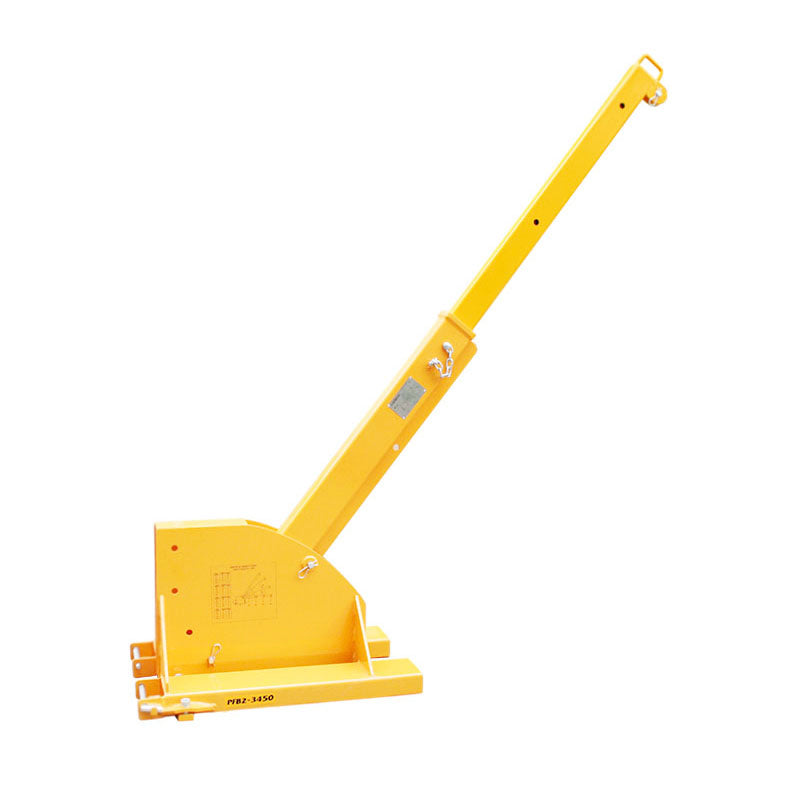

PFB2-3450
| Property | Detail |
|---|---|
| WLL fully retracted | 3,307 lb (1,500 kg) |
| WLL fully extended | 1,322 lb (600 kg) |
| Boom length range | 76" – 134.3" (1,930–3,412 mm) |
| Telescope increment | 19.4" (494 mm) |
| Tilt Range | 0 – 52° |
| Boom tube dimensions | 6.1" x 2.3" (154 x 58 mm) |
| Fork pocket | 14.4" (366 mm) centers |
| Net Weight | 432 lb (196 kg) |
| Material | AS1163-450 LO |
| Operation | Manual telescoping + pivot tilt; secured by 2 bolts per fork pocket + restraint pins |
| Country of Origin | Vietnam |
| Notes | Same; larger capacity reach |
| Gross Weight | 454 lb (206 kg) |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
