Aardwolf Industries  |  SKU: OHVC

Aardwolf Oval Hand Vacuum Cup Lifter OHVC (Pull Pump + Vacuum Gauge)

$158.69 USD
Shipping calculated at checkout.

Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)

Usually ready in 2 hours

Description

Aardwolf OHVC Oval Hand vacuum cup Lifter

The Aardwolf Oval Hand Vacuum Cup Lifter is a vacuum lifter for handling smooth, non-porous material. It is rated at 220 lb (100 kg), a 15" x 3.1" (380 x 80 mm) oval pad. Built from aluminum with rust-resistant parts. Unit weight 2.9 lb (1.3 kg).

Features

  • 220 lb (100 kg) working load limit
  • 15" x 3.1" (380 x 80 mm) oval vacuum pad
  • Weighs 2.9 lb (1.3 kg)
  • Built from Aluminum with rust-resistant parts
Property Detail
Brand Aardwolf
Working Load Limit 220 lb (100 kg)

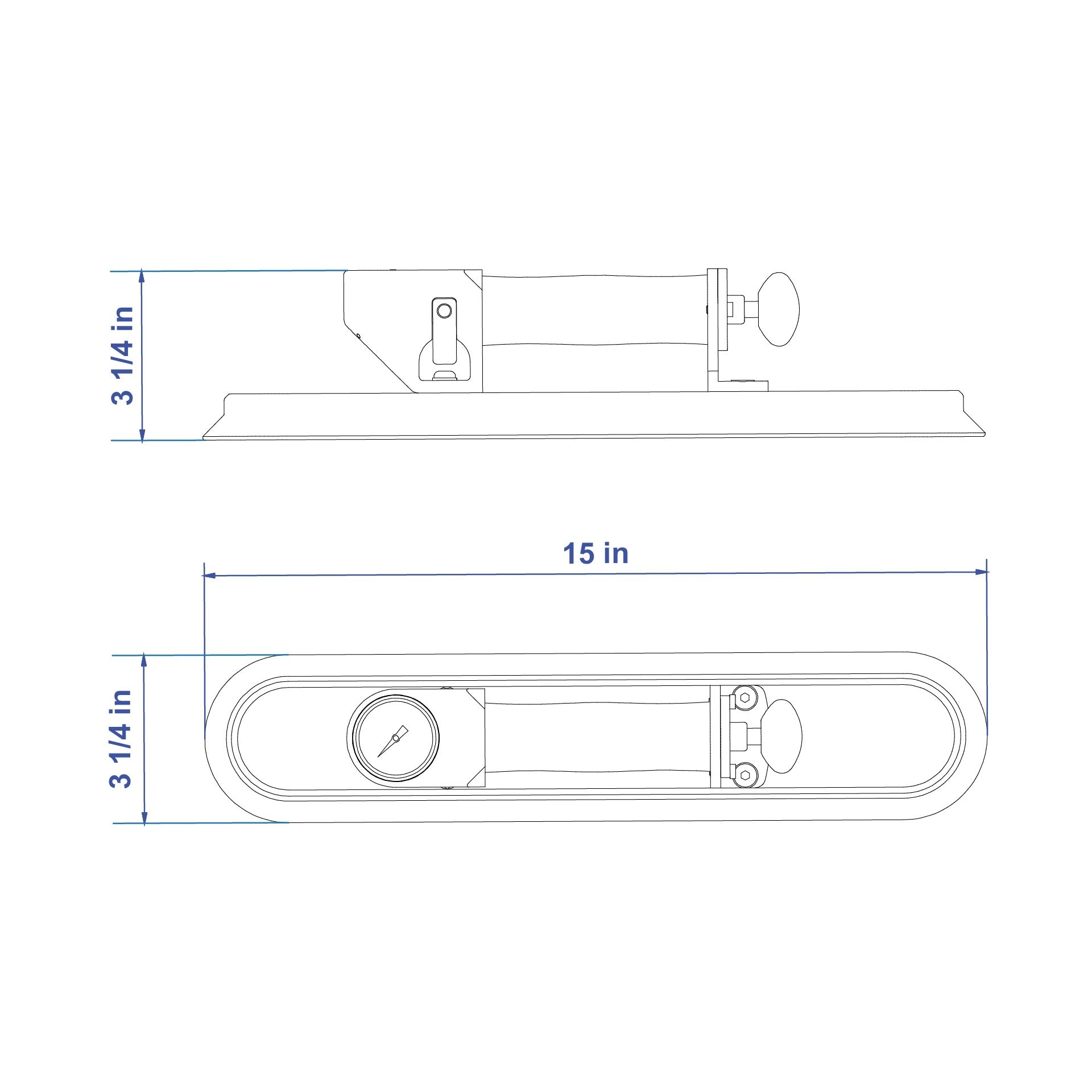

Pad Size 15" x 3.1" (380 x 80 mm) oval
Net Weight 2.9 lb (1.3 kg)
Gross Weight 4.2 lb (1.9 kg)
Material Aluminum with rust-resistant parts
Vacuum Generation Manual hand pump; three pumps produce full vacuum
Gauge Integrated vacuum gauge

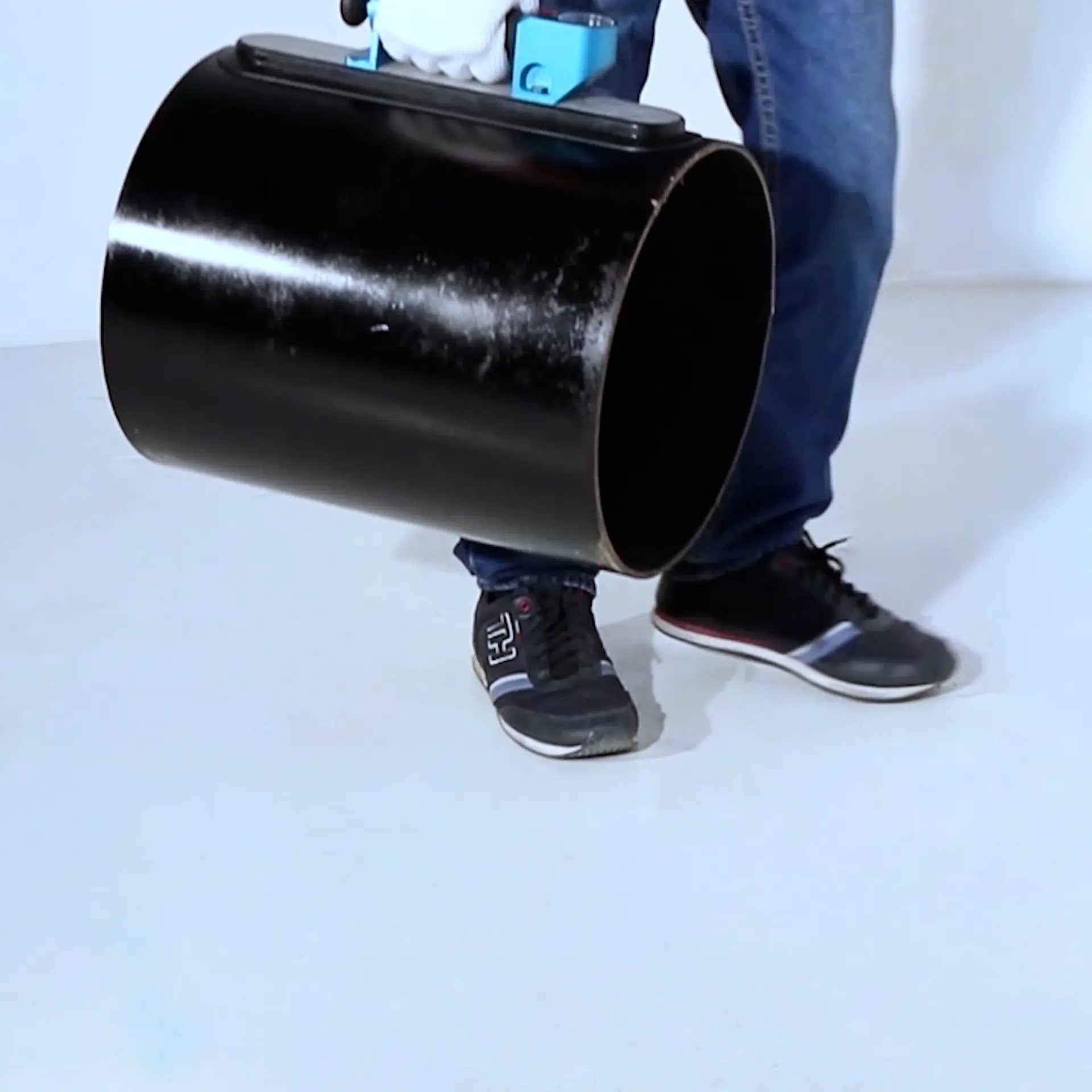

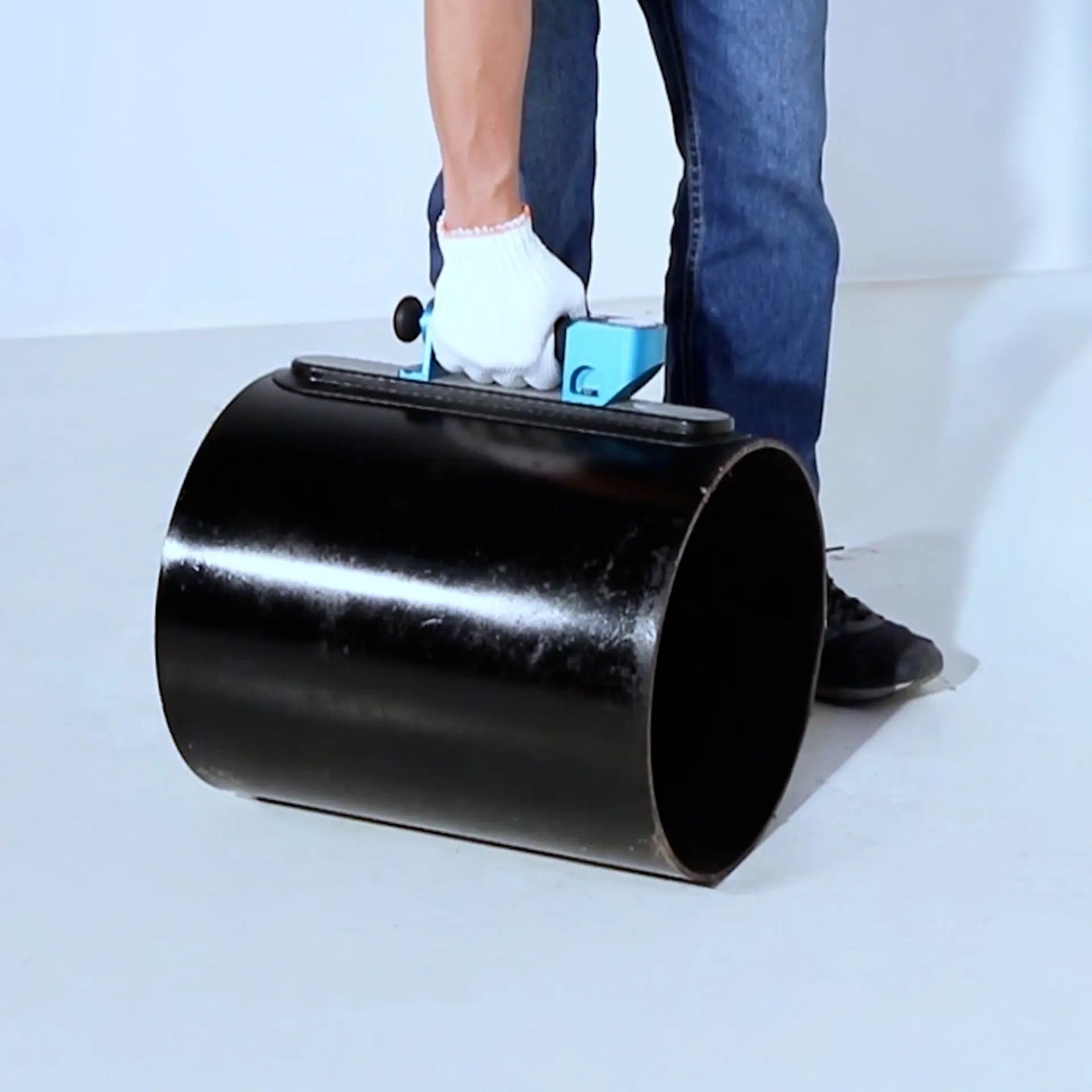

Surface Type Smooth non-porous flat or curved surfaces (glass, stone, steel pipe)
Packaging Dimensions 17.7" x 5.9" x 4.3" (450 x 150 x 110 mm)
Included Protective carrying case
Country of Origin Vietnam
  1. Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
  2. Charge or connect the pump power supply and confirm it primes.
  3. Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
  4. Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
  5. Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 220 lb (100 kg).
  6. Set the material down fully, then release vacuum and vent the pad.
