Aardwolf Industries | SKU:
HVC05
Sold out
Aardwolf Multi-Cup Suction Cup
Regular price
$36.45 USD
Unit price
Shipping calculated at checkout.
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Aardwolf Industries | SKU:
HVC05
Regular price
$36.45 USD
Unit price
Shipping calculated at checkout.
Description
Description

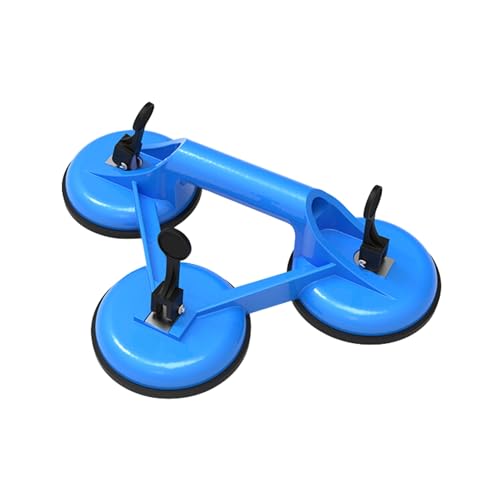

Aardwolf Multi-Cup Suction Cup (HVC05 / HVC06)
The Aardwolf Multi-Cup Suction Cup is a manual hand lifter with multiple suction pads for spreading load across the slab face. HVC05 and HVC06 models offer different cup counts for increased grip and capacity. Pump-action handle creates suction without electricity or air.
Features
- Multiple suction pads spread load across the slab for added grip
- HVC05 and HVC06 models for different pad counts
- Manual pump handle — no electricity or compressed air required
- Quick-release lever drops the load when set in place
- Steel handle with rubber pads for slip-resistant carrying
- Ideal for two-person slab placement and tile setting

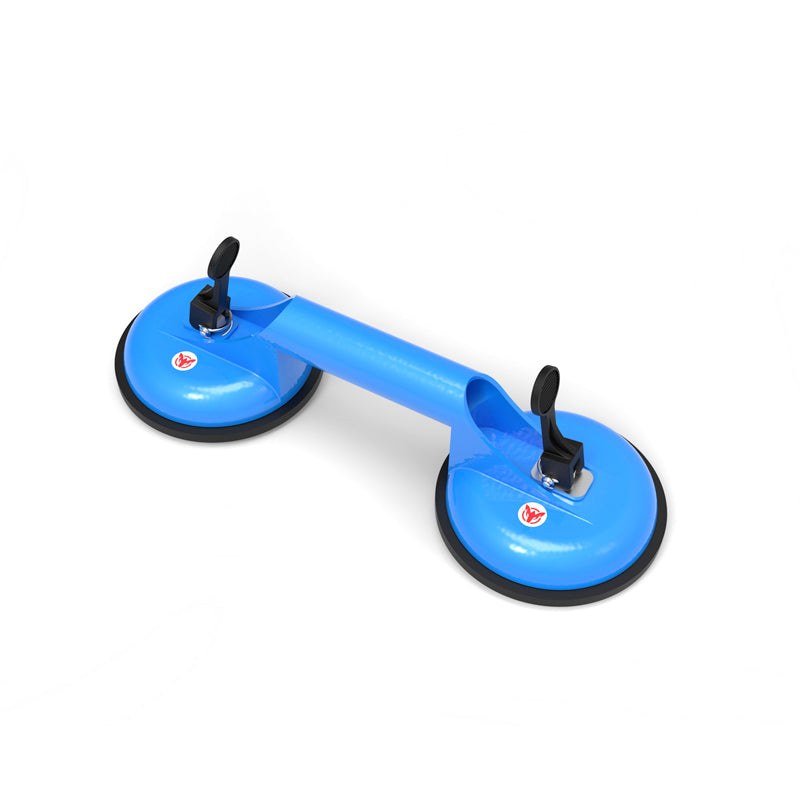

HVC05 — Double Suction Cup
| Property | Detail |
|---|---|
| Cup Count | 2 |
| Cup Diameter | 4.8 in (122 mm) |
| Vertical Capacity | 110 lb (50 kg) |
| Horizontal Capacity | 220 lb (100 kg) |
| Net Weight | 1.8 lb (0.8 kg) |
| Gross Weight | 2.4 lb (1.1 kg) |
| Operation | Manual, two-handed |
| Application | Glass, tile, plastic, smooth non-porous surfaces |
HVC06 — Hand Vacuum Cup with Gauge
| Property | Detail |
|---|---|
| Cup Count | 1 |
| Cup Diameter | 8.7 in |
| Working Load Limit | 265 lb |
| Net Weight | 3.2 lb |
| Gross Weight | 4.4 lb |
| Packaging | 10.6 x 10.6 x 4.3 in |
| Features | Integrated vacuum gauge, priming pump, ergonomic handle, carrying case |
- Wipe each pad and the slab surface clean of dust and water.
- Center the lifter on the slab and press down to seat all rubber seals.
- Pump each handle until full vacuum is achieved on every pad.
- Lift in coordination with a partner — keep the load low.
- Activate the release lever once the slab is fully set.
- Wear gloves and steel-toe boots during stone handling.
Suits granite, marble, quartz, porcelain slabs, and flat glass. Best on smooth, clean, non-porous surfaces.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
