Aardwolf Mono Mechanical Vacuum Lifter
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf Mono Mechanical Vacuum Lifter
Description
Description
No power source is required. It is ideal for the horizontal handling of non-porous sheet and plate materials such as diamond-sawn or polished granite, engineered stone, all types of metals, plastics and fiberglass. An automatic self-cycling valve at the piston's bottom controls the vacuum grip and release cycle.
A non-rechargeable 9V battery powers the audio alarm system.
Note: For materials with a rough surface texture, such as exfoliated granite, concrete and textured metals, refer to our electric or air-powered vacuum lifters with foam rubber pads.
Mono Mechanical Vacuum Lifter AMMVL145H (With Handle)
Watch our comprehensive product demonstration video showing how to use Mono Mechanical Vacuum Lifters . Learn about key features, benefits, and setup instructions.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
AMMVL150
| Property | Detail |
|---|---|
| Working Load Limit | 150 kg / 331 lb |
| Pad Count | 1 pad (suction cup) |
| Pad Diameter | 250 mm OD (seal-to-seal 200 mm) |
| Pump Type | Mechanical, self-cycling valve (piston-based) — no external power |
| Power Requirements | None (self-powered mechanical) |
| Construction | Aluminum |
| Compatible Materials | Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass |
| Operation | Horizontal handling; automatic vacuum grip/release cycle |
| Country of Origin | Vietnam |
| Notes | Earlier Aardwolf catalogues list multi-pad configurations for these SKUs (12/22/46 pads); current product pages list 1-pad mono configuration. Verify with manufacturer at order time. |
| Net Weight | 11 kg / 24 lbs |

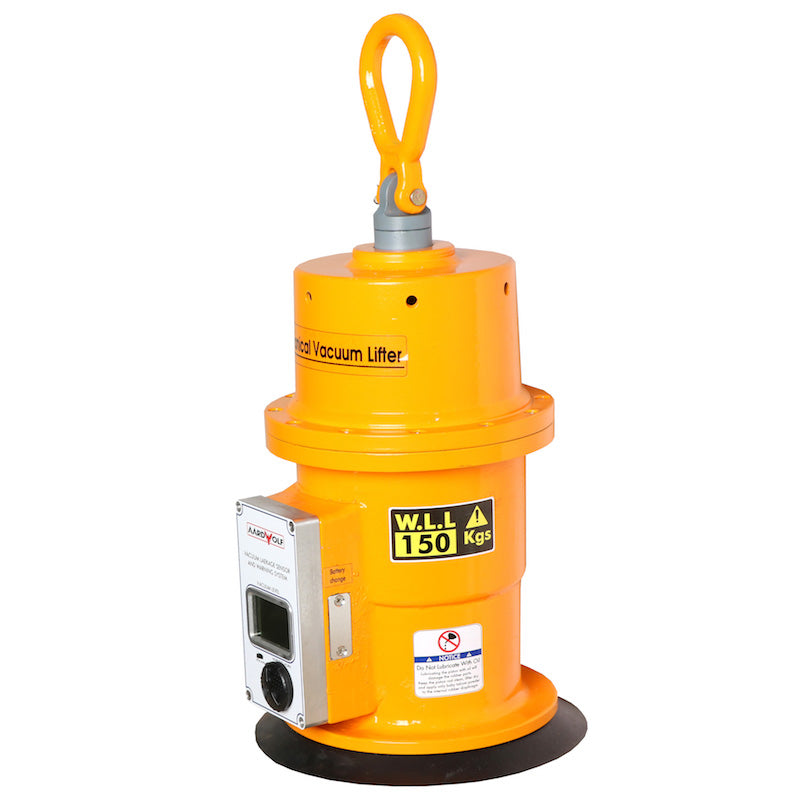

AMMVL150H
| Property | Detail |
|---|---|
| Working Load Limit | 150 kg / 331 lb |
| Pad Count | 1 pad |
| Pad Diameter | 250 mm OD (seal-to-seal 200 mm) |
| Pump Type | Mechanical, self-cycling valve (piston-based) — no external power |
| Power Requirements | None |
| Construction | Aluminum |
| Compatible Materials | Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass |
| Operation | Same; manual handle aids ground positioning |
| Country of Origin | Vietnam |
| Notes | "H" = Handle-Hook variant for portable use |

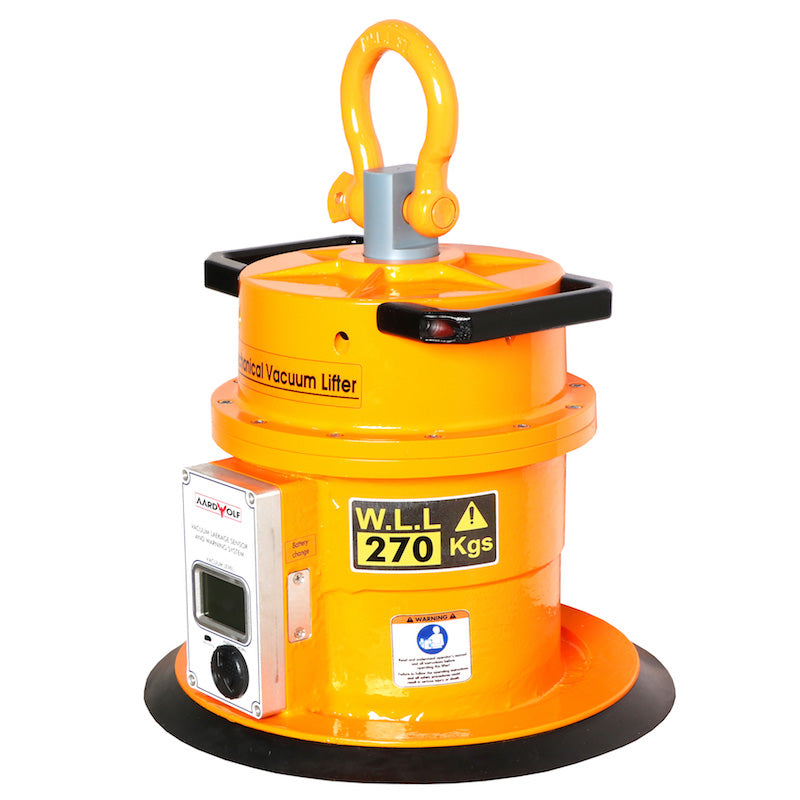

AMMVL270
| Property | Detail |
|---|---|
| Working Load Limit | 270 kg / 595 lb |
| Pad Count | 1 pad |
| Pad Diameter | 365 mm OD (seal-to-seal 300 mm) |
| Pump Type | Mechanical, self-cycling valve (piston-based) — no external power |
| Power Requirements | None |
| Construction | Aluminum |
| Compatible Materials | Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass |
| Operation | Horizontal handling; automatic vacuum grip/release cycle |
| Country of Origin | Vietnam |
| Net Weight | 22 kg / 49 lbs |

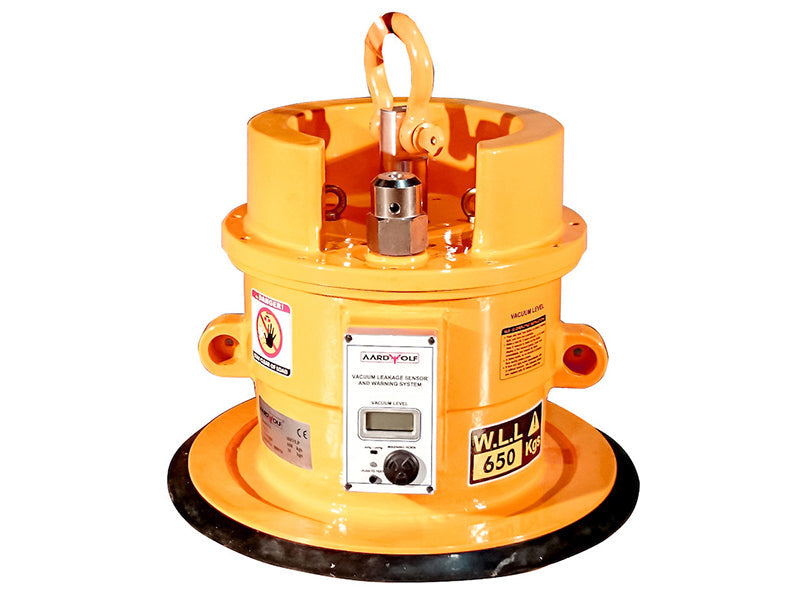

AMMVL650
| Property | Detail |
|---|---|
| Working Load Limit | 650 kg / 1,433 lb |
| Pad Count | 1 pad |
| Pad Diameter | 500 mm OD (seal-to-seal 450 mm) |
| Pump Type | Same; with audio alarm + vacuum gauge |
| Power Requirements | 9 V battery (alarm only, non-rechargeable) |
| Net Weight | 36 kg / 79 lb |
| Gross Weight | 64 kg / 141 lb |
| Packaging Dimensions | L1,020 × W560 × H900 mm (40" × 22" × 35.4") |
| Construction | Aluminum, telescopic front handle |
| Compatible Materials | Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass |
| Operation | Horizontal handling; automatic vacuum grip/release cycle |
| Country of Origin | Vietnam |
| Notes | Audio low-vacuum alarm + visual gauge |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
