Aardwolf Forklift Boom
Description
Description
The Aardwolf Double Forklift Boom is a telescoping two-section rectangular tube steel boom designed for removing bundles of marble and granite slabs from closed-top containers. Thanks to its design, without any impediments between the fork booms, the operator can insert the full length of the booms into the container and bring the load right back to the fork mask, allowing for greater load capacity and more stability. This attachment can support a load capacity of up to 5,000kg. Installing it is very simple, thanks to its double-fork design. The Aardwolf Double Forklift Boom is powder-coated for extra durability and longevity, so the operator can use it for years to come.
Made for use on 8-tonne and larger forklift trucks.
It offers versatility with maximum visibility for the driver.
The boom extensions are designed so that they cannot be pulled all the way out.
The open hooks are designed for the quick and easy hooking of flat web sling eyes.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

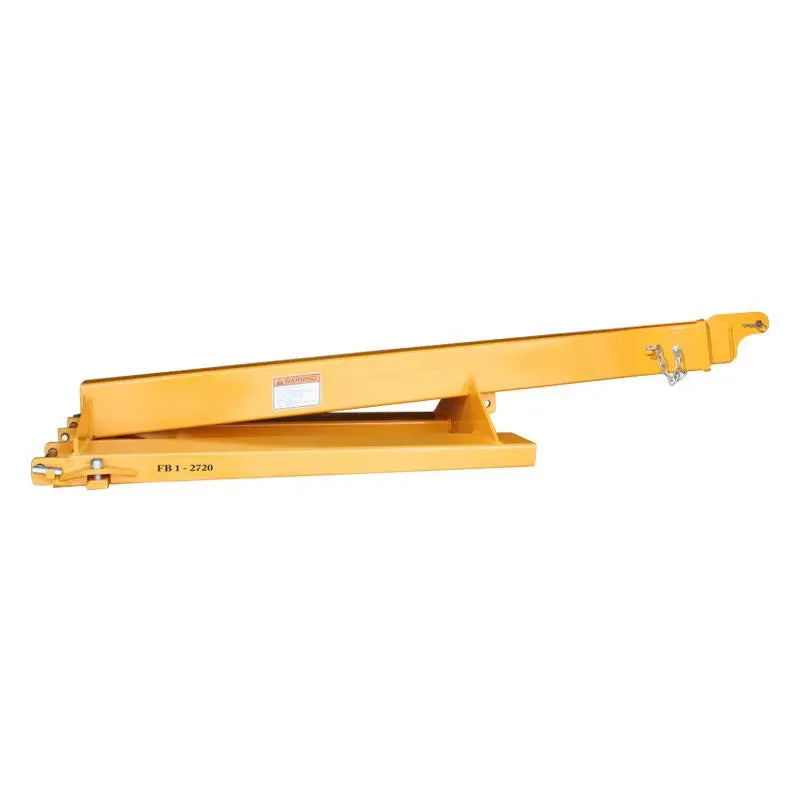

FB1-2720
| Property | Detail |
|---|---|
| WLL fully retracted | 2,000 kg / 4,409 lb |
| WLL fully extended | 500 kg / 1,102 lb |
| Boom length range | 1,610 – 2,724 mm (63.4" – 107.2") |
| Sections / increments | 2-section, 2 increments × 21 7/8" (~556 mm) |
| Fork pocket size | 154 × 61 mm |
| Fork pocket center distance | 14 3/8" (365 mm) |
| Net Weight | 91 kg / 201 lb |
| Gross/Packaging Weight | 100 kg / 220 lb |
| Packaging Dimensions | L1750 × W620 × H410 mm (68 7/8" × 24 3/8" × 16 1/8") |
| Material | AS1163-450 LO rectangular tube steel |
| Compatible forklift | 2 – 2.5 ton |
| Operation | Manual telescoping; swivel hook standard |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Notes | "FB" = Forklift Boom; "LP" = Low Profile (designed for unloading slabs from closed van containers where headroom is limited) |
| WLL Extended | 600 kg / 1,320 lbs |
FB2-3580
| Property | Detail |
|---|---|
| WLL fully retracted | 1,500 kg / 3,307 lb |
| WLL fully extended | 600 kg / 1,322 lb |
| Boom length range | 2,107 – 3,580 mm (82.9" – 141") |
| Sections / increments | 2-section, 3 increments × 491 mm (19.3") |
| Fork pocket size | 150 × 61 mm |
| Fork pocket center distance | 377 mm (14.8") |
| Net Weight | 136 kg / ~300 lb |
| Gross/Packaging Weight | 146 kg / ~322 lb |
| Packaging Dimensions | L2250 × W630 × H550 mm |
| Material | AS1163-450 LO |
| Compatible forklift | 3-ton and larger |
| Operation | Manual telescoping; swivel hook |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| WLL Retracted | 2,000 kg / 4,409 lbs |

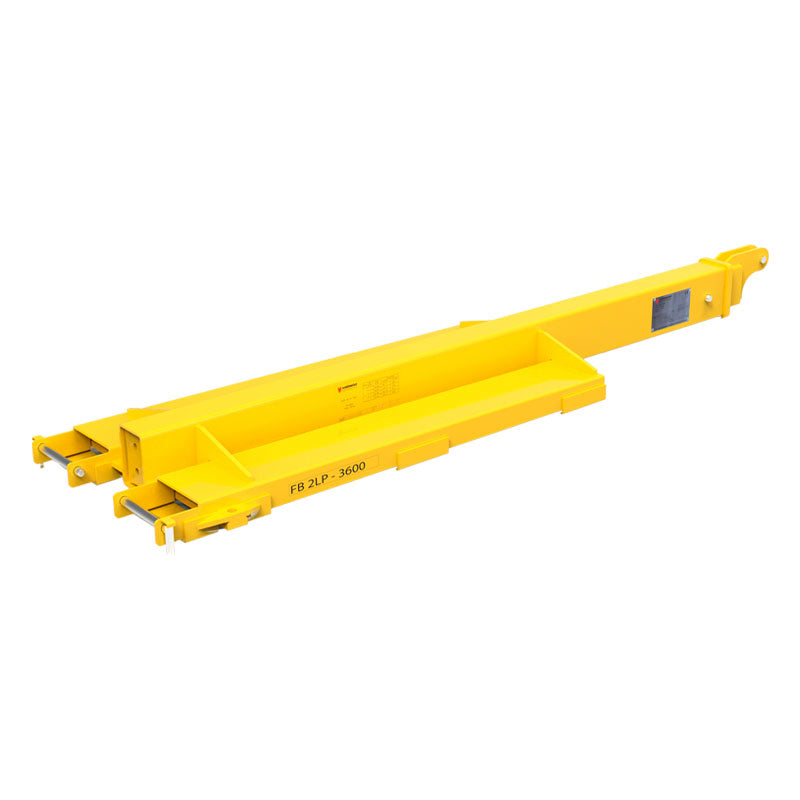

FB2LP-3600
| Property | Detail |
|---|---|
| WLL fully retracted | 2,400 kg / 5,291 lb |
| WLL fully extended | 600 kg / 1,322 lb |
| Boom length range | 2,121 – 3,603 mm |
| Sections / increments | 3-section telescoping, 494 mm per increment |
| Net Weight | 134 kg / 295 lb |
| Material | AS1163-450 LO |
| Compatible forklift | 3-ton and larger (low profile / container work) |
| Operation | Manual telescoping; low-profile for container unloading |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Fork Pocket Size | 165 × 65 mm |
| Fork Pocket Centers | 377 mm |
FB3-5380
| Property | Detail |
|---|---|
| WLL fully retracted | 2,400 kg / 5,291 lb |
| WLL fully extended | 300 kg / 661 lb |
| Boom length range | 2,210 – 5,380 mm (87" – 212") |
| Sections / increments | 3-section |
| Material | AS1163-450 LO |
| Compatible forklift | 3-ton and larger |
| Operation | Manual telescoping |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Net Weight | 163 kg / 359 lbs |
| Gross Weight | 173 kg / 381 lbs |
| Packaging Dimensions | 2,350 × 630 × 580 mm |
| Fork Pocket Size | 165 × 65 mm |
| Fork Pocket Centers | 377 mm |

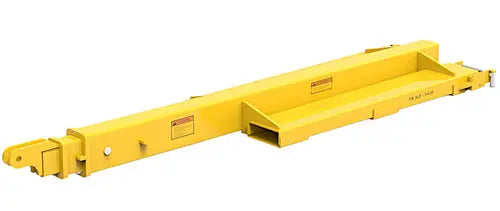

FB3LP-5420
| Property | Detail |
|---|---|
| WLL fully retracted | 2,400 kg / 5,280 lb |
| WLL fully extended | 300 kg / 660 lb |
| Boom length range | 2,210 – 5,420 mm (87" – 213") |
| Sections / increments | 3-section (low profile), 16 increments × 200 mm |
| Hook positions | 5 positions: 87", 118.5", 150", 181.5", 213" |
| Fork pocket size | 2.6" × 6.5" (66 × 165 mm) |
| Fork pocket center distance | 14.8" (376 mm) |
| Net Weight | 163 kg / ~359 lb |
| Material | AS1163-450 LO |
| Compatible forklift | 3-ton and larger (low profile / container work) |
| Operation | Manual telescoping; swivel hook, 5 hook positions |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Increments | 800 mm per section |
| Sections | 3-section telescoping |
| Gross Weight | 172 kg / 379 lbs |

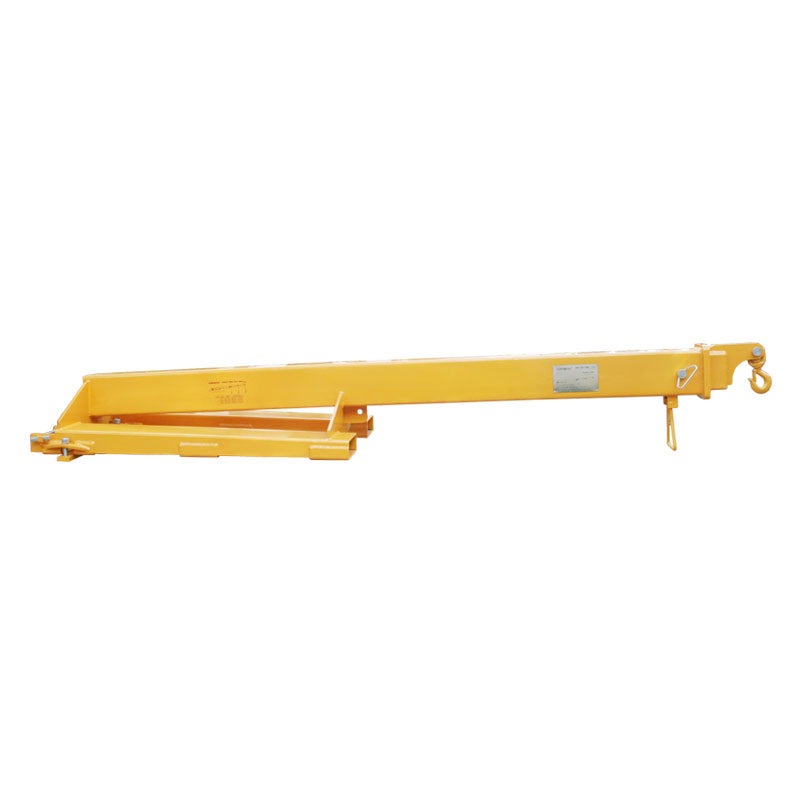

FB4-4800
| Property | Detail |
|---|---|
| WLL fully retracted | 3,000 kg / 6,614 lb |
| WLL fully extended | 1,000 kg / 2,205 lb |
| Boom length range | 2,800 – 4,800 mm (110" – 189") |
| Net Weight | 198 kg / ~437 lb |
| Material | AS1163-450 LO |
| Compatible forklift | 5 – 8 tonne |
| Operation | Manual telescoping |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Sections / Increments | 2-section telescoping, 1,000 mm per increment |
| Fork Pocket Size | 193 × 81 mm |
| Fork Pocket Centers | 520 mm |
| Gross Weight | 210 kg / 463 lbs |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
