Aardwolf Electric Vacuum Lifter (AEVLP8-1000)
Pickup currently unavailable at DST Aardwolf Warehouse Pickup (Santa Fe Springs, CA)
Ships same day from Sterling, VA on orders placed before 12 PM ET. Questions about fit or use? Call 703-957-4544.
Buying for a business? Trade pricing is on dynamicstonetools.net.
Description
Description
The Vacuum Lifter Pro is a reliable tool for lifting and tilting stone slabs such as granite, marble, and other heavy materials. Powered by compressed air, it allows smooth 0°–90° tilting, making slab handling safer and more efficient.
Pneumatic Tilting – Smooth, precise 0°–90° vertical/horizontal tilting.
Vacuum Tank – Maintains suction during sudden power loss for added safety.
Alarm System – Visual and audio alerts when vacuum pressure is low, powered by a rechargeable 12V battery.
Slide Valve Control – Simple ON/OFF operation for quick attachment and release.
Features
- Working Load Limit: 2,204 lb (1,000 kg)
- Number of Pads: 8
- Pad Diameter: 11.8" (300 mm)
- Power Source: 3-phase AC 380 V, 50/60 Hz
- Backup Battery (alarm): 3.7 V LiPo, 2,000 mAh; 7 h continuous / 720 h standby; 2 h charge
- Max Material Size: 118" × 71" (3,000 × 1,800 mm)
- Construction/Material: Steel frame, rubber vacuum pads
AEVLP8-1000
| Property | Detail |
|---|---|
| Working Load Limit | 2,204 lb (1,000 kg) |
| Number of Pads | 8 |
| Pad Diameter | 11.8" (300 mm) |
| Max Material Size | 118" × 71" (3,000 × 1,800 mm) |
| Power Source | 3-phase AC 380 V, 50/60 Hz |
| Vacuum Flow Rate | 5.1 CFM (8.7 m³/h) |
| Backup Battery (alarm) | 3.7 V LiPo, 2,000 mAh; 7 h continuous / 720 h standby; 2 h charge |
| Construction/Material | Steel frame, rubber vacuum pads |
| Compatible Materials | Stone slabs, metal sheets, glass, engineered stone |
| Operation type | Electric vacuum (pressure-switch auto-restart) |
| Operator Count | 1 (crane operator) |
| Standards | Audio-visual safety alarm (designed in line with AS 4991-2004 family; not explicitly cited on page) |
| Country of Origin | Vietnam |

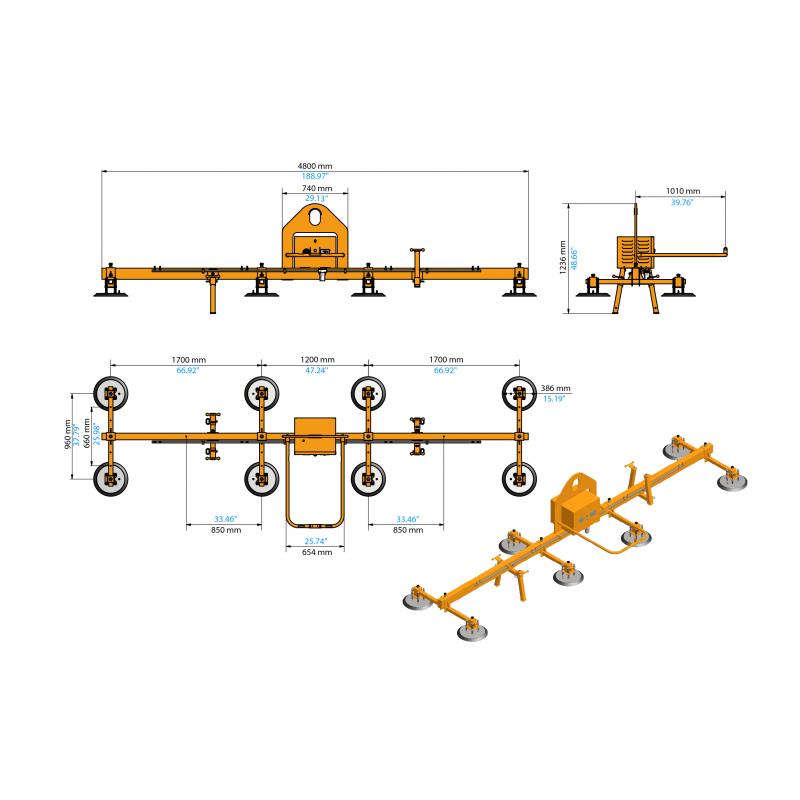

| Notes | Adjustable beam and pad spacing. Pressure switch auto-activates pump when vacuum drops. |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
