Aardwolf DFF200 Demountable A-Frame for Stone Slab Transport
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf DFF200 Demountable A-Frame for Stone Slab Transport
Description
Description
The Aardwolf Demountable Frames are efficient transport frames designed for secure stone storage and stone transport between factories and job sites. Its modular system allows users to swap transport frames between trucks and factory bases, ensuring continuous workflow. Built for durability, the transportation frame supports both forklifts and cranes, providing a reliable solution for stone transportation and slab storage.
Sturdy and Safe Structure: Engineered for securing stone, glass and other materials.
Protective Rubber Layer: Safeguards materials from surface damage during storage and transit.
Dual Hooking Points: Enables easy attachment to an overhead crane for effortless lifting.
Stick-Out Handle: Designed for convenient handling and transportation.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

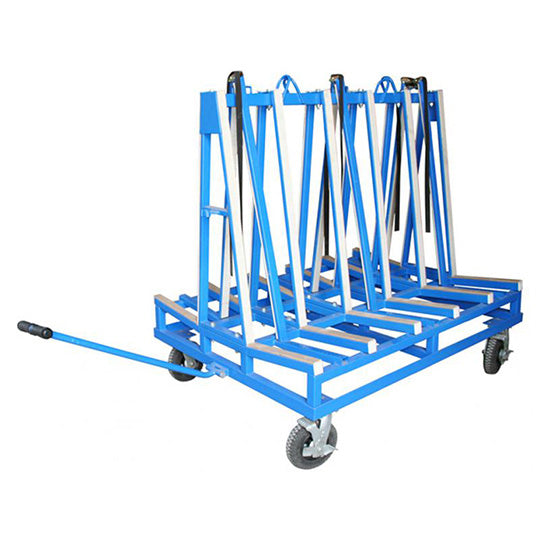

DFF1500PC
| Property | Detail |
|---|---|
| WLL Total | 2,204 lb (1,000 kg) |
| Height (loading) | 59" (1,500 mm) |
| Pump/Power | None |
| Construction/Material | 40 mm (1.57") square steel tubing, powder-coated; rubber profile bases; 8 adjustable locking bars; 2 crane-hook points |
| Compatible Materials | Stone, glass, metal slabs |
| Operation type | Modular base + top frame (frames swap between truck and shop base); forklift- or crane-handled |
| Country of Origin | Vietnam |
| Notes | "PC" = powder-coated 1,500 mm tall variant; top frame and base sold separately as TFDFF1500 / BDFF1500PC |

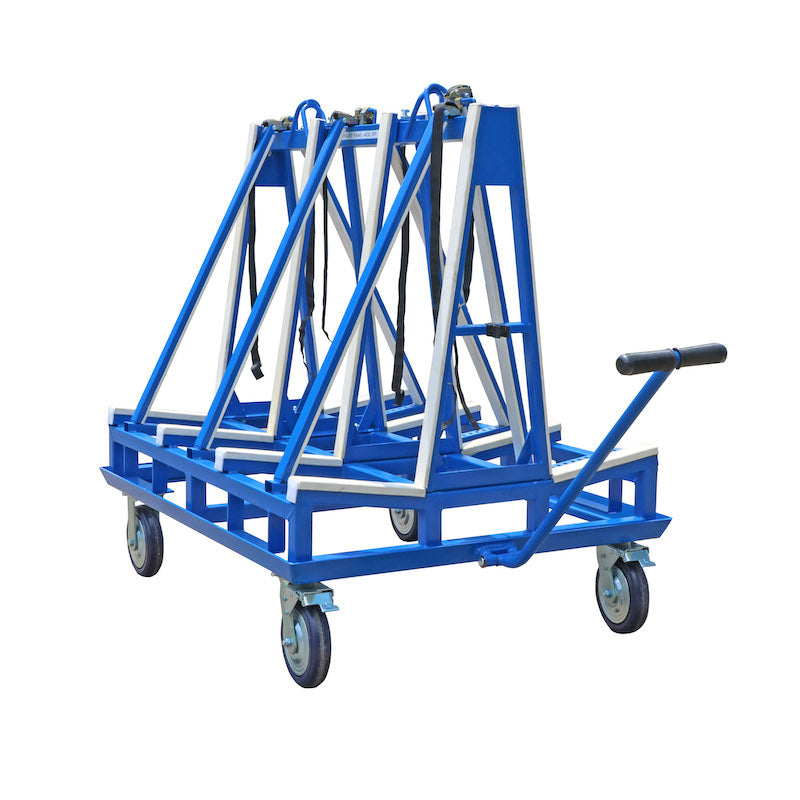

DFF200
| Property | Detail |
|---|---|
| WLL Total | 2,204 lb (1,000 kg) — 500 kg per side |
| Height (loading) | 51.2" (1,300 mm) |
| Slab storage base width per side | 300 mm (11.8") |
| Net Weight | 102 kg (225 lb); gross 103 kg |
| Packaging | 1,300 × 1,020 × 240 mm (L×W×H) |
| Pump/Power | None |
| Construction/Material | 40 mm (1.57") square steel tubing, powder-coated; rubber profile bases; 8 adjustable locking bars; 2 crane-hook points |
| Compatible Materials | Stone, glass, metal slabs |
| Operation type | Modular base + top frame (frames swap between truck and shop base); forklift- or crane-handled |
| Country of Origin | Vietnam |
| Notes | Most common size |

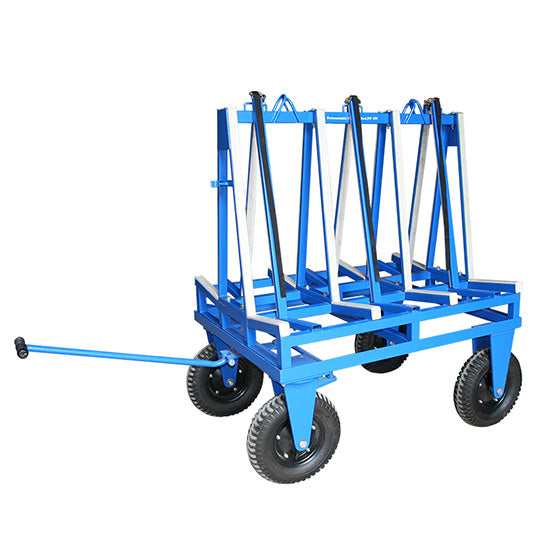

DFF400
| Property | Detail |
|---|---|
| WLL Total | 2,204 lb (1,000 kg) — 500 kg per side |
| Height (loading) | 59" (1,500 mm) |
| Slab storage base width per side | 300 mm (12") |
| Pump/Power | None |
| Construction/Material | 40 mm (1.57") square steel tubing, powder-coated; rubber profile bases; 8 adjustable locking bars; 2 crane-hook points |
| Compatible Materials | Stone, glass, metal slabs |
| Operation type | Modular base + top frame (frames swap between truck and shop base); forklift- or crane-handled |
| Country of Origin | Vietnam |
| Notes | Taller variant of DFF200 |

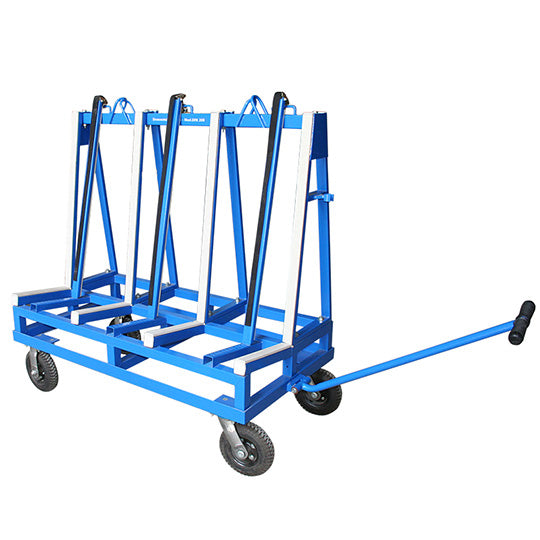

DFH200
| Property | Detail |
|---|---|
| WLL Total | 1,653 lb (750 kg) |
| Height (loading) | 51.2" (1,300 mm) |
| Slab storage base width per side | 320 mm (12.6") |
| Net Weight | ~92 kg (202 lb) |
| Packaging | 51-1/8" × 28" × 11-3/4" (L×W×H) |
| Pump/Power | None |
| Construction/Material | 40 mm (1.57") square steel tubing, powder-coated; rubber profile bases; 8 adjustable locking bars; 2 crane-hook points |
| Compatible Materials | Stone, glass, metal slabs |
| Operation type | Same; "H" = heavy / horizontal-style base |
| Country of Origin | Vietnam |
| Notes | Heavy-duty base variant |
| Slab Storage Base Width (per side) | 305 mm (12") |
| Gross Weight | 92.1 kg / 203 lbs |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
