Aardwolf Bundle Rack Kit
Description
Description
Aardwolf provides the Bundle Rack Kit, which contains a pair of galvanized steel rails 3m long, with rectangular galvanized steel tube posts and steel post bases. The rectangular post can be positioned in the pockets along the rack. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345Mpa and a 0.197'' wall thickness, ensuring safety for the vertical storage of slab bundles.
The bases and seven holes are folded steel, making the rack lightweight.
The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
The bundle rack rail is combined with eight steel tube posts, which have a height of 47.24" - 62.99" and suitable steel post bases.
This rack is the best storage solution, offering cost-saving and economic effects for users.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

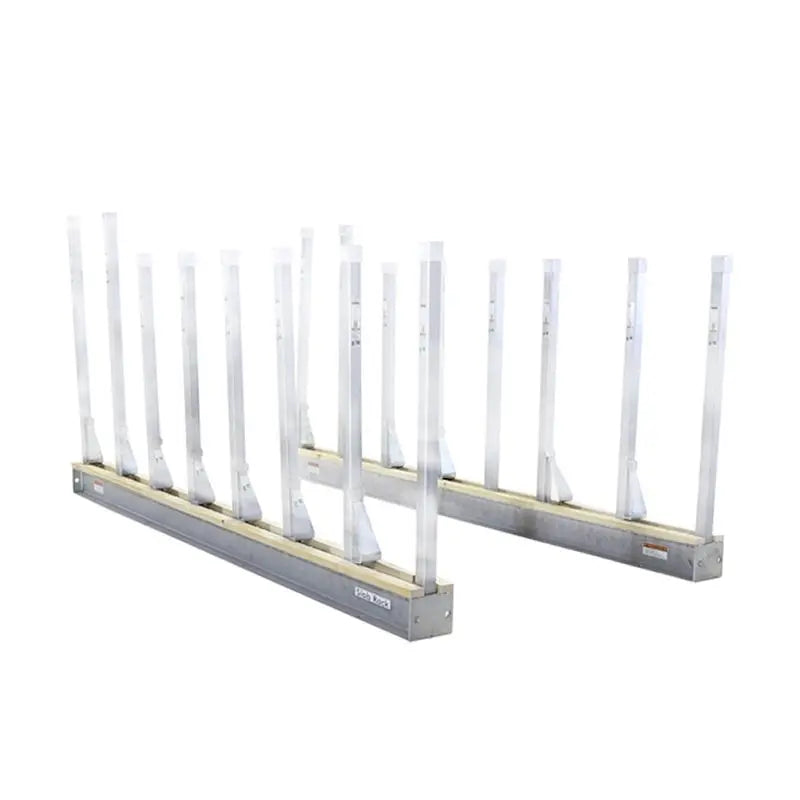

ABR01
| Property | Detail |
|---|---|
| Components | Pair of galvanized steel rails 3 m (9'10") |
| Rail Dimensions | 2,925 × 165 × 165 mm; hole 101.5 × 52 mm |
| Net Weight | 77.7 kg (171 lb) — rails only |
| Construction/Material | Galvanized rectangular tube steel; ≥345 MPa yield; 1/4" (6.35 mm) wall |
| WLL | Depends on slab size/thickness; use Aardwolf load calculator (N/A — single fixed rating not published) |
| Compatible Materials | Marble, granite, engineered stone, glass bundles |
| Operation type | Floor-mounted bundle/slab vertical storage at 4° lean |
| Country of Origin | Vietnam |
| Notes | Rubber-capped poles; posts repositionable along rail |
| Gross Weight | 78 kg / 172 lbs |
ABR0106
| Property | Detail |
|---|---|
| Components | ABR01 rails + 8× ABR06 poles |
| Rail Dimensions | Same rails |
| Pole Height | 1,200 mm / 47.2" |
| Net Weight | Rails 77.7 kg + 8 × 12.5 kg = 177.7 kg (392 lb) |
| Construction/Material | Same + ABR06 poles |
| WLL | Depends on slab size/thickness; use Aardwolf load calculator (N/A — single fixed rating not published) |
| Compatible Materials | Marble, granite, engineered stone, glass bundles |
| Operation type | Floor-mounted bundle/slab vertical storage at 4° lean |
| Country of Origin | Vietnam |
| Notes | Kit nomenclature: 06/07/08 suffix = pole height (47"/55"/63") |
| Wall Thickness | 1/4" (6.35 mm) |

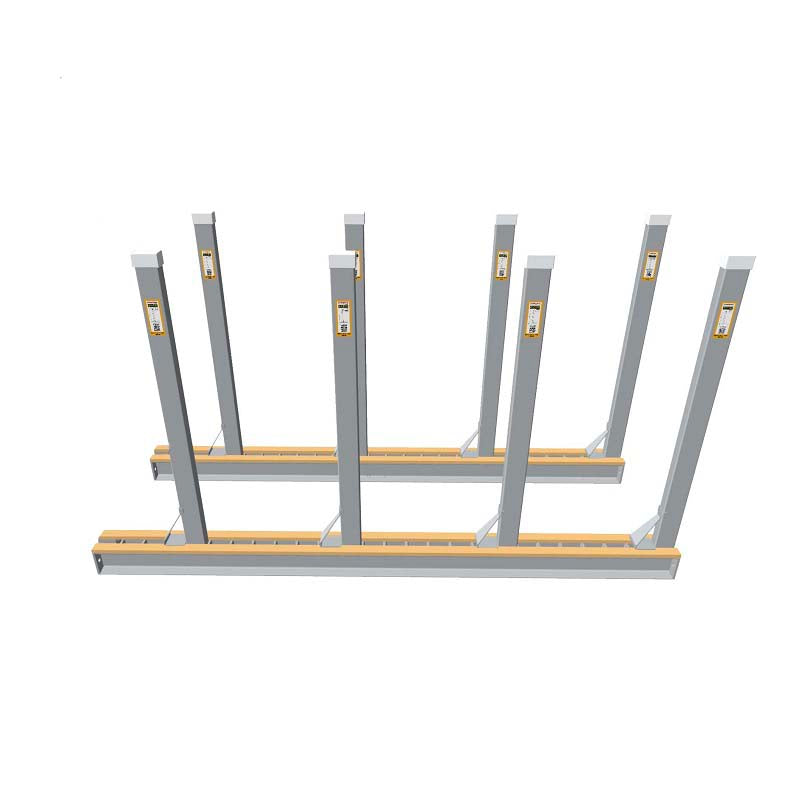

ABR0107
| Property | Detail |
|---|---|
| Components | ABR01 rails + 8× ABR07 poles |
| Rail Dimensions | Same rails |
| Pole Height | ≈1,400 mm / 55" |
| Construction/Material | Same + ABR07 poles |
| WLL | Depends on slab size/thickness; use Aardwolf load calculator (N/A — single fixed rating not published) |
| Compatible Materials | Marble, granite, engineered stone, glass bundles |
| Operation type | Floor-mounted bundle/slab vertical storage at 4° lean |
| Country of Origin | Vietnam |
| Notes | Rubber-capped poles; posts repositionable along rail |
| Wall Thickness | 1/4" (6.35 mm) |

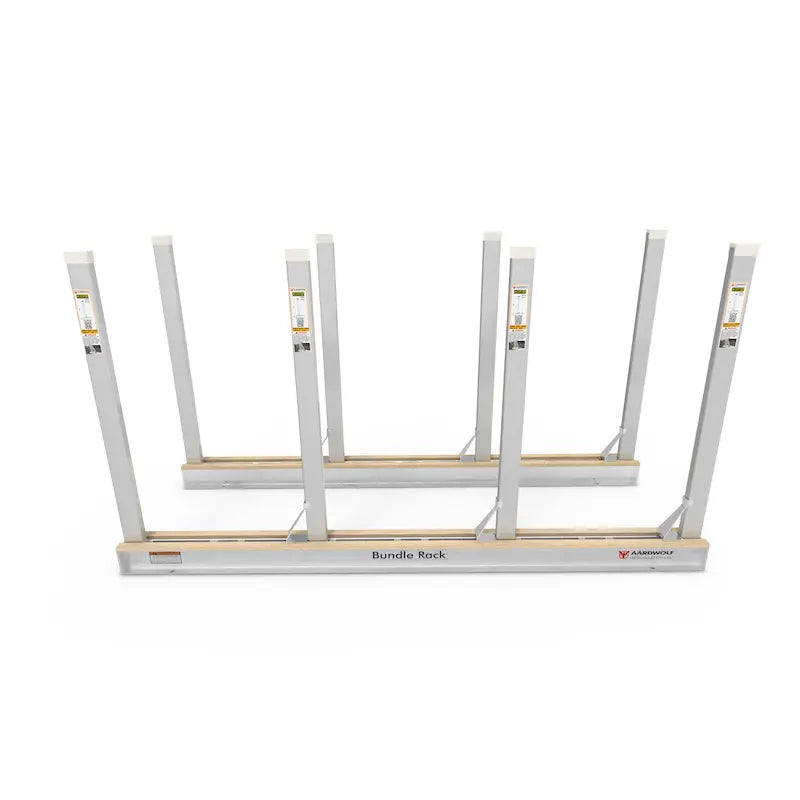

ABR0108
| Property | Detail |
|---|---|
| Components | ABR01 rails + 8× ABR08 poles |
| Rail Dimensions | Same rails |
| Pole Height | 1,600 mm / 63" |
| Construction/Material | Same + ABR08 poles |
| WLL | Depends on slab size/thickness; use Aardwolf load calculator (N/A — single fixed rating not published) |
| Compatible Materials | Marble, granite, engineered stone, glass bundles |
| Operation type | Floor-mounted bundle/slab vertical storage at 4° lean |
| Country of Origin | Vietnam |
| Notes | Rubber-capped poles; posts repositionable along rail |
| Wall Thickness | 1/4" (6.35 mm) |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
