Aardwolf Industries | SKU:
ABL-255-2000
Aardwolf Barrier Lifter
Regular price
$1,857.34 USD
Unit price
Shipping calculated at checkout.
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf Barrier Lifter
Regular priceFrom
$1,857.34 USD
Unit price
Aardwolf Industries | SKU:
ABL-255-2000
Regular price
$1,857.34 USD
Unit price
Shipping calculated at checkout.
Description
Description

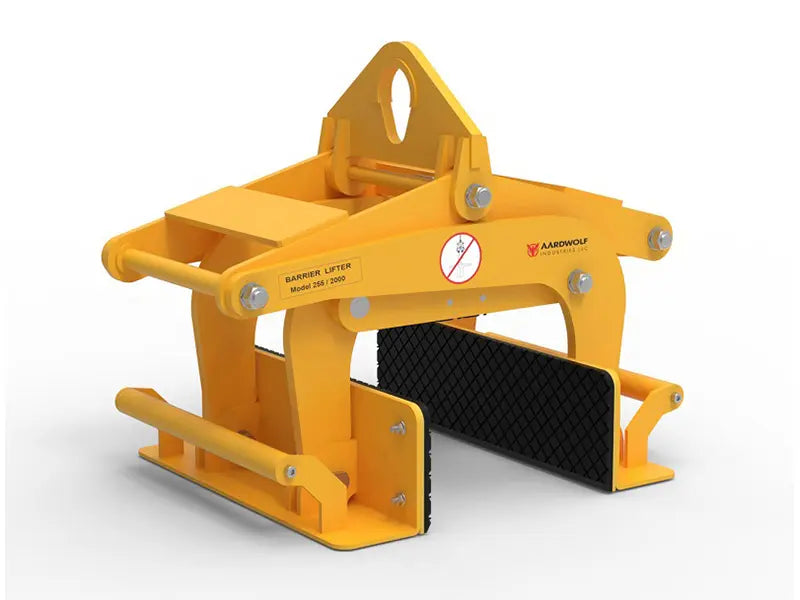

Aardwolf Barrier Lifter — ABL Series
The Aardwolf Barrier Lifter is a gravity-controlled clamp for lifting concrete barriers, sandstone blocks, and granite slabs. The clamp opens when rested and closes automatically when lifted. Available in three capacities for road, landscape, and stone-yard work.
Features
- ABL-255-2000: 4,409 lb (2,000 kg) working load, 1.46 in lifting ring
- ABL-255-3000: 6,614 lb (3,000 kg) working load, 1.77 in lifting ring
- ABL-360-5000: 11,023 lb (5,000 kg) working load, 4 in to 14.2 in jaw range
- Auto-lock gravity clamp — opens when rested, closes when lifted
- Rubber pads and rubber-lined bar protect the load from chipping
- Single overhead lifting eye for crane or hoist attachment
- Heavy-duty steel build — ABL-360-5000 weighs approximately 939 lb
ABL-255-2000 — 4,408 lb / 2,000 kg Capacity
| Property | Detail |
|---|---|
| Part Number | ABL-255-2000 |
| Working Load | 4,408 lb (2,000 kg) |
| Jaw Range | 4 in to 10 in (100–255 mm) |
| Net Weight | 185 lb (84 kg) |
| Locking | Gravity auto-lock |
ABL-255-3000 — 6,614 lb / 3,000 kg Capacity
| Property | Detail |
|---|---|
| Part Number | ABL-255-3000 |
| Working Load | 6,614 lb (3,000 kg) |
| Jaw Range | 4 in to 10 in (100–255 mm) |
| Locking | Gravity auto-lock |

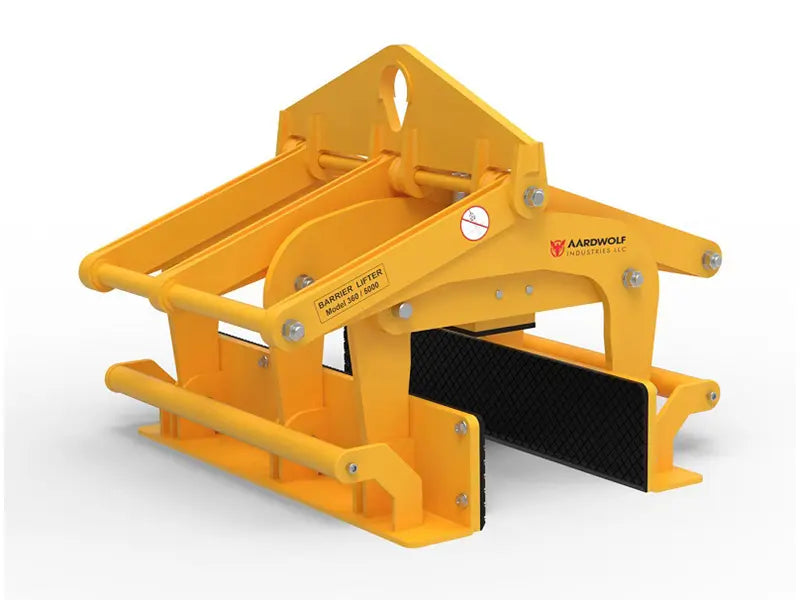

ABL-360-5000 — 11,023 lb / 5,000 kg Capacity — Wide Jaw
| Property | Detail |
|---|---|
| Part Number | ABL-360-5000 |
| Working Load | 11,023 lb (5,000 kg) |
| Jaw Range | 4 in to 14.2 in (100–360 mm) |
| Weight | ~939 lb (426 kg) |
| Locking | Gravity auto-lock |
- Lower the barrier lifter onto the load until the clamp rests open.
- Center the load between the jaws with rubber pads against the surface.
- Lift slowly with a crane or hoist; the clamp closes under load.
- Move the load to its destination keeping it low and steady.
- Lower onto the receiving surface so the clamp rests and releases.
- Wear PPE and keep clear of suspended loads at all times.
Concrete road barriers, sandstone blocks, granite slabs, and other dense, parallel-faced loads.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
