Aardwolf Industries  |  SKU: CTTABB4

Aardwolf Anti-Breakage Bar

Regular price $684.74 USD
Shipping calculated at checkout.

Model

Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)

Usually ready in 2 hours

Description

Anti-Breakage Bars are stiffening bars that prevent the breakage of fragile stone pieces during lifting, moving and installation.  Quick and easy to attach to workpieces, the rubber-lined bars eliminate the risk and danger of breaking expensive marble and granite workpieces.

The Aardwolf Anti-Breakage Bars incorporate rubber lined bar and rubber-lined individual jaws to cushion and protect the granite or marble workpiece against hard point compression so that the load is well distributed with minimal pressure points, preventing any scratching or cracks to the workpiece.

Aardwolf Anti-Breakage Bars have full-grip hand knobs, which are easy to grab using bare hands or gloves.  Full-grip hand knobs have more substantial rotation torque than comparable mushroom knobs.

The bottom jaws of the Aardwolf Anti-Breakage Bars are connected by a rod attached to the bottom jaws and slidably extend through the upper jaws.  The upper jaws are prevented from completely separating from the rods through keyways and keys, which also prevent the jaws from twisting about each other.  The keyways and keys illuminate the need for auxiliary rods (jaw alignment pin).  As with a competing product, the keyway prevents the bottom jaws from dropping to the floor if a worker completely loosens the hand knobs.

Made from extruded anodised aluminium, stainless steel and zinc-plated steel.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

CTABB6-SINGLE
Property Detail
Quantity per SKU 1 bar (single)
Length 1,830 mm (72" / 6 ft)
Grip Range 17–45 mm (5/8"–1-3/4")
Pump / Power None (manual mechanical clamp)
Construction/Material Extruded anodized aluminum + stainless steel + zinc-plated steel; rubber-lined jaws
Compatible Materials Marble, granite, engineered stone slabs (fragile pieces)
Operation type Manual full-grip hand-knob clamp; rubber-lined to distribute load
Country of Origin Vietnam
Notes "SINGLE" variant ships one 6 ft bar (vs. CTTABB6 pair)

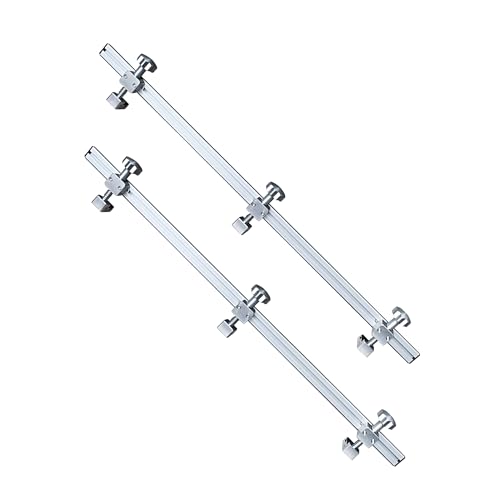

CTTABB4
Property Detail
Quantity per SKU Pair (2 bars)
Length 1,220 mm (48" / 4 ft)
Grip Range 17–45 mm (5/8"–1-3/4")
Net Weight 19 lb (8.6 kg) per pair; gross 20 lb
Packaging 49-5/8" × 7-1/8" × 5-1/2" L×W×H
Pump / Power None
Construction/Material Extruded anodized aluminum + stainless steel + zinc-plated steel; rubber-lined jaws
Compatible Materials Marble, granite, engineered stone slabs (fragile pieces)
Operation type Manual full-grip hand-knob clamp; rubber-lined to distribute load
Country of Origin Vietnam
Notes Sold in pairs

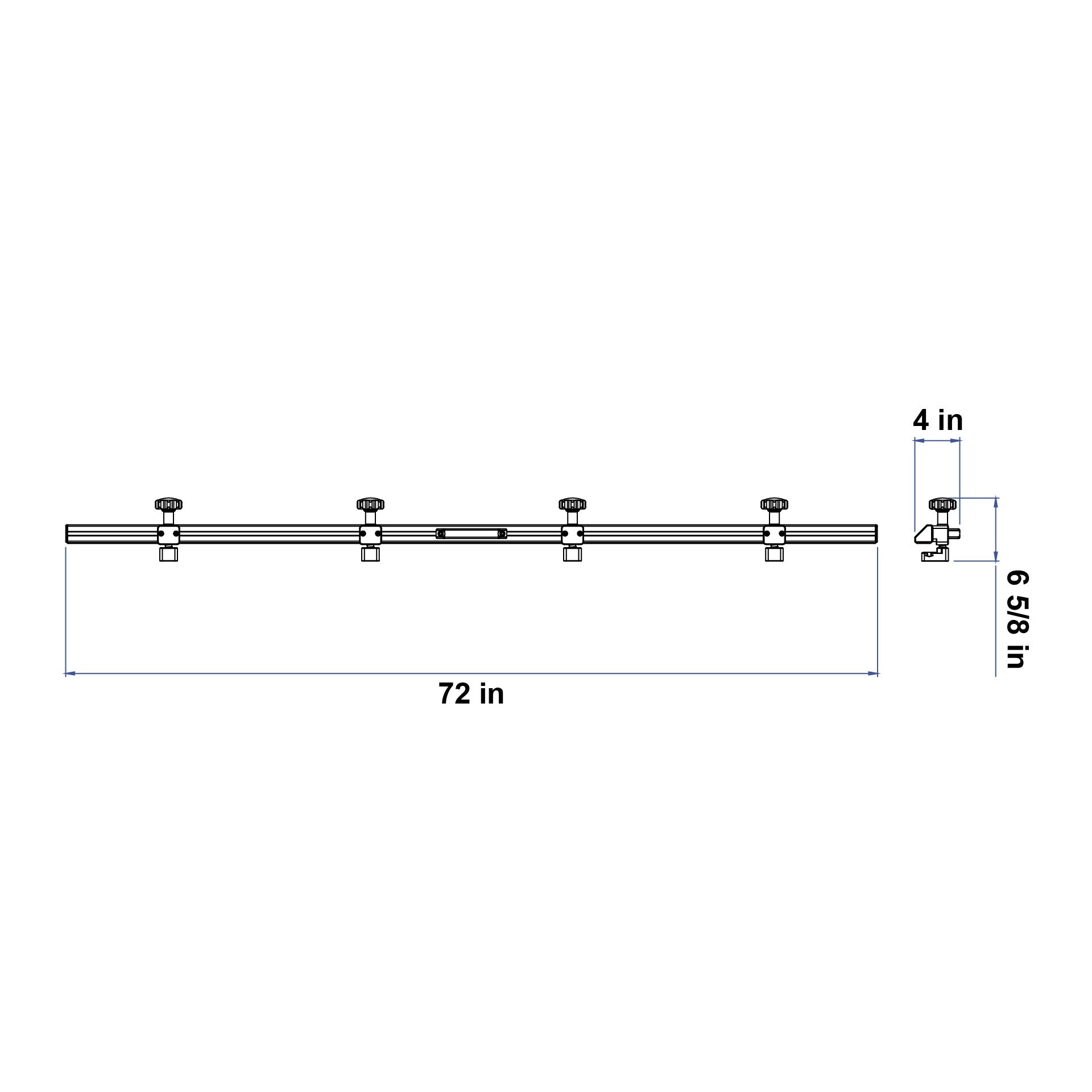

CTTABB6
Property Detail
Quantity per SKU Pair (2 bars)
Length 1,830 mm (72" / 6 ft)
Grip Range 17–45 mm (5/8"–1-3/4")
Pump / Power None
Construction/Material Extruded anodized aluminum + stainless steel + zinc-plated steel; rubber-lined jaws
Compatible Materials Marble, granite, engineered stone slabs (fragile pieces)
Operation type Manual full-grip hand-knob clamp; rubber-lined to distribute load
Country of Origin Vietnam
Notes Sold in pairs
Net Weight 11.8 kg / 26 lbs (pair)
Gross Weight 13 kg / 28.7 lbs
Packaging Dimensions 1,870 × 180 × 140 mm (73.6" × 7.1" × 5.5")

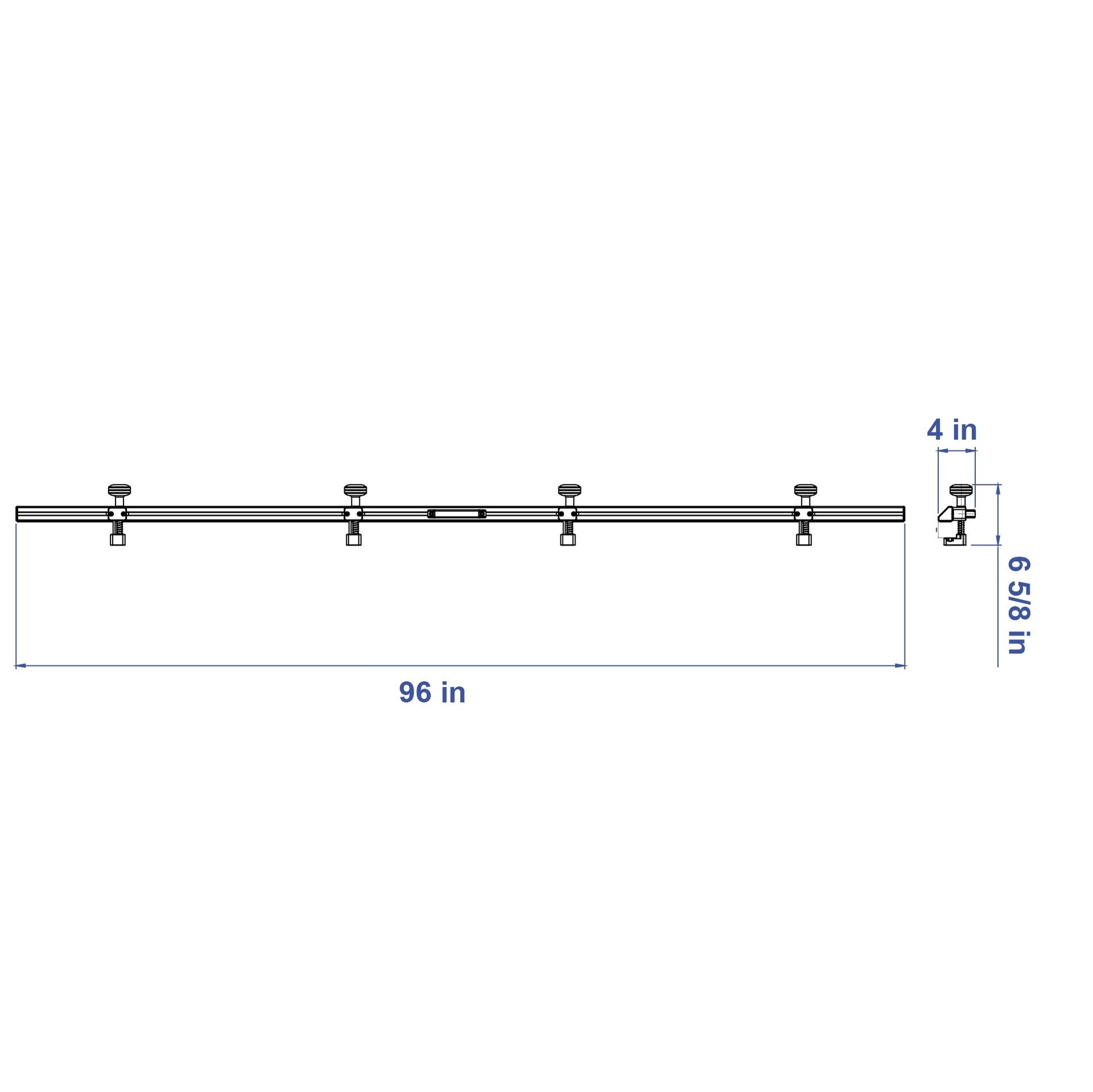

CTTABB8
Property Detail
Quantity per SKU Pair (2 bars)
Length 2,440 mm (96" / 8 ft)
Grip Range 17–45 mm (5/8"–1-3/4")
Pump / Power None
Construction/Material Extruded anodized aluminum + stainless steel + zinc-plated steel; rubber-lined jaws
Compatible Materials Marble, granite, engineered stone slabs (fragile pieces)
Operation type Manual full-grip hand-knob clamp; rubber-lined to distribute load
Country of Origin Vietnam
Notes Sold in pairs
  1. Read all product documentation and safety instructions before use.
  2. Inspect the unit and any accessories for damage or wear before each use.
  3. Verify the load is within the published Working Load Limit of the variant being used.
  4. Follow the manufacturer's recommended operating parameters and surface conditions.
  5. Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
  • Refer to the Specifications table above for the Compatible Materials field of each variant.
  • For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.

Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
