Aardwolf Industries | SKU:
AHVL500

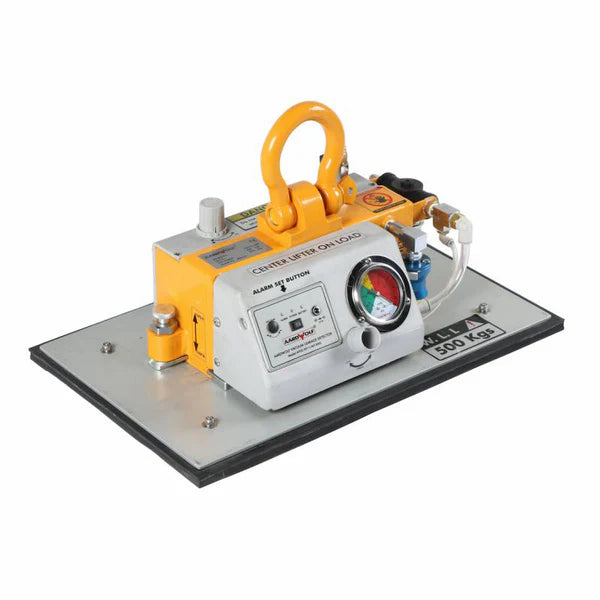

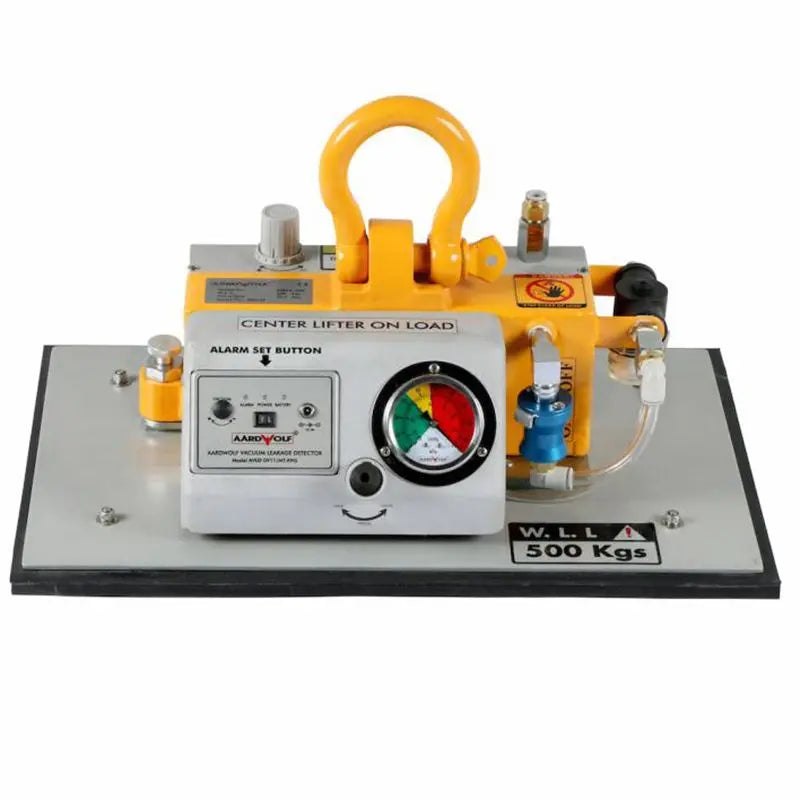

Aardwolf AHVL500 Handy Vacuum Lifter
Regular price
$2,430.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Aardwolf AHVL500 Handy Vacuum Lifter — a compact, hand-held lifter powered by a venturi vacuum generator for fast, controlled handling of panels. No electricity or lubrication is required, making it simple and low-maintenance for daily shop use.
Recommended for: granite, marble, engineered stone, polished concrete, and other smooth, non-porous panels (also suitable for dense foam and similar materials).
- Interchangeable vacuum pads to match different panel sizes and weights.
- Simple ON/OFF slide valve for quick attach and release.
- Independent low-vacuum acoustic alarm (9V) and easy-to-read vacuum gauge.
- Runs on shop air (venturi) — no electrical hookup; minimal maintenance.

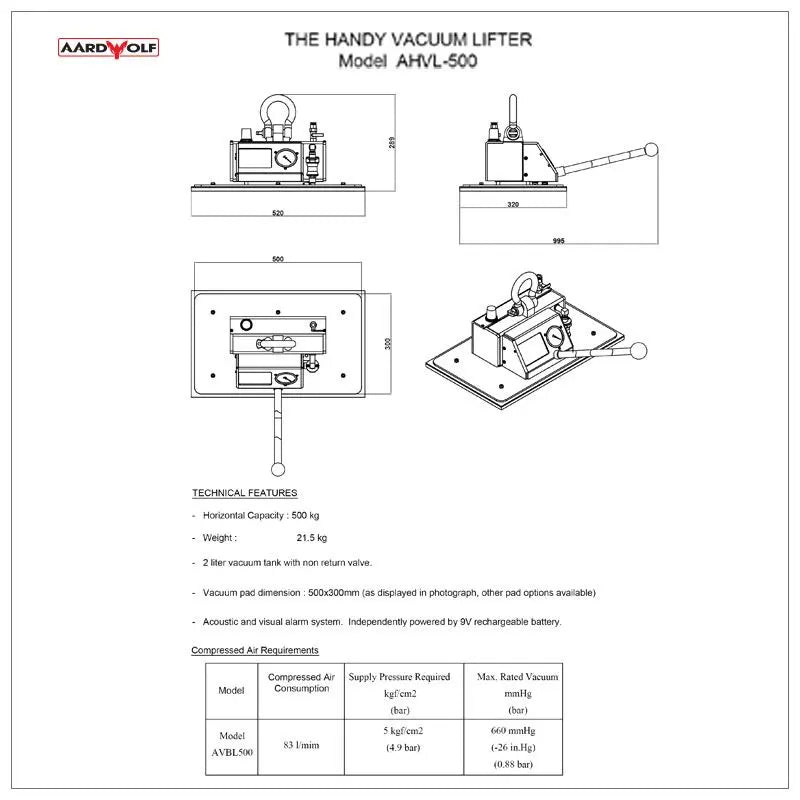

AHVL500 — Handy Vacuum Lifter
Specifications
| AHVL500 | Metric | Imperial |
|---|---|---|
| Capacity / WLL (by pad) | 520 × 125 mm — 120 kg 520 × 160 mm — 180 kg 520 × 220 mm — 280 kg 520 × 320 mm — 500 kg |
20.5″ × 5″ — 265 lb 20.5″ × 6.3″ — 397 lb 20.5″ × 8.7″ — 617 lb 20.5″ × 12.6″ — 1,102 lb |
| Jaw Opening / Clamping range | N/A (vacuum pad system) | |
| Net Weight | 21 kg | 46 lb |
| Packaging | 550 × 350 × 270 mm; Gross 26 kg | 21.7″ × 13.7″ × 10.6″; Gross 57 lb |
| Compressed Air Requirement | 5 bar; 180 L/min | ≈72 psi; ≈6.4 CFM |
