Aardwolf AGCE-1000 Portable Gantry Crane Electric
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf AGCE-1000 Portable Gantry Crane Electric
Description
Description

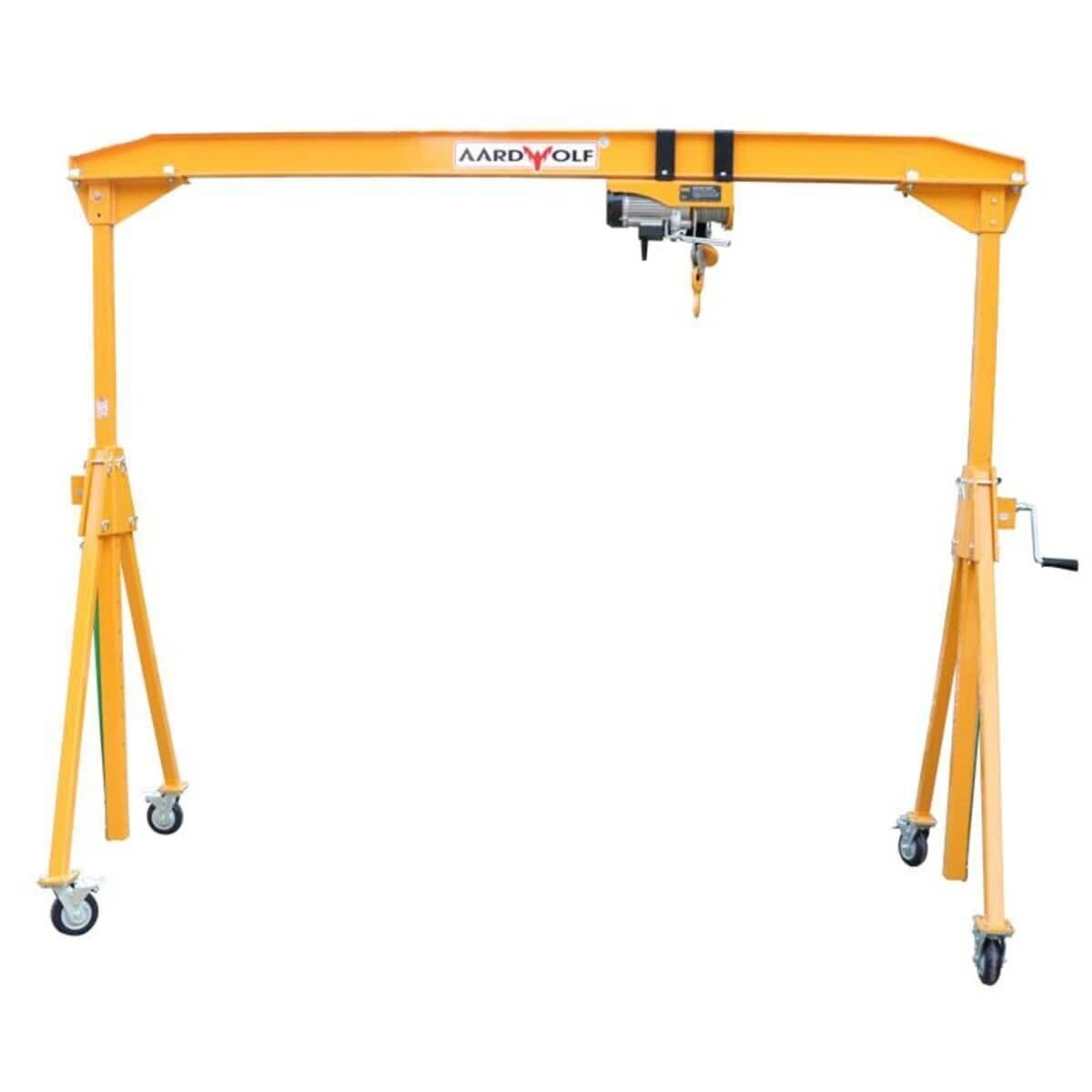

Made of aluminium, the Aardwolf Portable Gantry Crane is lightweight, portable and stable under load. No permanent installation is required. This device provides an economical lifting solution to lift materials inside the Portable Gantry Crane. This equipment can be used on construction sites as well as in factories. The Portable Gantry Crane has the ability to be adjusted in height, allowing users to use it for various purposes, such as transporting, lifting and lowering slab materials in different heavy-duty conditions. The height adjustment of the crane can be attained by using hand-wind handles supplied with the crane or by the use of a battery-powered drill.
Portable: The Gantry Crane is able to reach all corners of the plant. Attached to lifting equipment, the crane makes it easy to lift heavy loads.
Adjustable: The height of the Gantry Crane is adjustable up to 3.1m. This gives operators flexibility in operation.
Versatile: Thanks to its ability to assemble and disassemble easily and quickly, the Gantry Crane is easily transported or relocated, making it ideal for workflow changes.
Note : The price does not include an electric chain hoist with a manual trolley.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
AGCE-1000
| Property | Detail |
|---|---|
| Working Load Limit | 1,000 kg (2,205 lb) |
| Power requirements | Electric height adjustment via battery-powered drill drive (drill not included on base SKU); manual hand-crank also possible. Specific voltage not published for AGCE variant — N/A — not published by manufacturer |
| Net Weight | 154 kg / 339 lbs |
| Overall Dimensions | Max span 3,800 mm (150"); adjustable height up to 3,100 mm |
| Construction/Material | All-aluminum I-beam and uprights; locking casters |
| Compatible Materials | Stone slabs, glass, general shop loads (paired with hoist/vacuum lifter, sold separately) |
| Operation type | Portable, can be moved while loaded; assembles with 2 people |
| Country of Origin | Vietnam |
| Notes | Hoist and trolley sold separately. AGCE variant = electric-assisted height crank (drill-driven) vs. manual AGC-1000. |
| Max Span | 3,800 mm (150") |
- Read all product documentation and safety instructions before use.
- Inspect the unit and any accessories for damage or wear before each use.
- Verify the load is within the published Working Load Limit of the variant being used.
- Follow the manufacturer's recommended operating parameters and surface conditions.
- Always wear appropriate PPE: safety glasses, hearing protection, gloves, and steel-toe footwear.
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
