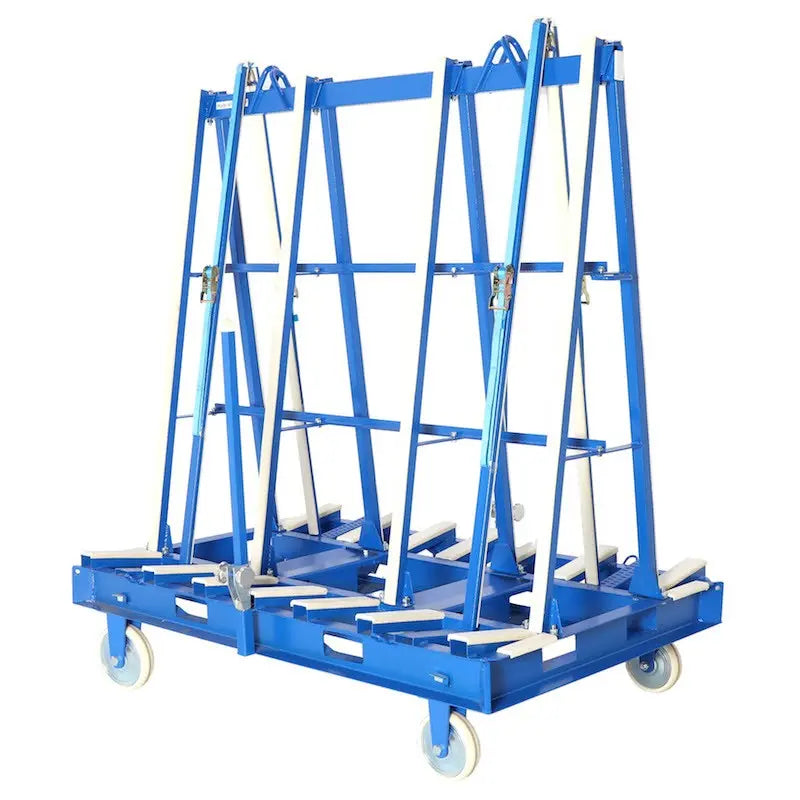

Aardwolf A-Frame Truck Lifter — AF Series
The Aardwolf A-Frame Truck Lifter is a portable transport frame for moving granite, marble, and glass slabs between sites and trucks. Slabs rest on rubber profiles and are secured by rubber-lined locking bars with ratchet straps. Available in four lengths to match common slab sizes.
Features
- Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.
- Load-bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.
- It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.
- It has four lifting points at the corner of the frame base for lifting loaded frames on and off trucks and onto building sites.
- Handles are located at the end of "A" frames.
- Wheels with brakes to ensure safety in operation.
- Four locking bars per frame are mounted in slotted holes on the bottom.
- A powder-coated finish ensures an aesthetic feature as well as the durability of the product.
AF1850QP — 73 in / 1,860 mm Length
| Property | Detail |
|---|---|
| Part Number | AF1850QP |
| Length | 73 in (1,860 mm) |
| Transport Capacity | 5,512 lb (2,500 kg) |
| Stationary Capacity | 8,818 lb (4,000 kg) |
| Weight | ~493 lb (223.5 kg) |
| Wheels | Four 7.87 in with brakes |
AF2440QP — 96 in / 2,440 mm Length
| Property | Detail |
|---|---|
| Part Number | AF2440QP |
| Length | 96.5 in (2,450 mm) |
| Width | 48.8 in (1,240 mm) |
| Height | 14.2 in (360 mm) |
| Transport Capacity (Wheels) | 5,512 lb (2,500 kg) |
| Eyelet/Bow Shackle Capacity | 6,614 lb (3,000 kg) |
| Stationary Capacity | 8,818 lb (4,000 kg) |
| Weight | 619 lb (281 kg) |
AF2750QP — 108 in / 2,750 mm Length
| Property | Detail |
|---|---|
| Part Number | AF2750QP |
| Length | ~108 in (2,750 mm) |
| Stationary Capacity | Up to 8,818 lb (4,000 kg) |
| Wheels | Four 7.87 in with brakes |
AF3500QP — 138 in / 3,500 mm Length — Heavy Duty
| Property | Detail |
|---|---|
| Part Number | AF3500QP |
| Length | 138 in (3,500 mm) |
| Width | 50 in (1,270 mm) |
| Height | 17.7 in (450 mm) |
| Stationary Capacity | 19,842 lb (9,000 kg) |
| Wheel Capacity | 17,637 lb (8,000 kg) |
| Weight | 1,499 lb (680 kg) |
- Roll the A-frame to the loading area and lock all wheel brakes.
- Lean slabs against the rubber profiles, heaviest piece nearest the spine.
- Position the locking bars across the load and tension the ratchet straps.
- For transport, lift via the top eyes or base points onto the truck bed.
- Tie down to the truck and re-check straps before driving.
- Wear gloves, hard hat, and steel-toe boots when handling slabs.
