Aardwolf A-Frame 1850QP
Aardwolf A-Frame 1850QP is designed for delivering heavy sheets of glass and stone to construction sites where a strong, heavy frame is needed to lift the complete load and frame together onto building sites. The fully loaded frame can easily be moved around the floors on different levels of construction sites.
Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.
Load bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.
It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.
Has four lifting points at the corner of the frame base for lifting loaded frames on and off trucks and onto building sites.
Handles are located at the end of “A” frames.
Wheels with brakes to ensure safety in operation.
Aardwolf A-Frame 1850QP has four locking bars per frame mounted in slotted holes on the bottom.
Powder-coated finish ensures an aesthetic feature as well as the durability of the product.
Aardwolf A-Frame 1850QP is a very versatile A-Frame that can be used not only for storing slabs on the shop, but also for transporting the finished pieces into the construction site, and it can be loaded onto truck by using a forklift or a crane. So, it represents a very wise addition to your set of tools.
See the Transport Frame in action

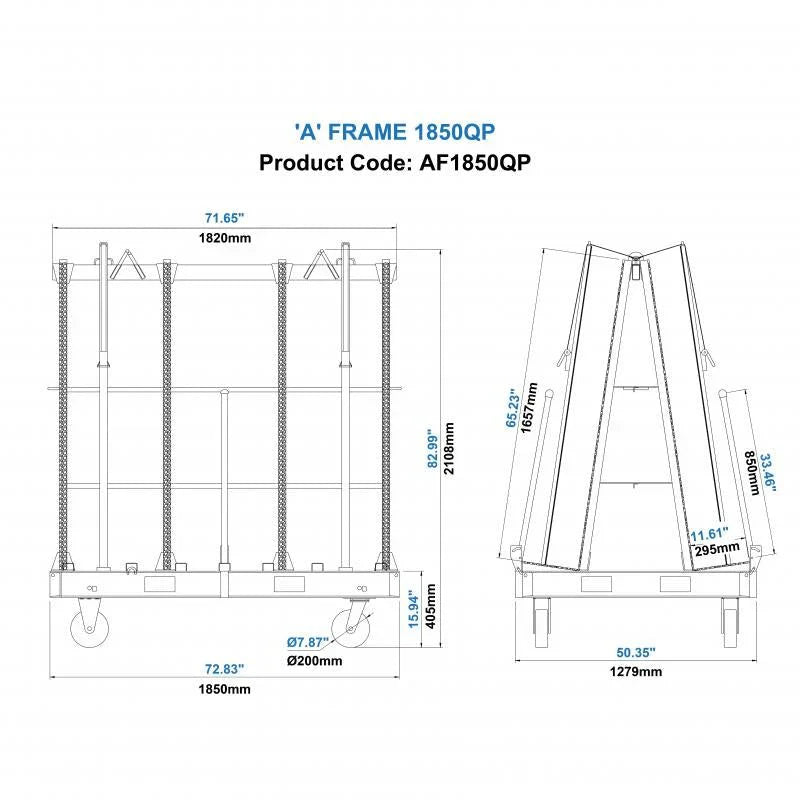

1850QP Technical Specifications
Feature
Metric (mm-kg)
Imperial (inch-lb)
Width of slab storage base area on each side
295
11.6”
Working load limit
Fork End: 1,100
2,425
Fork Side: 2,500
5,511
Eyelet: 2,500
5,511
Bow-Shackles:2,500
5,511
Wheels: 2,500
5,511
Stationary: 4,000
8,818
Net weight
246
542
Gross weight
252
556
Packaging dimension
1,850 x 1,300 x 360
72.8″ x 51.2″ x 14.2″‘
Aardwolf A-Frame 2440QP
Aardwolf A-Frame 2440QP is designed for delivering heavy sheets of glass and stone to construction sites where a strong, heavy frame is needed to lift the complete load and frame together onto building sites. The fully loaded frame can easily be moved around the floors on different levels of construction sites.
Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.
Load bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.
It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.
Has four lifting points at the corner of the frame base for lifting loaded frames on and off trucks and onto building sites.
Handles are located at the end of “A” frames.
Wheels with brakes to ensure safety in operation.
Aardwolf A-Frame 2440QP has four locking bars per frame mounted in slotted holes on the bottom.
A powder-coated finish ensures an aesthetic feature as well as the durability of the product.
Aardwolf A-Frame 2440QP is a very versatile A-Frame that can be used not only for storing slabs on the shop, but also for transporting the finished pieces into the construction site, and it can be loaded onto a truck by using a forklift or a crane. So, it represents a very wise addition to your set of tools.
