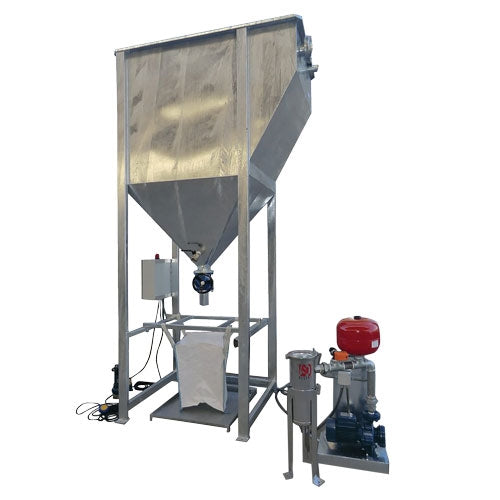

Weha 66 GPM Lamellar 250 Stone Water Clarifier — Vertical Lamellar Recycling System (TEC754)
The Weha Lamellar 250 is a complete water-recycling (clarification) plant for stone fabrication shops — not a stone-care chemical. Dirty saw and polishing water is pumped into a vertical lamellar clarifier where flocculant and coagulant additives drop the fines out, returning clarified water at 66 gallons per minute clean to 20–30 microns. Sludge is captured in filter bags for easy disposal.
| Property | Detail |
|---|---|
| Brand | Weha |
| Type | Vertical lamellar water clarification / recycling system |
| Flow rate | 66 GPM (250 LPM) |
| Clarification | 20–30 microns |
| Clarifier tank | 1,320-gallon vertical clarifier |
| Separation | Lamellar plate pack |
| Filter bag volume | 35 cu ft |
| Flocculant unit | 140 gallon |
| Coagulant unit | 26 gallon |
| Relaunching pump | 4 HP |
| Construction | Galvanized steel |
| Installation | Indoor or outdoor |
| Product weight | 3,000 lb |
| Article Number | TEC754 |
- Vertical lamellar clarifier recycles shop water clean to 20–30 microns at 66 GPM
- Automatic flocculant (140 gal) and coagulant (26 gal) dosing pumps included
- 35 cu ft filtering-bag volume captures sludge for easy dehydration and disposal
- Durable galvanized-steel construction for indoor or outdoor installation
- 4 HP relaunching pump returns clarified water to the machines
Closed-loop water recycling for stone fabrication shops running bridge saws, CNCs, edge polishers and other wet equipment — clarifies slurry water for reuse and captures solids for disposal.
Wear appropriate PPE. Follow manufacturer instructions and safety regulations.
